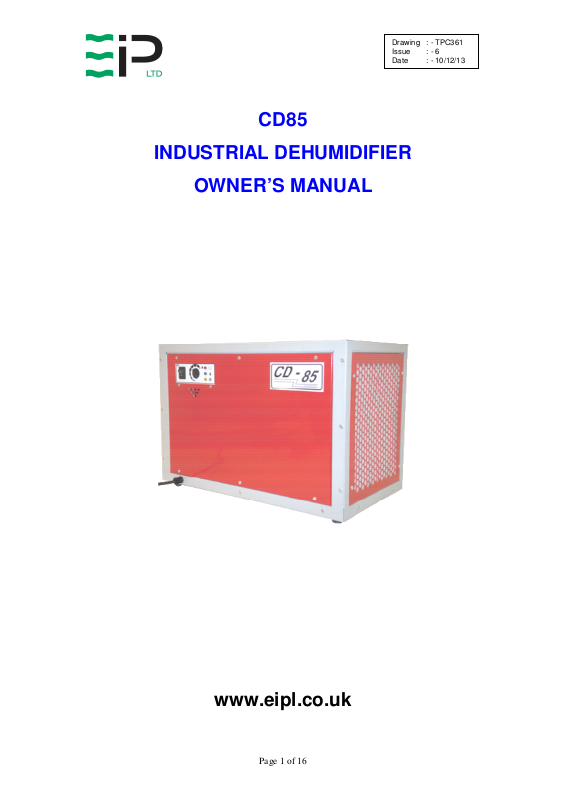

Ebac CD85 User Manual

Drawing : - TPC361 Issue : - 6 Date : - 10/12/13
CD85
INDUSTRIAL DEHUMIDIFIER
www.eipl.co.uk
Page 1 of 16
Drawing : - TPC361 Issue : - 6 Date : - 10/12/13
CD85
PACKAGE CONTENTS
Item Description Quantity
10293GR-US Dehumidifier 1
3014338 PVC Tube – 12mm I/D 3M
3086101 Jubilee clip 1
TPC361 Manual 1
Page 2 of 16
Drawing : - TPC361 Issue : - 6 Date : - 10/12/13
INTRODUCTION
Designed for a wide range of applications, the CD85 dehumidifier is a rugged, industrial unit which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying.
The CD85 has a number of special features:
Compact Size
High efficiency rotary compressor
Ebac’s “Hot Gas” defrost system
Exterior epoxy powder-coated finish
Provision for permanent drainage
All galvanized interior
Extra long power cord
Humidistat
The fan draws the moist air through the cold evaporator coil, which cools the air below its dew point. Moisture forms on the evaporator coil and is collected in the condensate tray, which is equipped with a permanent drain. The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by the compressor. The air is, therefore, discharged from the dehumidifier at a slightly higher temperature with a lower absolute humidity than that which entered. Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area.
The CD85 dehumidifier is a rugged, reliable drying unit designed to operate effectively over a broad range of temperature and humidity conditions. An active hot gas defrost system, controlled by an electronic timer, guarantees positive de-icing, thereby optimizing operation at low temperatures.
The unit incorporates a welded and galvanized steel chassis and is finished in an epoxy coating for resilience to damage caused by rough handling.
Page 3 of 16
Drawing : - TPC361 Issue : - 6 Date : - 10/12/13
COVERS
The CD85 covers can be swapped to allow the airflow direction to be changed to better suit the application the unit is to be used for. To change the covers, first remove the 4 off retaining screws and washers from each cover, swap cover positions and replace 4 off retaining screws and washers. If changing the evaporator covers then the filter retaining mesh should always be placed behind the Evaporator Grille Cover. This is held in place with 4off M3 hex head bolts. Evaporator Grille Cover and Evaporator Blanking Cover are interchangeable. Condenser Grille Cover and Condenser Blanking Cover are interchangeable. Evaporator and Condenser covers are not interchangeable. The different combinations available are shown below.
Evaporator Grille
Cover
(Air into machine)
Condenser Grille
Cover
(Air out of machine)
Evaporator Blank
Cover
(Blocks airflow)
Condenser Blank
Cover
(Blocks airflow)
Evaporator Grille
Cover
(Air into machine)
Condenser Blank
Cover
(Blocks airflow)
Evaporator Blank
Cover
(Blocks airflow)
Condenser Grille
Cover
(Air out of machine)
Page 4 of 16
Evaporator Blank
(Blocks Airflow)
Evaporator Blank
(Blocks Airflow)
Cover
Cover
Drawing : - TPC361 Issue : - 6 Date : - 10/12/13
Condenser Grille
Cover
(Air out of machine)
Condenser Blank
Cover
(Blocks airflow)
Evaporator Grille
Cover
(Air into Machine)
Condenser Blank
Cover
(Blocks airflow)
Evaporator Grille
Cover
(Air into Machine)
Condenser Grille
Cover
(Air out of Machine)
Page 5 of 16
