Ebac CD425 220V User Manual
Drawing : - TPC252
Issue : - 6
Date : - 10/12/13

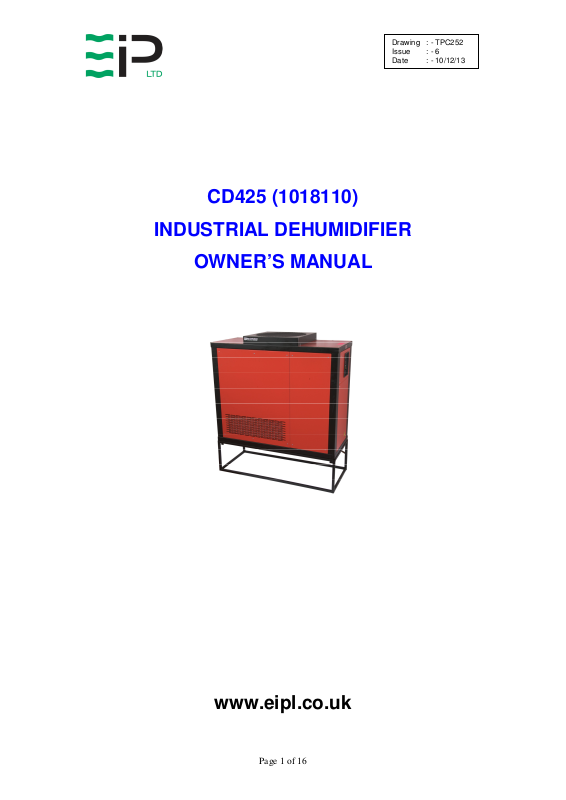

CD425 (1018110)
INDUSTRIAL DEHUMIDIFIER
OWNER’S MANUAL
www.eipl.co.uk
Page 1 of 16
Drawing : - TPC252
Issue : - 6
Date : - 10/12/13
CD425
PACKAGE CONTENTS
Item Description Quantity
1018110 Dehumidifier 1
3086119 Jubilee clip 2
3014315 Reinforced tubing – 16mm I/D 2 X 3M
TPC252 Manual 1
Page 2 of 16
Drawing : - TPC252
Issue : - 6
Date : - 10/12/13
Page 3 of 16
Drawing : - TPC252
Issue : - 6
Date : - 10/12/13
UNPACKING
Carefully remove the CD425 dehumidifier unit from its packing and visually
check for signs of transit damage. If there is evidence of damage DO NOT
attempt to operate the unit, call your supplier for advice. Do not discard the
packing, as it will be useful when transporting the dehumidifier unit in the
future.
INTRODUCTION
The Ebac CD425 dehumidifier removes moisture from the air that circulates
through it. The resulting reduction in relative humidity protects buildings and
their contents from the adverse effects of excess humidity.
The CD425 Dehumidifier comprises of:
a) A compressor
b) Refrigerant evaporator coils
c) Refrigerant condenser coils
d) Circulation fan
e) A drain tray for collecting and disposing of condensed moisture
f) A cabinet to house the above components.
The fan draws the moist air through the evaporator coils which cools the air
below its dew point. Moisture forms on the evaporator and is collected in the
condensate tray which leads away to a permanent drain. The cooled air then
passes through the hot condenser, where it is reheated using the same
energy removed during the cooling phase and the additional heat generated
by the compressor. The air is, therefore, discharged from the dehumidifier at a
slightly higher temperature, but a lower relative humidity, than that at which it
entered. Continuous circulation of air through the dehumidifier gradually
reduces the relative humidity within the area being dehumidified.
Where large amounts of moisture are required to be removed from the area,
more than one dehumidifier may be required, please contact your local
distributor for advice.
Page 4 of 16
Drawing : - TPC252
Issue : - 6
Date : - 10/12/13
SPECIFICATIONS
M
"This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. The
The Global Warming Potential (GWP) of refrigerants used in products manufactured by Ebac
For type and weight of refrigerant contained in this unit, please refer to the product data label"
T
AXIMUM OPERATING
T
P
OWER SUPPLY
R
refrigeration system is hermetically sealed.
Industrial Products Ltd is as follows
M
ODEL
H
EIGHT
W
IDTH
D
EPTH
W
EIGHT
A
IRFLOW
OTAL POWER
EMPERATURE
EFRIGERANT
C
HARGE
R134a – 1300
R407c – 1610
:
CD425
: 1193 mm (47”)
: 1092 mm (43”)
: 482 mm (19”)
: 160 kg (353 lbs)
1750 CFM
:
(2975M3/Hr)
:
3680 (MAX)
35ºC (95ºF)
:
:
220V 3PH 60Hz
: R407c
: 2.5Kg
Page 5 of 16
