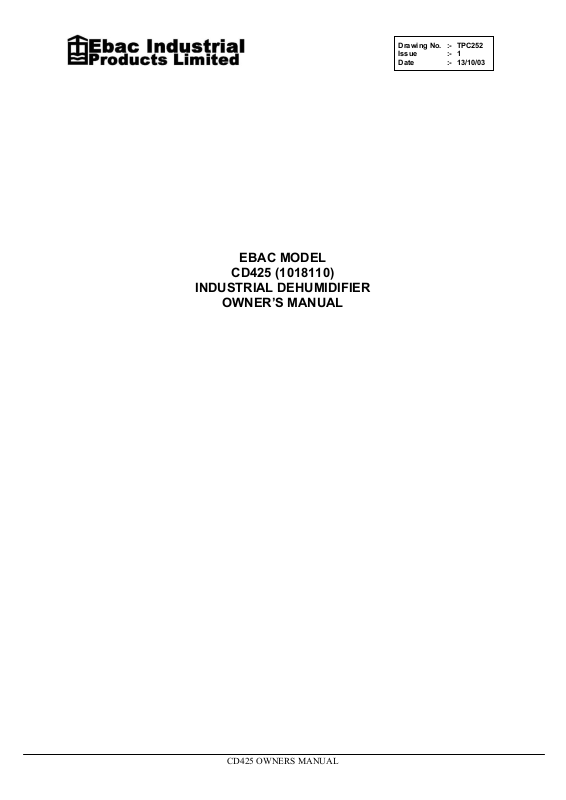

Ebac CD425 Owner's Manual

Drawing No. :- TPC252

/10/

Issue :- 1
Date :- 13

03

EBAC MODEL

CD425 (1018110)

INDUSTRIAL DEHUMIDIFIER

OWNER’S MANUAL

Ebac Industrial Products, Inc.

700 Thimble Shoals Blvd, Suite 109

Newport News, VA. 23606-2575

Tel: [phone] Fax: [phone]

Website www.ebacusa.com

CD425 OWNERS MANUAL

Drawing No. :- TPC252

/10/

Issue :- 1
Date :- 13

03

UNPACKING

Carefully remove the CD425 dehumidifier unit from its packing and visually check for signs of
transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your
supplier for advice. Do not discard the packing, as it will be useful when transporting the
dehumidifier unit in the future.

INTRODUCTION

The Ebac CD425 dehumidifier removes moisture from the air that circulates through it. The
resulting reduction in relative humidity protects buildings and their contents from the adverse
effects of excess humidity.

The CD425 Dehumidifier comprises of:

a) A compressor
b) Refrigerant evaporator coils
c) Refrigerant condenser coils
d) Circulation fan
e) A drain tray for collecting and disposing of condensed moisture
f) A cabinet to house the above components.

The fan draws the moist air through the evaporator coils which cools the air below its dew point.
Moisture forms on the evaporator and is collected in the condensate tray which leads away to a
permanent drain. The cooled air then passes through the hot condenser, where it is reheated
using the same energy removed during the cooling phase and the additional heat generated by
the compressor. The air is, therefore, discharged from the dehumidifier at a slightly higher
temperature, but a lower relative humidity, than that at which it entered. Continuous circulation
of air through the dehumidifier gradually reduces the relative humidity within the area being
dehumidified.
Where large amounts of moisture are required to be removed from the area, more than one
dehumidifier may be required, please contact your local distributor for advice.

CD425 OWNERS MANUAL

SPECIFICATIONS

MODEL:

HEIGHT:

CD425

1190 mm

Drawing No. :- TPC252
Issue :- 1
Date :- 13

/10/03

WIDTH:

DEPTH:

WEIGHT:

AIRFLOW:

TOTAL POWER:

MAXIMUM OPERATING

TEMPERATURE:

POWER SUPPLY:

REFRIGERANT:

CHARGE:

1100 mm

460 mm

160 kg

1750 CFM

(3000M/Hr)

6.0Kw (MAX)

35ºC (95ºF)

220V 3PH 60hz

R407c

2.5Kg
