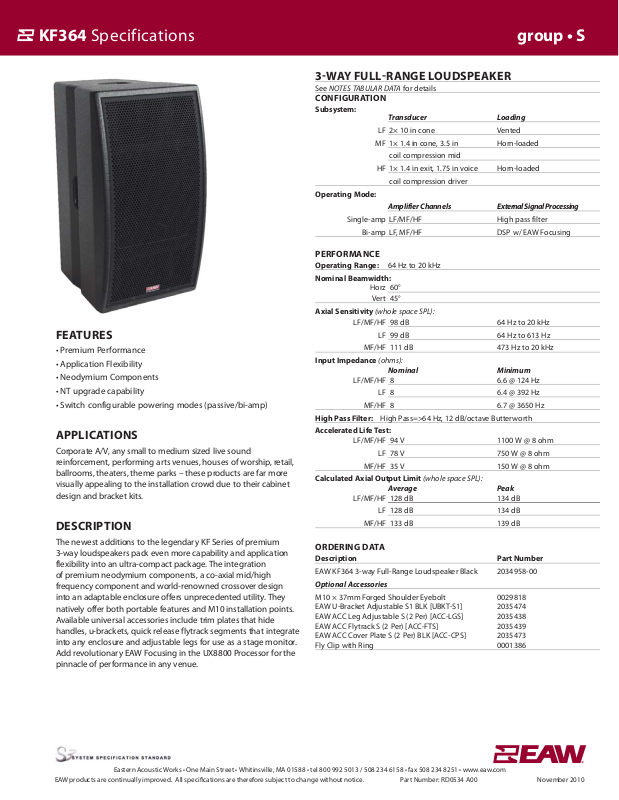

EAW KF364 Datasheet

KF364 Specifications group • S

3-WAY FULL-RANGE LOUDSPEAKER

See NOTES TABULAR DATA for details

CONFIGURATION

Subsystem:
Transducer Loading

LF 2× 10 in cone Vented

MF 1× 1.4 in cone, 3.5 in Horn-loaded

coil compression mid

HF 1× 1.4 in exit, 1.75 in voice Horn-loaded

coil compression driver

Operating Mode:

Amplifier Channels External Signal Processing

Single-amp LF/MF/HF High pass filter

Bi-amp LF, MF/HF DSP w/ EAW Focusing

PERFORMANCE

Operating Range: 64 Hz to 20 kHz

Nominal Beamwidth:

Horz 60°
Vert 45°

Axial Sensitivity (whole space SPL):
LF/MF/HF 98 dB 64 Hz to 20 kHz

FEATURES

• Premium Performance

• Application Flexibility

• Neodymium Components

• NT upgrade capability

• Switch configurable powering modes (passive/bi-amp)

APPLICATIONS

Corporate A/V, any small to medium sized live sound
reinforcement, performing arts venues, houses of worship, retail,
ballrooms, theaters, theme parks – these products are far more
visually appealing to the installation crowd due to their cabinet
design and bracket kits.

DESCRIPTION

The newest additions to the legendary KF Series of premium
3-way loudspeakers pack even more capability and application
flexibility into an ultra-compact package. The integration
of premium neodymium components, a co-axial mid/high
frequency component and world-renowned crossover design
into an adaptable enclosure offers unprecedented utility. They
natively offer both portable features and M10 installation points.
Available universal accessories include trim plates that hide
handles, u-brackets, quick release flytrack segments that integrate
into any enclosure and adjustable legs for use as a stage monitor.
Add revolutionary EAW Focusing in the UX8800 Processor for the
pinnacle of performance in any venue.

LF 99 dB 64 Hz to 613 Hz

MF/HF 111 dB 473 Hz to 20 kHz

Input Impedance (ohms):
Nominal Minimum
LF/MF/HF 8 6.6 @ 124 Hz

LF 8 6.4 @ 392 Hz

MF/HF 8 6.7 @ 3650 Hz

High Pass Filter: High Pass=>64 Hz, 12 dB/octave Butterworth

Accelerated Life Test:

LF/MF/HF 94 V 1100 W @ 8 ohm

LF 78 V 750 W @ 8 ohm

MF/HF 35 V 150 W @ 8 ohm

Calculated Axial Output Limit (whole space SPL):
Average Peak
LF/MF/HF 128 dB 134 dB

LF 128 dB 134 dB

MF/HF 133 dB 139 dB

ORDERING DATA

Description Part Number

EAW KF364 3-way Full-Range Loudspeaker Black 2034958-00

Optional Accessories

M10 × 37mm Forged Shoulder Eyebolt 0029818
EAW U-Bracket Adjustable S1 BLK [UBKT-S1] 2035474
EAW ACC Leg Adjustable S (2 Per) [ACC-LGS] 2035438
EAW ACC Flytrack S (2 Per) [ACC-FTS] 2035439
EAW ACC Cover Plate S (2 Per) BLK [ACC-CPS] 2035473
Fly Clip with Ring 0001386

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com

November 2010Part Number: RD0534 A00EAW products are continually improved. All speci cations are therefore subject to change without notice.

KF364 Specifications group • S

C

DATECHANGE NUMBERREV

10/12/10ECOWHT6973A

4

B

KF364

KF394

309.6

[12.19]

34.5

[1.36]

BACK

INPUT

PANEL

ACCESS

3

387.4 [15.25] TSC

435.0 [17.13]

[6.00]

PULL BACK

POINT

A

REVISION:

0.065

SCALE:

www.eaw.com

DWG CUSTOMER KF364 KF394

TITLE:

FOR REF ONLY

DUAL [INCHES] DIMENSIONS

TOLERANCE IN MILLIMETERS

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN MILLIMETERS

1 1

SHEET OF

A

[MECHANICAL SPECIFICATION]

ANGLES ± 1°

LINEAR ± 3.3 mm / ± 0.13 in

DRAWING NUMBER:

(X.XX) = REF DIMS

TO BE SYMMETRICAL

NO TOLERANCE IMPLIED

DIMENSIONS ACROSS CENTERLINES

TSC = THEORETICAL SHARP CORNER

A

PRO ENGINEER

2034960-CD

34

3X 152.4

2

1

225.0 [8.86] TSC

273.3 [10.76]

200.0

[7.87]

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. SYMBOL INDICATES MOUNTING POINT,

M10 THREADED HOLE.

3. SYMBOL INDICATES MOUNTING POINT,

M10 THREADED HOLE FOR

OMNIMOUNT 120.0 SERIES.

4. WEIGHT APPROX. 29 kg [65.0 lb]

5. SHIPPING WEIGHT APPROX. 34 kg [75.0 lb]
HANDLE

44.29[]

(R )1124.9

190.5

[7.50]

152.4 [6.00]

200.0

[7.87]

TOP

2X 20.3°

354.1

[13.94]

647.7

HANDLE

360.6 TSC

[14.20]

[25.50]

THIRD ANGLE PROJECTION

TO BOTH SIDES

RIGHT SIDE

DIMENSIONS APPLY

ALL RIGHTS RESERVED

LOUD TECHNOLOGIES, INC.

CONFIDENTIAL PROPERTY OF

HEREIN IS PROPRIETARY AND

THE INFORMATION CONTAINED

2

TOP

HAT

FRONT

BOTTOM

1

200.0

152.4

[6.00]

[7.87]

GRILLE NOT SHOWN FOR CLARITY

C

B

NOTE: This drawing has been reduced. Do not scale.

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com

A

November 2010Part Number: RD0534 A00EAW products are continually improved. All speci cations are therefore subject to change without notice.

KF364 Specifications group • S

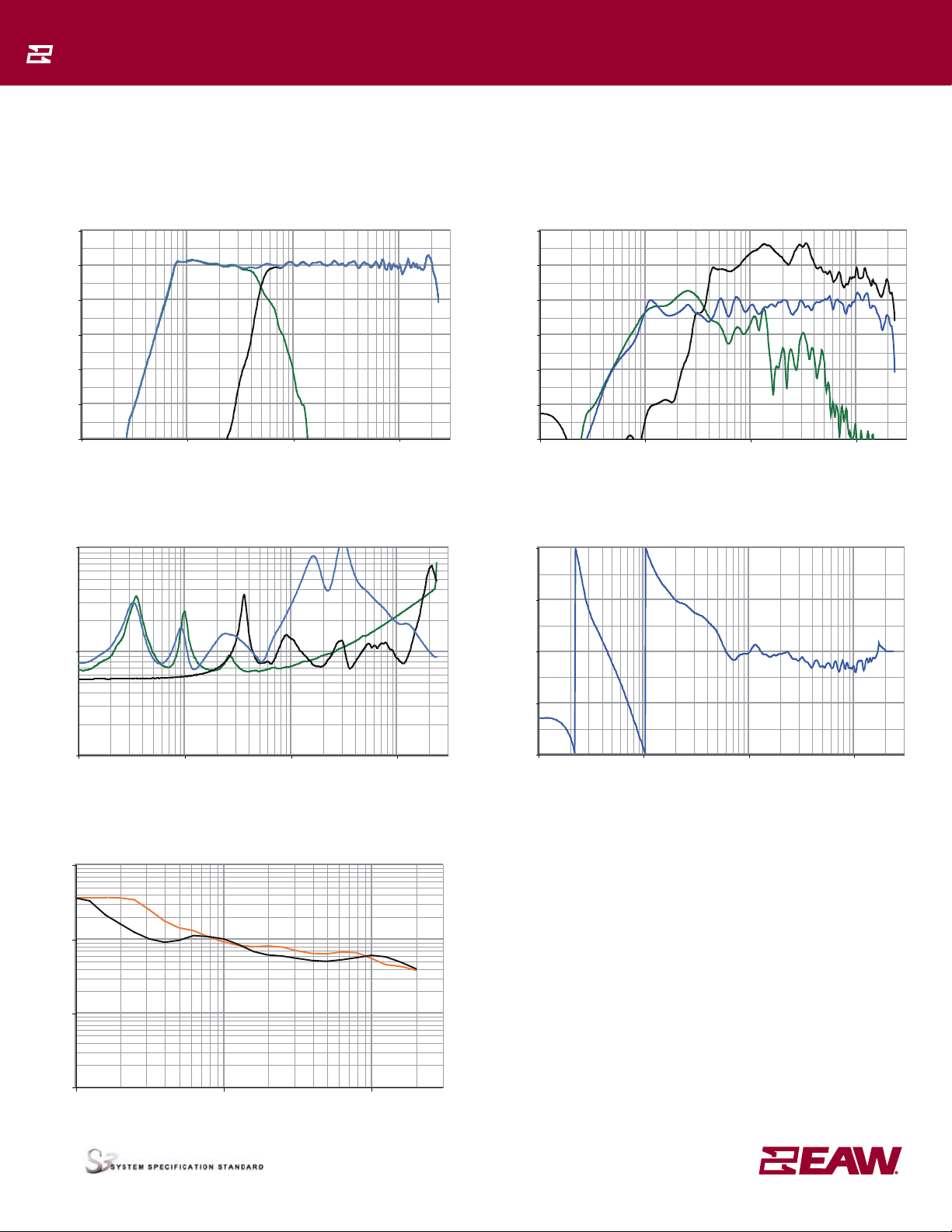

PERFORMANCE DATA

See NOTES GRAPHIC DATA for details

Frequency Response: Processed Multi-Amp

LF = green, HF = black, Complete = blue

10

0

-10

-20

SPL (dB)

-30

-40

-50
10 100 1000 20000

Frequency (Hz) Frequency (Hz)

Impedance

LF = green, HF = black, Complete = blue

100

10

Degrees

1

10 100 1000 20000

Frequency (Hz)

Frequency Response: Unprocessed

LF = green, HF = black, Complete = blue

120

110

100

90

SPL (dB)SPL (dB)

80

70

60

10 100 1000 20000

Phase Linearity

Complete = blue

180

135

90

45

-0

-40

-90

135

180

10 100 1000 20000

Frequency (Hz)

Beamwidth

Horizontal = orange Vertical = black

360

100

Degrees

10

1

100 1000 20000

Frequency (Hz)

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com

November 2010Part Number: RD0534 A00EAW products are continually improved. All speci cations are therefore subject to change without notice.

KF364 Specifications group • S

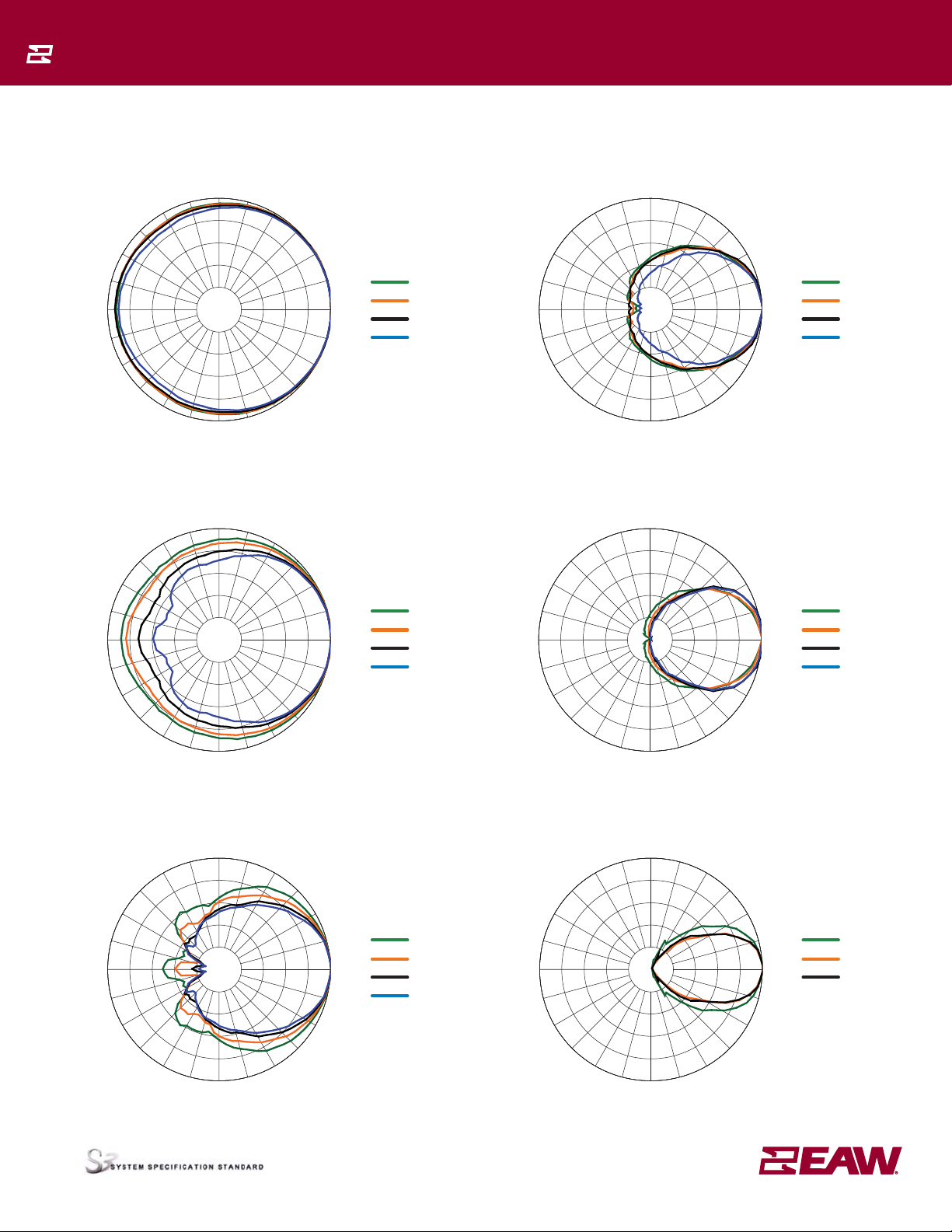

HORIZONTAL POLAR DATA

See NOTES GRAPHIC DATA for details

180˚

180˚

135˚

-135˚

135˚

90˚

-90˚

90˚

45˚

-45˚

45˚

90˚

135˚

100Hz

0˚

0˚

125Hz

160Hz

200Hz

250Hz

315Hz

400Hz

500Hz

180˚

-135˚

-90˚

90˚

135˚

180˚

45˚

-45˚

45˚

1600Hz

0˚

0˚

2000Hz

2500Hz

3150Hz

4000Hz

5000Hz

6300Hz

8000Hz

180˚

-135˚

135˚

-135˚

-90˚

90˚

-90˚

-45˚

45˚

-45˚

-135˚

-90˚

90˚

135˚

630Hz

0˚

800Hz

1000Hz

1250Hz

180˚

-135˚

-90˚

-45˚

45˚

-45˚

10000Hz

0˚

12500Hz

16000Hz

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com

November 2010Part Number: RD0534 A00EAW products are continually improved. All speci cations are therefore subject to change without notice.

KF364 Specifications group • S

VERTICAL POLAR DATA

See NOTES GRAPHIC DATA for details

180˚

180˚

135˚

-135˚

135˚

90˚

-90˚

90˚

45˚

-45˚

45˚

90˚

135˚

100Hz

0˚

0˚

125Hz

160Hz

200Hz

250Hz

315Hz

400Hz

500Hz

180˚

-135˚

-90˚

90˚

135˚

180˚

45˚

-45˚

45˚

1600Hz

0˚

0˚

2000Hz

2500Hz

3150Hz

4000Hz

5000Hz

6300Hz

8000Hz

180˚

-135˚

135˚

-135˚

-90˚

90˚

-90˚

-45˚

45˚

-45˚

-135˚

-90˚

90˚

135˚

630Hz

0˚

800Hz

1000Hz

1250Hz

180˚

-135˚

-90˚

-45˚

45˚

-45˚

10000Hz

0˚

12500Hz

16000Hz

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com

November 2010Part Number: RD0534 A00EAW products are continually improved. All speci cations are therefore subject to change without notice.

KF364 Specifications group • S

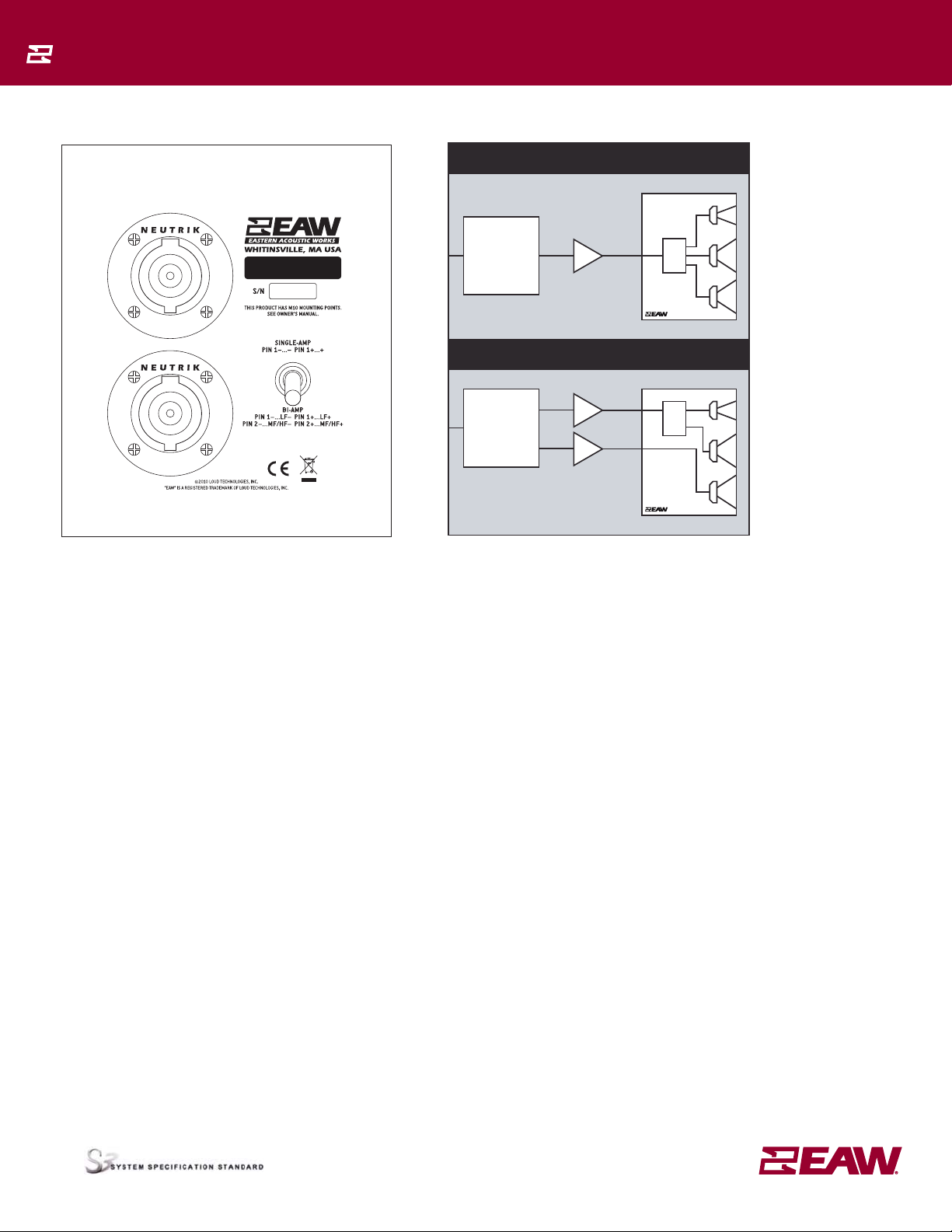

INPUT PANEL SIGNAL DIAGRAM

3-Way, Single-Amp (LF/MF/HF)

HF

HPF

AMP

XVR

MF

LF

3-Way, Bi-Amp (LF, MF/HF)

EAW

FOCUSING

AMP

AMP

XVR

HF

MF

LF

LEGEND

DSP: EAW UX8800 Digital Signal Processor –or– Integral Digital Signal Processing for NT products.
HPF: High Pass Filter for crossover –or– Recommended High Pass Filter.
LPF: Low Pass Filter for crossover.
LF/MF/HF: Low Frequency / Mid Frequency / High Frequency.
AMP: User Supplied Power Amplifier –or– Integral Amplifier for NT products.
XVR: Passive LPFs, HPFs, and EQ integral to the loudspeaker.

NOTES

TABULAR DATA

1. Measurement/Data Processing Systems: Primary - FChart: proprietary EAW software; Secondary - Brüel & Kjær 2012.

2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133

3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.

4. Measurement System Qualifi cation (includes all uncertainties): SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %, precision +/-0.1

Hz, resolution the larger of 1.5 Hz or 1/48 octave; Time: accuracy +/-10.4 μs, precision +/-0.5 μs, resolution 10.4 μs; Angular: accuracy +/-1°, precision +/-0.5°, resolution 0.5°.

5. Environment: Measurements time-windowed and processed to eliminate room effects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.

6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.

7. Enclosure Orientation: For beamwidth and polar specifi cations, as shown in Mechanical Specifi cation drawing.

8. Volts: Measured rms value of the test signal.

9. Watts: Per audio industry practice, “loudspeaker watts” are calculated as voltage squared divided by rated nominal impedance. Thus, these are not True Watt units of energy as defi ned

by International Standard.

10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.

11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.

12. Operating Mode: User selectable confi gurations. Between system elements, a comma (,) = separate amplifi er channels; a slash (/) = single amplifi er channel. DSP = Digital Signal Processor.

IMPORTANT: To achieve the specifi ed performance, the listed external signal processing must be used with EAW-provided settings.

13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band

dips are excepted.

14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.

15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on

the geometric axis, referenced to 1 m.

16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.

17. Accelerated Life Test: Maximum test input voltage applied with an EIA-426B defi ned spectrum; measured with recommended signal processing and Recommended Protection Filter.

18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.

19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.

GRAPHIC DATA

1. Resolution: To remove insignifi cant fi ne details, 1/12 octave cepstral smoothing was applied to acoustic frequency responses and 1/3 octave cepstral smoothing was applied to the beamwidth and

impedance data. Other graphs are plotted using raw data.

2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance), 2.83 V (8

ohm nominal impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.

3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.

4. Beamwidth: Average angle for each 1/3 octave frequency band where, starting from the rear of the loudspeaker, the output fi rst reaches -6 dB SPL referenced to 0 dB SPL as the highest level. This method

means the output may drop below -6 dB SPL within the beamwidth angle.

5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not be used to calculate True Watts (see 9 above).

6. Polar Data: Horizontal and vertical polar responses for each 1/3 octave frequency band 100 Hz to 16 kHz or Operating Range.

EAW Focusing: Digital Signal Processor capable of implementing EAW Focusing.
