J F L 2 1 0 S p e c i f i c a t i o n s

group · J

FEATURES

Constant curvature line array

Very easy to pole mount, fly and ground stack

Vertical arrays of up to six units may be constructed

High output capability and predictable pattern control

DESCRIPTION

The JFL210 compact line array module features a range of EAW’s most innovative line array technologies within a mobile, light weight package that’s an ideal solution for a multitude of smalland medium-sized applications, including portable and installed A/V as well as musician/DJ systems. Incorporating constant curvature line array design principles, JFL210 modules form easily configured arrays with very predictable coverage that is both horizontally symmetric and consistent from short to long throws.

The JFL210’s size, shape and weight are optimized for transport and setup by one person. Side handles are integrated with the rigging system and are aligned with the enclosure’s center of gravity for superior balance and stability. Up to two JFL210s may be mounted on a loudspeaker stand with a 35 mm / 1.38 in diameter pole. Dual-angle, integral pole mount holes allow the bottom enclosure to be aimed 0° or -15°.

The JFL210’s ultra-strong rigging system has a 10:1 design factor, which meets or exceeds all standards enforced throughout the world. The rigging is simple to use – enclosures may be easily joined together by one person acting alone. For portable, flown applications the accessory FB121 Fly Bar will suspend up to six JFL210 and allow a wide range of array tilt angles to be readily achieved. The FB121 also doubles as a ground stack base for up to four JFL210s. Alternately, a pair of threaded M10 rigging points are available on the enclosure’s top and bottom panels for cost-sensitive permanent install applications.

Users may switch between singleor bi-amp powering modes. An additional HF Shading switch is active in single-amp mode. It optimizes high frequency response for single-box or multi-box arrays, or inserts a correction filter for the high frequency air loss encountered in long throw applications. When the JFL210 is operated in bi-amp mode the HF Shading filters are applied in DSP.

Dual Neutrik® Speakon® STX Series NL4 jacks are provided for system input. The STX Series’ all-metal housings are extremely rugged, and provide weather protection to IP54 when mated with a complementary STX Series cable connector. The powering mode and HF Shading switches are recessed and shrouded with a rubber boot for additional weather protection.

While the JFL210 offers excellent performance with nearly any loudspeaker processor, its response can be optimized even more precisely with an EAW UX8800 4×8 digital processor. The UX8800 functions as an excellent overall system manager, processor and controller, while its Gunness Focusing alignment and driver processing algorithms dramatically enhance temporal performance.

Overall construction matches the high standards long applied to EAW portable and touring products. Enclosures are protected by our tough, highly scratch-resistant RoadCoat™ finish and durable, foam-backed steel grilles protect the transducers while hiding them from view.

Six year warranty.

2-Way full-range, 110° × 15°

See NOTES TABULAR DATA for details

Configuration

Subsystem:

Transducer

Loading



LF

2 x 10 in cone

Vented

HF

1 x 1.4 in exit, 3 in voice

Horn-loaded



coil compression driver



Operating Mode:







Amplifier Channels

External Signal Processing

Single-amp

LF/HF

High Pass Filter

Bi-amp

LF,HF

DSP w/2-way filters

PERFORMANCE





Operating Range: 65 Hz to 18.5 kHz

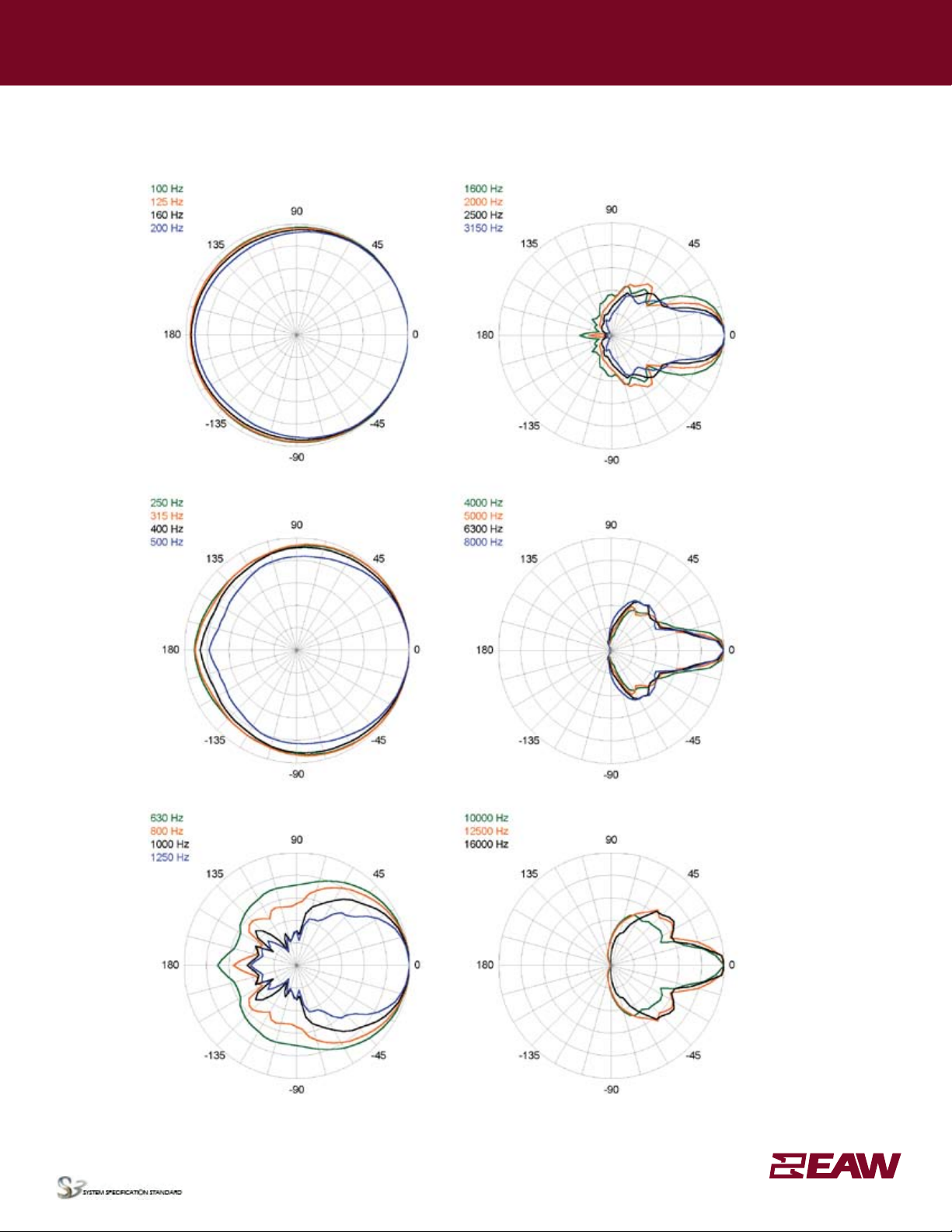

Nominal Beamwidth:



Horz 110°



Vert

15°



Axial Sensitivity (whole space SPL):



LF/HF

95 dB

65 Hz to 18.5 kHz

LF

95 dB

65 Hz to 971 Hz

HF

105 dB

708 Hz to 18.5 kHz

Input Impedance (ohms):





Nominal

Minimum

LF/HF

8

6.5 @ 280 Hz

LF

8

10.9 @ 270 Hz

HF

8

9.6 @ 4470 Hz

High Pass Filter: High Pass>=60 Hz, 12 dB/octave Butterworth

Accelerated Life Test:



LF/HF

80 V

800 W @ 8 ohm

LF

80 V

800 W @ 8 ohm

HF

35 V

150 W @ 8 ohm

Calculated Axial Output Limit (whole space SPL):



Average

Peak

LF/HF

124 dB

130 dB

LF

124 dB

130 dB

HF

127 dB

133 dB

ORDERING DATA



Description



Part Number

EAW JFL210 Black



0029139-90

Optional Accessories



EAW FB121 Fly Bar Black

0031170

M10 x 1.5 Forged Shoulder Eyebolt

0029818

Eastern Acoustic Works •One Main Street •Whitinsville, MA 01588 •tel 800 992 5013 / 508 234 6158 •fax 508 234 8251 •www.eaw.com

EAW products are continually improved. All specifications are therefore subject to change without notice.

Part Number: RD0480 (A) JFL210

September 2008

EAW JFL210 User Manual

change to subject therefore are specifications All .improved continually are products EAW

Main One • Works Acoustic Eastern

.notice without

Whitinsville, • Street

Number: Part

6158 234 508 / 5013 992 800 tel • 01588 MA

JFL210 (A) RD0480

8251 234 508 fax •

2008 September

com.eaw.www •

.scale not Do .reduced been has drawing This NOTE:

1



2









2X STACK PAD ROUTS

2X 301.4 397.2 [11.86] [15.64] TSC

C

3





4







REV

DESCRIPTION

APVD/DATE











A

RELEASED TO PRODUCTION FROM

SEE AGILE

REV 2 PER DSRWH10052 SED 9/24/08















NOTES:

1.SYMBOL INDICATES MOUNTING POINT, M10 X 1.5 THREADED HOLE (PI ANGLE).



OL









2. SYMB





INDICATES CENTER OF BALANCE.









3.

WEIGHT

APPROX. 23.6 kg [52 lb].

C

4.

SHIPPING WEIGHT APPROX. 26.8 kg [59 lb].



216.9

2X 24.8

[8.54]

TOP





631.0









239.3

2X HANDLES



493.0



2X 127.9





[24.84]







[9.42]

PROPRIETARY



[19.41]



















RIGGING SYSTEM







[5.04]



2X 288.8







15.0

















314.2

[11.37]



GRILLE



















[12.37]

TSC



156.0



A















PARTIALLY





















SHOWN

[6.14]











175.0

























FRONT







A









INPUT

[6.89]



B















265.0

















173.5







BACK





B



2X 537.0







[6.83]







[10.43]









[21.14]







213.6

























































[8.41]



















2X 248.4



175.9

228.0

RIGHT SIDE

















[9.78]



[6.92]

[8.98]

DIMENSIONS APPLY



























TO BOTH SIDES















2X STACK



















JFL210









PADS



POLE MOUNT CUPS

















VIEW A-A

THIRD ANGLE PROJECTION



UNLESS OTHERWISE SPECIFIED:

STATUS:

PRODUCTION



LOUD Technologies Inc.





A









ALL DIMENSIONS ARE IN MILLIMETERS

APPROVALS

DATE













DUAL [INCHES] DIMENSIONS

ONE MAIN STREET, WHITINSVILLE, MA 01588 USA

A











FOR REF ONLY

DRAWN: S. DESROSIERS

2/12/08

TITLE:

















LINEAR ± 3.3 mm / ± 0.13 in

DWG CUSTOMER JFL210















TOLERANCE IN MILLIMETERS





























ANGLES ± 1°

CHECKED:





[MECHANICAL SPECIFICATION]







THE INFORMATION CONTAINED



(X.XX) = REF DIMS





A

































NO TOLERANCE IMPLIED









SCALE:









HEREIN IS PROPRIETARY AND







SHEET 1 OF 1



























CONFIDENTIAL PROPERTY OF

TSC = THEORETICAL SHARP CORNER

DES. ENG.





1 TO 12



















LOUD TECHNOLOGIES, INC.











DRAWING NUMBER:

REVISION:







ALL RIGHTS RESERVED



DIMENSIONS ACROSS CENTERLINES





















TO BE SYMMETRICAL

MFG. ENG:







0028400-CD

A













2













1











3





4

PRO ENGINEER

steel perforated coated-Powder Grille



textured resistant wear RoadCoat™ Finish



Enclosure plywood birch Baltic Material
