SPECIFICATIONS KF360z
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. KF360z/0002676/2 pp April 2002 Printed in USA
Part Number 0001326
LF Subsystem & Loading 1x 12-in, vented
MF Subsystem & Loading 1x 7-in horn-loaded cone
HF Subsystem & Loading 1x 1.4-in exit/2.5-in diaphragm
compression driver on constant
directivity horn
System Configuration 3-way, full-range
Powering Configuration(s) Switchable full-range or bi-
amplified (passive LF/MF
crossover)
Controls (switches, knobs) Powering mode switch
Recommended High-Pass
Frequency (12 dB/octave) 80 Hz
Enclosure Materials
Exterior grade Baltic birch plywood
Finish
Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Mounting Hardware 6x 3-position flytracks with
integral 3/8”-16 threaded
mounting/suspension points
(3 each top & bottom), recessed
cup for standmount
Grille Powder coated perforated steel,
foam backed
Frequency Response (Hz)
±3 db 100 Hz to 20 kHz
-10 dB 80Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
Passive 92
LF/MF 91
HF 103
Impedance (Ohms)
Passive 4
LF/MF 4
HF 8
Power Handling, AES Standard (Watts)
Passive 750
LF/MF 750
HF 200
Calculated Maximum Output (dB SPL, @ 1m)
Full Range Peak 127.0
Bi-amped LF/MF Peak 126.0
Bi-amped HF Peak 132.0
Full Range Long Term 121.0
Bi-amped LF/MF Long Term 120.0
Bi-amped HF Long Term 126.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 65
Vertical 45
PHYSICAL
A 3-way full range loudspeaker in a vented trapezoidal enclosure. Includes a 12-in woofer, a horn-loaded 7-in midrange
cone with Radial Phase Plug™, and a 1.4-in exit compression
driver on a 65° x 45° constant directivity horn. The internal
crossover is user-switchable for either passive or bi-amp operation (with a passive LF/MF crossover). The enclosure has six
fly points, three each top and bottom, plus an integral pole
mount cup. Handles are located for the best balance when
carrying.
The KF360z is one of the smallest, full-range, 3-way loudspeakers available. It is particularly suited for portable or
installed applications, including band PA, club systems, corporate AV, and theatrical productions. The midrange section
incorporates a 7-in radial phase plug based on EAW’s patented 10-in Radial Phase Plug™ used in other KF Series prod u cts.
This design produces a time-coherent midrange wavefront
that is critical to ensuring good vocal articulation. The
appearance of the KF360z is enchanced with a curved gille
that matches other KF300 as well as companion KF600 Series
products. Six year warranty.
DESCRIPTION
APPLICATION
PERFORMANCE
SPECIFICATIONS KF360z

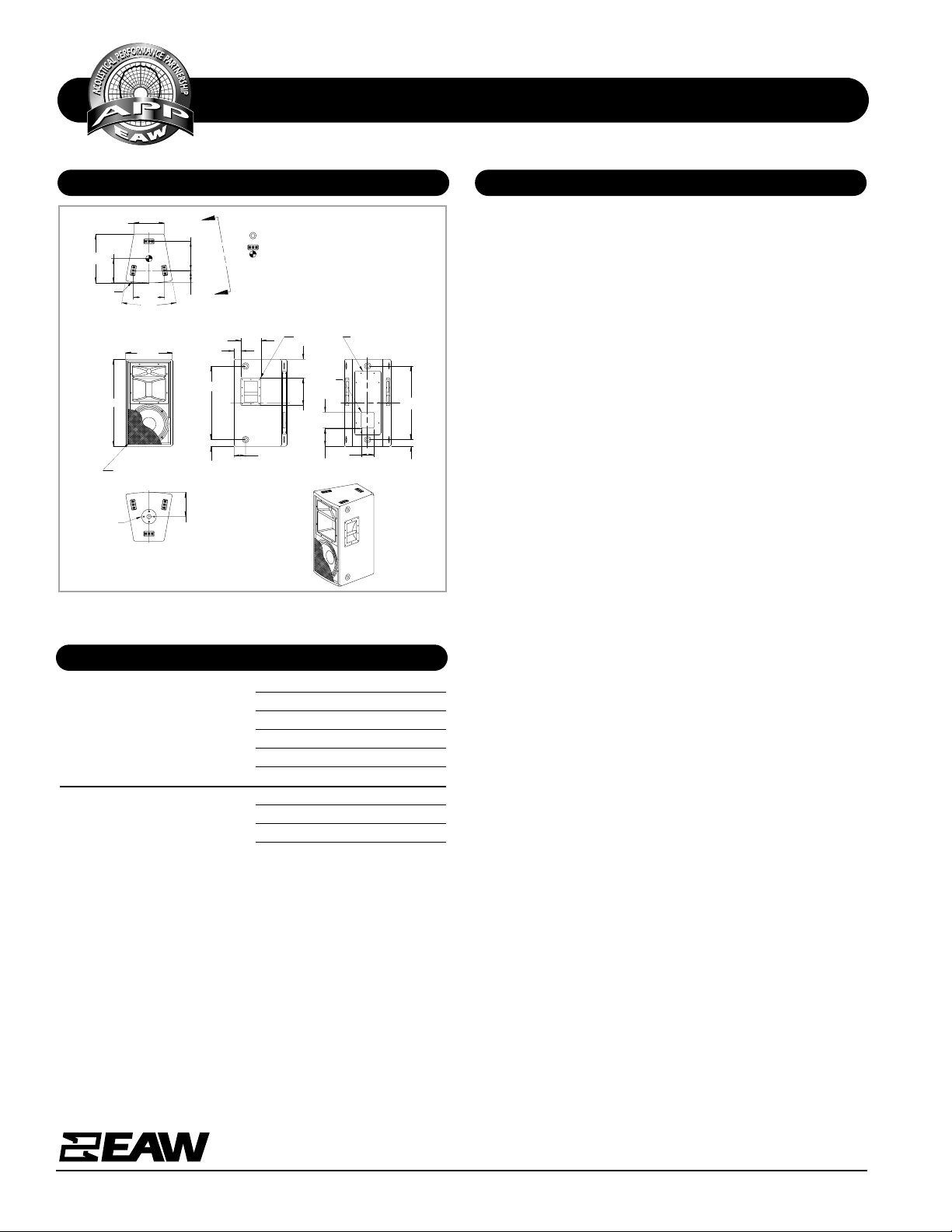

DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. KF360z/0002676/2 pp April 2002 Printed in USA
The 3-way full-range loudspeaker shall incorporate a vented
12-in LF transducer, a 7-in horn-loaded cone MF transducer
with Radial Phase Plug™, and a 1.4-in exit / 2.5-in diagphragm HF compression driver on a constant directivity horn.
The MF/HF horn shall have a nominal beamwidth of 65° (h) x
45° (v).
System frequency response shall vary no more than ±3 dB
from 100 Hz to 20 kHz measured on axis. In passive mode,
the loudspeaker shall produce a sound pressure level (SPL) of
92 dB SPL on axis at 1 meter with a power input of 1 watt,
and shall be capable of producing a peak output of 127 dB
SPL on axis at 1 meter. It shall handle 750 watts of amplifier
power (AES Standard) and shall have a nominal impedance of
4 ohms.
In bi-amped mode, the LF/MF section shall produce a sound
pressure level (SPL) of 91 dB SPL on axis at 1 meter with a
power input of 1 watt, and shall be capable of producing a
peak output of 126 dB SPL on axis at 1 meter. It shall handle
750 watts of amplifier power (AES Standard) and shall have a
nominal impedance of 4 ohms. In addition, the HF section in
bi-amped mode shall produce a sound pressure level (SPL) of
103 dB SPL on axis at 1 meter with a power input of 1 watt,
and shall be capable of producing a peak output of 132 dB
SPL on axis at 1 meter. It shall handle 200 watts of amplifier
power (AES Standard) and shall have a nominal impedance of
8 ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of exterior grade Baltic birch plywood
and shall employ extensive internal bracing. It shall be finished in wear resistant te xtured black pain t. Input conn ectors
shall be 2x Neutrik NL4 Speakon. The system shall include a
switch allowing it to be operated in passive or bi-amp powering mode. A total of six 3-position flytracks with integral
3/8"-16 threaded mounting/suspension points (3 each top
and bottom) shall be provided. The front of the loudspeaker
shall be covered with a powder coated perforated steel grille
backed with open cell foam to protect against dust.
The 3-way full-range loudspeaker shall be the EAW model
KF360z.
PHYSICAL continued
Dimensions inches millimeters
Height 27.5 699
Width (Front) 14.8 375
Width (Rear) 9.5 241
Depth 15.4 391
Trapezoid Angle 10 degrees per side
Weights pounds kilograms
Net Weight 87 39.6
Shipping Weight 95 43.2
Manufacturing tolerances are +/- 0.13 and +/- 1°
(9.56)
7.66
15.40
C
R 42.5
TOP HAT
L
9.87
20°
TOP
DIMENSIONS APPLY TO
TOP & BOTTOM
14.75
27.50
FRONT
GRILLE PARTIALLY SHOW
C
L
BOTTOM
9.19
3.90
N
7.66
A
A
2.12
3
23.2
(2.13)
NOTES:
1. SYMBOL INDICATES MOUNTING POINT, 3/8-16
THREADED HOLE (FLY TRACK).
2. SYMBOL INDICATES 3.00 x 1.35 FLY TRACK.
3. SYMBOL INDICATES CENTER OF BALANCE.
4. WEIGHT APPROX. 87 LBS.
5. SHIPPING WEIGHT APPROX. 95 LBS.
2X 3.62
KF360z
HANDLE
5.91
8.69
INPUT
6.37
L
VIEW A-A
DIMENSIONS APPLY TO
BOTH SIDES
ACCESS PANEL
C
L
CC
L
5.00
4.00
5.75
BACK
23.23
(2.13)
