EAW JFX200 User Manual
• Ideal size and performance for rigorous all-purpose use
• Wave Guide Plate™ optimizes HF pattern for near field
applications
• HF compression driver and vented LF for fully professional
performance
• Asymmetric enclosure provides multiple mounting angles
• Pole mount cup & fly track, plus Omnimount®
Series 300 or similar mounting points
• Passive or bi-amplified operating modes
The JFX200 is a 2-way multi-purpose loudspeaker. Its multifunctional design adds considerably to its value as a fullrange loudspeaker. Combining high output an d n atur al r eproduction, it is specifically outfitted to serve in a variety of
both portable and permanent applications. The asymmetric
enclosure provides typical angles needed for ceiling and wall
mounting as well as for stage monitor operation. For permanent installation, enclosure hardware includes mounting
points for an Omnimount® Series 300 or similar bracket and
fly track for suspensi on. Provisions for portable use include a
pole mount cup, top/bottom fly track f or riggin g, and han dles
integral to the enclosure that facilitate handling and transport. The JFX200 is particularly suitable as a near er field m ain
loudspeaker or as a fill/delay element in larger systems. Its
wide angle pr ojection m akes au dien ce cover age easy in a variety of situations. While the JFX200 is well suited as is for
many applications,
the addition of a subwoofer expands its
capabilities for more demanding applications such
as for hous-
es of worship, theaters, and band PA. Six year warranty.
• Portable systems or permanent installations
• Wall and ceiling mountings
• Ideal size and output for wide range of
program material
• Main PA reinforcement in medium-sized spaces
• Downfill for flown clusters
• High SPL under balcony / stage lip / delay fill
• A/V and/or surround sound installations
• Voice & F/X reinforcement in themed attractions

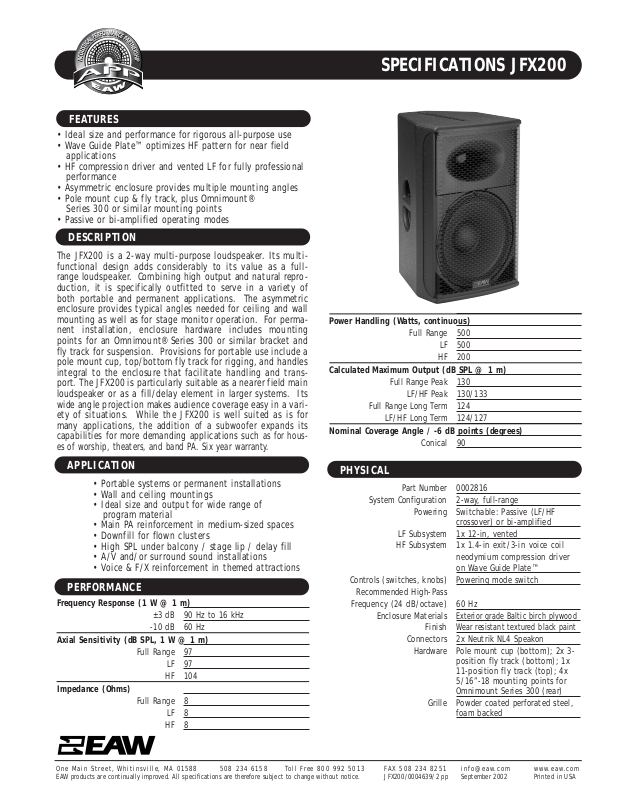

SPECIFICATIONS JFX200
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. JFX200/0004639/2 pp September 2002 Printed in USA
Part Number 0002816
System Configuration 2-way, full-range
Powering Switchable: Passive (LF/HF
crossover) or bi-amplified
LF Subsystem 1x 12-in, vented
HF Subsystem 1x 1.4-in exit/3-in voice coil
neodymium compression driver
on Wave Guide Plate™
Controls (switches, knobs) Powering mode switch
Recommended High-Pass
Frequency (24 dB/octave) 60 Hz
Enclosure Materials
Exterior grade Baltic birch plywood
Finish
Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Hardware Pole mount cup (bottom); 2x 3-
position fly track (bottom); 1x
11-position fly track (top); 4x
5/16”-18 mounting points for
Omnimount Series 300 (rear)
Grille Powder coated perforated steel,
foam backed
Frequency Response (1 W @ 1 m)
±3 dB 90 Hz to 16 kHz
-10 dB 60 Hz
Axial Sensitivity (dB SPL, 1 W @ 1 m)
Full Range 97
LF 97
HF 104
Impedance (Ohms)
Full Range 8
LF 8
HF 8
Power Handling (Watts, continuous)
Full Range 500
LF 500
HF 200
Calculated Maximum Output (dB SPL @ 1 m)
Full Range Peak 130
LF/HF Peak 130/133
Full Range Long Term 124
LF/HF Long Term 124/127
Nominal Coverage Angle / -6 dB points (degrees)
Conical 90
FEATURES
DESCRIPTION
APPLICATION
PERFORMANCE
PHYSICAL
SPECIFICATIONS JFX200
DIMENSIONAL DRAWING
INPUT PANEL
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. JFX200/0004639/2 pp September 2002 Printed in USA
The 2-way full-range loudspeaker shall incorporate a 12-in LF
cone and a 3-in voice coil neodymium HF compression driver.
The LF cone shall be moun ted in a vented enclosure tuned for
optimum low frequency response. The HF driver shall be
loaded on an axis-symmetrical, 1.4-in e xit Wave Guide Plate™
with a nominal conical beamwidth of 90 degrees. An internal
passive crossover network shall offer either passive or biamplified operation, confi gurable vi a a power m od e switch on
the input panel.
System frequency response shall vary no more than +3 dB
from 90 Hz to 16 kHz measured on axis . When amplifi ed usin g
the internal passive crossover network, the loudspeaker shall
produce a sound pressure level of 97 dB SPL on axis at 1
meter with a power input of 1 watt, and shall be capable of
producing a peak output of 130 dB SPL on axis at 1 meter. It
shall handle 500 watts of amplifier power and shall have a
nominal impedance of 8 ohm s. When bi-amplifi ed, th e LF section shall produ ce a soun d pr essur e level o f 97 dB SPL on axis
at 1 meter with a power input of 1 watt, and shall be capable of producing a peak output of 130 dB SPL on axis at 1
meter. It shall handle 500 watts of amplifier power and shall
have a nominal impedance of 8 ohms. The HF section shall
produce a sound pressure level of 104 dB SPL on axis at 1
meter with a power input of 1 watt, and shall be capable of
producin g a peak output of 133 dB SPL on axis at 1 meter. It
shall handle 200 watts of amplifier power and shall have a
nominal impedance of 8 ohms.
The loudspeaker enclosure shall be irregularly trapezoidal in
shape. It shall be constructed of exterior grade Baltic birch
plywood and shall employ extensive internal bracing. It shall
be finished in wear-resistant te xtured black paint. Input connectors shall be 2x Neutrik NL4 Speakon wired in parallel. It
shall include a pole mount cup and handles integral to the
enclosure. One 11-position fly track and two 3-position fly
tracks shall be provided on the top and bottom of the enclosure respectively. Four 5/16"-18 thread ed moun ting points f or
use with an Omnimount® Series 300 (or similar) shall be provided on the rear of the enclosure. The front of the loudspeaker shall be covered with a foam backed, powder coated
perforated steel grille.
The 2-way full-range loudspeaker shall be the EAW model
JFX200.
Dimensions inches millimeters
Height 22.25 565
Width (front) 13.68 347
Width (rear) 4.46 113
Depth 15.25 387
Weights pounds kilograms
Net Weight 58 26.4
Shipping Weight 64 29.1
Manufacturing tolerances are +/- 0.13 and +/- 1°
PHYSICAL continued
C
L
1.46
.98
3.08
C
L
B
B
6.62
10.27
A
A
L
C
6.50
8.70
0002817 (B) 9/4/02
BACK
2.50
1.86
INPUT
4.46
(11.09)
VIEW A-A
5.40
8.15
8.70
15.25
6.75
1.80
(7.04)
GRILLE PARTIALLY SHOWN
45°
TOP
13.68
22.5°
VIEW B-B
FRONT
BOTTOM
5.00
TOP HAT
19.33
2X 3.44
8.50
2X 6.87
4.50
22.25
10.50
6.50
2X
HANDLE
RIGHT SIDE
NOTES
1. SYMBOL INDICATES MOUNTING POINT, 3/8-16
THREADED HOLE (PI ANGLE)
2. SYMBOL INDICATES MOUNTING POINT, 5/16-18 T-NUT
FOR OMNI MOUNT SERIES 300.
3. SYMBOL INDICATES 3.00 X 1.35 FLY TRACK.
4. SYMBOL INDICATES 11.00 X 1.35 FLY TRACK.
5. SYMBOL INDICATES CENTER OF BALANCE
6. WEIGHT APPROX. 58 LBS.
7. SHIPPING WEIGHT APPROX. 64 LBS
WHITINSVILLE, MA USA
JFX200
S/N
FULL-RANGE
PASSIVE
PIN 1--...--
PIN 1+...+
BI-AMP
PIN 1--...LF-PIN 1+...LF+
PIN 2--...HF-PIN 2+...HF+
NEUTRIK
NEUTRIK
NL 4 MPR
NEUTRIK
NEUTRIK
NL 4 MPR
