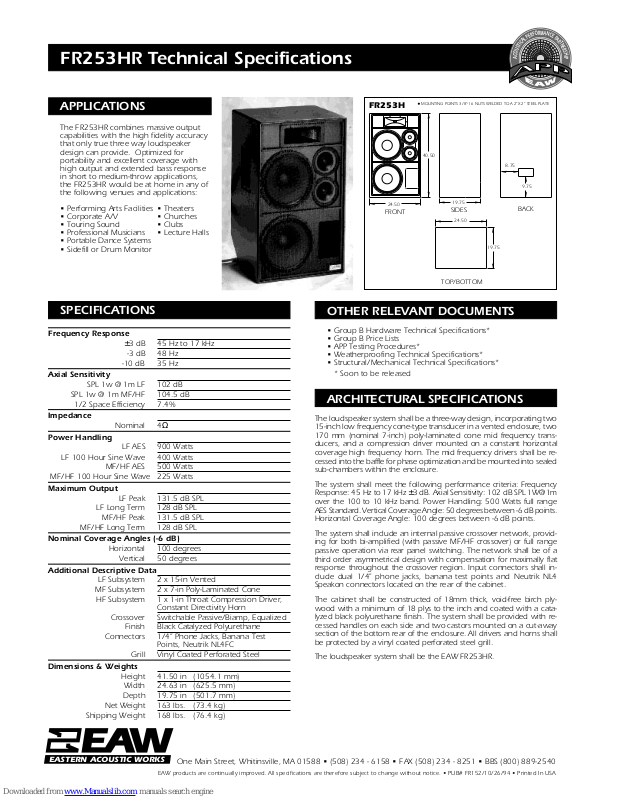

EAW FR253HR Technical Specifications
FR253HR Technical Specifications
M
R
A
N
O
F
C
R
E
E
P
P
A
L
A
C
I
T
S
U
O
C
A
R
T
N
E
R
S
H
I
P
APPLICATIONS
The FR253HR combines massive output
capabilities with the high fidelity accuracy
that only true three way loudspeaker
design can provide. Optimized for
portability and excellent coverage with
high output and extended bass response
in short to medium-throw applications,
the FR253HR would be at home in any of
the following venues and applications:
• Performing Arts Facilities • Theaters
• Corporate A/V • Churches
• Touring Sound • Clubs
• Professional Musicians • Lecture Halls
• Portable Dance Systems
• Sidefill or Drum Monitor
SPECIFICATIONS
Frequency Response
±3 dB 45 Hz to 17 kHz
-3 dB 48 Hz
-10 dB 35 Hz
Axial Sensitivity
SPL 1w @ 1m LF 102 dB
SPL 1w @ 1m MF/HF 104.5 dB
1/2 Space Efficiency 7.4%
Impedance
Nominal 4Ω
Power Handling
LF AES 900 Watts
LF 100 Hour Sine Wave 400 Watts
MF/HF AES 500 Watts
MF/HF 100 Hour Sine Wave 225 Watts
Maximum Output
LF Peak 131.5 dB SPL
LF Long Term 128 dB SPL
MF/HF Peak 131.5 dB SPL
MF/HF Long Term 128 dB SPL
Nominal Coverage Angles (-6 dB)
Horizontal 100 degrees
Vertical 50 degrees
Additional Descriptive Data
LF Subsystem 2 x 15-in Vented
MF Subsystem 2 x 7-in Poly-Laminated Cone
HF Subsystem 1 x 1-in Throat Compression Driver,
Constant Directivity Horn
Crossover Switchable Passive/Biamp, Equalized
Finish Black Catalyzed Polyurethane
Connectors 1/4” Phone Jacks, Banana Test
Points, Neutrik NL4FC
Grill Vinyl Coated Perforated Steel
Dimensions & Weights
Height 41.50 in (1054.1 mm)
Width 24.63 in (625.5 mm)
Depth 19.75 in (501.7 mm)
Net Weight 163 lbs. (73.4 kg)
Shipping Weight 168 lbs. (76.4 kg)
FR253H
24.50
FRONT
MOUNTING POINTS 3/8"-16 NUTS WELDED TO A 2"X 2" STEEL PLATE
40.50
8.75
9.75
19.75
SIDES
24.50
TOP/BOTTOM
19.75
BACK
OTHER RELEVANT DOCUMENTS
• Group B Hardware Technical Specifications*
• Group B Price Lists
• APP Testing Procedures*
• Weatherproofing Technical Specifications*
• Structural/Mechanical Technical Specifications*
* Soon to be released
ARCHITECTURAL SPECIFICATIONS
The loudspeaker system shall be a three-way design, incorporating two
15-inch low frequency cone-type transducer in a vented enclosure, two
170 mm (nominal 7-inch) poly-laminated cone mid frequency transducers, and a compression driver mounted on a constant horizontal
coverage high frequency horn. The mid frequency drivers shall be recessed into the baffle for phase optimization and be mounted into sealed
sub-chambers within the enclosure.
The system shall meet the following performance criteria: Frequency
Response: 45 Hz to 17 kHz ±3 dB. Axial Sensitivity: 102 dB SPL 1W@1m
over the 100 to 10 kHz band. Power Handling: 500 Watts full range
AES Standard. Vertical Coverage Angle: 50 degrees between -6 dB points.
Horizontal Coverage Angle: 100 degrees between -6 dB points.
The system shall include an internal passive crossover network, providing for both bi-amplified (with passive MF/HF crossover) or full range
passive operation via rear panel switching. The network shall be of a
third order asymmetrical design with compensation for maximally flat
response throughout the crossover region. Input connectors shall include dual 1/4” phone jacks, banana test points and Neutrik NL4
Speakon connectors located on the rear of the cabinet.
The cabinet shall be constructed of 18mm thick, void-free birch plywood with a minimum of 18 plys to the inch and coated with a catalyzed black polyurethane finish. The system shall be provided with recessed handles on each side and two castors mounted on a cut-away
section of the bottom rear of the enclosure. All drivers and horns shall
be protected by a vinyl coated perforated steel grill.
The loudspeaker system shall be the EAW FR253HR.
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • BBS (800) 889-2540
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR152/10/26/94 • Printed In USA
