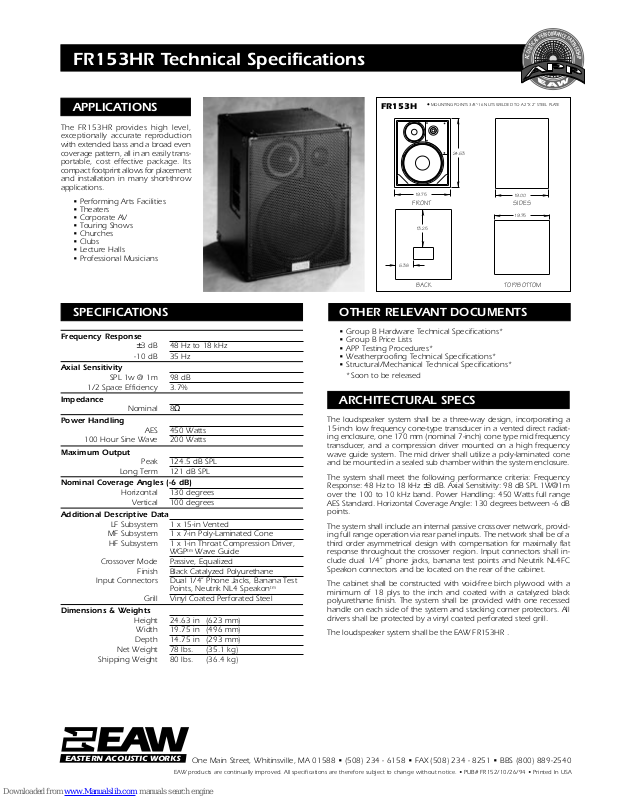

FR153HR Technical Specifications

APPLICATIONS

The FR153HR provides high level,
exceptionally accurate reproduction
with extended bass and a broad even
coverage pattern, all in an easily trans­portable, cost effective package. Its
compact footprint allows for placement
and installation in many short-throw
applications.

• Performing Arts Facilities

• Theaters

• Corporate AV

• Touring Shows

• Churches

• Clubs

• Lecture Halls

• Professional Musicians

FR153H

6.38

MOUNTING POINTS 3/8"-16 NUTS WELDED TO A 2"X 2" STEEL PLATE



24.63

19.75

FRONT

13.25

19.00

SIDES

19.75

M

R

A

N

O

F

C

R

E

E

P

P

A

L

A

C

I

T

S

U

O

C

A

R

T

N

E

R

S

H

I

P

SPECIFICATIONS

Frequency Response

±3 dB 48 Hz to 18 kHz

-10 dB 35 Hz

Axial Sensitivity

SPL 1w @ 1m 98 dB

1/2 Space Efficiency 3.7%

Impedance

Nominal 8Ω

Power Handling

AES 450 Watts

100 Hour Sine Wave 200 Watts

Maximum Output

Peak 124.5 dB SPL

Long Term 121 dB SPL

Nominal Coverage Angles (-6 dB)

Horizontal 130 degrees

Vertical 100 degrees

Additional Descriptive Data

LF Subsystem 1 x 15-in Vented

MF Subsystem 1 x 7-in Poly-Laminated Cone

HF Subsystem 1 x 1-in Throat Compression Driver,

WGP

Crossover Mode Passive, Equalized

Finish Black Catalyzed Polyurethane

Input Connectors Dual 1/4” Phone Jacks, Banana Test

Points, Neutrik NL4 Speakon

Grill Vinyl Coated Perforated Steel

Dimensions & Weights

Height 24.63 in (623 mm)

Width 19.75 in (496 mm)

Depth 14.75 in (293 mm)

Net Weight 78 lbs. (35.1 kg)

Shipping Weight 80 lbs. (36.4 kg)

tm

Wave Guide

BACK

TOP/BOTTOM

OTHER RELEVANT DOCUMENTS

• Group B Hardware Technical Specifications*

• Group B Price Lists

• APP Testing Procedures*

• Weatherproofing Technical Specifications*

• Structural/Mechanical Technical Specifications*
*Soon to be released

ARCHITECTURAL SPECS

The loudspeaker system shall be a three-way design, incorporating a
15-inch low frequency cone-type transducer in a vented direct radiat­ing enclosure, one 170 mm (nominal 7-inch) cone type mid frequency
transducer, and a compression driver mounted on a high frequency
wave guide system. The mid driver shall utilize a poly-laminated cone
and be mounted in a sealed sub chamber within the system enclosure.

The system shall meet the following performance criteria: Frequency
Response: 48 Hz to 18 kHz ±3 dB. Axial Sensitivity: 98 dB SPL 1W@1m
over the 100 to 10 kHz band. Power Handling: 450 Watts full range
AES Standard. Horizontal Coverage Angle: 130 degrees between -6 dB
points.

The system shall include an internal passive crossover network, provid­ing full range operation via rear panel inputs. The network shall be of a
third order asymmetrical design with compensation for maximally flat
response throughout the crossover region. Input connectors shall in­clude dual 1/4” phone jacks, banana test points and Neutrik NL4FC
Speakon connectors and be located on the rear of the cabinet.

tm

The cabinet shall be constructed with void-free birch plywood with a
minimum of 18 plys to the inch and coated with a catalyzed black
polyurethane finish. The system shall be provided with one recessed
handle on each side of the system and stacking corner protectors. All
drivers shall be protected by a vinyl coated perforated steel grill.

The loudspeaker system shall be the EAW FR153HR .

EASTERN ACOUSTIC WORKS

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • BBS [phone]

EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR152/10/26/94 • Printed In USA
