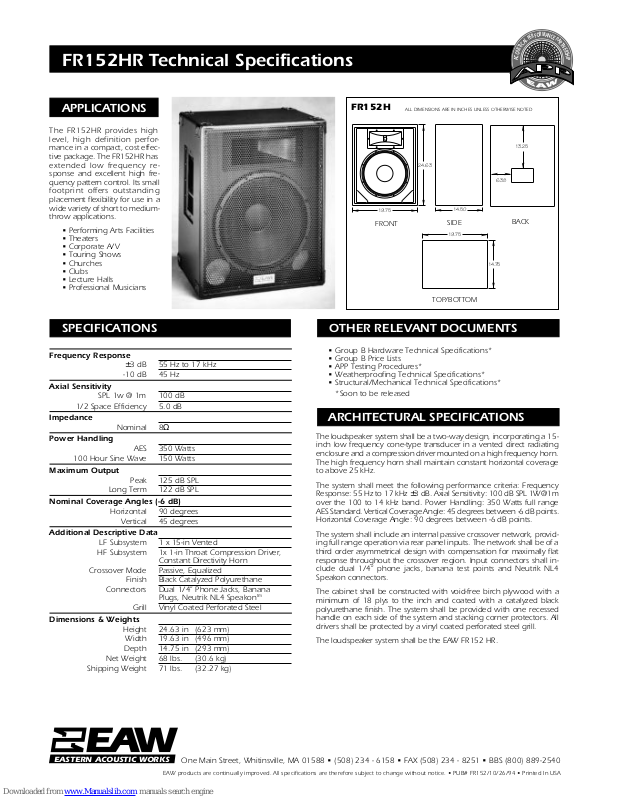

EAW FR152HR Technical Specifications

FR152HR Technical Specifications

M

R

A

N

O

F

C

R

E

E

P

P

A

L

A

C

I

T

S

U

O

C

A

R

T

N

E

R

S

H

I

P

APPLICATIONS

The FR152HR provides high
level, high definition perfor­mance in a compact, cost effec­tive package. The FR152HR has
extended low frequency re­sponse and excellent high fre­quency pattern control. Its small
footprint offers outstanding
placement flexibility for use in a
wide variety of short to medium­throw applications.

• Performing Arts Facilities

• Theaters

• Corporate A/V

• Touring Shows

• Churches

• Clubs

• Lecture Halls

• Professional Musicians

SPECIFICATIONS

Frequency Response

±3 dB 55 Hz to 17 kHz

-10 dB 45 Hz

Axial Sensitivity

SPL 1w @ 1m 100 dB

1/2 Space Efficiency 5.0 dB

Impedance

Nominal 8Ω

Power Handling

AES 350 Watts

100 Hour Sine Wave 150 Watts

Maximum Output

Peak 125 dB SPL

Long Term 122 dB SPL

Nominal Coverage Angles (-6 dB)

Horizontal 90 degrees

Vertical 45 degrees

Additional Descriptive Data

LF Subsystem 1 x 15-in Vented

HF Subsystem 1x 1-in Throat Compression Driver,

Constant Directivity Horn

Crossover Mode Passive, Equalized

Finish Black Catalyzed Polyurethane

Connectors Dual 1/4” Phone Jacks, Banana

Plugs, Neutrik NL4 Speakon

Grill Vinyl Coated Perforated Steel

Dimensions & Weights

Height 24.63 in (623 mm)

Width 19.63 in (496 mm)

Depth 14.75 in (293 mm)

Net Weight 68 lbs. (30.6 kg)

Shipping Weight 71 lbs. (32.27 kg)

FR152H

ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED

24.63

19.75

FRONT

14.50

SIDE

19.75

TOP/BOTTOM

13.25

6.38

BACK

14.75

OTHER RELEVANT DOCUMENTS

• Group B Hardware Technical Specifications*

• Group B Price Lists

• APP Testing Procedures*

• Weatherproofing Technical Specifications*

• Structural/Mechanical Technical Specifications*
*Soon to be released

ARCHITECTURAL SPECIFICATIONS

The loudspeaker system shall be a two-way design, incorporating a 15­inch low frequency cone-type transducer in a vented direct radiating
enclosure and a compression driver mounted on a high frequency horn.
The high frequency horn shall maintain constant horizontal coverage
to above 25 kHz.

The system shall meet the following performance criteria: Frequency
Response: 55 Hz to 17 kHz ±3 dB. Axial Sensitivity: 100 dB SPL 1W@1m
over the 100 to 14 kHz band. Power Handling: 350 Watts full range
AES Standard. Vertical Coverage Angle: 45 degrees between -6 dB points.
Horizontal Coverage Angle: 90 degrees between -6 dB points.

The system shall include an internal passive crossover network, provid­ing full range operation via rear panel inputs. The network shall be of a
third order asymmetrical design with compensation for maximally flat
response throughout the crossover region. Input connectors shall in­clude dual 1/4” phone jacks, banana test points and Neutrik NL4
Speakon connectors.

tm

The cabinet shall be constructed with void-free birch plywood with a
minimum of 18 plys to the inch and coated with a catalyzed black
polyurethane finish. The system shall be provided with one recessed
handle on each side of the system and stacking corner protectors. All
drivers shall be protected by a vinyl coated perforated steel grill.

The loudspeaker system shall be the EAW FR152 HR.

EASTERN ACOUSTIC WORKS

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • BBS [phone]

EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR152/10/26/94 • Printed In USA
