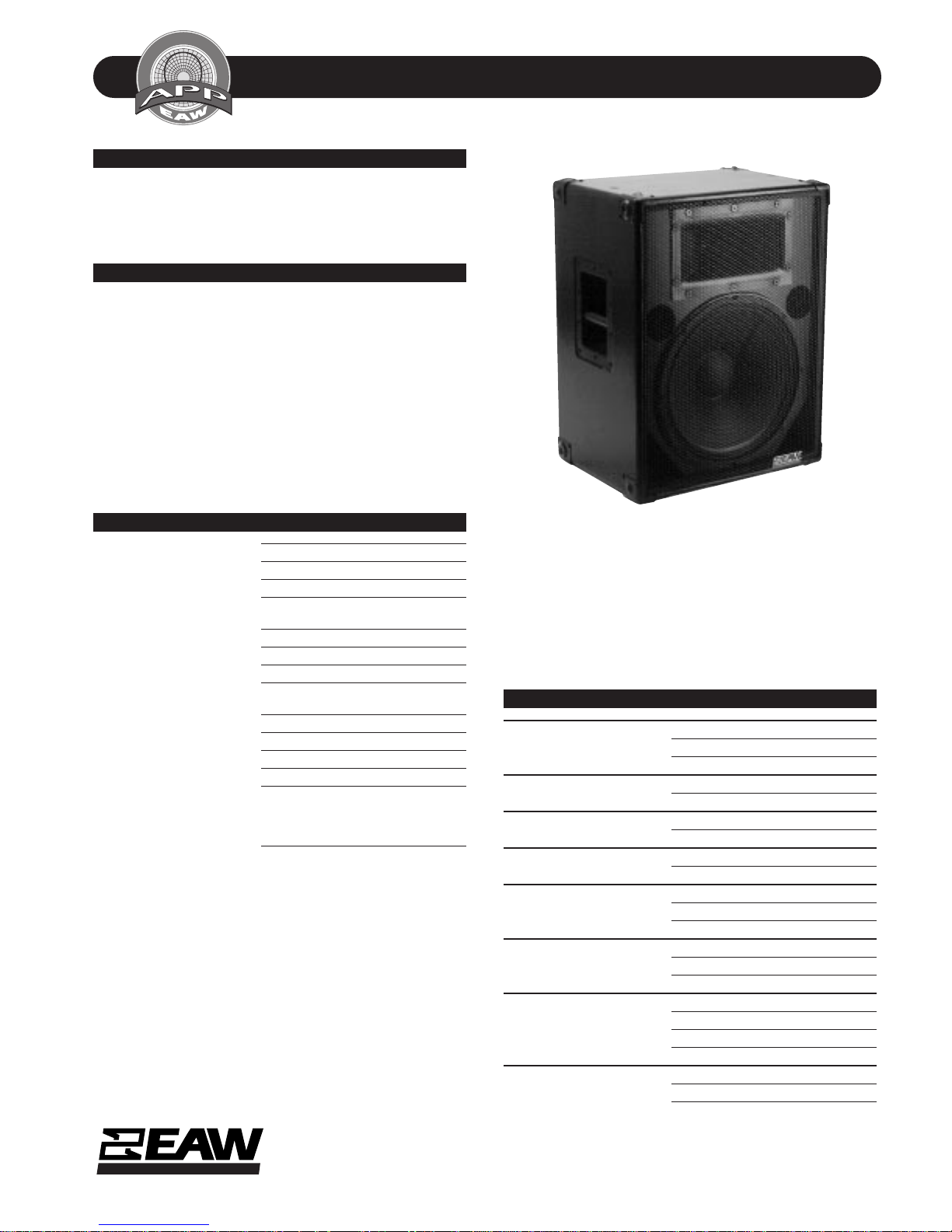

TECHNICAL SPECIFICATIONS FR152e

DESCRIPTION

A 2-way full range system (passive LF/HF crossover) in a
vented rectangular enclosure. Includes a 15-in woofer and a
1-in exit compression driver on a 90 x 45 constant directiv­ity horn.

APPLICATIONS

The FR152e provides high output full range response in a
versatile, compact system. Effective for both permanent and
portable applications, it comes with handles, a pole mount
cup and 3/8"-16 threaded mounting/suspension points. Six
Year Warranty.

Application include:

Band PA
Ballroom Events
Corporate Events
Small HOW’s
Dance CLubs
Live Music Clubs

DESCRIPTIVE DATA

Part Number 999007

Product Group I

LF Subsystem & Loading 1x 15-in, Vented

HF Subsystem & Loading 1x 1-in Exit Compression Driver on

Constant Directivity Horn

System Configuration 2-way, Full Range
Powering Configuration(s) Passive LF/HF Crossover
Controls (switches, knobs) Midrange Presence Control

Recommended High-Pass

Frequency (24 dB/Octave) 40Hz

Cabinet Type (shape) Rectangular

Enclosure Materials Baltic Birch Plywood

Finish Black Catalyzed Polyurethane

Connectors 2x Neutrik NL4 Speakon

Suspension Hardware (3) 3/8-16 Threaded Mounting/

Suspension Points (2 top/1 back),
Stand Mount Cup for Ultimate
Brand Support Stand

Grill Vinyl Coated Perforated Steel

NOMINAL DATA

Frequency Response (Hz)

±3 db 70Hz to 17kHz

-10 dB 60Hz

Axial Sensitivity (dB SPL/1 Watt/1m)

98

Impedance (Ohms)

8

Power Handling (Watts)

AES Standard 450

Calculated Maximum Output (dB SPL, @ 1m)

Peak 130.5

Long Term 124.5

Nominal Coverage Angle / -6 dB points (degrees)

Horizontal 90

Vertical 45

Dimensions inches millimeters

Height 25.25 641

Width 19.75 502

Depth 14.75 375

Weights pounds kilograms

Net Weight 68 30.9

Shipping Weight 71 32.3

EASTERN ACOUSTIC WORKS

One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [e-mail] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR152e 999007 (A)/2p/3/14/97 • Printed In USA

A

C

O

U

S

T

I

C

A

L

P

E

R

F

O

R

M

A

N

C

E

P

A

R

T

N

E

R

S

H

I

P

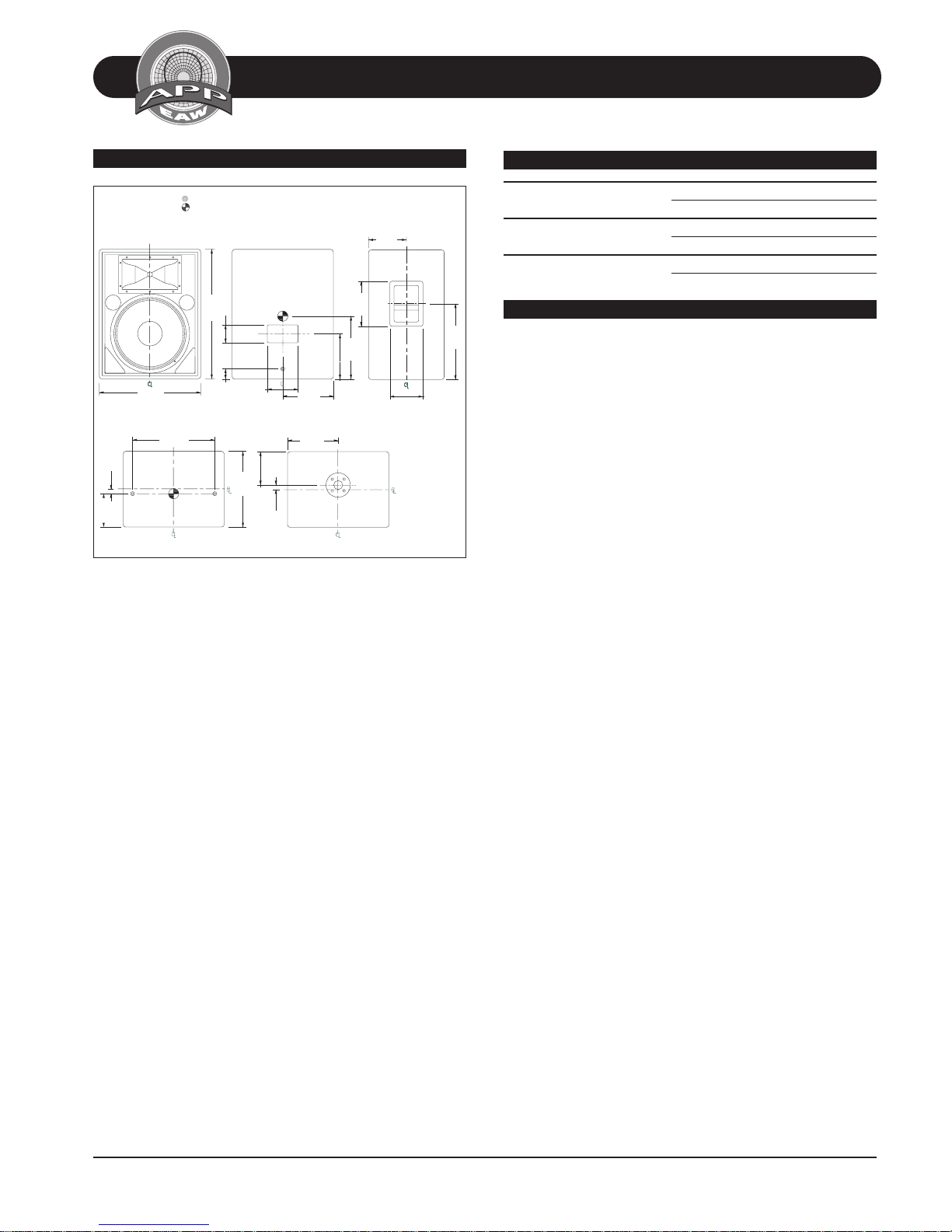

DIMENSIONAL DRAWING

DIMENSIONAL DRAWINGS

TECHNICAL SPECIFICATIONS FR152e

SERVICE ITEMS

FR152e

19.75

FRONT

.88

(6.50)

510291
exp 10/31/96 shb

3/8"-16 MOUNTING POINT.
CENTER OF BALANCE.
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED.
INPUT HAS (2) NL4 CONNECTORS WIRED IN PARALLEL.

3.50

25.25

16.00

TOP

2.00

6.00

14.75

BACK

(6.50)

.88

9.88

9.88

BOTTOM

8.81

12.26

8.75

7.38

SIDES

6.44

14.75

LF: Complete Cone Driver

EAW Part No. 804066

HF: Complete Compression Driver/Tweeter

EAW Part No. 803020

Filter/Crossover Network Complete Assembly

EAW Part No. 225108

ARCHITECTURAL SPECIFICATIONS

The two-way full range loudspeaker systems shall incorpo­rate a 15-in LF transducer and a 1-in exit compression driver
HF transducer.

The LF driver shall be mounted in a vented enclosure tuned
for optimum low frequency response. The HF driver shall be
loaded on constant directivity horn with a nominal coverage

pattern of 90° (h) x 45° (v). An internal passive filter net-

work shall provide fourth order acoustical crossover and sys­tem equalization.

System frequency response shall vary no more than ±3 dB

from 70 Hz to 17 kHz measured on axis. The loudspeaker
shall produce a Sound Pressure Level (SPL) of 98 dB SPL on
axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 130.5 SPL on axis at
1 meter. The loudspeaker shall handle 450 Watts of amplifier
power (AES Standard) and shall have a nominal impedance
of 8 Ohms.

The loudspeaker enclosure shall be rectangular in shape. It
shall be constructed of 15mm thickness void-free cross-grain­laminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed poly­urethane. Input connectors shall be dual Neutrik NL4 Speakon.
The system shall include a midrange frequency attenuator
(presence control). Three 3/8"-16 threaded mounting/sus­pension points (2 top, 1 back) shall be provided as well as a
recessed cup to accept a standmount pole. The front of the
loudspeaker shall be covered with a vinyl coated perforated
steel grill backed.

The two-way full range loudspeaker shall be the EAW model
FR152e.
