EAW DWG FB276, FB276 Wiring Diagram

1

2

3 4

1

2

3 4

A

B

C

A

B

C

PRO ENGINEER

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND
CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

ALL RIGHTS RESERVED

UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL

REVISION:

DRAWING NUMBER:

THIRD ANGLE PROJECTION

TITLE:

SCALE:

1 1

www.eaw.com

41.26

1048.0[ ]

46.00

1168.4[ ]

6.00

152.4[ ]

2X 9.31

236.5[ ]

25.50

647.7[ ]

2.76

70.1[ ]

DATECHANGE NUMBERREV

12/15/08DSRWH10221A

0026003-CD

A

A

SHEET OF

0.038

DWG CUSTOMER

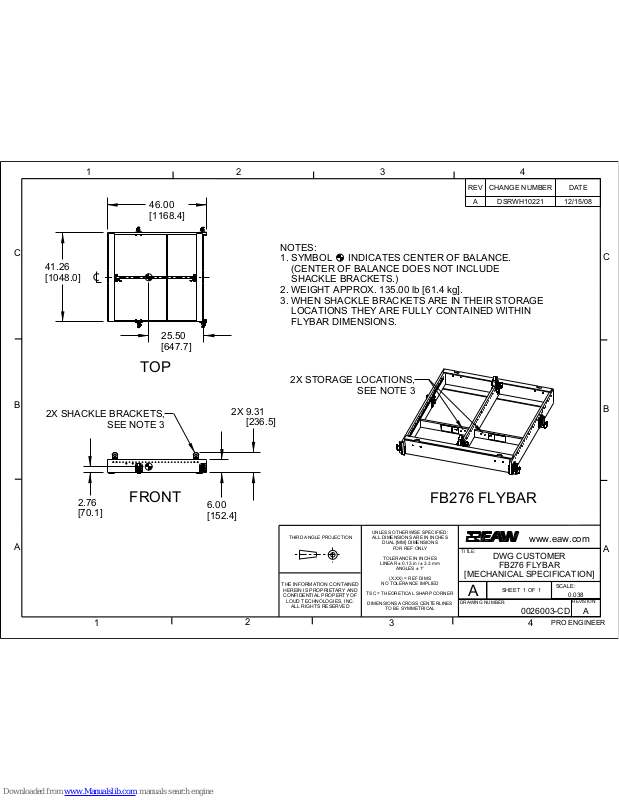

FB276 FLYBAR

[MECHANICAL SPECIFICATION]

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.
(CENTER OF BALANCE DOES NOT INCLUDE
SHACKLE BRACKETS.)

2. WEIGHT APPROX. 135.00 lb [61.4 kg].

3. WHEN SHACKLE BRACKETS ARE IN THEIR STORAGE
LOCATIONS THEY ARE FULLY CONTAINED WITHIN
FLYBAR DIMENSIONS.

FB276 FLYBAR

2X STORAGE LOCATIONS,

SEE NOTE 3

TOP

FRONT

2X SHACKLE BRACKETS,

SEE NOTE 3
