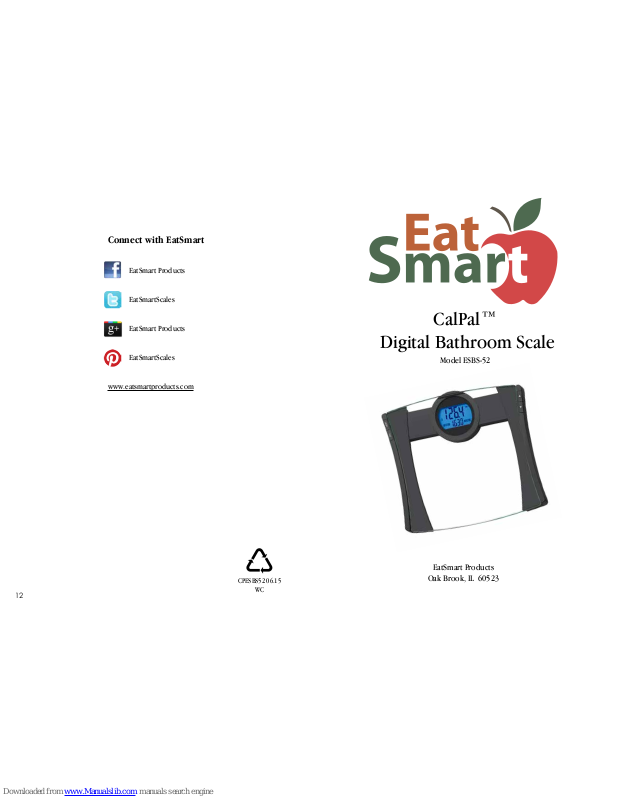

Page 1
CPESBS52 06.15
WC
12
CalPal™
Digital Bathroom Scale
Model ESBS-52
EatSmart Products
Oak Brook, IL 60523
Connect with EatSmart
EatSmart Products
EatSmartScales
EatSmart Products
EatSmartScales
www.eatsmartproducts.com
Page 2
3
2
Battery Installation and First Time Setup
1. This scale operates on 3 AAA batteries (included. Remove any plastic
wrap from the batteries before proceeding). IInsert the batteries as
indicated by the polarity symbols in the battery compartment, or place
the at side of the battery against the spring.
2. The scale needs to be initialized and calibrated before rst use and
after moving your scale. Place scale on at, hard surface. The harder
the surface the more accurate your readings will be. Carpeted or
uneven oors may affect accuracy.
3. Firmly press the glass platform to activate the scale but do not stand
on the platform. Allow the scale to read '0.0' and wait for it to turn off.
Your scale is now calibrated and you can step on and weigh yourself
normally.
4. If you move the scale again you must repeat step #3 to calibrate again.
5. Replace the batteries when the scale indicates 'Lo' on the display. To
replace the batteries:
Use three AAA batteries. Insert the batteries as indicated by the
polarity symbols in the battery compartment, or place the at side of
the battery against the spring. Always replace all batteries at the same
time; do not mix old and new batteries. Do not mix alkaline, standard
(carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries.
NOTE:
1. A new set of batteries should last for approximately one year under
moderate use (less than 3 times daily). The batteries included with
your scale are trial batteries and may last a shorter length of time.
2. Dispose of batteries within the legal restrictions of local government.
3. Batteries may pose a choking hazard. As with all small items, do not
let children handle batteries. If swallowed, seek medical attention
immediately.
4. Do not dispose of batteries in re. Batteries may explode or leak.
Remove the batteries if the scale will not be used for a long period of
time.
INTRODUCTION
Thank you for purchasing an EatSmart Product. Your EatSmart CalPal™ Digital
Bathroom Scale has been specically designed for your use, with an easy to use
interface and superior EatSmart accuracy. All of our precision instruments for
weight measurement are engineered and designed to meet the highest quality
standards.....to assure you years of uncompromising accuracy and consistently
dependable, convenient performance.
Please read this instruction manual carefully before use.
Your EatSmart Bathroom Scale comes with the following:
• EatSmart Digital Bathroom Scale
• Instruction Manual
• 3 AAA batteries
• 2 Year EatSmart Guarantee
Please ll out your purchase information for future reference:
Date Purchased: ___________________
Place of Purchase: __________________
Order ID (if any): __________________
OPERATION
Page 3
5
4
CalPal™
How does the CalPal™ Scale Work?
The CalPal™ scale uses your gender, height, age and an activity
level setting to calculate the estimated number of calories you
can consume a day to maintain your present weight.
This estimation may gradually help you with a weight loss, gain
or maintenance plan.
Use on-line software to estimate your calorie consumption, or
journal your calories in a calorie factor booklet from an EatSmart
Precision Food Scale to help make a difference.
Weighing Operation
Your EatSmart Bathroom Scale operates as a basic body weighing
scale. No special programming is required.
1. Select your desired measurement unit. Your scale is set to default
to pounds at the factory but you can switch the measurements to
kilograms by pressing the unit button, located on the underside of
your scale, while the scale is on. (Press rmly on the platform or press
the “MEM” (memory) button to turn the scale on.)
2. Place the scale on a hard, at surface. Carpeted, uneven or
cushioned ooring can negatively affect the accuracy of the reading.
When in doubt, call EatSmart at 866-843-3905 (8 to 5 MST).
3. Initialize the scale. If you are placing the scale down for the rst time
or moving your unit you must rst auto-calibrate the scale (see steps
2-4 under "Battery Information and First Time Set Up" section of this
manual.)
4. Step on. Place both feet on the center of the glass and stand still.
5. Your weight will appear on the LCD. Your weight will blink 3 times
when your nal weight has been calculated.
6. Step off the scale. The scale will turn off automatically after
approximately 10 seconds.
OPERATION
Important: Your EatSmart scale operates with "Step-On"
technology but still needs to be auto-calibrated after battery
installation or after the scale is moved, to ensure accuracy.
Firmly press the glass platform to activate the scale but DO
NOT stand on the platform. Allow the scale to read '0.0' and
wait for it to turn off. Your scale is now calibrated and you can
step on and weigh yourself normally.
Any weight management program is a balance between exercise
and calorie intake. Knowing your daily estimated calorie intake
every day, and focusing on calorie content of the foods you eat,
can be a major motivational factor to reach you goal.
Following are 2 examples of the CalPal™ scale in use:
Jack is:
6’ tall
35 years old
220 Lbs
• CalPal™ shows he needs to consume 2542 calories per day to remain at 220
pounds.
• Jack decides to cut 300 calories per day from his diet while maintaining his
current activity level.
• In less than 12 days Jack may lose up to a pound (based on calories alone)
• In one year Jack may lose up to 31.29 pounds (based on calories alone)
Jill is:
5’6” tall
32 years old
140 Lbs
• CalPal™ shows she needs to consume 1708 calories per day to remain at 140
pounds.
• Jill also decides to cut 300 calories per day from her diet while maintaining
her current activity level.
• In less than 12 days Jill may lose up to a pound (based on calories alone)
• In one year Jill may lose up to 31.29 pounds (based on calories alone)
IMPORTANT: Proper calorie intake and nutrition are important to maintain a
healthy body. Always consult a physician before undertaking any exercise or
diet program.
Page 4
REMINDER: The scale needs to be initialized and calibrated after battery
installation or after the scale is moved. At all other times, you may directly proceed
with the following instructions for programming your personal data into the scale.
To initialize the scale, press rmly on the scale platform while the scale is on. The
scale will turn on and automatically turn off. Your scale is now ready for use.
BMI is a ratio between height and weight. It is a fairly reliable indicator of body fat for
most adults. BMI is an inexpensive alternative to direct measurements of body fat, such
as underwater weighing, but it is only one of many factors that you and your health-care
provider should use in evaluating your health status.
Body Mass Index
7
6
BMI
CalPal™ and BMI Operation
In order for your CalPal™ scale to estimate calories and compute your BMI number,
you must rst enter your gender, height, age, and an activity level selection. The scale
uses these factors to calculate your results. Onscreen prompts will lead you through
programming your personal information into the scale. The scale will then use this data
to compute your results.
This scale has 4 personal memory numbers (P1-P4). In order to estimate calories
and compute BMI, you must rst save your gender, height, age, and an activity
level selection into memory. The scale will then use these factors to calculate your
CalPal™ and BMI results.
You will store your data into memory before rst use, thus eliminating the need to
enter your personal information before each reading. With the scale turned off…
1. Press the “MEM” (memory) button. The scale turns on and a memory number
(P1-P4) blinks.
2. Press the (▲) or (▼) button to select a memory number. Press the “SEL” button
to select. A gender icon blinks.
3. Press the (▲) or (▼) button to toggle between the male and female icons. Press
the “SEL” button to conrm your gender. The height digits blink.
4. Press the (▲) or (▼) button to increase / decrease the height value. Press the “SEL”
button to select displayed height. The age digits blink.
5. Press the (▲) or (▼) button to increase / decrease the age value. Press the “SEL”
button to select displayed age. An activity level number blinks.
6. Press the (▲) or (▼) button to increase / decrease the activity level. Select your
Activity Level according to the following guidelines:
• AC 1 = Sedentary / very inactive: little or no exercise
• AC 2 = Limited Activity: exercise/sports 1-3 days a week
• AC 3 = Moderate Activity: exercise/sports 4-5 days a week
• AC 4 = Very Active: exercise/sports 6-7 days a week
• AC 5 = Extremely Active: physically demanding exercise/sports or athletic
training
Press the “SEL” button to conrm your activity level and all other selections.
7. When the scale shows zero, you may step on the scale for a measurement.
Otherwise, the scale will turn off automatically. Your data remains saved in
memory.
8. To change personal data, repeat the above steps.
Note: You have approximately 10 seconds to complete each programming step.
If no buttons are pressed within 10 seconds, the scale will turn off automatically
to conserve battery power. If this occurs, simply repeat the programming steps
above.
How to Enter Personal Data into Memory
Page 5
TROUBLESHOOTING
PROBLEM SOLUTION
Scale is inaccurate or weight varies
Place feet in center of glass platform and stand still. Allow weight
to lock in before looking down at display.
Flooring may be reason for uctuation. Use on the hardest oor
available for accuracy. Do not move scale unnecessarily.
First weight is higher than normal
Your scale must be allowed to auto-calibrate. Follow
instructions under “Battery Information and First Time Set
Up” for proper use.
Scale displays “Err”
Initialization or Instability error. To correct, press on the
platform. The scale will turn on and off. Repeat measurement.
Ensure the scale is on a at, stable surface. Step off and back
onto the scale, standing still while your weight computes.
Scale displays “Lo” for low battery
No power
Check that there is no plastic wrap covering the batteries or a
plastic strip in the battery compartment. Check batteries for
proper installation as indicated by the polarity symbols in the
battery compartment. Replace worn batteries.
Problem persists or other conditions
Call Eat Smart for support at 866-843-3905 (8 to 5MST).
Scale displays “Err1”
Too much weight has been placed on the scale and it is
overcapacity. Remove weight before proceeding.
9
8
1. Press the MEM button while the scale is off. Press the (▲) or (▼) button to locate your
memory number, then press “SEL” to select. Your personal data will display again.
2. Wait for the screen to show zero, then step onto the scale and remain still. The scale
will rst show your weight at the top of the screen, then a moving zero pattern (“0000”)
at the bottom while it computes your calorie estimates and BMI.
3. Your weight and calorie estimates will appear on the screen, then your weight and BMI
number. The weight/calorie and weight/BMI results will appear in sequence 3 times.
4. The scale will turn off automatically if no buttons are pressed within approximately 10
seconds.
How to Take a Weight/CalPal™ Reading
by Selecting a User Number Manually
Your scale will save the last measurement results for review. To view previous results:
1. Press the “Mem” button.
2. Press the (▲) or (▼) button until your memory number displays.
3. Press the “Mem” button. Your last weight/ calorie estimate and weight/BMI reading in
sequence 3 times. The scale will then turn off automatically.
To View Previous Results
In the event that two user proles conict (within +- 6 lbs of each other) it is possible to
delete one of the proles by doing the following.
1. With the scale off, press the “MEM” button and select the user to delete by pressing the
(▲) or (▼) button.
2. Once the user is on the screen, press the “MEM” and “SEL” buttons at the same time.
3. “CLR” will appear and that user will be deleted.
How to Delete a User Prole
After you have programmed your information and weighed yourself once (steps 1 to
7 in “How to Enter Personal Data into Memory”), the CalPal™ Scale will automatically
recognize you by your weight and automatically pull up your user prole. There is
no need to reprogram any information or manually select a user prole if this is done
correctly, except if you have lost or gained 6 lbs from your last weigh-in.
To take a weight/CalPal™ reading:
1. Please stand on the platform directly to turn the scale on.
2. Stand still and the scale will automatically register and display your current weight.
3. The measuring will start automatically with the”0”signal moving from left to right.
4. If there is only one user prole whose last weight data is close to the person being
weighed, the scale will select the user automatically. The results will then display and
cycles three times before the scale turns off.
How to Take a Weight/CalPal™ Reading
with Automatic User Identication
5. If there is more than one user prole whose weight is close to the
person being weighed (within +- 6 lbs.), both user number prole
options will appear before the body metrics are calculated. For example:
Press the (▲) button to select “P1” or the (▼) button to select “P2”
Note: If a user is not selected, the scale will turn off after about 40 seconds. If this occurs,
simply repeat the above steps.
6. After nishing user selection, the body composition results will be shown and cycle
three times before turning off.
Note: For automatic user identication to work you must rst select a prole, input your
prole data and measure your weight at least once. If a user prole is not automatically
located, please repeat the steps for entering your personal data or call for support.
Page 6
11
10
FCC INFORMATION
Caution: Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may cause
undesired operation. This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
SPECIFICATIONS
Model: EatSmart Digital Bathroom Scale ESBS-52
WARRANT Y
The EatSmart warranty covers defects in material and workmanship of
the product under normal use for a period of two (2) years from the
date of retail purchase. The warranty does not cover damages resulting
from misuse, abuse, immersion, normal wear and tear or unauthorized
modication.
Should this scale require service (or replacement at our option) while
under warranty, please contact EatSmart for return authorization and
troubleshooting.
EatSmart (866) 843-3905 (8 to 5 MST)
There are no expressed warranties except as listed above. This warranty
gives you specic legal rights which may vary from state to state.
NOT LEGAL FOR TRADE.
Capacity: 440 lbs / 200 kgs
Measurement Units: Pounds / Kilograms
Graduation: 0.1lb / 0.1kg
Display: 2” dual line LCD
Low Battery Indicator: “Lo”
Overload Indicator: “Err1”
Unit Dimensions: Approximately 12.5” x 13.25” x 1.00”
Unit Weight: Approximately 4.6 lbs
Power: 3 AAA batteries (included)
Made in China.
Initialization or Instability Indicator: “Err”
CARE & MAINTINANCE
To protect and maintain your EatSmart bathroom scale in the best possible
condition follow these directions as closely as possible.
1. Store and operate the unit in a safe dry location.
Drastic changes in temperature over time can affect the quality of weight
measurement. Do not expose to direct sunlight, extreme hot/cold or high
humidity.
2. Clean with a damp, soft cloth. Avoid abrasive cleaners and never sink or
submerge in water.
3. Remove batteries if scale will not be in use for three months or
longer.
4. Do not store scale where you store cleaning chemicals. The vapors
from some household products may affect the electronic components of
your scale. Do not store scale on its side.
5. This scale is designed to read weights between 11 and 440 lbs/ 5 and 200
kgs.
6. Use unit consistent with instructions provided in this manual.
Loading...
