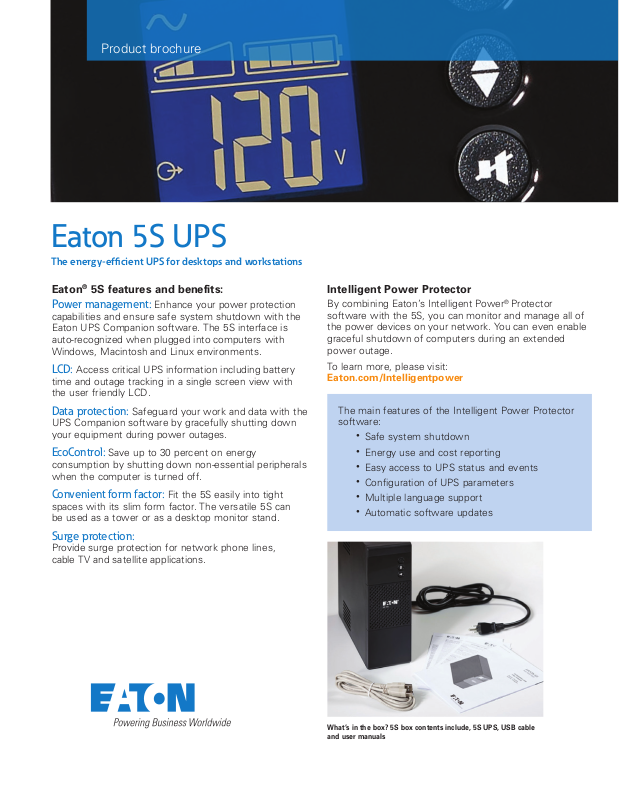

Eaton 5S UPS

The energy-ef ﬁcient UPS for desktops and workstations

Eaton® 5S features and benefits:

Power management: Enhance your power protection

capabilities and ensure safe system shutdown with the Eaton UPS Companion software. The 5S interface is auto-recognized when plugged into computers with Windows, Macintosh and Linux environments.

LCD: Access critical UPS information including battery

time and outage tracking in a single screen view with the user friendly LCD.

Data protection: Safeguard your work and data with the

UPS Companion software by gracefully shutting down your equipment during power outages.

EcoControl: Save up to 30 percent on energy

consumption by shutting down non-essential peripherals when the computer is turned off.

Convenient form factor: Fit the 5S easily into tight

spaces with its slim form factor. The versatile 5S can be used as a tower or as a desktop monitor stand.

Surge protection:

Provide surge protection for network phone lines, cable TV and satellite applications.

Intelligent Power Protector

By combining Eaton’s Intelligent Power® Protector software with the 5S, you can monitor and manage all of the power devices on your network. You can even enable graceful shutdown of computers during an extended power outage.

To learn more, please visit:

Eaton.com/Intelligentpower

The main features of the Intelligent Power Protector

software:

•

Safe system shutdown

Energy use and cost reporting

Easy access to UPS status and events

Configuration of UPS parameters

Multiple language support

Automatic software updates

What’s in the box? 5S box contents include, 5S UPS, USB cable and user manuals

5S UPS MODEL SELECTION GUIDE

Catalog number

Tower 120V, 50/60 Hz models

5S550 550/330 5-15P (8) 5-15R 9.8 x 3.4 x 10.2 12.3 No No

5S700 700/420 5-15P (8) 5-15R 9.8 x 3.4 x 10.2 14.3 No No

5S700LCD 700/420 5-15P (8) 5-15R 9.8 x 3.4 x 10.2 13.1 Yes Yes

5S1000LCD 1000/600 5-15P (10) 5-15R 9.8 x 3.4 x 15.0 21.4 Yes Ye s

5S1500LCD 1500/900 5-15P (10) 5-15R 9.8 x 3.4 x 15.0 25.5 Yes Ye s

Tower 208 or 230V 50/60 Hz models

5S700G 700/420 C14 (6) C13 9.8 x 3.4 x 10.2 13.1 No No

5S1500G 1500/900 C14 (8) C13 9.8 x 3.4 x 15.0 24.6 No No

*For complete battery runtimes, please visit Eaton.com/5S.

Rating

(VA/watts)

Input

connection

Output

receptacles

Dimensions

(H x W x D), in

Net weight, lb

LCD

EcoControl

Services and support

Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.

Three-year warranty

The 5S warranty covers both UPS and the batteries for three years. No other manufacturer in the industry offers a warranty as comprehensive.

5S UPS front panel

LCD

interface

Replaceable

battery

Model displayed above: 5S1500LCD

Power

LCD scroll

Alarm silence

5S UPS rear panel

Data line

protection

Eco-Control

outlets

5 outlets

with surge

protection

6-foot line cord

with 5-15P

Monitoring auto

shutdown

capabilities (USB)

Coax surge

protection

5 outlets with

battery backup and

surge protection

Offset outlets to

accommodate

bulky transformer

Reset button

(circuit breaker)

Eaton

1000 Eaton Boulevard Cleveland, OH 44122 USA Eaton.com

Eaton.com/powerquality

To interact with the Eaton 5S, please visit:

Eaton.com/5S

Eaton and Intelligent Power are registered trademarks.

All other trademarks are property of their respective owners.
