Page 1
easyRAID S8A2-U4TT
Hardware User Manual
Ultra 320 SCSI to Serial ATA
Disk Array Systems
Version 1.0
Page 2
Page 3
ESC
Enter
easyRAID S8A2-U4TT
Ultra 320 SCSI to Serial ATA
Disk Array System
Hardware User Manual
Page 4
Page 5
Table of Contents
Preface................................................................................................................... i
Chapter 1 Overview
System Requirements ...........................................................................................1
Operating Environment ....................................................................................1
VT100 Terminal Settings ..................................................................................1
Host Interface ...................................................................................................2
Chapter 2 Basic Configuration
Unpacking ............................................................................................................. 3
Components ..........................................................................................................4
Front View ........................................................................................................4
Control Panel ....................................................................................................5
Disk Tray ..........................................................................................................6
Rear View .........................................................................................................7
Installing Disks ...................................................................................................... 8
Making Connections ...........................................................................................10

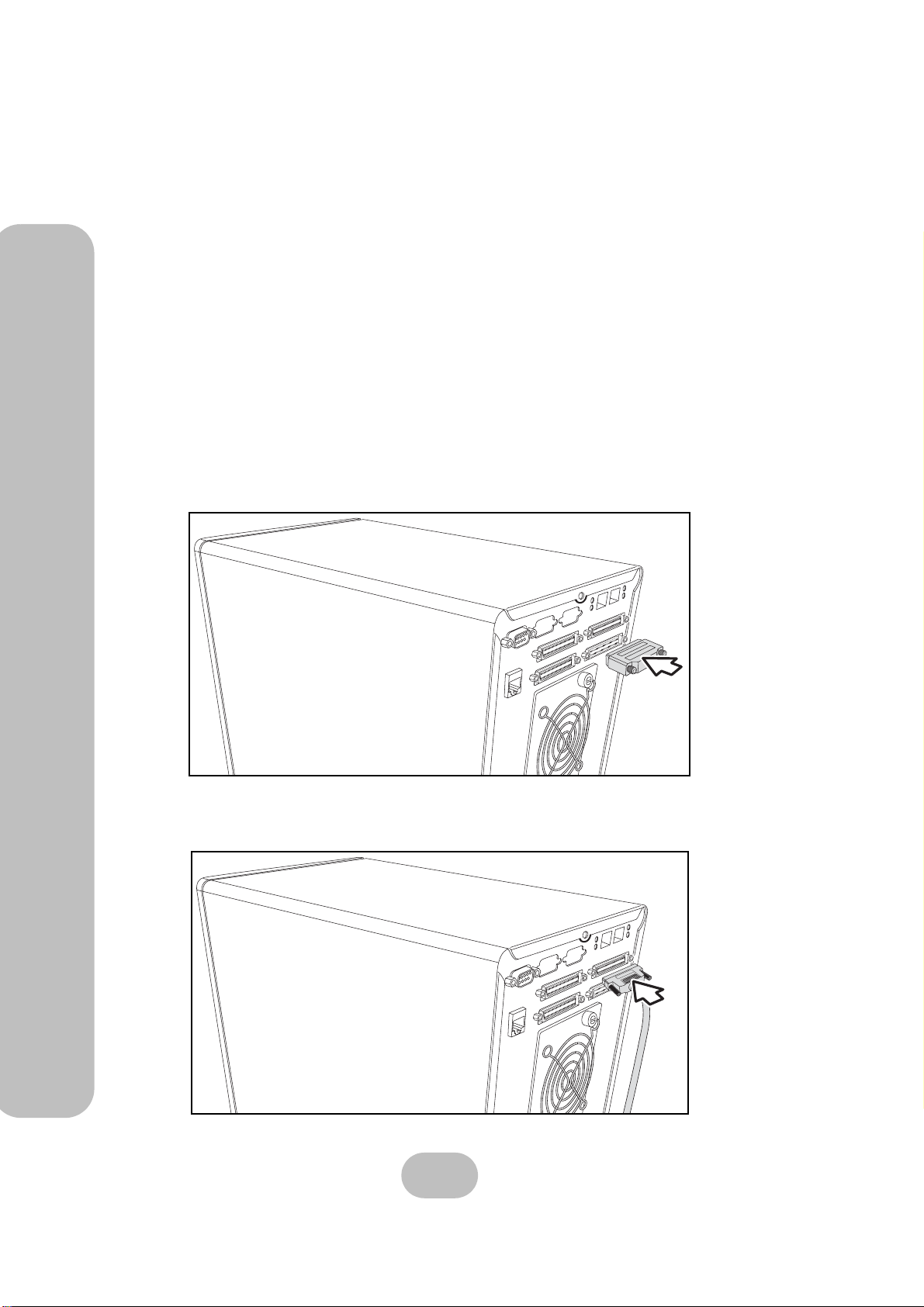

Connecting the Host Interface ........................................................................10
Connecting the RS-232 Cable ........................................................................11

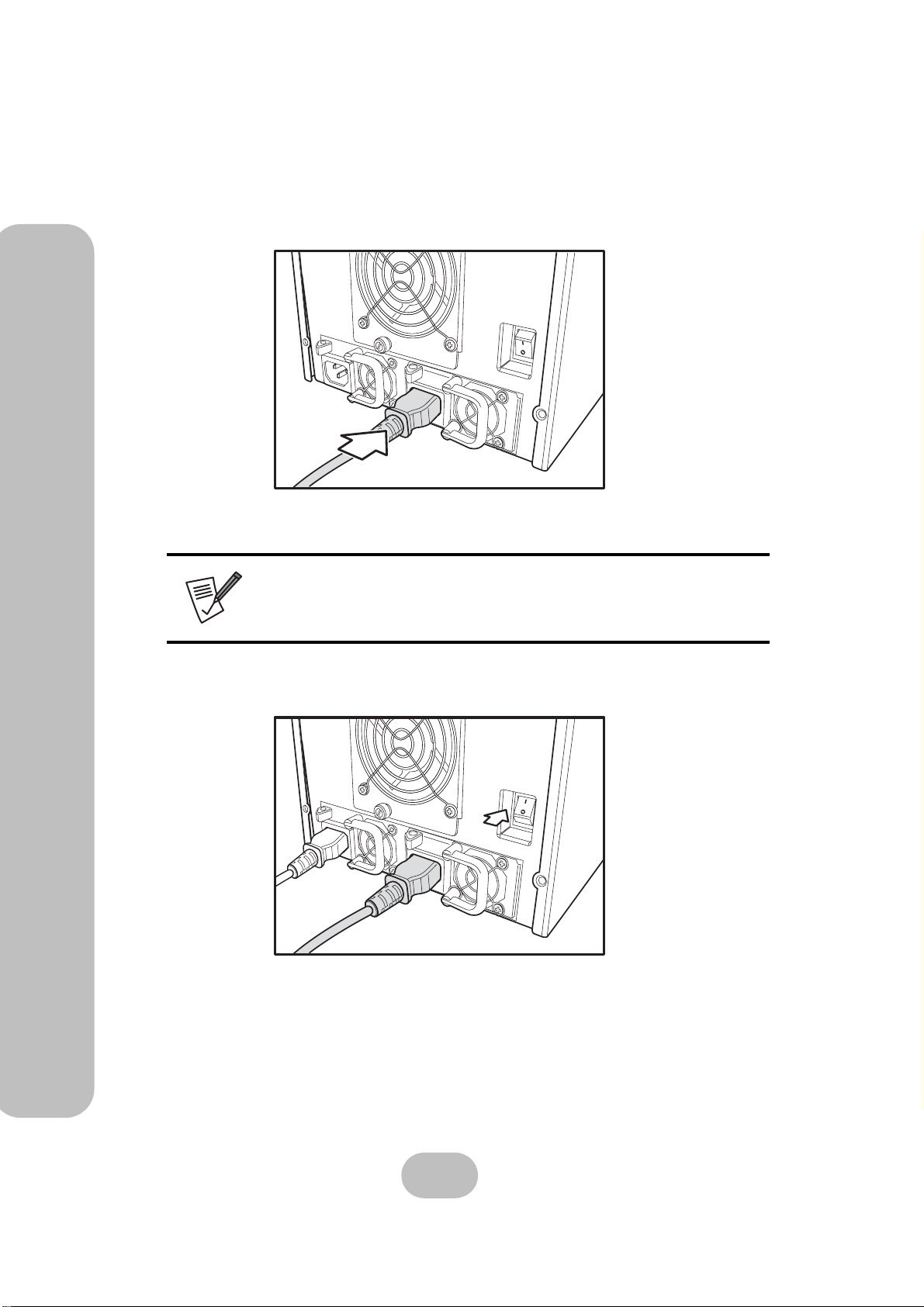

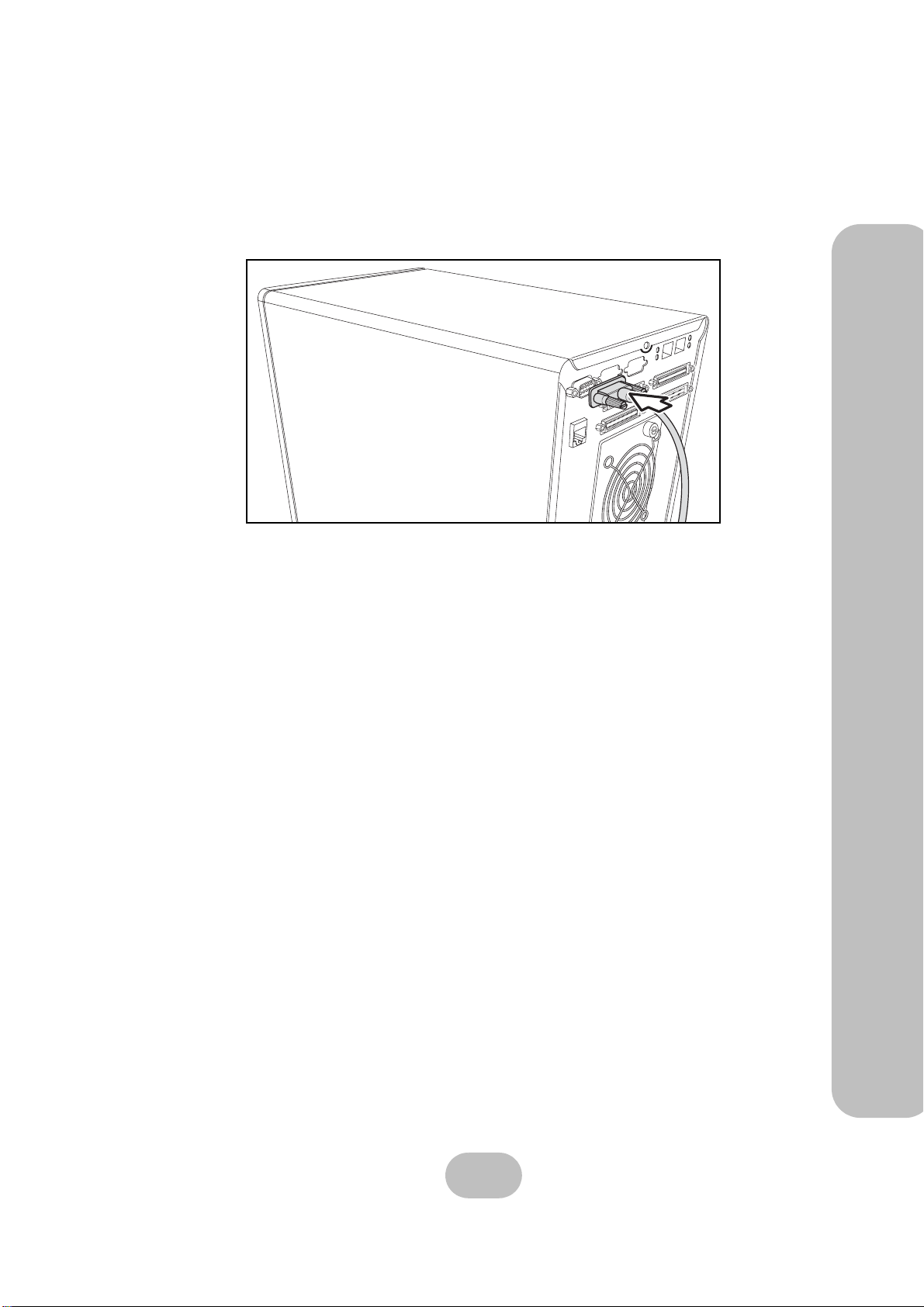

Connecting and Turning on the Power ...........................................................12
Chapter 3 Maintenance
Replacing a Disk .................................................................................................13

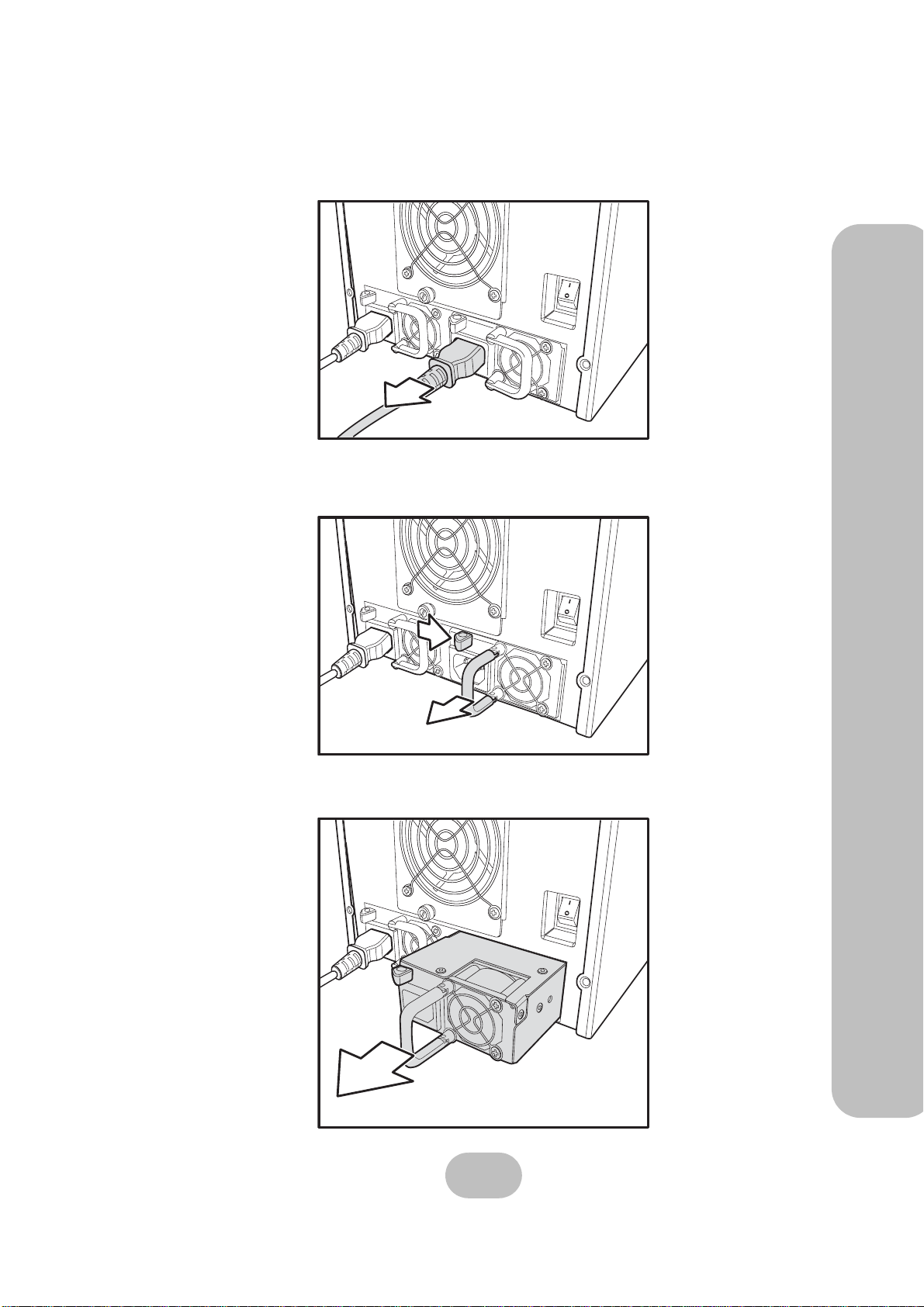

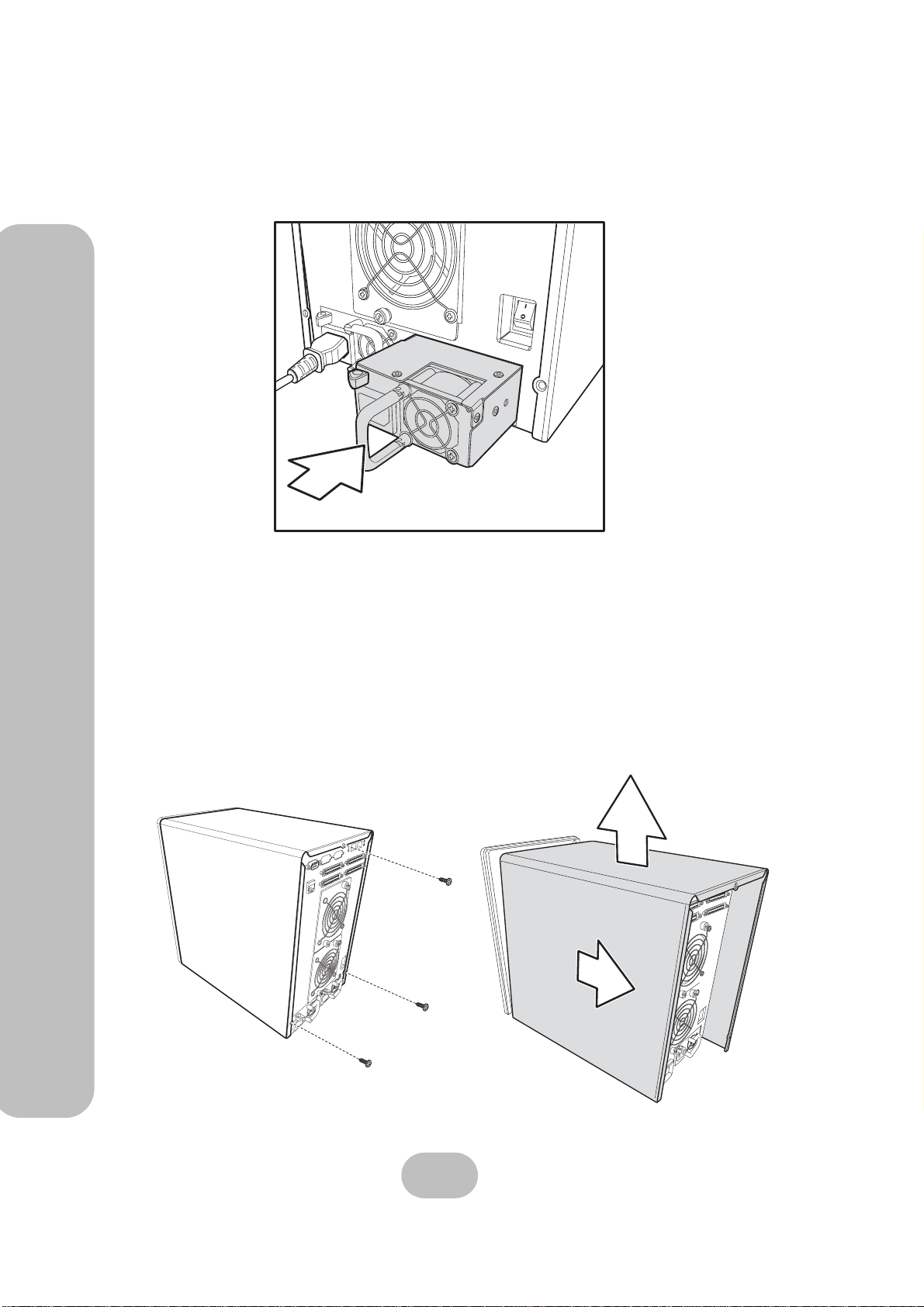

Replacing a Power Supply ..................................................................................14

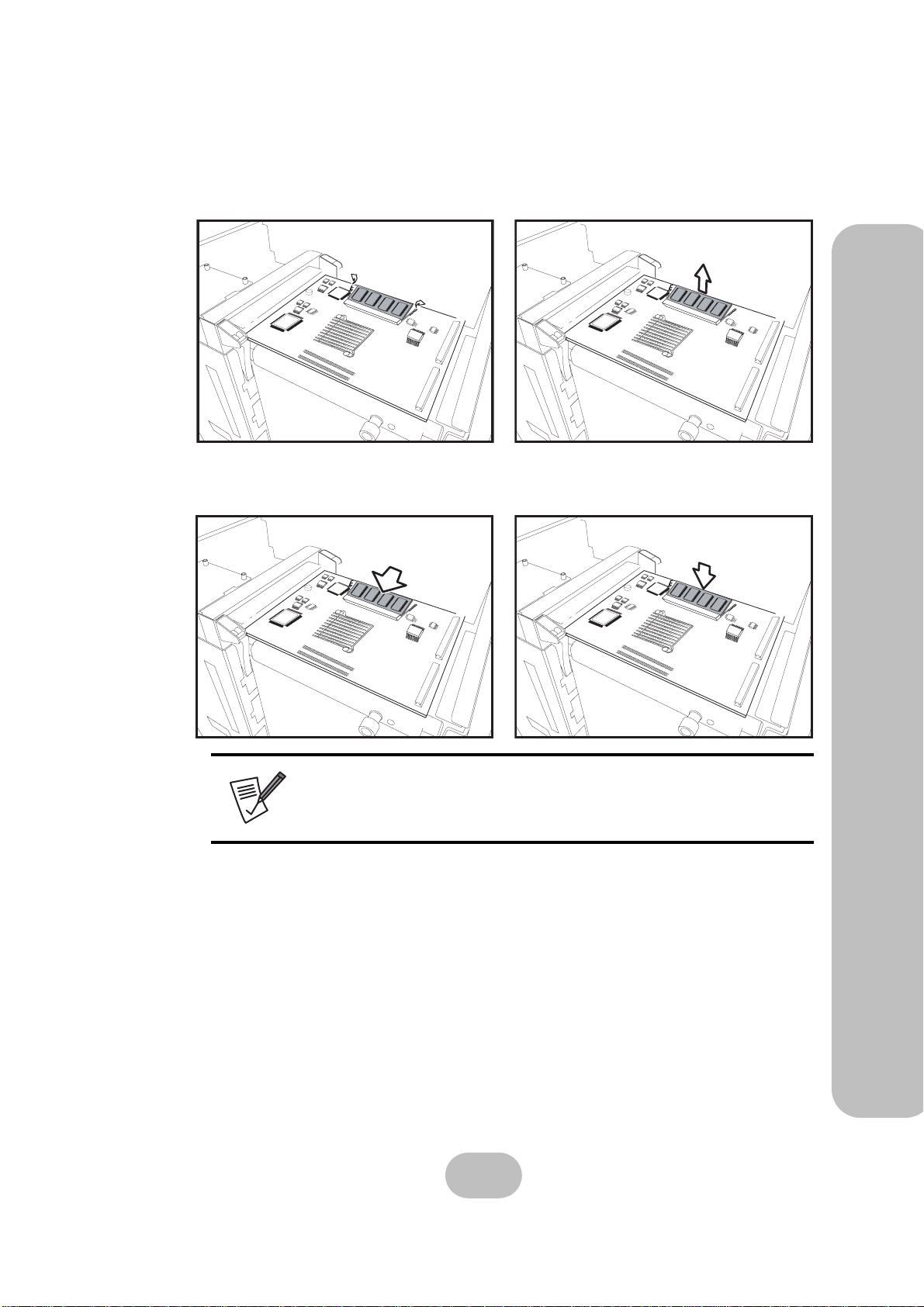

Upgrading Memory .............................................................................................16

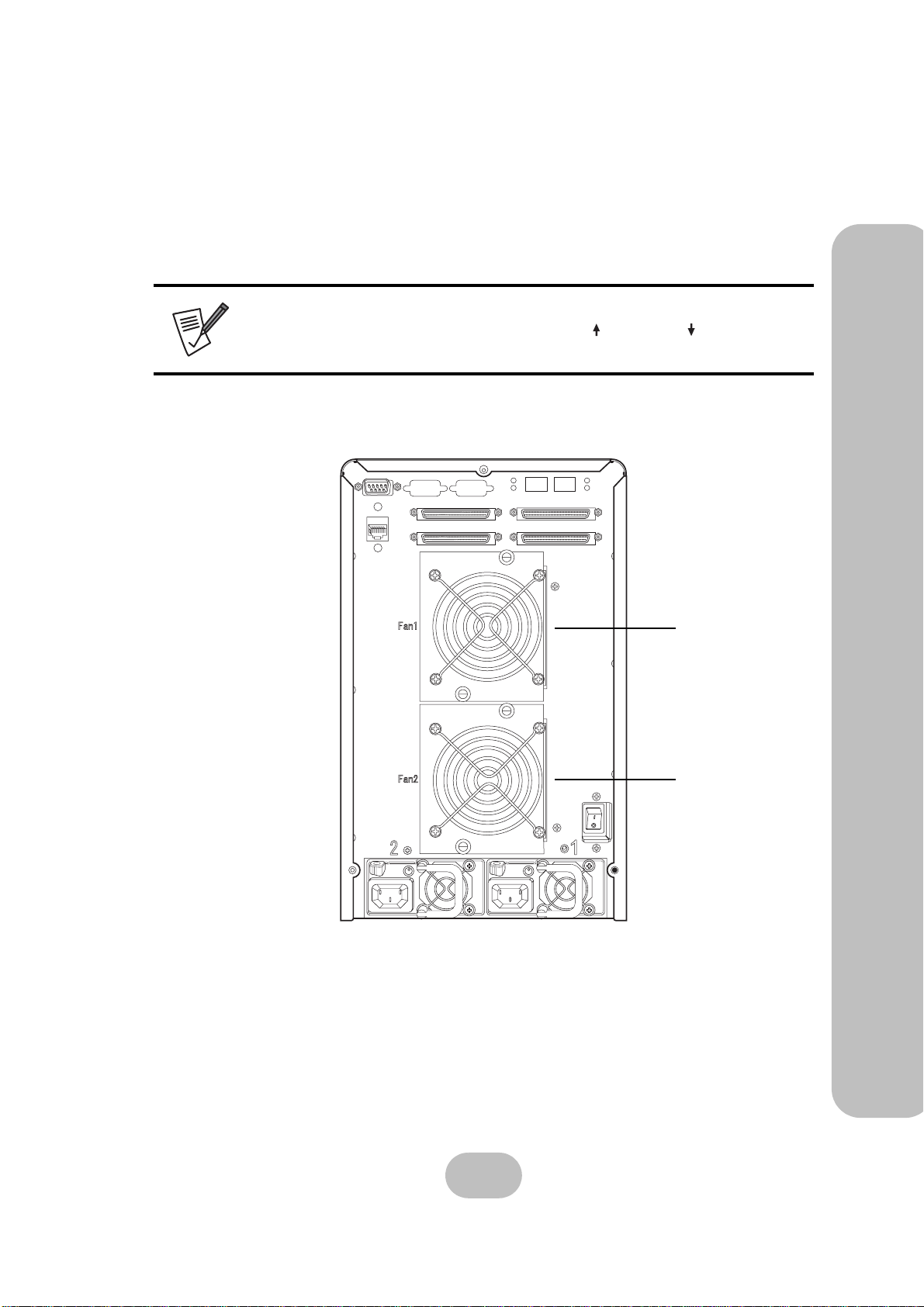

Replacing a Fan ..................................................................................................19
Appendix
Hardware Specifications .....................................................................................23
v
Page 6
Page 7
Preface
About this Manual
This manual is designed to make the disk array system as easy to use as possible. Information
contained in this document has been checked for accuracy , but no guarantee is given that the contents are correct. Information and specifications are subject to change without notice.
Copyright Notice
© Copyright 2006
All rights reserved. This disk array system and related documentation are protected by copyright
and are distributed under licenses restricting their use, copying, and distribution. No part o f this
documentation may be reproduced in any form by any means without prior written authorization
and its licensors, if any.
Conventions
Caution
This symbol is used to remind users to pay attention to important
descriptions regarding usage and maintenance (repair) or additional
important information related to this disk array system.
Note
This symbol is used to remind users of useful information that can make
procedures such as configuration easier to accomplish.
i
Page 8
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

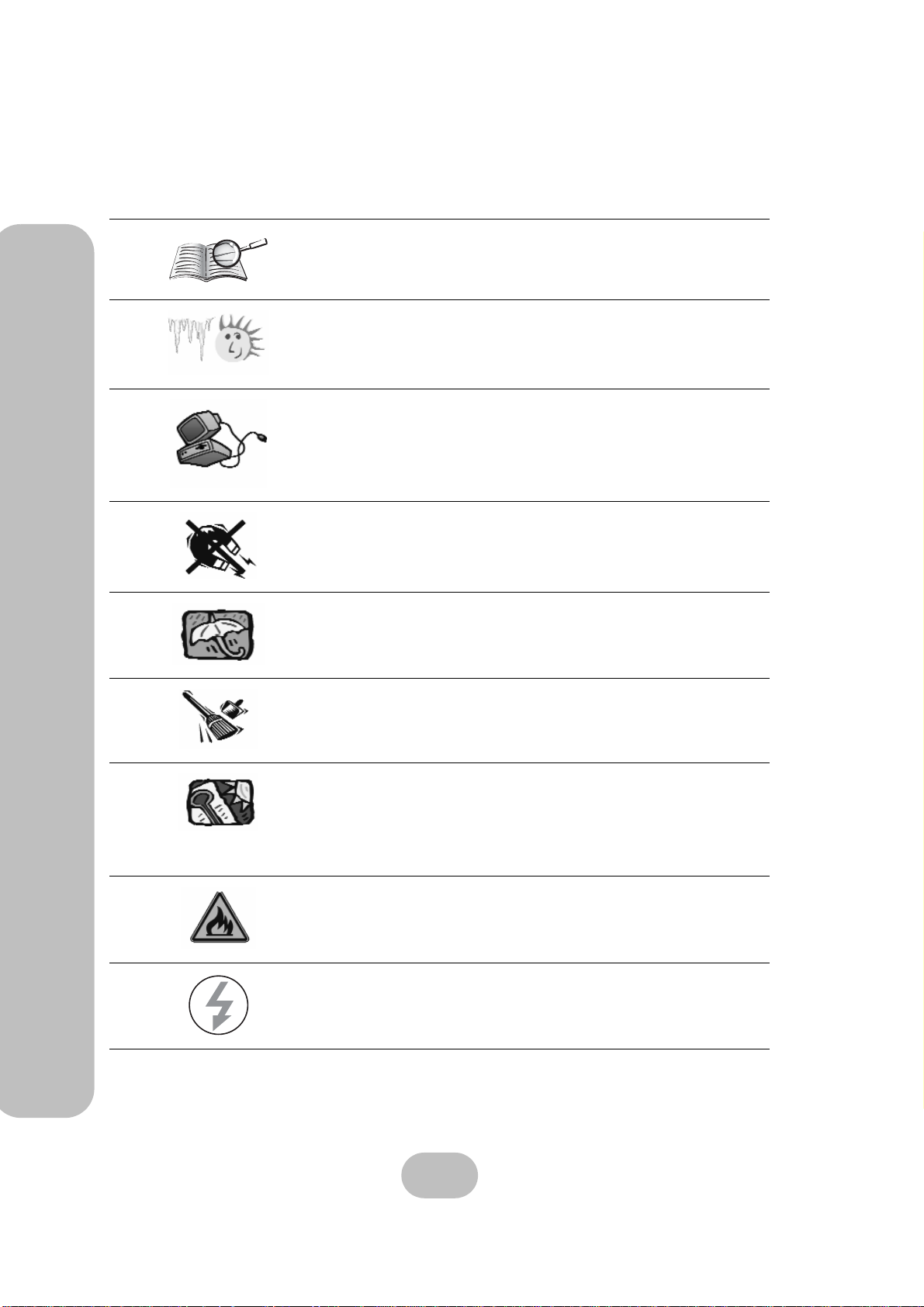

Important Safety Instructions, Care and Handling
Preface – Important Safety Instructions, Care and Handling
Before starting, take a few minutes to read this manual.
Read all of these instructions and save this manual for
later reference.
Protect the disk array system from extremely high or low
temperatures. Let the disk array system warm (or cool)
to room temperature before using it.
Protect the disk array system from being bumped or
dropped. Do not place the disk array system on an
unstable cart, stand, or table. It may fall, causing serious
damage to the product.
Keep the disk array system away from magnetic forces.
Do not use the disk array system near water.
V
Keep the disk array system away from dust, sand, or dirt.
Gaps and openings in the cabinet are provided for ventilation. Never block or cover these openings, because
the disk array system may overheat and become unreliable. Don’t place the disk array system on a bed, sofa,
rug, or other similar surface.
Do not place the disk array system near or over a radiator or heat register.
Refer to the rating plate for the correct voltage and
ensure that the appliance voltage corresponds to the
supply voltage.
ii
Page 9
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

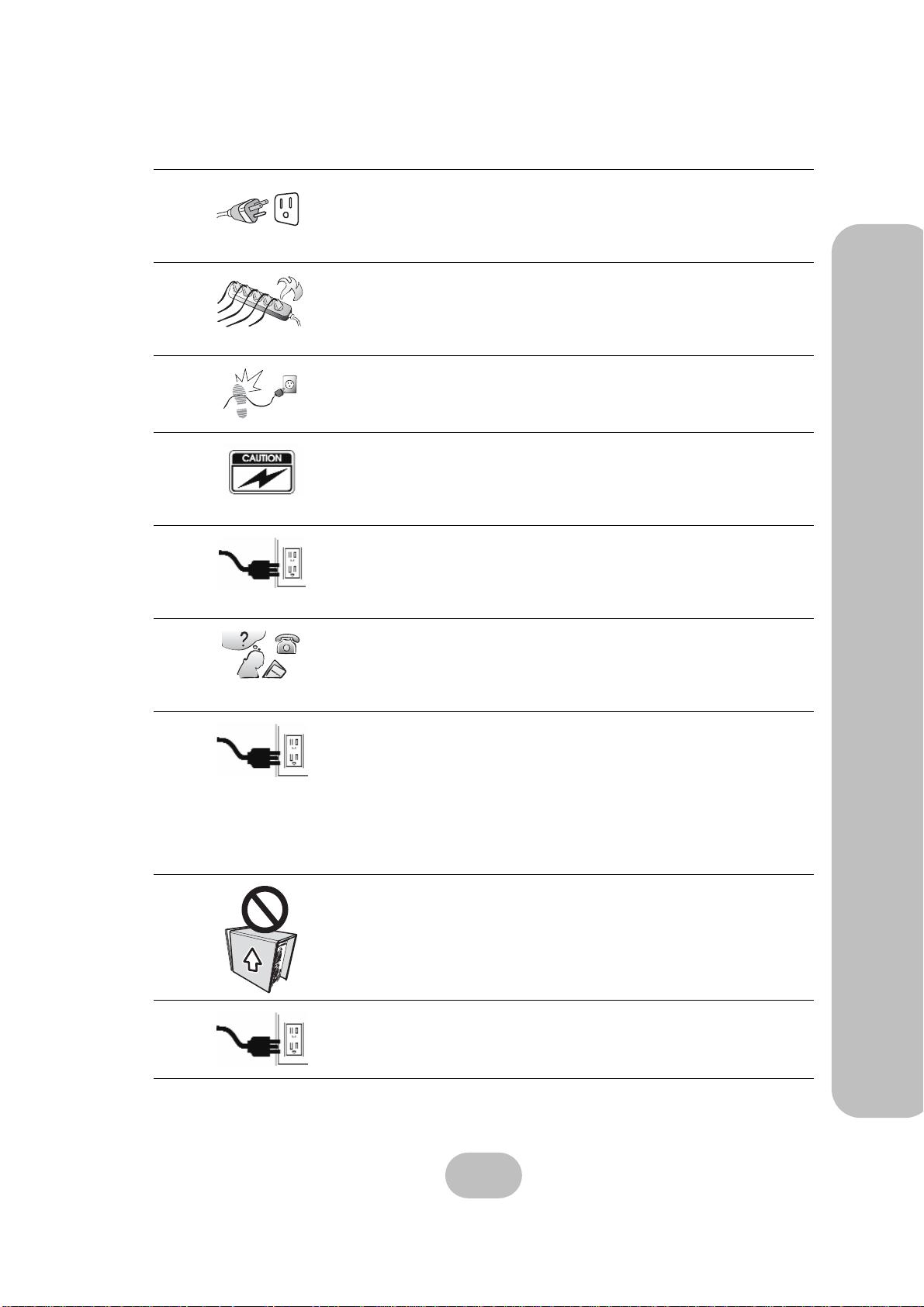

The appliance must be grounded. The disk array system
is equipped with a 3-wire grounded type of power cord.
This power cord will only fit into a grounded type of
power outlet.
If an extension cord or a power center is used with the
disk array system, make sure that the total current consumption of all products plugged into the wall outlet
does not exceed the ampere rating.
Do not place the disk array system where the cord will
be walked on.
Never push any kind of object into the disk array system
through cabinet gaps and openings, since they may
touch dangerous voltage points and cause a risk of fire
or electric shock.
Unplug the power cord from the wall outlet before cleaning. Keep the disk array system dry. Do not use liquid
cleaners, aerosol cleaners, or a wet cloth. Use a damp
cloth for cleaning.
Preface – Important Safety Instructions, Care and Handling
Except as specifically explained in this User Manual, do
not attempt to service the disk array system by yourself.
Opening or removing the covers may expose you to
dangerous voltages.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions.
• If the disk array system has been exposed to
water or any liquid.
• If the disk array system has been dropped or the
cabinet damaged.
User should not remove the cover.
Disconnect all power supply cords before servicing.
iii
Page 10
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Placement Notes
Preface – Important Safety Instructions, Care and Handling
• The disk array system LCD panel can be damaged by exposure to
direct sunlight. Limit exposure to subdued or indirect sunlight only.
• The disk array system should be used only in clean environments
that are free from airborne contaminants such as dust, dirt, and
smoke. Excessive moisture or oil particles in the air can also hinder
disk array system performance.
• To reduce the possibility of data errors caused by electromagnetic
interference, locate the disk array system at least five feet away
from electrical appliances and equipment that generates magnetic
fields.
Power Supply Safety Notes
• To avoid electric shocks, do not use an extended power cord or an
outlet that does not match the disk array system plug or leaves the
plug exposed.
• The disk array system has a 3-wire grounded plug. The third pin
connects to ground; do not remove it.
• If the power cord or plug is damaged or worn, unplug it immediately
and contact a qualified service technician for maintenance.
• To avoid fire or electric shocks, do not overload electric power outlets.
iv
Page 11
1 Overview
System Requirements
Ensure that the following requirements are met before installing the disk array system.
Operating Environment
• 15 cm (6 inches) of space around the disk array system for proper ventilation
• ambient temperature of 5°C to 40°C (40°F to 104°F)
• ambient non-condensing relative humidity of 10% to 85%
• dust, smoke, and oil free environment
• no large magnetic fields, such as those generated by a high voltage power cables and
motors, etc.
• no direct sunlight
• a flat, stable surface capable of supporting the disk array system
VT100 Terminal Settings
Refer to the following table for a summary of VT100 terminal settings required to communicate
with the disk array system. Refer to your system manual for instructions on setting up the VT100
terminal settings.
Item Required Setting
Connection Serial Port (COM1 or COM2)
Protocol RS232 (Asynchronous)
Cabling Null Modem cable
Baud Rate 115200
Data Bits 8
Stop Bit 1
Parity None
1
Page 12
easyRAIS S8A2-U4TT Serial ATA Disk Array Systems
Host Interface
The disk array system has either dual SCSI interfaces or dual fibre channel interfaces. Refer to
1 Overview – System Requirements
the following sections to understand host interface system requirements.
Small Computer Systems Interface
The easyRAIS S8A2-U4TT has dual Ultra320 SCSI interfaces that are compatible with previous
SCSI standards. Refer to the following table to understand SCSI bus requirements.
Note
Subtract the internal cable length (60 cm) from the maximum SCSI bus
length to calculate the maximum external SCSI cable length.
SCSI
Standard
Ultra320 12 320 15
Ultra160 12 160 15
Ultra2 12 80 15
Ultra Wide 1.5 40 7
Fast Wide 3 20 15
Ultra 1.5 20 7
Maximum
SCSI Bus Length
in Meters
Data Rate
in Megabytes
per Second
Maximum
Number of Devices
2
Page 13
2 Basic Configuration
This chapter describes disk array system connections and disk installation.

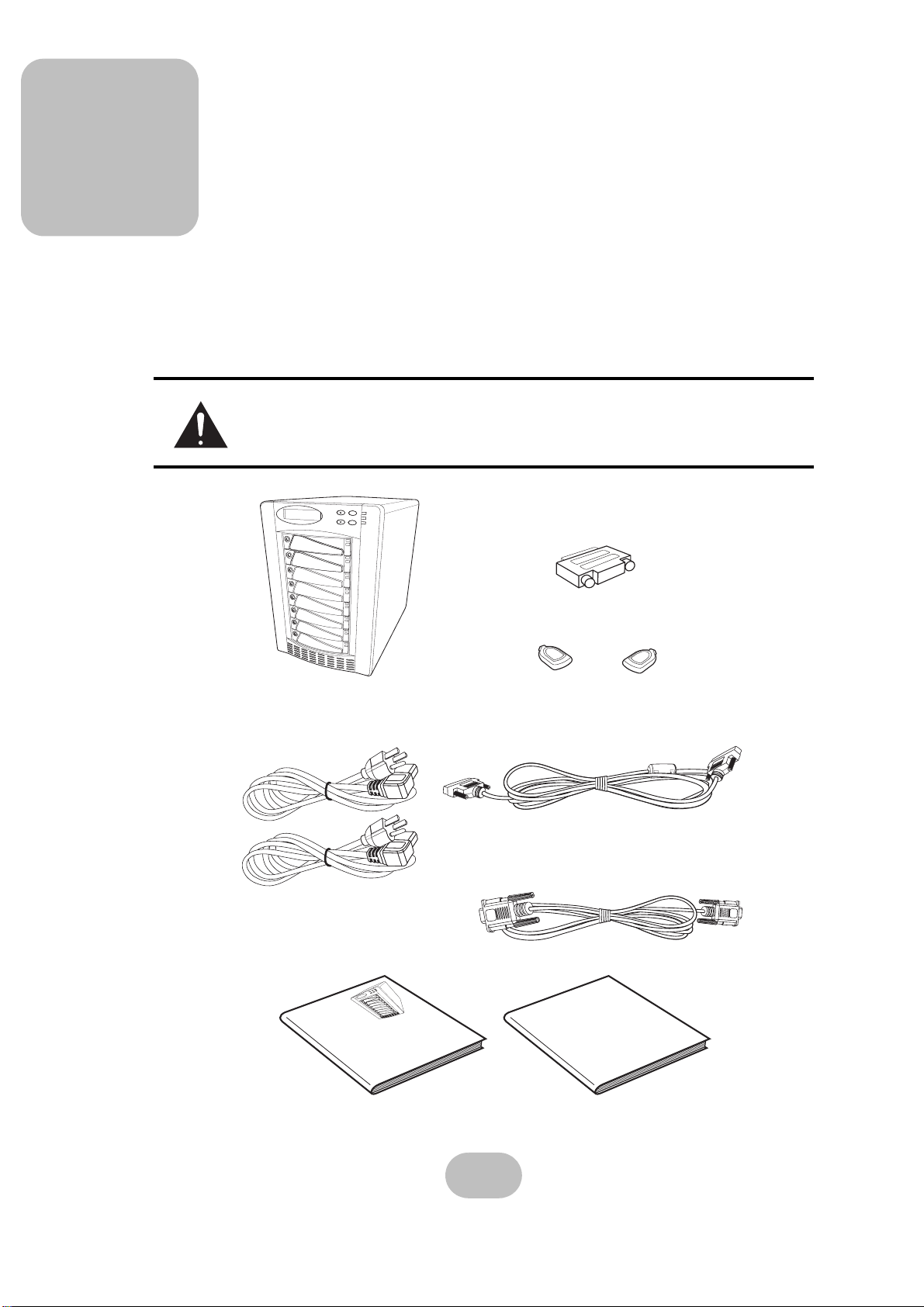

Unpacking
Contact your supplier if any of the following items are missing or damaged.
Caution
The disk array system is heavy. Be careful when lifting and moving it.
E
S
C
Enter
Terminator
Disk Array System
Power Cables
C
S
E
r
e
t
n
E
erial A
S
I to
S
C
m
te
s
0 S
y
S
y
easyRAID S8A2-U4T
rra
ltra32
A
U
k
is
D
Front Panel Keys
Ultra320 SCSI Cable
T
l
a
u
n
a
M
r
e
s
U
re
TA
a
w
rd
a
H
HW/SW User Manual
RS-232 Cable
TA
erial A
S
I to
S
C
m
te
s
0 S
y
S
y
easyRAID S8A2-U4T
rra
ltra32
A
U
k
is
D
T
l
a
u
n
a
M
r
e
s
U
re
a
ftw
o
S
3
Page 14
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Components
2 Basic Configuration – Components

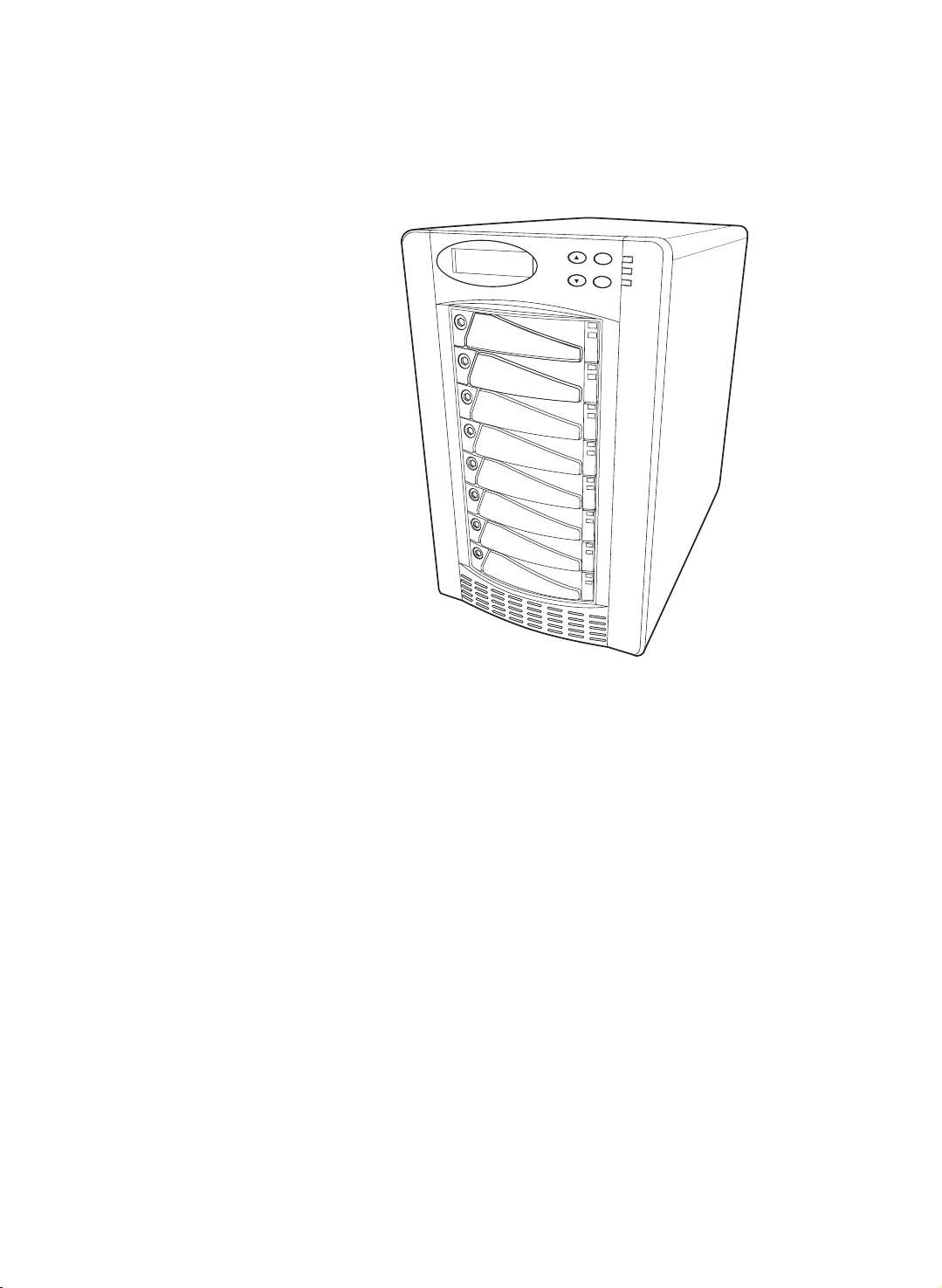

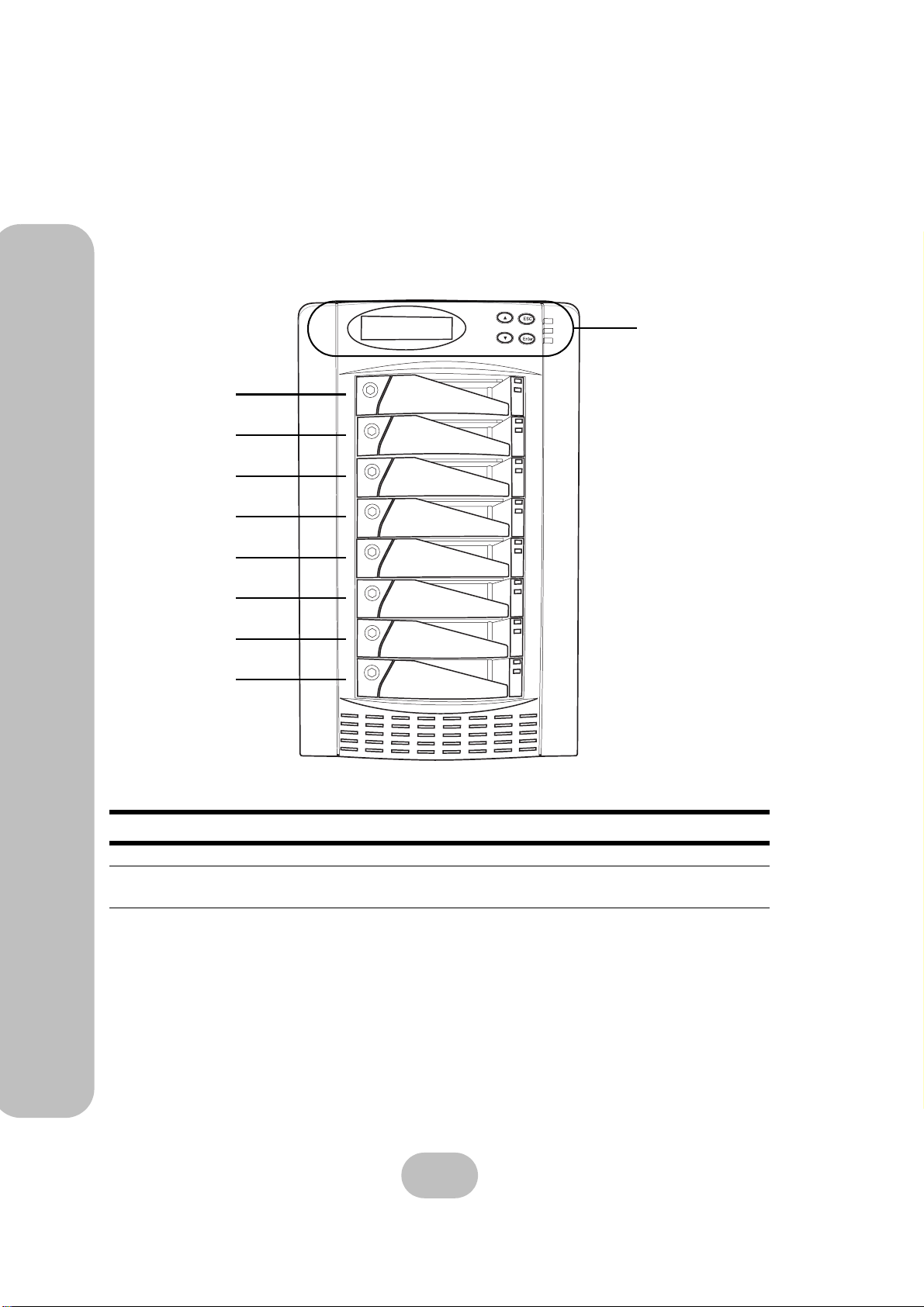

Front View
9
1
2
3
4
5
6
7
8
No. Name Description
1-8 Disk trays 1 to 8 Removable hot swap disk trays.
9 Control panel
Displays warning, operating, and configuration
information.
4
Page 15

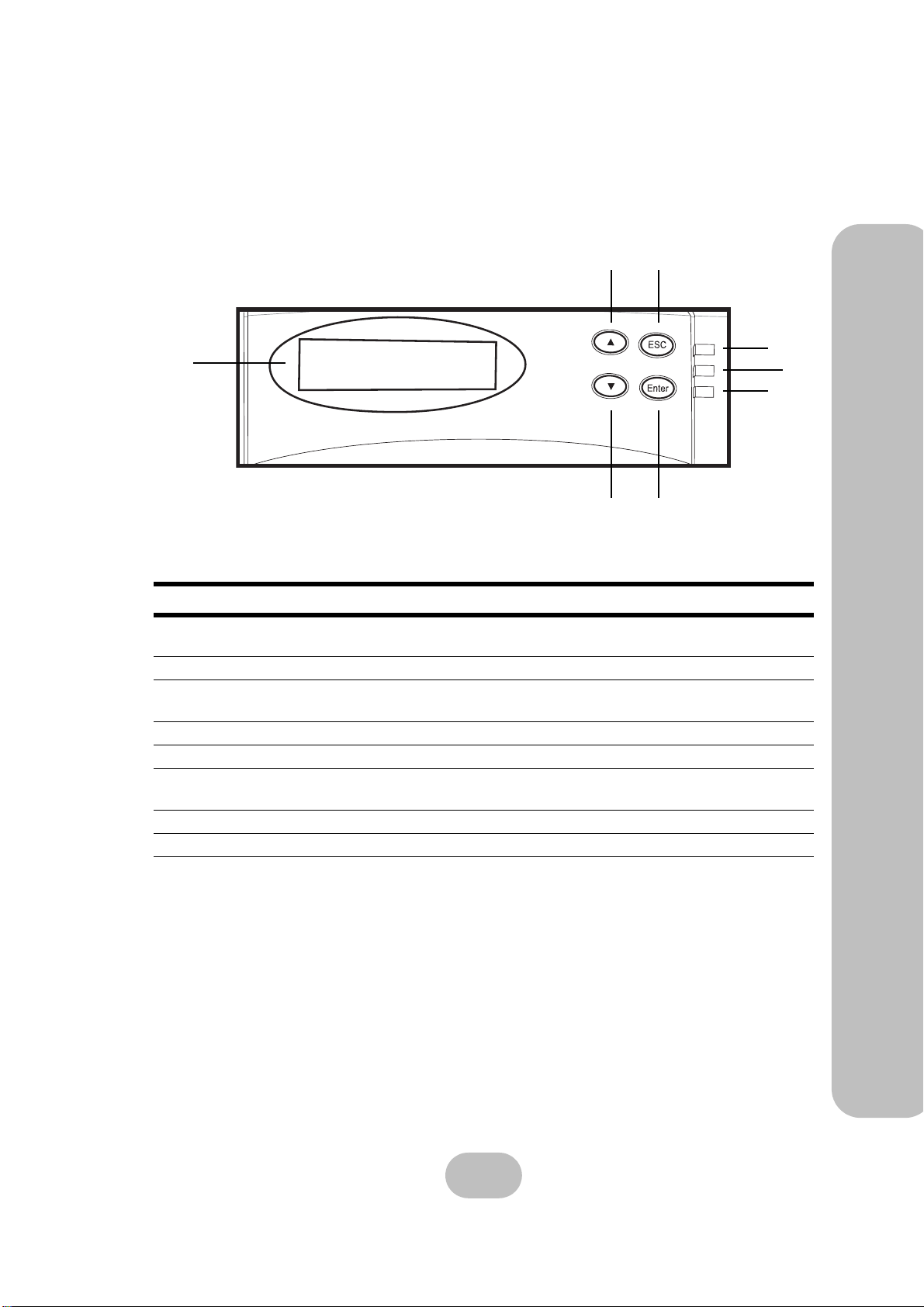

Control Panel
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
2
1
7 8
No. Name Description
1 LCD panel
2 Up button Moves up in the LCD menus.
3 Escape button
4 Power-on indicator Indicates the disk array system power is on.
5 Power supply fail indicator Indicates a failed power supply.
6 Host computer access indicator
7 Down button Moves down in the LCD menus.
8 Enter button Selects a menu item or confirms a choice or entry.
Displays warning, operating, and configuration
information.
Returns to the previous LCD menu without making
changes.
Indicates data transfer between the disk array system and the host computer.
3
2 Basic Configuration – Components
4
5
6
5
Page 16
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

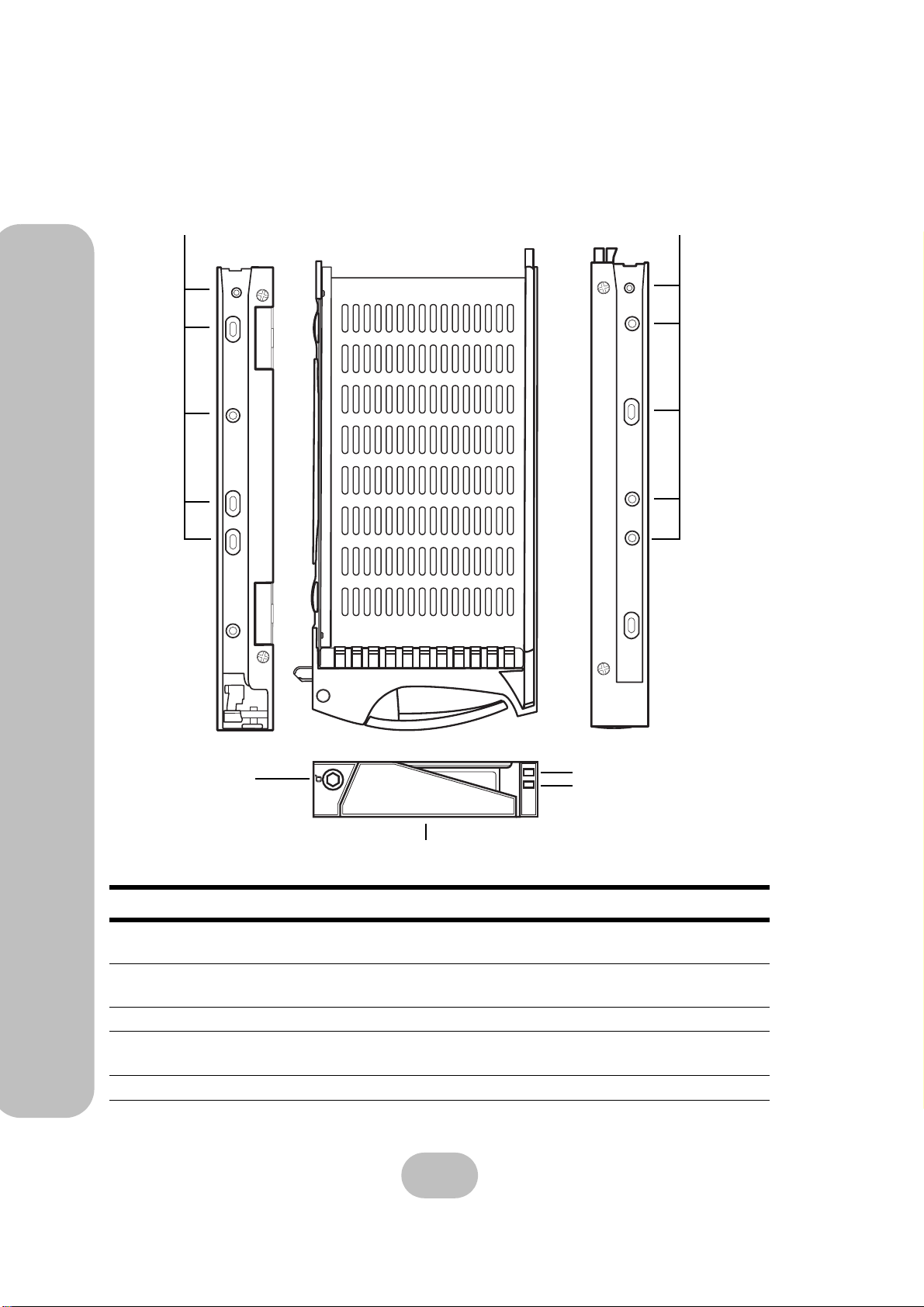

Disk Tray
1
2 Basic Configuration – Components
Left Right
Top
1
Front
2
3
No. Name Description
1 Disk mounting holes
2 Tray lock
3 Tray handle Releases the disk tray.
4 Power/Error indicator LED
5 Access indicator LED Indicates that the disk is being accessed.
Allows the disk be mounted on the disk tray with the
screws included with the disk.
Prevents unauthorized removal of a disk tray. Opened
with the included disk tray lock key.
Indicates normal operation of the disk when green, or
an error or failure of the disk when red.
4
5
6
Page 17

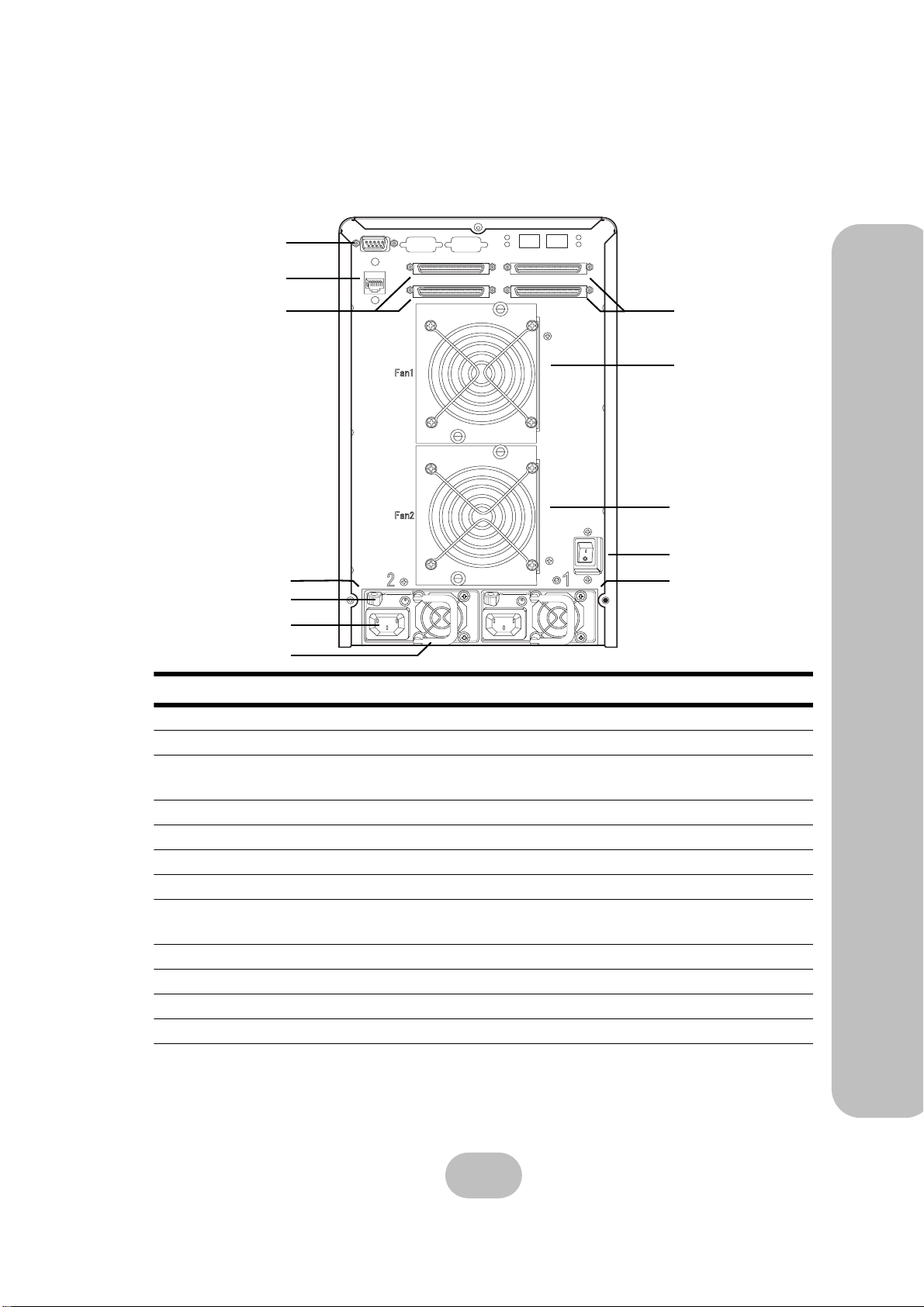

Rear View
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
1
2
3
4
5
6
7
Host Port 2Host Port 1
No. Name Description
2 Basic Configuration – Components
8
9
10
11
12
1
RS-232 Port
2
Ethernet Port
3
Host Port 1
(Primary SCSI channel)
4
Power Supply 2
5
Hot Swap Power Supply Release
6
Power Supply AC In
7
Power Supply Handle
8
Host Port 2
(Secondary SCSI channel)
9
Fan 1
10
Fan 2
11
Power Supply Switch
12
Power Supply 1
Connects to a VT100 terminal or equivalent.
Used for browser-based configuration.
Connects to the host server.
Removable redundant power supply 2.
Allows the power supply to be released.
Connects to a 110-240 VAC power source.
Allows the power supply to be removed.
Connects to the host server
Removable redundant fan 1.
Removable redundant fan 2.
Switches the power on or off.
Removable redundant power supply 1.
7
Page 18
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Installing Disks
2 Basic Configuration – Installing Disks

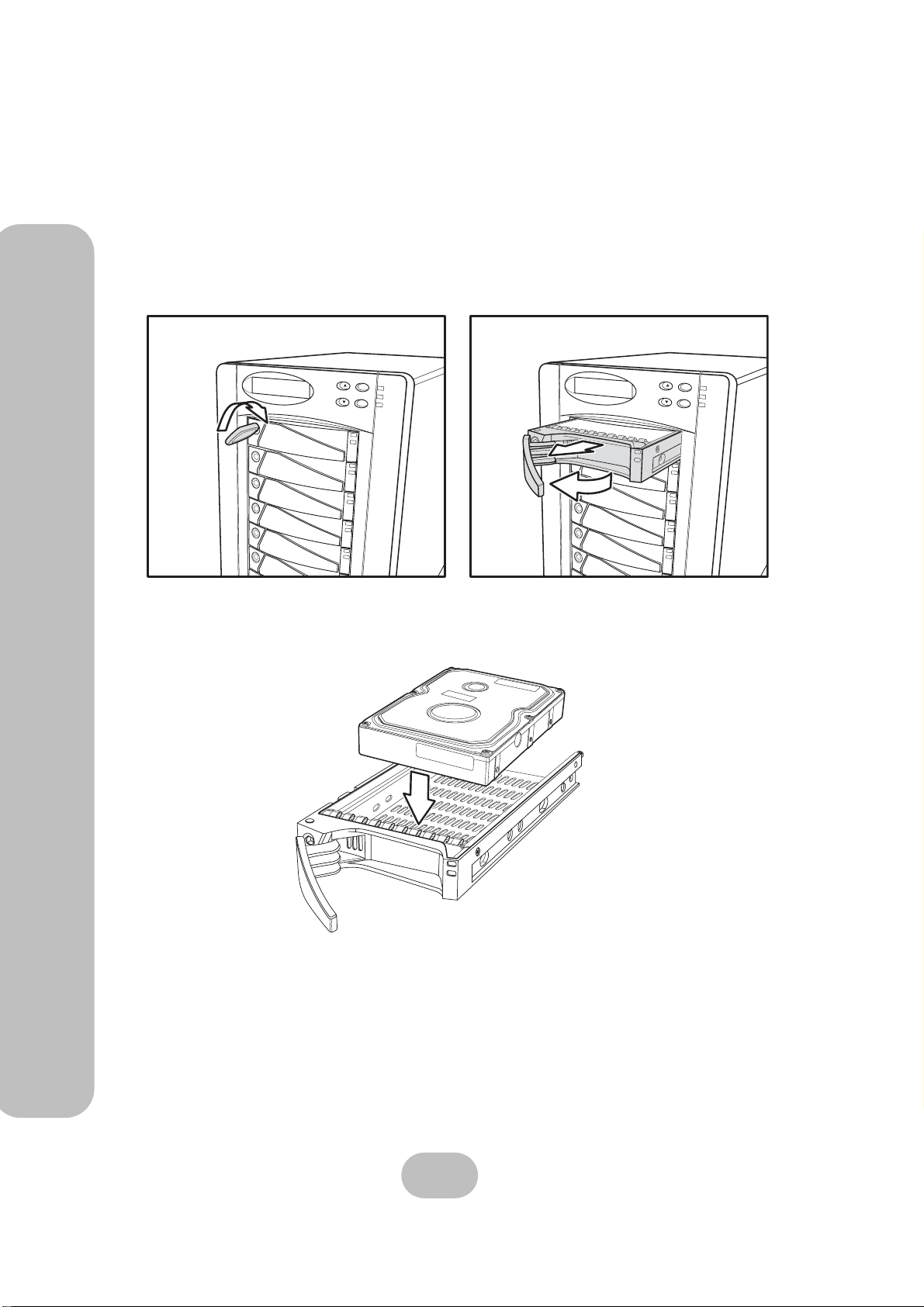

This section describes how to install disks in the disk array system.
1 Unlock the disk tray (A) then pull the disk tray handle to the opened position (B) and
remove the disk tray (C).
ESC
Enter
Enter
B
A
C
2 Insert the disk into the disk tray. The disk should face up with the connectors direc t ed
toward the open rear of the tray.
ESC
3 Align the back of the disk with the back of the disk tray.
8
Page 19
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

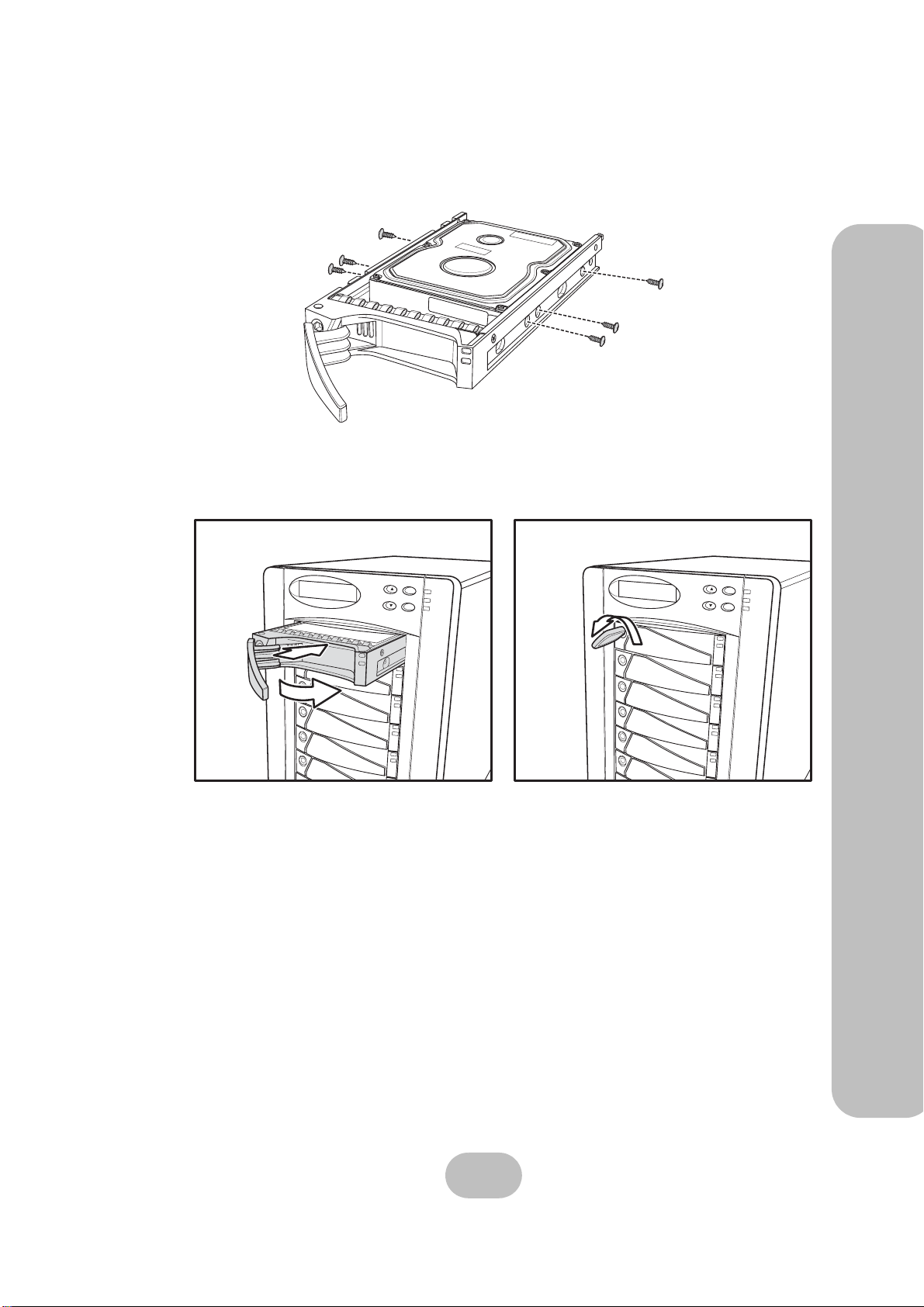

4 Attach the disk to the disk tray with the screws supplied by the disk supplier.
5 Slide the disk tray back into the empty slot (A), push the disk tray handle closed (B),
then lock the disk tray (C).
2 Basic Configuration – Installing Disks
ESC
Enter
A
C
B
6 Repeat these steps until all of the required disks have been installed.
ESC
Enter
9
Page 20
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Making Connections
2 Basic Configuration – Making Connections
After the required number of disks have been installed, external connections to the disk array
system must be made. This section describes how to make all of the necessary connections.
Connecting the Host Interface
The disk array system has dual SCSI interfaces. Refer to the following sections to make host
interface connections.
Small Computer Systems Interface
The easyRAID S8A2-U4TT has dual Ultra320 SCSI interfaces. Follow these instructions to
make connections.
1 Connect the active SCSI terminator to the bottom connector of the easyRAID S8A2-
U4TT host port 2 (Secondary SCSI channel) at the rear of the disk array system.
2 Connect the Ultra320 SCSI cable to the top connector of the easyRAID S8A2-U4TT
host port 2 (Secondry SCSI channel) at the rear of the disk array system.
10
Page 21
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Connecting the RS-232 Cable
Connect the supplied RS-232 cable to the RS-232 port at the rear of the unit.
2 Basic Configuration – Making Connections
11
Page 22
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Connecting and Turning on the Power
1 Connect a power cable to a power supply connector at the rear of the unit.
2 Basic Configuration – Making Connections
2 Connect the second power cable to the remaining power supply connector.
Note
The system is equipped with auto switching power supplies that
can run on 100 to 240 VAC.
3 Press the disk array system power switch to the ON position. The disk array system auto-
matically begins the self-test sequence.
12
Page 23
3Maintenance
Replacing a Disk
A disk failure is indicated when the Power/Error LED at the front of the drive tray turns red and
the audible alert sounds.
Note
Turn off the audible alert by pressing the Up and Down function buttons on the front panel twice simultaneously.
The LCD panel displays the failure with the symbol “R” or “W”. “R” indicates a disk failure or
error, and “W” indicates that there are too many bad sectors on the disk.
Example:
• Disks 1 to 2 are members of RAID group 1.
• Disks 3 to 6 are members of RAID group 2.
112222WR
• Disk 7 has too many bad sectors.
• Disk 8 has an error or a fault.
Disks are hot swappable, which means that they can be inserted and removed while the disk array
system is powered on and operating. Follow these instructions to replace a failed disk.
1 Unlock the disk tray with an included disk tray key .
2 Gently pull the disk tray handle to the opened position.
3 Remove the screws from the failed disk, then remove the disk from the disk tray.
4 Align the rear of the new disk with the rear of the disk tray.
5 Insert the new disk into the disk tray.
Note
The new disk must have the same or a greater capacity than the
faulty disk that was removed. If the disk capacity is smaller, the
audible alert sounds and the auto-rebuild operation doesn’t start.
For best performance, it is recommended that the new disk be
identical to the failed disk.
6 Attach the disk to the disk tray with the screws that came with the disk.
7 Slide the disk tray back into the empty slot, then close the disk tray handle.
8 Lock the disk tray with the key.
13
Page 24
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

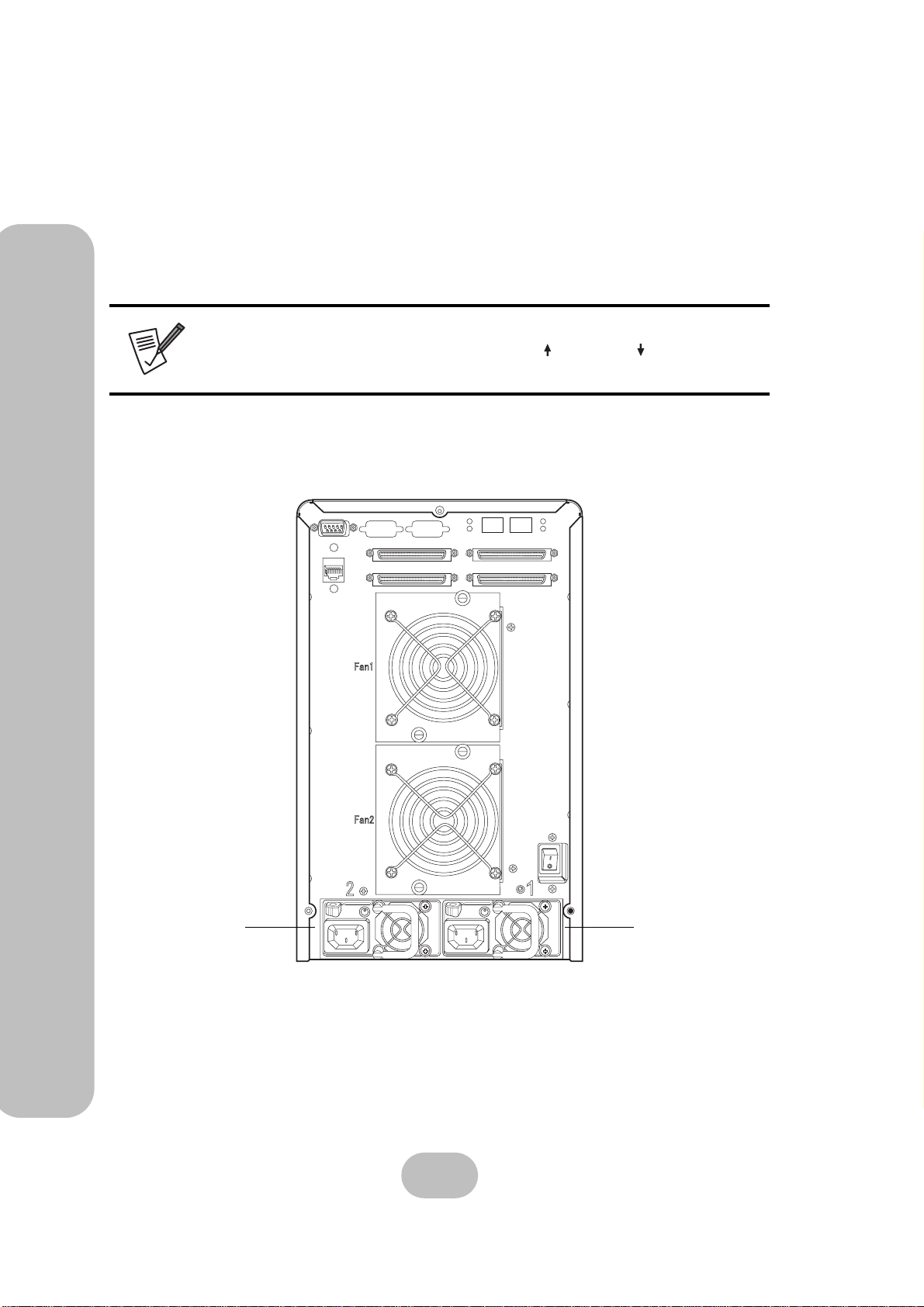

Replacing a Power Supply
3 Maintenance – Replacing a Power Supply
The disk array system is equipped with a Power Supply Fail Indicator LED at the front of the unit
that turns red when one of the power supplies fails. The message “Power x failure” also appears
on the LCD panel, where x refers to power supply 1, or 2, and an audible alert sounds.
Note
Turn off the audible a lert by pressing the Up and Down buttons on the
front panel twice simultaneously.
Power supplies are hot swappable, which means that they can be inserted and removed while the
disk array is powered on and operating. Follow these steps to replace a failed power supply.
1 Identify the power supply that has failed.
Host Port 2Host Port 1
14
Power Supply 1Power Supply 2
Page 25
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
2 Unplug the power cable connected to the failed power supply unit.
3 Push the power supply release switch (A) in the direction illustrated and pull the power
supply handle out (B) at the same time.
3 Maintenance – Replacing a Power Supply
4 Remove the power supply unit.
A
B
15
Page 26
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
5 Insert a new power supply unit in the empty power supply unit slot. The power supply
automatically locks into position when fully inserted.
3 Maintenance – Upgrading Memory
6 Reconnect the power cable.
Upgrading Memory
The disk array system takes a single 200 pin DIMM with a maximum capacity of 1 GB. Follow
these instructions to upgrade the memory.
1 Remove the three screws from the disk array system cover, then slide the cover away
from the front panel and lift it off.
16
Page 27
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
2 Pull the DIMM retaining clips away from the DIMM, then remove the DIMM. The
DIMM springs out of the socket.
3 Gently push the new DIMM into the socket at 45 degrees, then push the corners of the
DIMM down. The DIMM is secured by the DIMM socket retaining clips.
3 Maintenance – Upgrading Memory
Note
The DIMM module will fit in only one direction. Do not force the
DIMM into place.
17
Page 28
easyRAID S8A2-U4TT Serial ATA Disk Array Systems

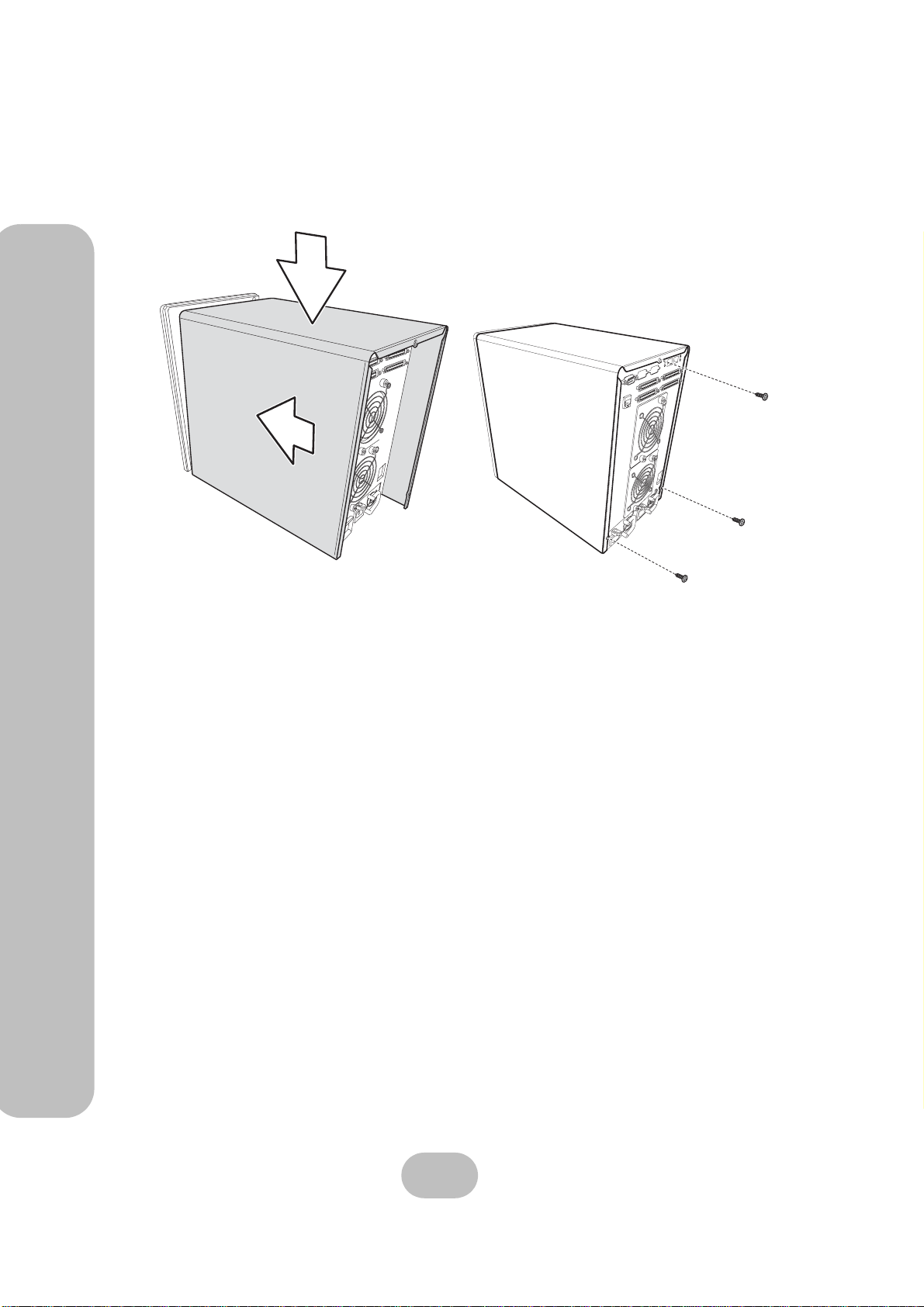

4 Place the top cover on the disk array system, slide it shut, then replace the three screws
to fix the cover on the disk array system.
3 Maintenance – Upgrading Memory
18
Page 29
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Replacing a Fan
A fan failure is indicated by the LCD panel message “Fan x failure”, where x refers to Fan 1 or
Fan 2. An audible alert also sounds.
Note
Turn off the audible alert by pressing the Up and Down function buttons on the front panel twice simultaneously.
Follow these instructions to replace a failed fan.
1 Identify the fan that has failed.
Host Port 2Host Port 1
Fan 1
3 Maintenance – Replacing a Fan
19
Fan 2
Page 30
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Host Port 1
Host Port 2
Host Port 1
Host Port 2

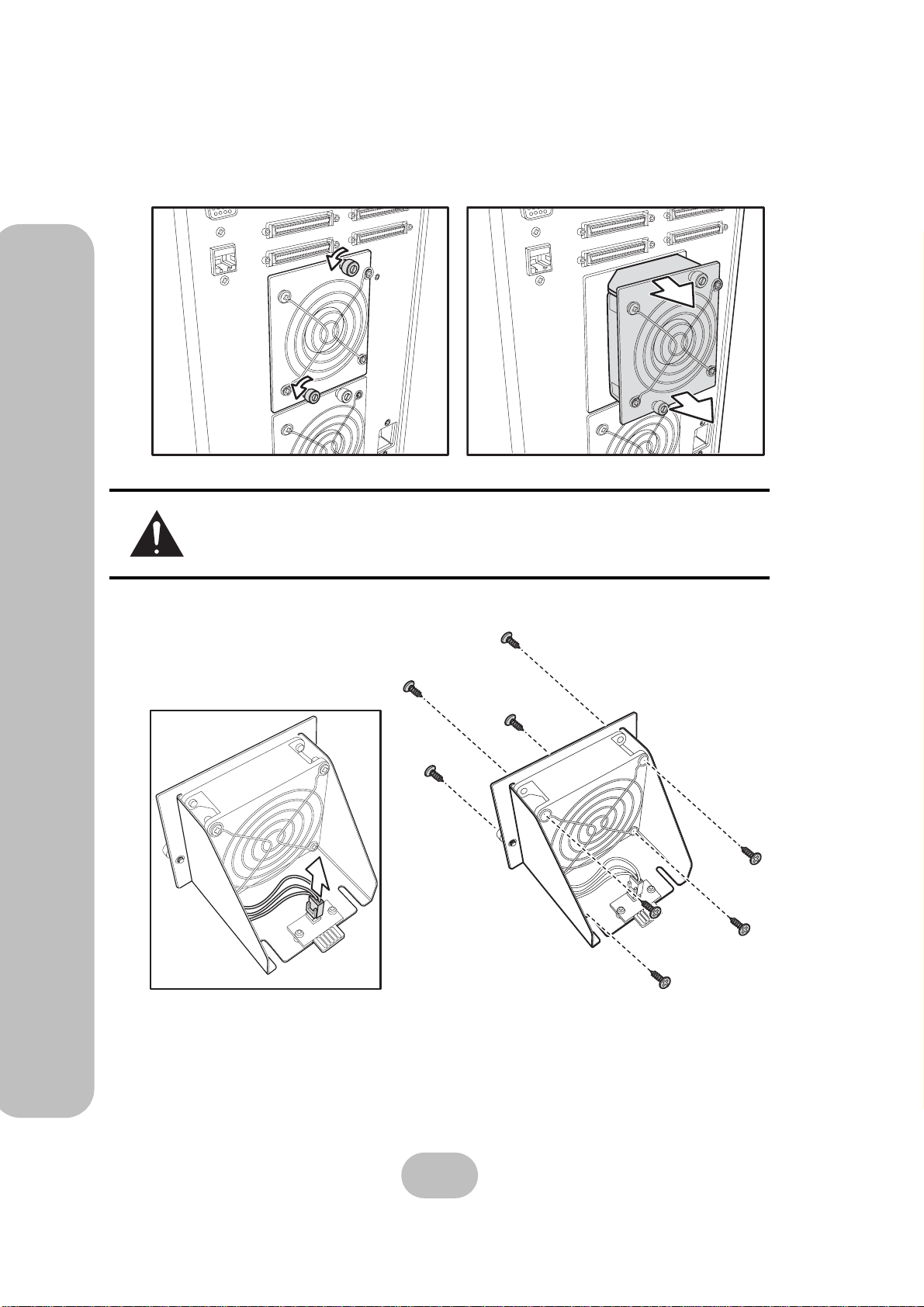

2 Loosen the fan enclosure thumbscrews, then pull the fan enclosure out of the chassis.
3 Maintenance – Replacing a Fan
Caution
High speed rotating fan blades can cause injury. Wait until both fans
have stopped completely before removing either of them.
3 Unplug the power connector, remove the screws, then remove the failed fan.
20
Page 31
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
Host Port 1
Host Port 2
Host Port 1
Host Port 2

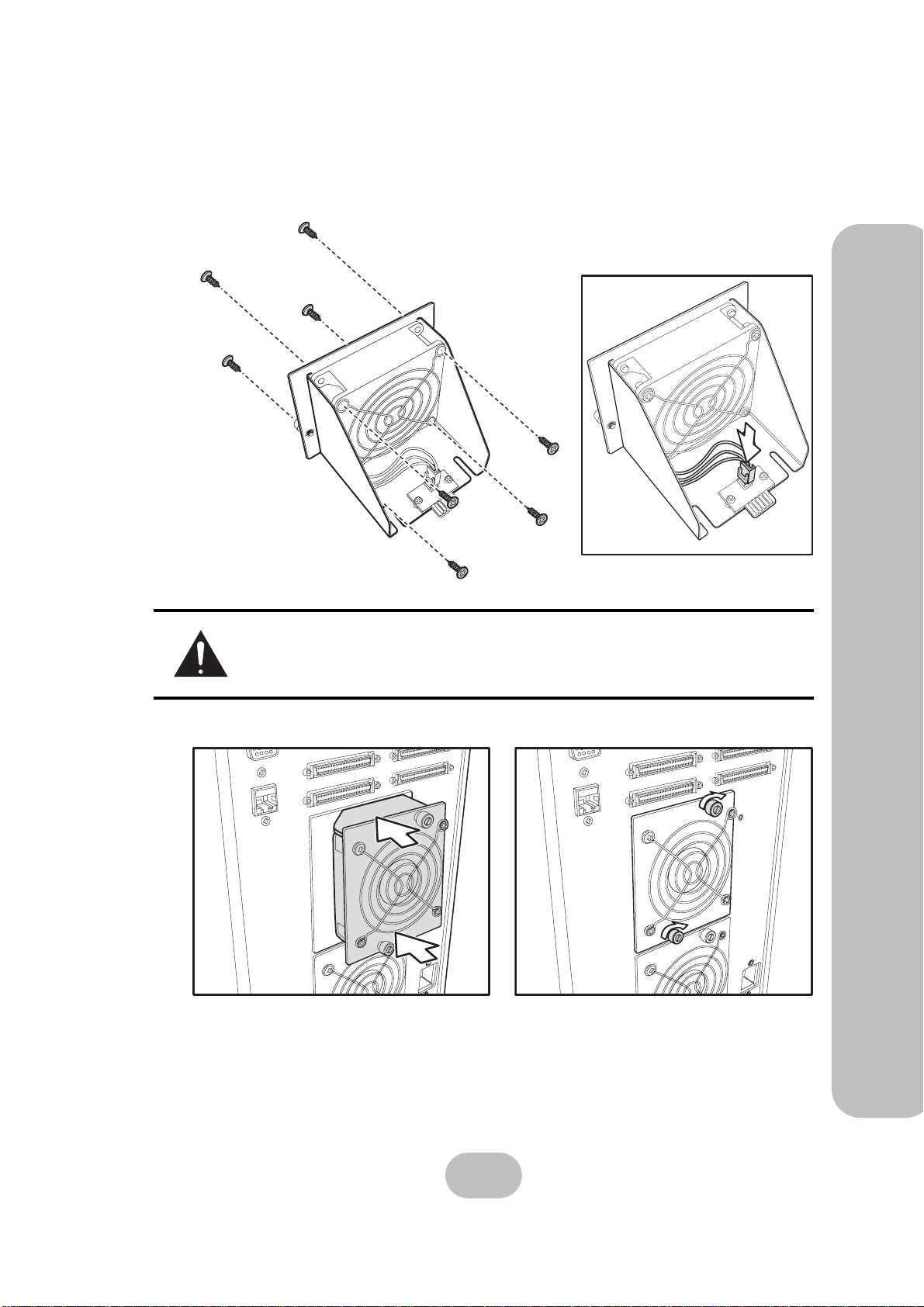

4 Secure the new fan with the screws removed in the previous step, then insert the power
connector.
3 Maintenance – Replacing a Fan
Caution
The fan will begin rotating immediately after it is plugged in. Keep your
fingers away from the blades.
5 Insert the fan enclosure into the chassis, then tighten the fan enclosure thumbscrews.
21
Page 32
easyRAID S8A2-U4TT Serial ATA Disk Array Systems
3 Maintenance – Replacing a Fan
22
Page 33
Appendix
Hardware Specifications
Item Specification
Host Interface SCSI Ultra320
Disk Interface SATA II, 3.0 Gb/s
RAID Functions
Disk Array Functions
Connectors • 4 x Ultra320 SCSI ports(2 channels)
Power Supply • Redundant, 300 Watt
Warranty 3 year warranty
Safety UL, CE and FCC Class B
• Raid levels: JBOD, 0, 1, 0+1, 3, 5, 30, 50, 6, TP, NRAID
• Hot spare support
• Disk hot swapping with automatic online rebuilding
• Multiple RAID (max. 8)
• O/S independent and transparent
• Up to 1GB DDR SDRAM
• LCD panel operation indicator
• Audible alarm/disable alarm
• LED indicator on disk failures
• 1 x RS-232 Serial port (115200, 8, N, 1)
• 1 x RJ-45 Ethernet port (10/100 Mbps)
• 100 - 240 VAC, 47-63 Hz, 6~3A +/- 10%
• Over voltage, current, power, and short circuit protection
• LED indicates power status
• Operating temperature: 5°C ~ 40°C
• Operating humidity: 10 ~ 85% (non condensing)
• Output: +5V, +3.3V, +12V
23
Page 34
easyRAID S8A2-U4TT Serial ATA II Disk Array Systems
Item Specification
Appendix – Hardware Specifications
Controller
CPU Intel i80331 64-bit RISC microprocessor
Disk Interface SATA II (3.0 Gb/s)
Disk Channels 8 channels
Memory Type DDR-333 200-pin DIMM
Memory Sockets 1
Memory Size Up to 1 GB
Button Interface Up, Down, Enter, and ESC
Backplane Interface
(connector)
Temperature Sensors 2
Compact-PCI
Backplane
Disk Channel Support 8 channels
Disk Number Supported 8 disks
Disk Connector Type Serial ATA II
Temperature Sensors 5
Power Connector Type 2 x Slot-2
Fan Connector Type 4 x Slot-2
24
