easyRAID S8A2-U4R2 Hardware User Manual

easyRAID S8A2

Hardware User Manual

Ultra 320 SCSI to Serial ATA II

Disk Array Systems

Version 1.1

www.easyraid.com

easyRAID S8A2-U4R2

Ultra 320 SCSI to Serial ATA II

Disk Array System

Hardware User Manual

Table of Contents

Preface................................................................................................................... i

Chapter 1 System Requirements

Operating Environment .................................................................................... 1

VT100 Terminal Settings ..................................................................................1

Host Interface ................................................................................................... 2

Chapter 2 Basic Configuration

Unpacking ............................................................................................................. 3

Components .......................................................................................................... 4

Front Panel .......................................................................................................4

Disk Tray ..........................................................................................................5

ER-S8A

Installing Disks ......................................................................................................7

Making Connections ........................................................................................... 10

Connecting the Host Interface ........................................................................10

Connecting a network .....................................................................................11

Connecting and Turning on the Power ...........................................................12

2 Rear View .......................................................................................6

Chapter 3 Maintenance

Replacing a Disk .................................................................................................13

Replacing a Power Supply ..................................................................................14

Upgrading Memory ............................................................................................. 17

Appendix

Hardware Specifications ..................................................................................... 19

i

Preface

About this Manual

This manual is designed to make the disk array system as easy to use as possible. Information
contained in this document has been checked for accuracy , but no guarantee is given that the con­tents are correct. Information and specifications are subject to change without notice.

Copyright Notice

© Copyright 2006
All rights reserved. This disk array system and related documentation are protected by copyright

and are distributed under licenses restricting their use, copying, and distribution. No part of this
documentation may be reproduced in any form by any means without prior written authorization
and its licensors.

Conventions

Caution

This symbol is used to remind users to pay attention to important
descriptions regarding usage and maintenance (repair) or additional
important information related to this disk array system.

Note

This symbol is used to remind users of useful information that can make
procedures such as configuration easier to accomplish.

i

easyRAID S8A2 Serial ATA II Disk Array Systems

Important Safety Instructions, Care and Handling

Preface – Important Safety Instructions, Care and Handling

Before starting, take a few minutes to read this manual.
Read all of these instructions and save this manual for
later reference.

Protect the disk array system from extremely high or low
temperatures. Let the disk array system warm (or cool)
to room temperature before using it.

Protect the disk array system from being bumped or
dropped. Do not place the disk array system on an
unstable cart, stand, or table. It may fall, causing serious
damage to the product.

Keep the disk array system away from magnetic forces.

Do not use the disk array system near water.

V

Keep the disk array system away from dust, sand, or dirt.

Gaps and openings in the cabinet are provided for venti­lation. Never block or cover these openings, because
the disk array system may overheat and become unreli­able. Don’t place the disk array system on a bed, sofa,
rug, or other similar surface.

Do not place the disk array system near or over a radia­tor or other heat source.

Refer to the rating plate for the correct voltage and
ensure that the appliance voltage corresponds to the
supply voltage.

ii

easyRAID S8A2 Serial ATA II Disk Array Systems

The appliance must be grounded. The disk array system
is equipped with a 3-wire grounded type of power cord.
This power cord will only fit into a grounded type of
power outlet.

If an extension cord or a power center is used with the
disk array system, make sure that the total current con­sumption of all products plugged into the wall outlet
does not exceed the ampere rating.

Do not place the disk array system where the cord will
be walked on.

Never push any kind of object into the disk array system
through cabinet gaps and openings, since they may
touch dangerous voltage points and cause a risk of fire
or electric shock.

Unplug the power cord from the wall outlet before clean­ing. Keep the disk array system dry. Do not use liquid
cleaners, aerosol cleaners, or a wet cloth. Use a damp
cloth for cleaning.

Preface – Important Safety Instructions, Care and Handling

Except as specifically explained in this User Manual, do
not attempt to service the disk array system by yourself.
Opening or removing the covers may expose you to
dangerous voltages.

Unplug this product from the wall outlet and refer servic­ing to qualified service personnel under the following
conditions.

• If the disk array system has been exposed to
water or any liquid.

• If the disk array system has been dropped or the
cabinet damaged.

Users should not remove the cover.

oGGwGGY

Fan 1

P
o
w
e
r 1

Disconnect all power supply cords before servicing.

iii

easyRAID S8A2 Serial ATA II Disk Array Systems

Placement Notes

Preface – Important Safety Instructions, Care and Handling

• The disk array system LCD panel can be damaged by exposure to
direct sunlight. Limit exposure to subdued or indirect sunlight only.

• The disk array system should be used only in clean environments
that are free from airborne contaminants such as dust, dirt, and
smoke. Excessive moisture or oil particles in the air can also hinder
disk array system performance.

• To reduce the possibility of data errors caused by electromagnetic
interference, locate the disk array system at least five feet away
from electrical appliances and equipment that generates magnetic
fields.

Power Supply Safety Notes

• To avoid electric shocks, do not use an extended power cord or an
outlet that does not match the disk array system plug or leaves the
plug exposed.

• The disk array system has a 3-wire grounded plug. The third pin
connects to ground; do not remove it.

• If the power cord or plug is damaged or worn, unplug it immediately
and contact a qualified service technician for maintenance.

• To avoid fire or electric shocks, do not overload electric power out­lets.

iv

1 System Requirements

Ensure that the following requirements are met before installing the disk array system.

Operating Environment

• 15 cm (6-inches) of space around the disk array system for proper ventilation

• ambient temperature of 5°C to 40°C (40°F to 104°F)

• ambient non-condensing relative humidity of 10% to 85 %

• dust, smoke, and oil free environment

• no large magnetic fields, such as those generated by a high voltage power cables and
motors, etc.

• no direct sunlight

• a flat, stable surface capable of supporting the disk array system

VT100 Terminal Settings

Refer to the following table for a summary of VT100 terminal settings required to communicate
with the disk array system. Refer to your system manual for instructions on setting up the VT100
terminal settings.

Item Required Setting

Connection Serial Port (COM1 or COM2)

Protocol RS232 (Asynchronous)

Cabling Null Modem cable

Baud Rate 115200

Data Bits 8

Stop Bit 1

Parity None

1

easyRAID S8A2 Serial ATA II Disk Array Systems

Host Interface

The disk array system has dual SCSI interfaces. Refer to the following sections to understand

1 System Requirements –

host interface system requirements.

Small Computer Systems Interface

The easyRAID-S8A2 has dual Ultra320 SCSI interfaces that are compatible with previous SCSI stan­dards. Refer to the following table to understand SCSI bus requirements.

Note

Subtract the internal cable length (30 cm) from the maximum SCSI bus
length to calculate the maximum external SCSI cable length.

SCSI

Standard

Ultra320 12 320 15

Ultra160 12 160 15

Ultra2 12 80 15

Ultra Wide 1.5 40 7

Fast Wide 3 20 15

Ultra 1.5 20 7

Maximum

SCSI Bus Length

in Meters

Data Rate

in Megabytes

per Second

Maximum

Number of Devices

2

2 Basic Configuration

This chapter describes disk array system connections and disk installation.

Unpacking

Contact your supplier if any of the following items are missing or damaged.

Caution

The disk array system is heavy. Be careful when lifting and moving it.

RS-232 Cable

Disk Array System

Disk Tray Keys

Power Cables

Fix Screw
pack M4

Rails(option)

c
e
S
i/
r

P
C
S
E
r
e
t
n
E

s
s
e
c
c
A
il
a
F
/S
r P
e
w
o
P

SA-43

Ultra320 SCSI to Serial ATA II

Disk Array System

Hardware and software
user Manuals

Fix Screw pack
UNC #10-32

HPD to VHDC Ultra320
SCSI Cable

c
e
S
/
i
r
P
C

S
E
r
e
t
n
E

s
s
e
c
c
A
il
a
F
S
/
r P
e
w
o
P

Software User Manual

SA-4340S

Hardware User Manual

Ultra320 SCSI to Serial ATA II

Disk Array System

40S

Fix Screw pack M5

Terminator

Screw pack

SCSI-100cm U320

3

easyRAID S8A2 Serial ATA II Disk Array Systems

Components

2 Basic Configuration – Components

Front Panel

10 11 12 13

ESC

9

Enter

ESC

Power

P/S Fail

Access

Enter

345

2

1

8

7

14
15

16

6

No. Name Description

1-8 Disk trays 1 to 8 Removable hot swap disk trays.

9 LCD panel

10 Down function button Moves down in the LCD menus.

11 Up function button Moves up in the LCD menus.

12 Escape function button

13 Enter function button Selects a menu item or confirms a choice or entry.

14 Power-on indicator (green) Indicates the disk array system power is on.

15 Power supply fail indicator (red) Indicates a failed power supply.

16 Host computer access indicator

Displays warning, operating, and configuration
information.

Returns to the previous LCD menu without making
changes.

Indicates data transfer between the disk array sys­tem and the host computer.

4

DiskTray

easyRAID S8A2 Serial ATA II Disk Array Systems

2 Basic Configuration – Components

Front

No. Name Description

Status LED • Green-Disk online

1

2 Access LED

3 Tray handle Releases the disk tray.

• Red-No Disk

This OrangeLED indicates that the disk is being
accessed.

1

2

3

5

easyRAID S8A2 Serial ATA II Disk Array Systems

easyRAID S8A2 Rear View

2 Basic Configuration – Components

11

1

Fan 1/3

1213

2

COM

3

LAN

910

4

Fan 2/4

Host Port 1Host Port 2

CAT.5e

8

P/S 2

5

7

6

No. Name Description

1

Cooling fan 1/3

2

Host Port 2

System cooling fan.(Fan1 is standard, Fan3 is
optional)

Connects to the host server.

(Secondary SCSI channel)

3

Host Port 1

Connects to the host server.

(Primary SCSI channel)

4

Cooling fan 2/4

5

Power Supply 2

6

Power Supply AC In

7

Power Supply Handle

8

Power Switch

9

Ethernet Port

10

RS-232 Port

11

Power Supply 1

12

Power Supply AC In

13

Power Supply Handle

System cooling fan.(Fan2 is standard, Fan4 is
optional)

Removable redundant power supply 2.

Connects to a 100-240 VAC power source.

For power supply removal.

Switches the power on or off.

Used for browser-based configuration.

Connects to a VT100 terminal or equivalent.

Removable redundant power supply 1.

Connects to a 100-240 VAC power source.

For power supply removal.

6

Installing Disks

easyRAID S8A2 Serial ATA II Disk Array Systems

This section describes how to install disks in the disk array system.

1 Unlock the disk tray with an included disk tray key

2 .Gently pull the disk tray handle to the opened position.

2 Basic Configuration – Installing Disks

3 Remove the disk tray

7

2 Basic Configuration – Installing Disks

easyRAID S8A2 Serial ATA II Disk Array Systems

4 Insert the disk into the disk tray and fix into place with screws supplied with the disk.

5 Slide the disk tray back into the empty slot.

6 Slowly push the disk tray handle closed.

8

easyRAID S8A2 Serial ATA II Disk Array Systems

7 Lock the disk tray with the key.

8 Repeat steps 1 to 8 until all of the required disks have been installed.

2 Basic Configuration – Installing Disks

9

easyRAID S8A2 Serial ATA II Disk Array Systems

Making Connections

2 Basic Configuration – Making Connections

After the required number of disks have been installed, external connections to the disk array
system must be made. This section describes how to make all of the necessary connections.

Connecting to the Host Interface

The disk array system has either dual SCSI interfaces or dual fibre channel interfaces. Refer to
the following sections to make host interface connections.

Small Computer Systems Interface

The easyRAID S8A2 has dual Ultra320 SCSI interfaces. Follow these instructions to make connec­tions.

1 Connect the SCSI terminator (A) to the right top connector of the easyRAID S8A2 host port 1

(primary SCSI channel) at the rear of the disk array system.

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

FAN 2/4

P/S 2

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

FAN 2/4

P/S 2

A

B

2 Connect the Ultra320 SCSI cable (B) to the right bottom connector of the easyRAID S8A2

host port 1 (primary SCSI channel) at the rear of the disk array system.

10

easyRAID S8A2 Serial ATA II Disk Array Systems

Connecting a network

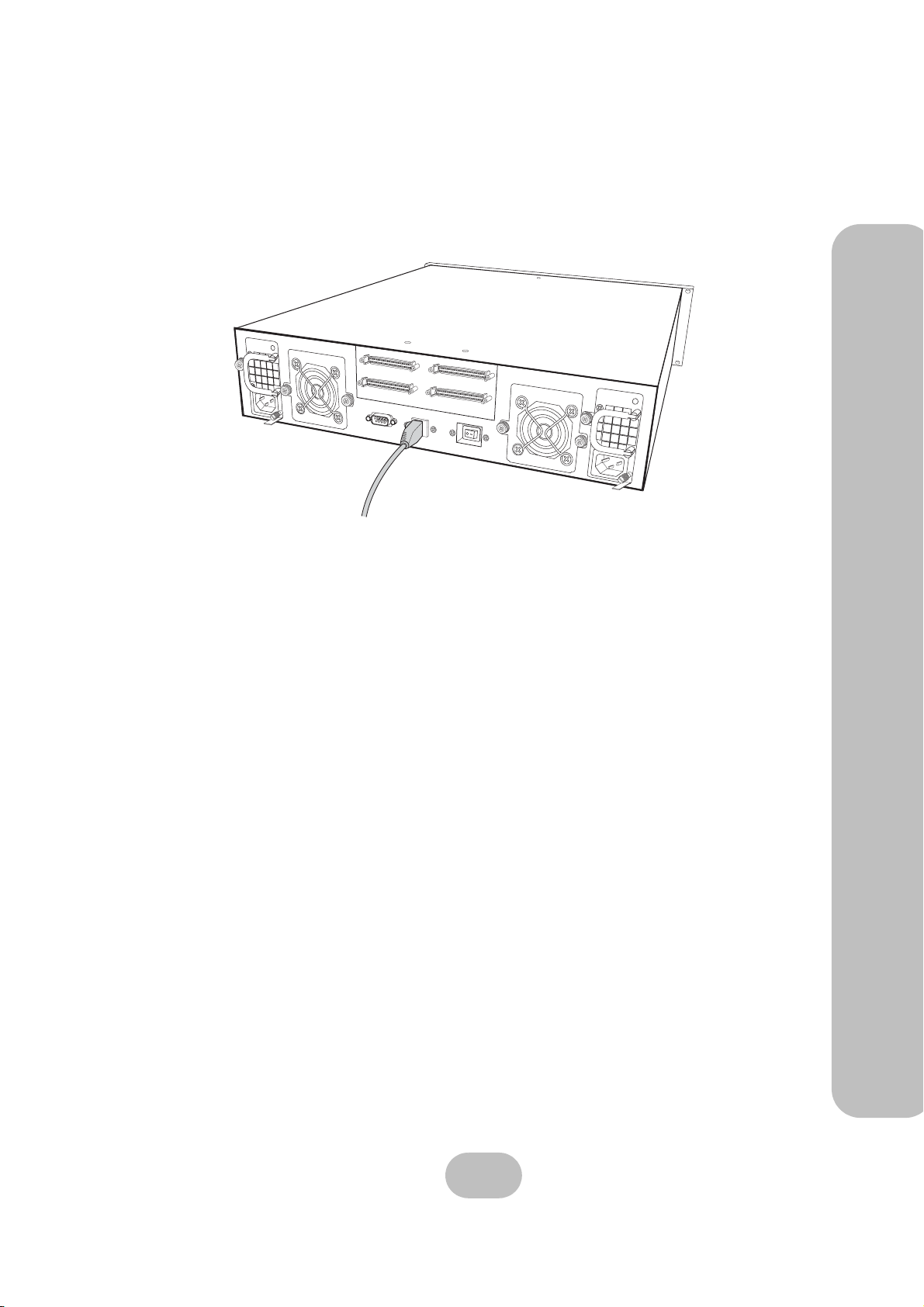

Connect the network cable to the RJ-45 port at the rear of the unit.

FAN 1/3

2 Basic Configuration – Making Connections

Host Port 2

COM

LAN

Host Port 1

CAT.5e

FAN 2/4

P/S 2

11

easyRAID S8A2 Serial ATA II Disk Array Systems

Connecting and Turning on the Power

1 Plug a power cable (A) to a power connector at the rear of the unit, then plug the second

2 Basic Configuration – Making Connections

power supply cable into the second power connector (B).

Note

The system is equipped with auto switching power supplies that
can run on 100 to 240 VAC.

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

FAN 2/4

P/S 2

B

2 Switch (C) on the disk array system.

C

A

12

3 Maintenance

Replacing a Disk

A disk failure is indicated when the Power Error LED at the front of the drive tray turns red and
the audible alert sounds.

Note

Turn off the audible alert by pressing the Up and Down function but­tons on the front panel twice simultaneously.

The LCD panel displays the failure with the symbol “R” or “W”. “R” indicates a disk failure or
error, and “W” indicates that there are too many bad sectors on the disk.

Example:

• Disks 1 to 3 are members of array group 1.

111222WR

• Disks 4 to 6 are members of array group 2.
7 has too many bad sectors.

•Disk
8 has an error or a fault.

•Disk

Disks are hot swappable, which means that they can be inserted and removed while the disk array
system is powered on and operating. Follow these instructions to replace a failed disk.

1 Unlock the front panel door, then pull it open.
2 Pull the tray handle away from the disk tray to release it; and pull the disk tray out.
3 Remove the screws from the failed disk, then remove the disk from the disk tray.
4 Align the rear of the new disk with the rear of the disk tray.
5 Insert the new disk into the disk tray.

Note

The new disk must have the same or a greater capacity than the
faulty disk that was removed. If the disk capacity is smaller, the
audible alert sounds and the auto-rebuild operation doesn’t start.
For best performance, it is recommended that the new disk be
identical to the failed disk.

6 Attach the disk to the disk tray with the screws that came with the disk.
7 Slide the disk tray back into the empty slot, then close the disk tray handle.
8 Push the front panel door closed, and lock it.

13

easyRAID S8A2 Serial ATA II Disk Array Systems

Replacing a Power Supply

3 Maintenance – Replacing a Power Supply

The disk array system is equipped with a Power Supply Fail Indicator LED at the front of the unit
that turns red when one of the power supplies fails. The message “Power x failure” also appears
on the LCD panel, where x refers to power supply 1, or 2, and an audible alert sounds.

Note

Turn off the audible alert by pressing the Up and Down function but­tons on the front panel twice simultaneously.

Power supplies are hot swappable, which means that they can be inserted and removed while the
disk array is powered on and operating. Follow these instructions to replace a failed power sup­ply.

1 Identify the power supply that has failed.

Fan 1/3

COM

Host Port 1Host Port 2

CAT.5e

LAN

Fan 2/4

P/S 2

Power Supply 1 Power Supply 2

2 Remove the power cable from the power supply connector at the rear of the unit.

Note

The system is equipped with auto switching power supplies that
can run on 100 to 240 VAC.

3 Loosen the power supply retaining screw.

FAN 1/3

Host Port 2

Host Port 1

FAN 2/4

Power Supply

COM

CAT.5e

LAN

P/S 2

retaining screw

14

4 Pull the power supply handle out.

easyRAID S8A2 Serial ATA II Disk Array Systems

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

Fan 2/4

P/S 2

5 Remove the faulty power supply by pulling the power supply handle A and pressing the

release catch B at the same time.

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

Fan 2/4

P/S 2

A

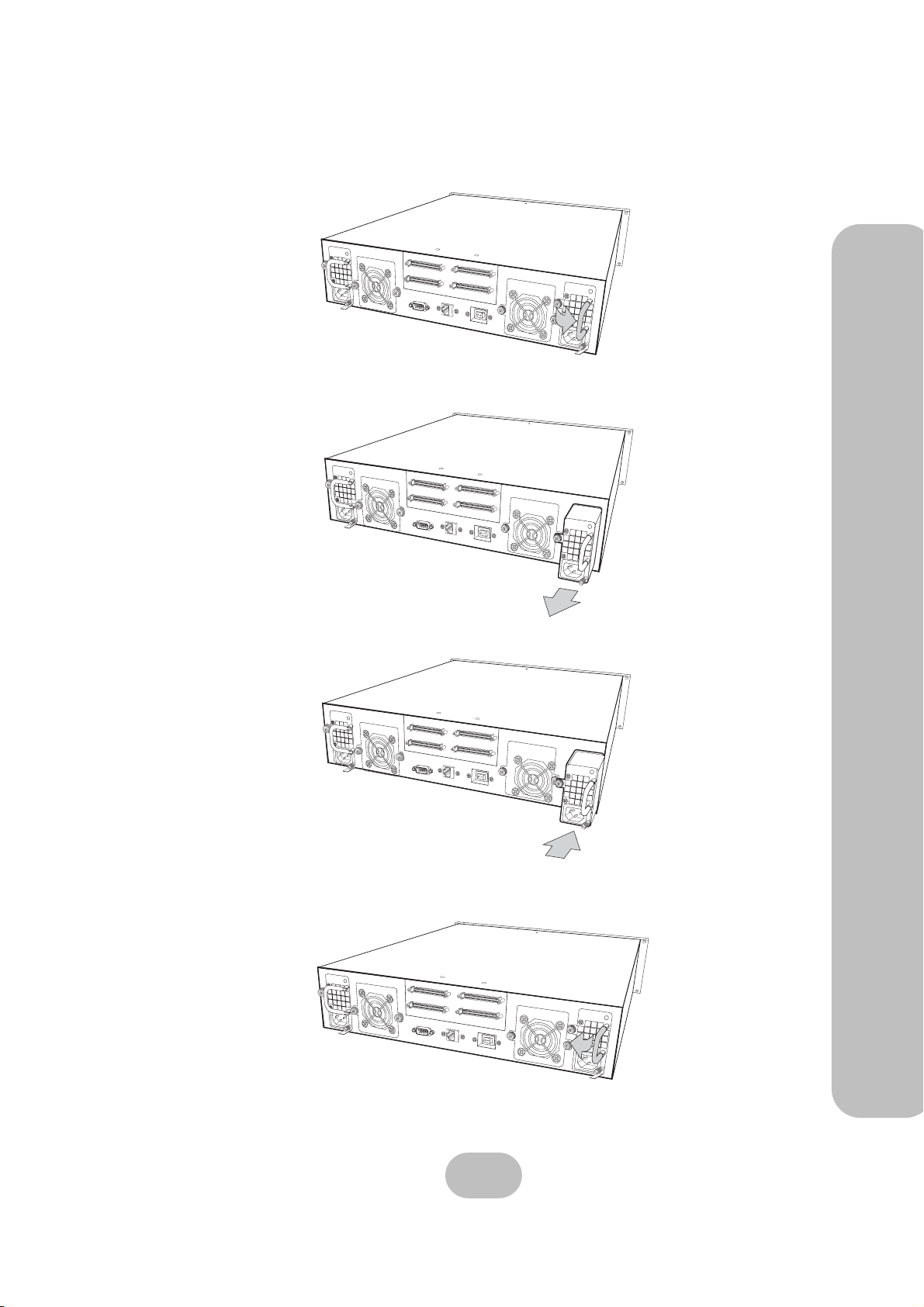

6 Insert a new power supply.

3 Maintenance – Replacing a Power Supply

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

7 Push the power supply handle into place.

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

Fan 2/4

P/S 2

Fan 2/4

P/S 2

15

easyRAID S8A2 Serial ATA II Disk Array Systems

8 Tighten the power supply thumbscrew

3 Maintenance – Upgrading Memory

FAN 1/3

Host Port 2

COM

Host Port 1

CAT.5e

LAN

Fan 2/4

P/S 2

9 Reconnect the power cable.

Upgrading Memory

The disk array system takes a single DDR-333 200-pin DIMM with a maximum capacity of 1
GB. Follow these instructions to upgrade the memory.

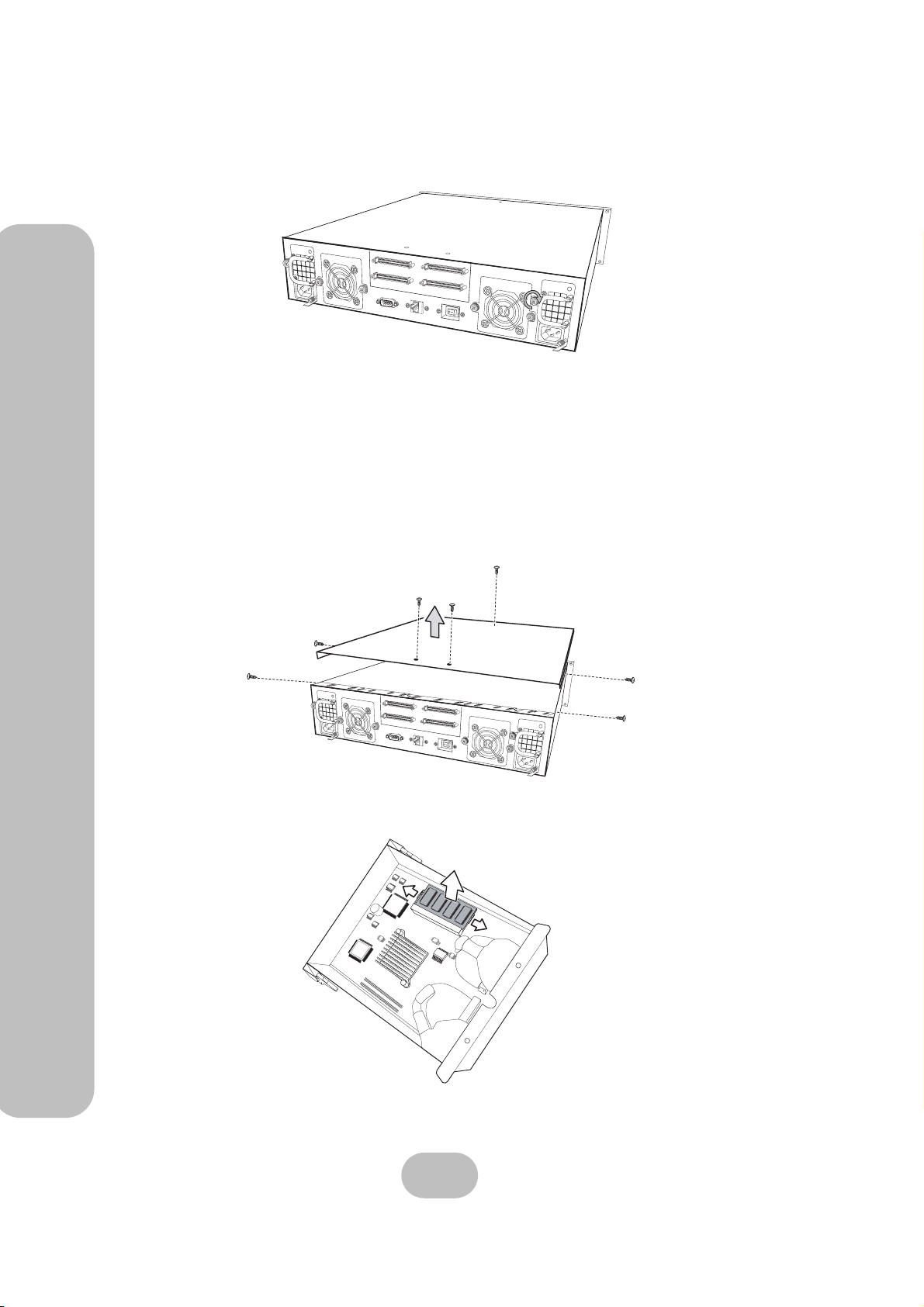

1 Remove the screws from the disk array system top cover and lift the cover as

illustrated.

Host Port 2

Host Port 1

CAT.5e

COM

LAN

2 When open the cover, the controller can be seen clearly and the DIMM just on it. Pull the

DIMM retaining clips away from the DIMM.

16

easyRAID S8A2 Serial ATA II Disk Array Systems

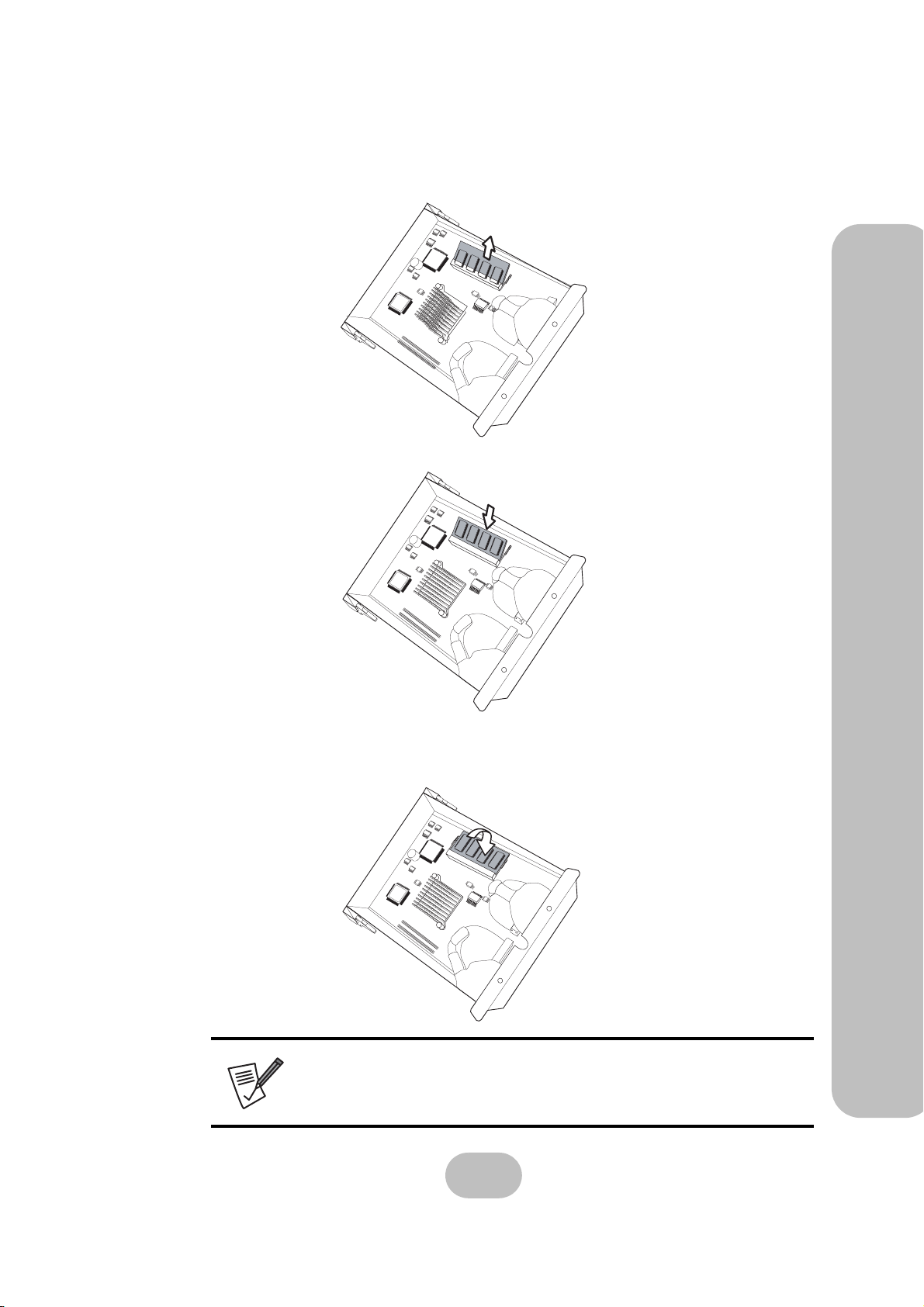

3 Then remove the DIMM. The DIMM springs out of the socket.

4 Gently push the new DIMM into the stock at 45 degrees.

3 Maintenance – Upgrading Memory

5

The push the corners of the DIMM down. The DIMM is secured by the DIMM
socket retaining clips.

Note

The DIMM module will fit in only one direction. Do not force the
DIMM into place.

17

easyRAID S8A2 Serial ATA II Disk Array Systems

6 Place the top cover on the disk array system and replace the screws to fix the top cover

on the disk system chassis.

3 Maintenance – Upgrading Memory

Host Port 2

Host Port 1

CAT.5e

COM

LAN

18

Appendix

Hardware Specifications

Item Specification

Host Interface SCSI Ultra320

Disk Interface SATA II, 3.0 Gb/s

Dimensions 88 mm (H) x 480 mm (W) x 470 mm (D)

RAID Functions

Disk Array Func­tions

Connectors • 4 x Ultra320 SCSI ports(2 channels)

Power Supply • Redundant, 300 Watt

Warranty 3 year warranty

Safety UL, CE and FCC Class B

• Raid levels: JBOD, 0, 1, 0+1, 3, 5, 6, 30, 50, TP, NRAID

• Hot spare support

• Disk hot swapping with automatic online rebuilding

• Multiple RAID (max. 8)

• O/S independent and transparent

• Up to 1GB DDR SDRAM

• LCD panel operation indicator

• Audible alarm/disable alarm

• LED indicator on disk failures

• 1 x RS-232 Serial port (115200, 8, N, 1)

• 1 x RJ-45 Ethernet port (10/100 Mbps)

• 100 - 240 VAC, 47-63 Hz, 6~3A +/- 10%

• Over voltage, current, power, and short circuit protection

• LED indicates power status

• Operating temperature: 5°C ~ 40°C

• Operating humidity: 10 ~ 85% (non condensing)

• Output: +5V, +3.3V, +12V

19

easyRAID S8A2 Serial ATA II Disk Array Systems

Item Specification

Appendix – Hardware Specifications

Controller

CPU Intel i80331 64-bit RISC microprocessor

Disk Interface SATA II (3.0 Gb/s)

Disk Channels 8 channels

Memory Type DDR-333 200-pin DIMM

Memory Sockets 1

Memory Size Up to 1 GB

Button Interface Up, Down, Enter, and ESC

Backplane Interface
(connector)

Temperature Sensors 2

Compact-PCI

Backplane

Disk Channel Support 8 channels

Disk Number Supported 8 disks

Disk Connector Type Serial ATA II

Temperature Sensors 5

Power Connector Type 2 x Slot-2

Fan Connector Type 4 x Slot-2

20
