Easypix GoXtreme User Manual

User’s Manual
i
Table of Contents
About this manual ............................................................ iv!
Copyright ........................................................................... iv!
Precautions ........................................................................ v!
Notes on Waterproof Case ............................................... vii!
Before You Start ................................................................ x!
1! Introducing the Camera ............................... 1!
1.1! System Requirements .............................................. 1!
1.2! Features ................................................................... 1!
1.3! Unpacking the Camera ........................................... 2!
1.4! About the Camera .................................................... 4!
2! Getting Started .............................................. 7!
2.1! Installing the Micro SD Card ................................. 7!
2.2! Installing the Battery ............................................... 8!
2.3! Charging the Battery ............................................. 10!
2.4! Turning ON/ OFF the Camera ............................. 11!

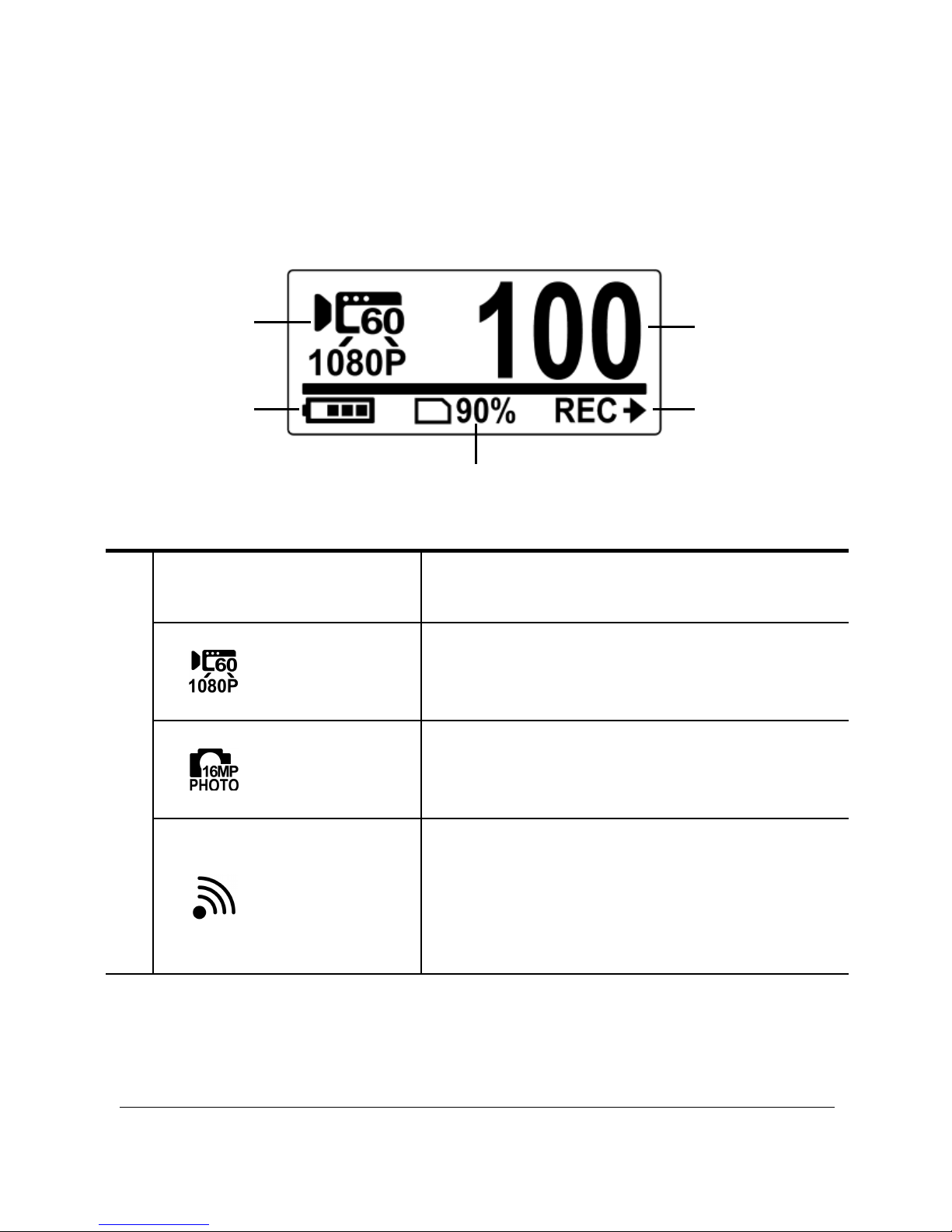

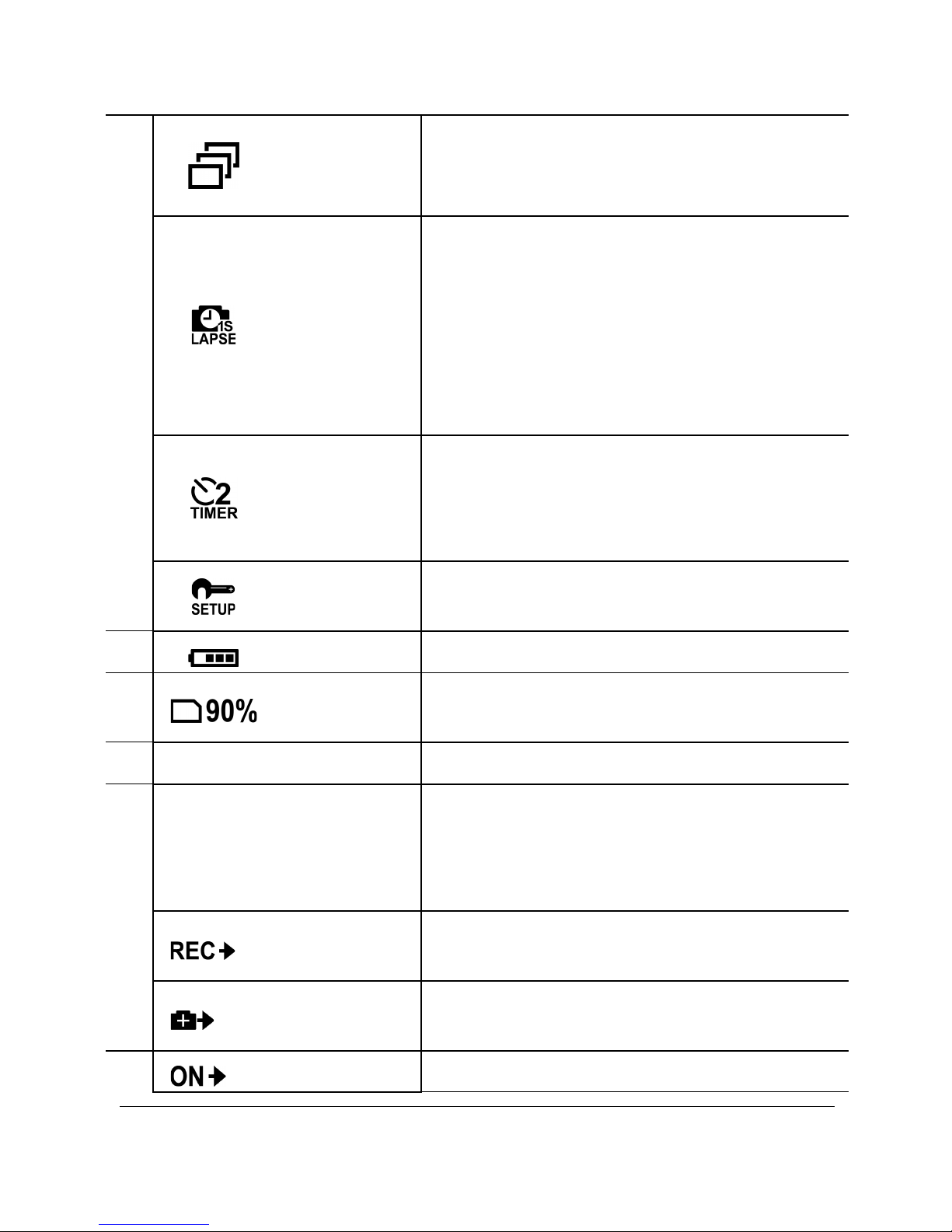

2.5! OLED Screen ......................................................... 12!

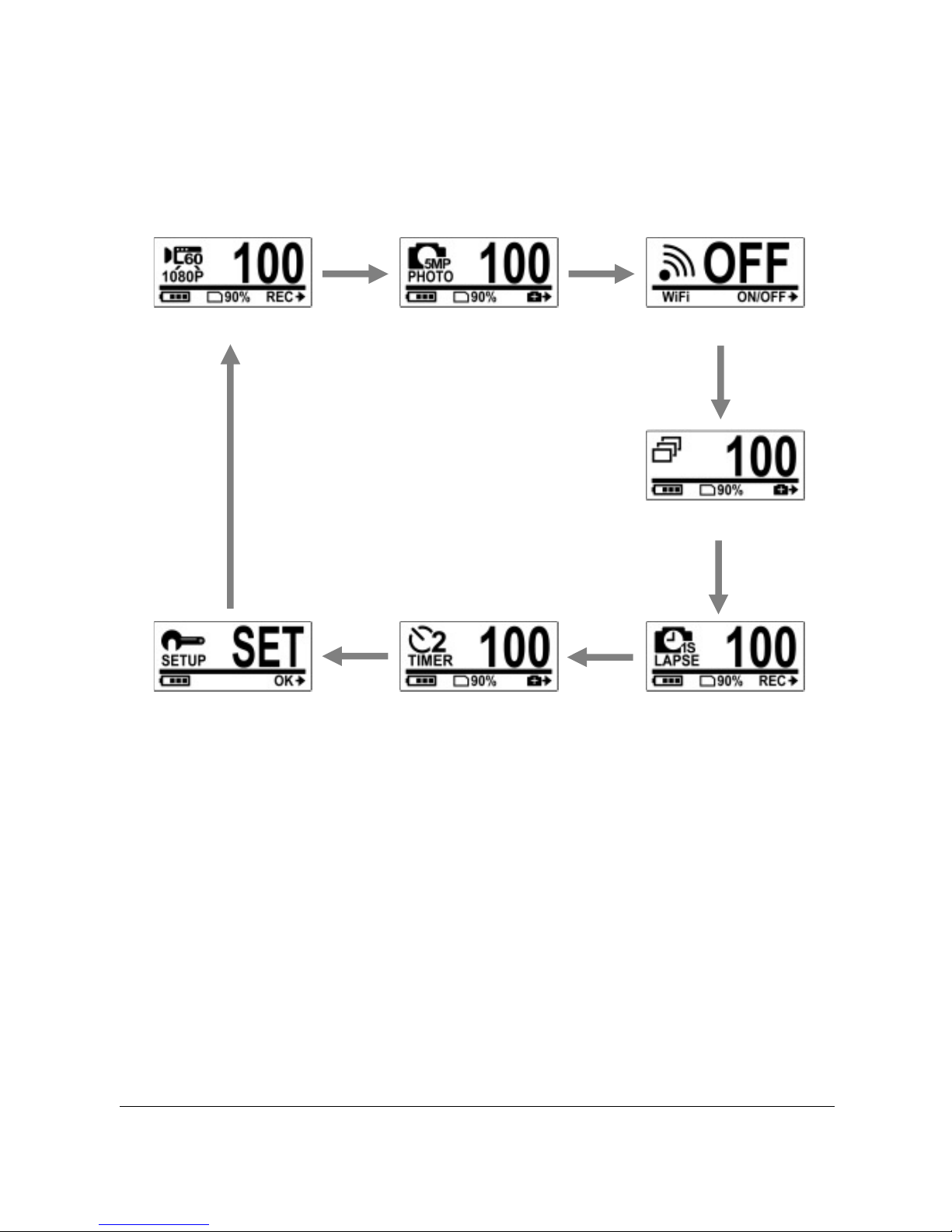

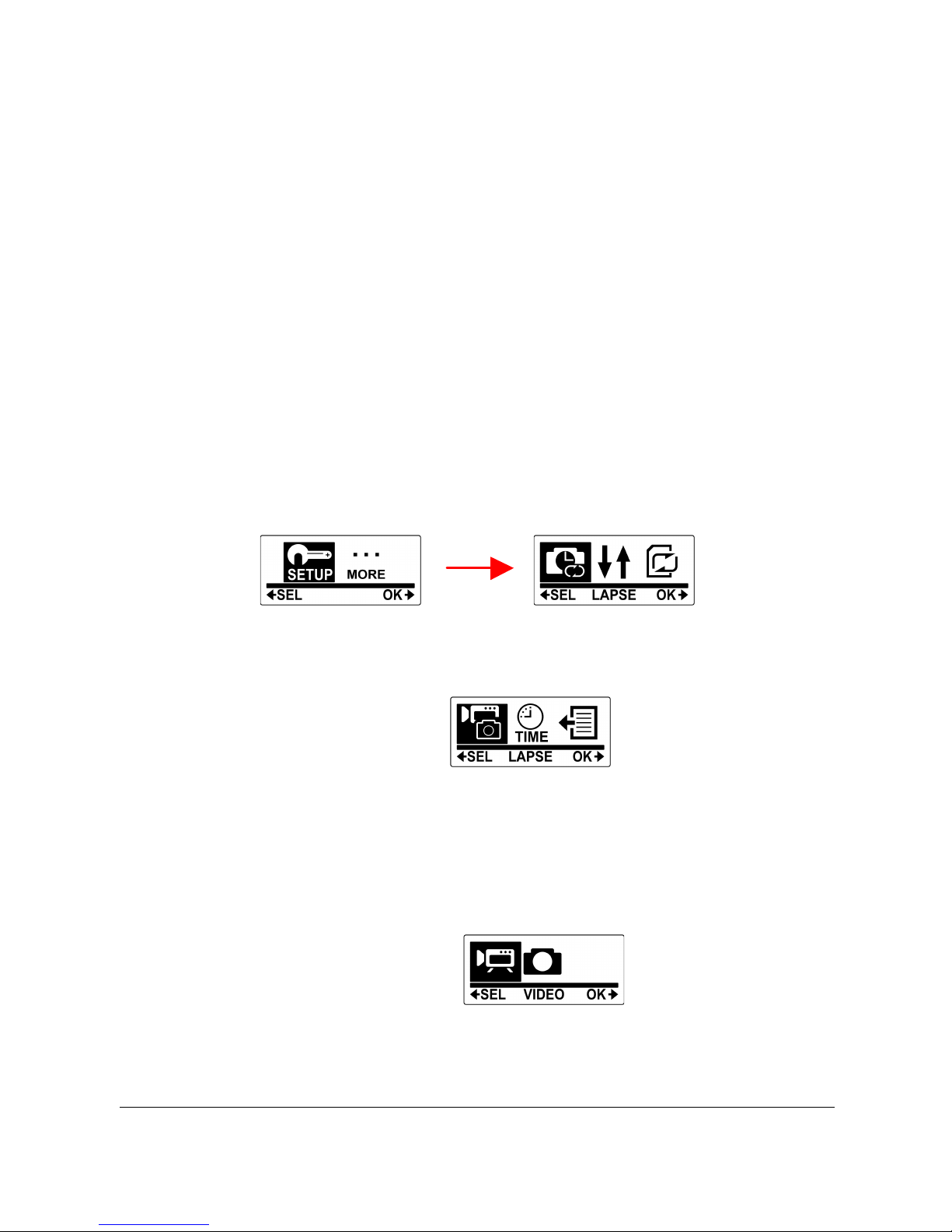

2.6! Changing Modes ................................................... 15!

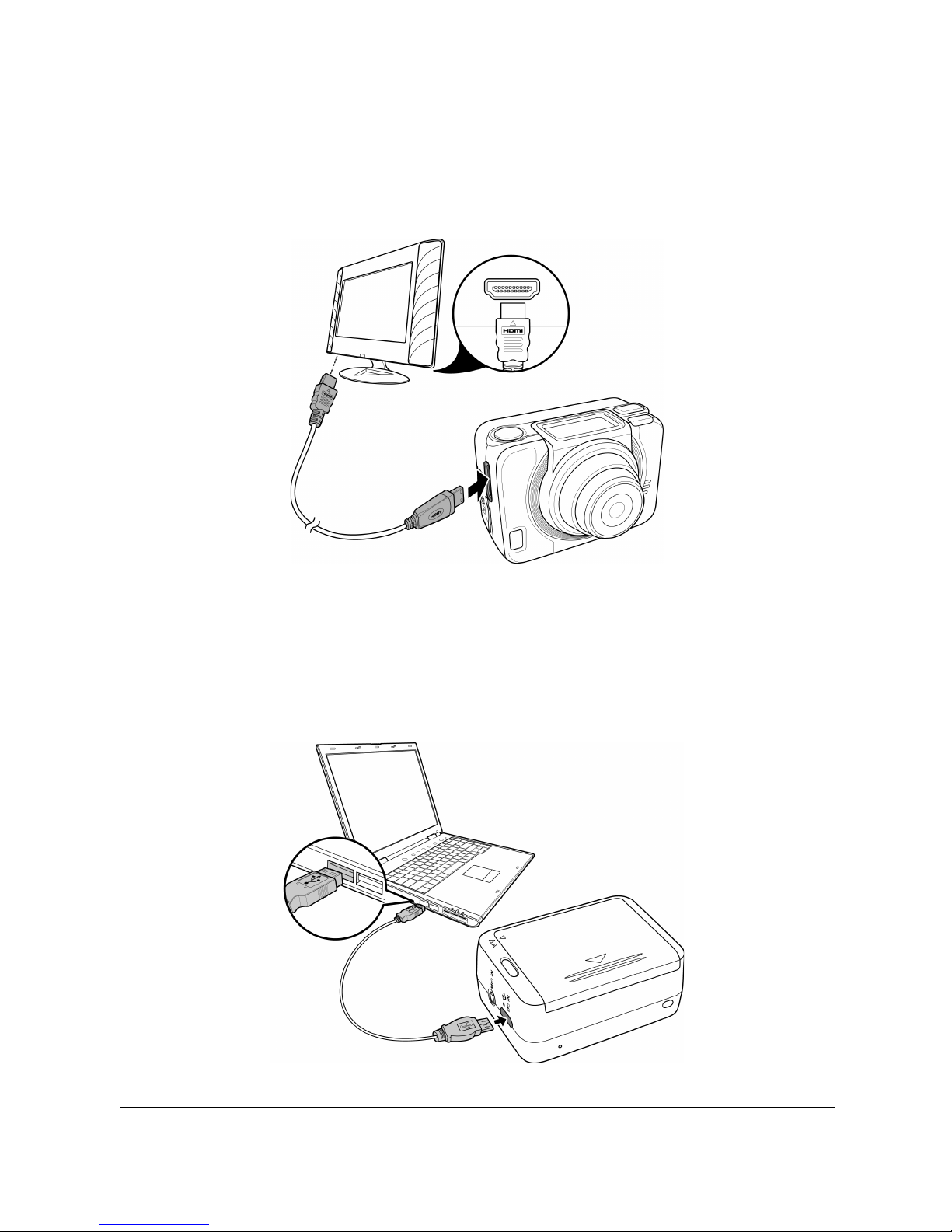

2.7! Connecting to TV (HDMI Cable) ......................... 16!
ii

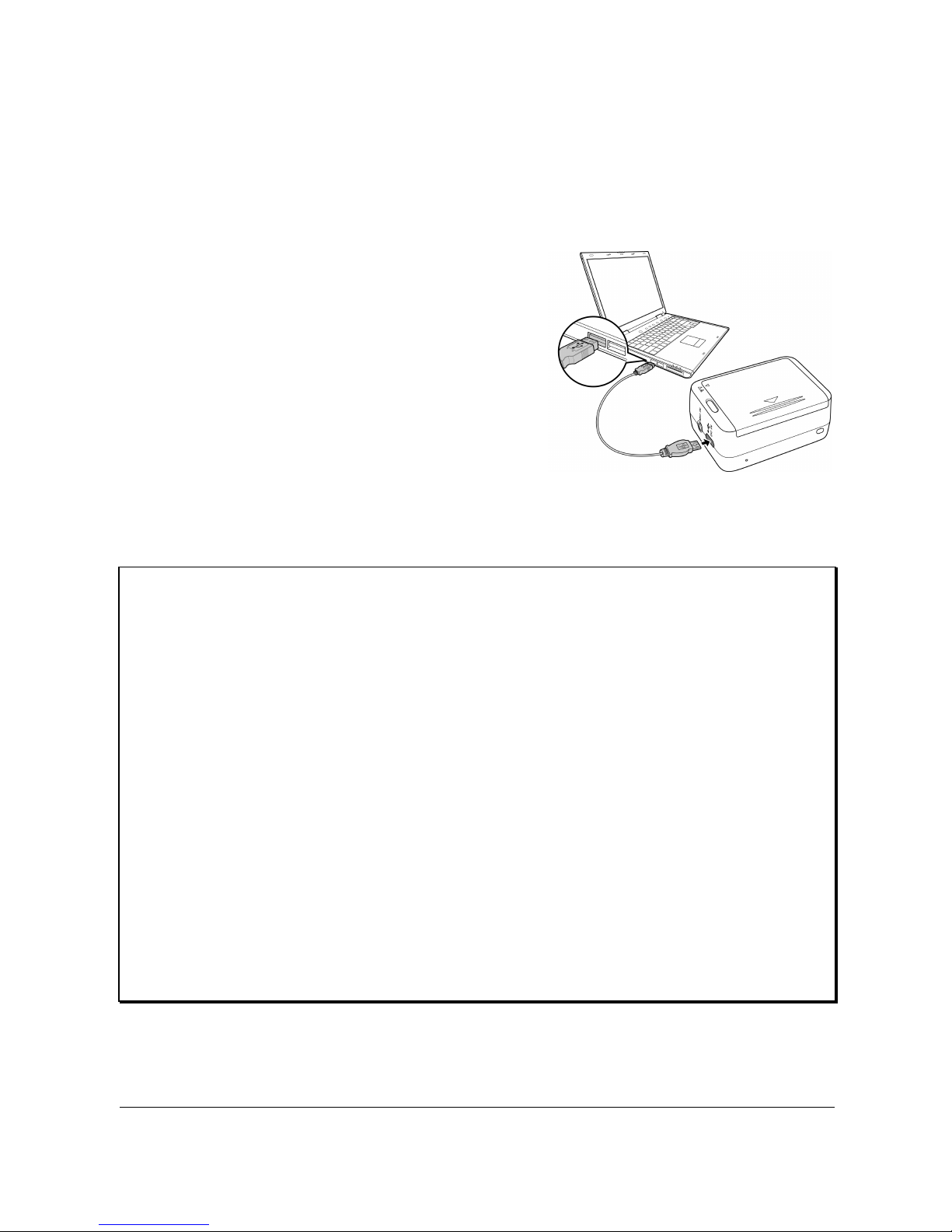

2.8! Connecting to PC (Micro USB Cable) ................. 16!

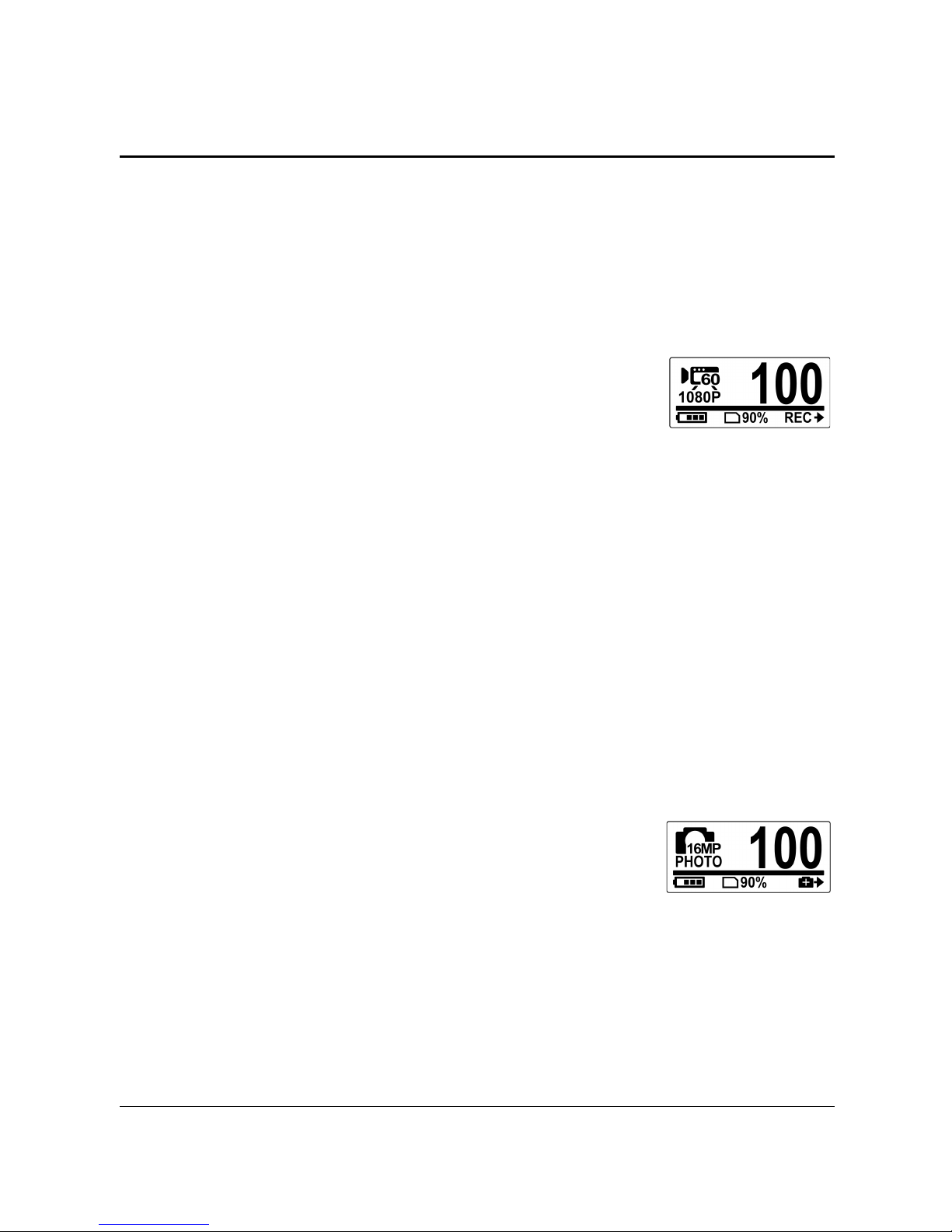

3! Capturing Videos and Photos .................... 17!
3.1! Recording Videos ................................................... 17!
3.2! Taking Photos ........................................................ 17!

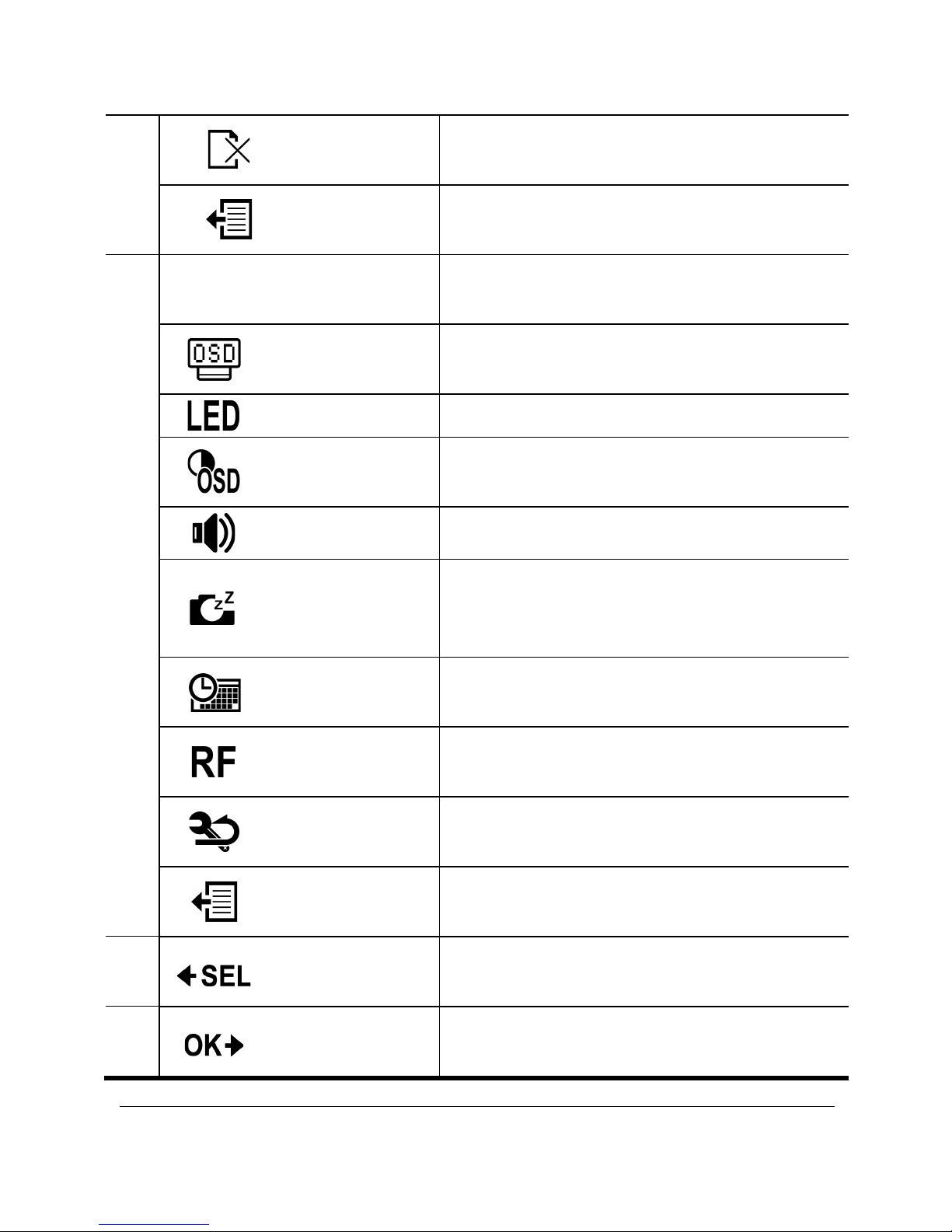

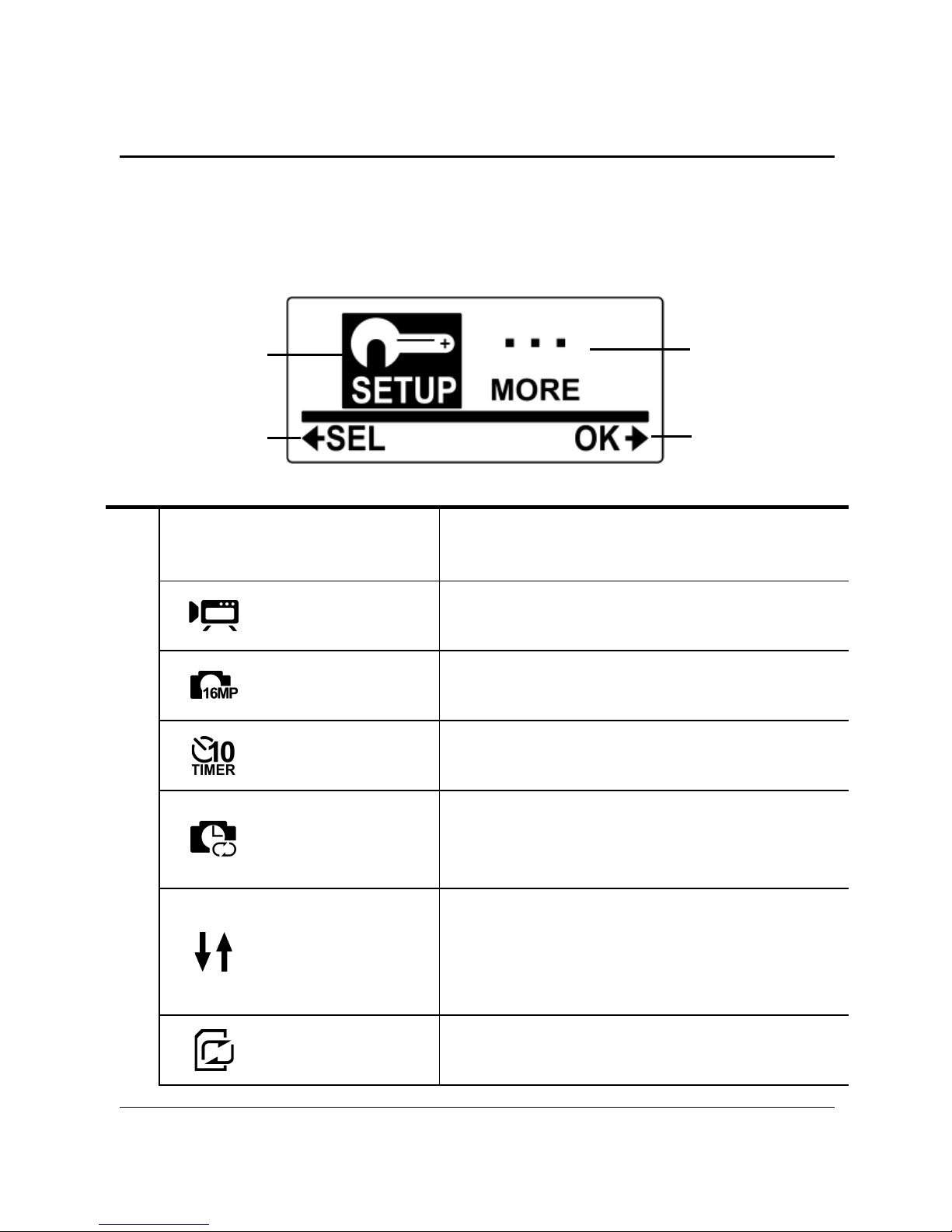

4! Adjusting the Settings ................................. 20!

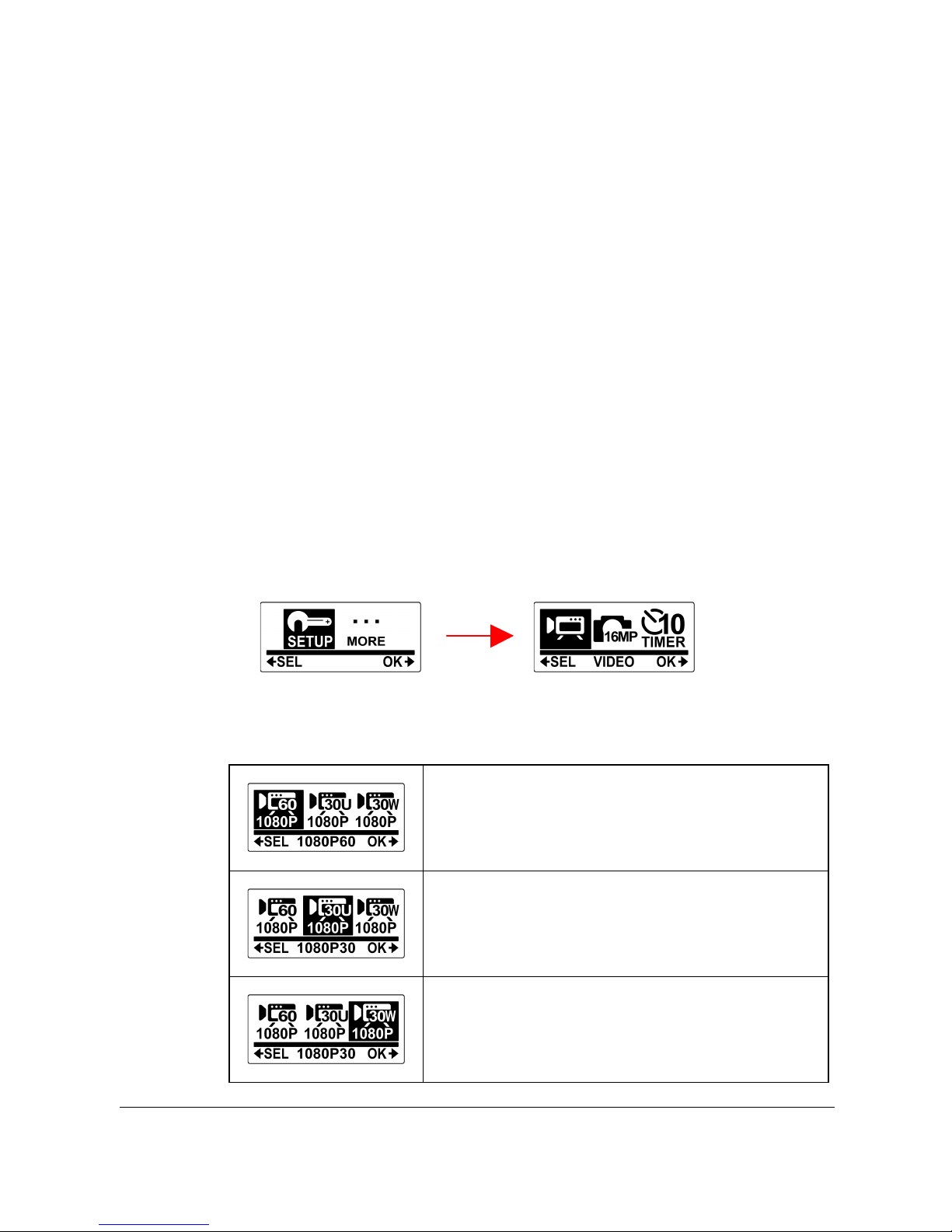

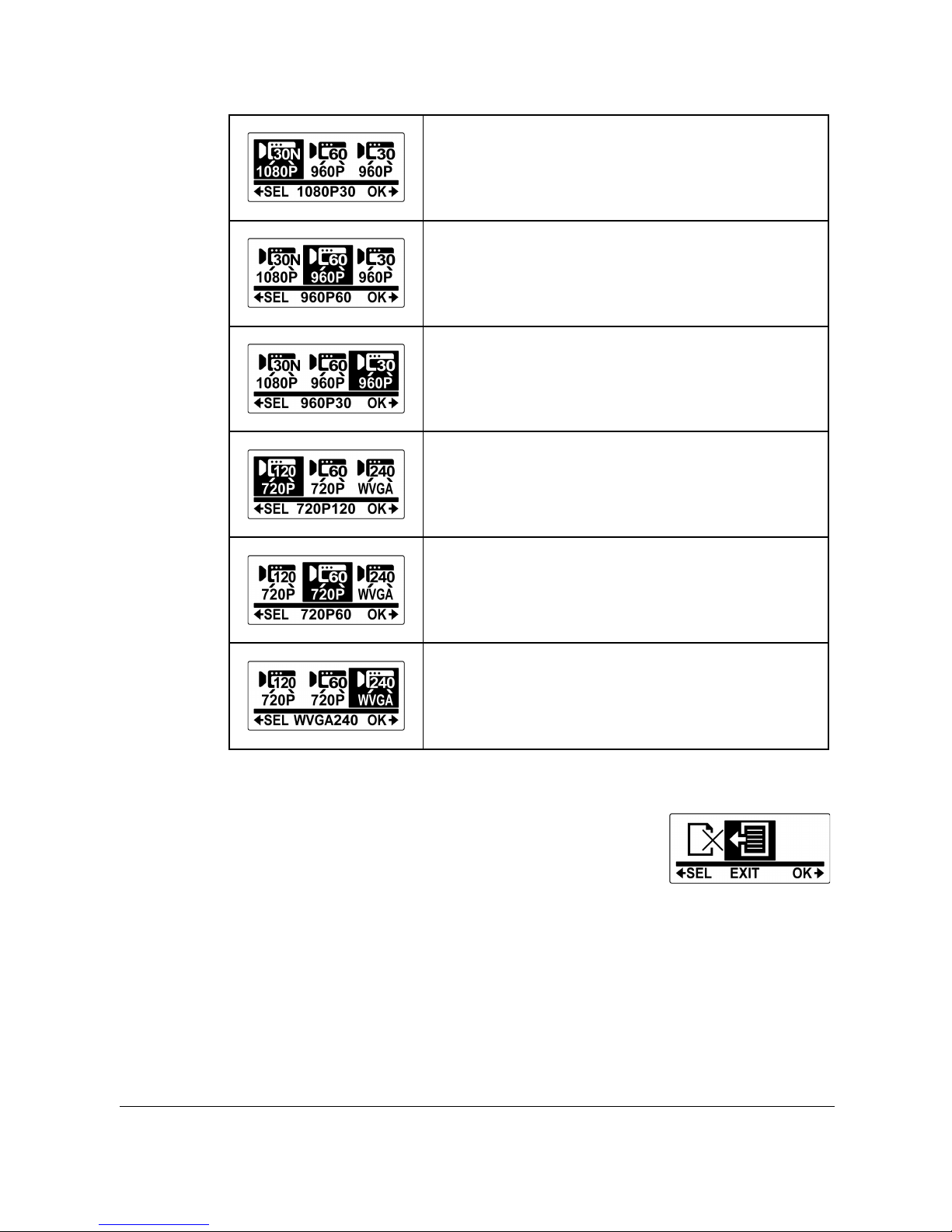

4.1! Video Resolution ................................................... 22!
4.2! Photo ...................................................................... 25!

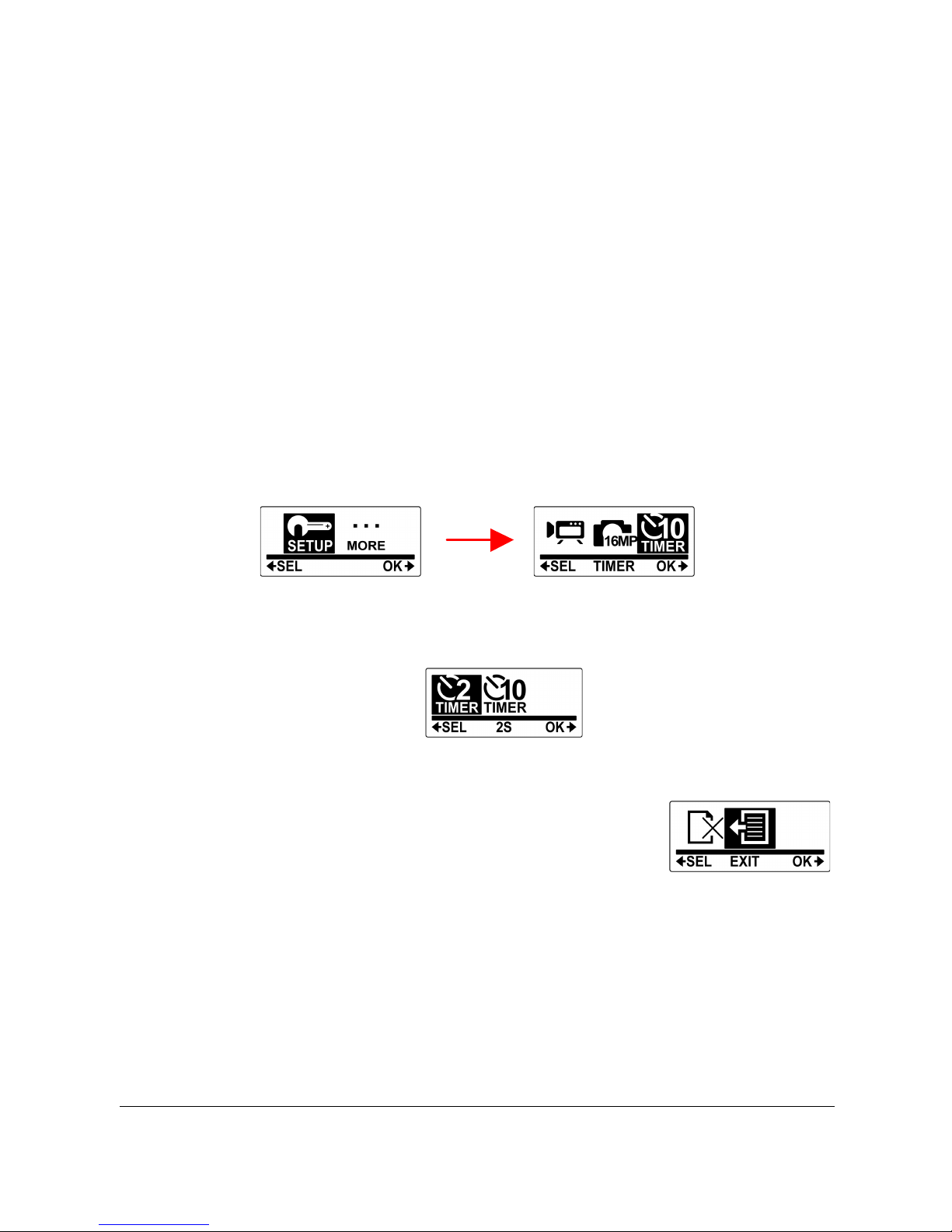

4.3! Timer ...................................................................... 27!

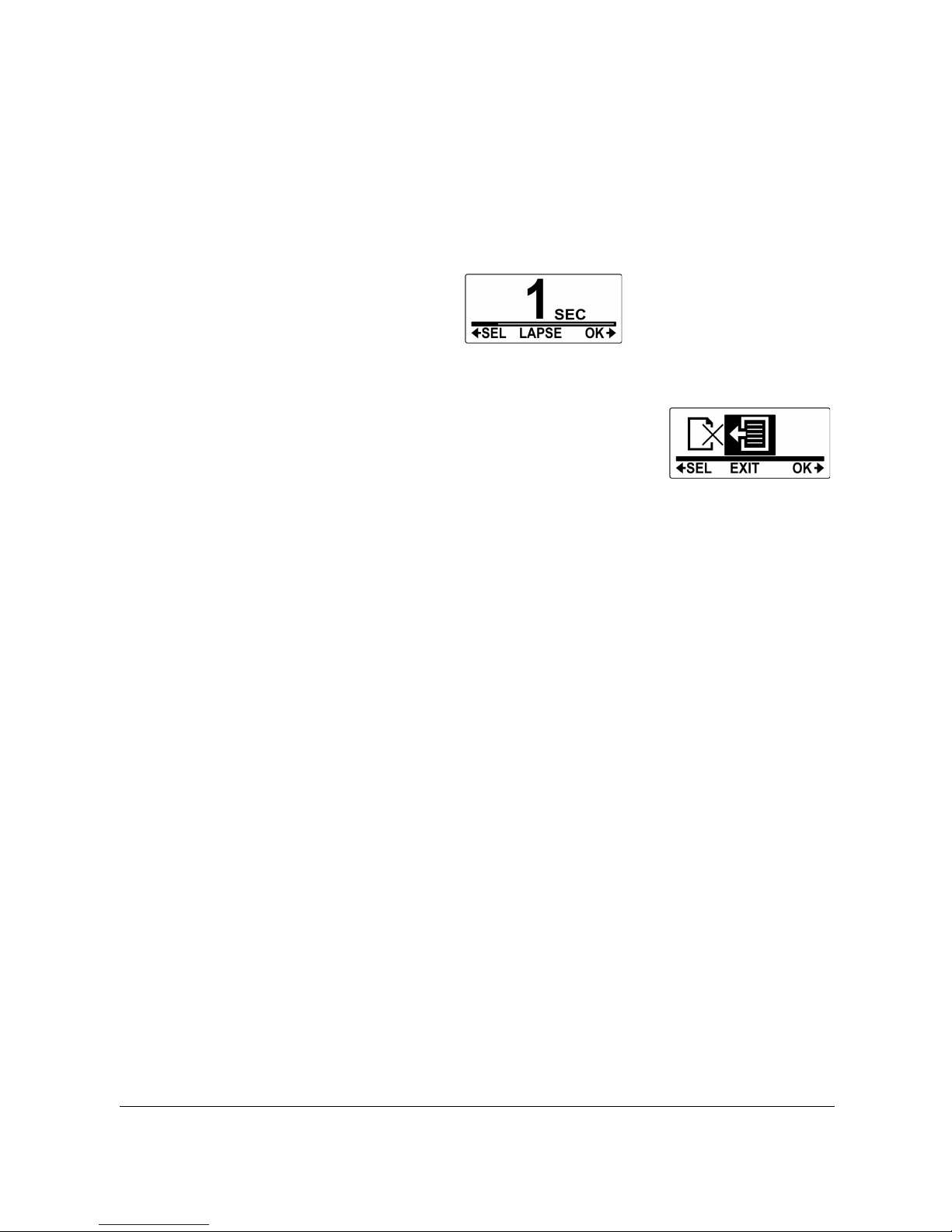

4.4! Shooting Interval ................................................... 28!
4.5! Up/Down ................................................................ 30!

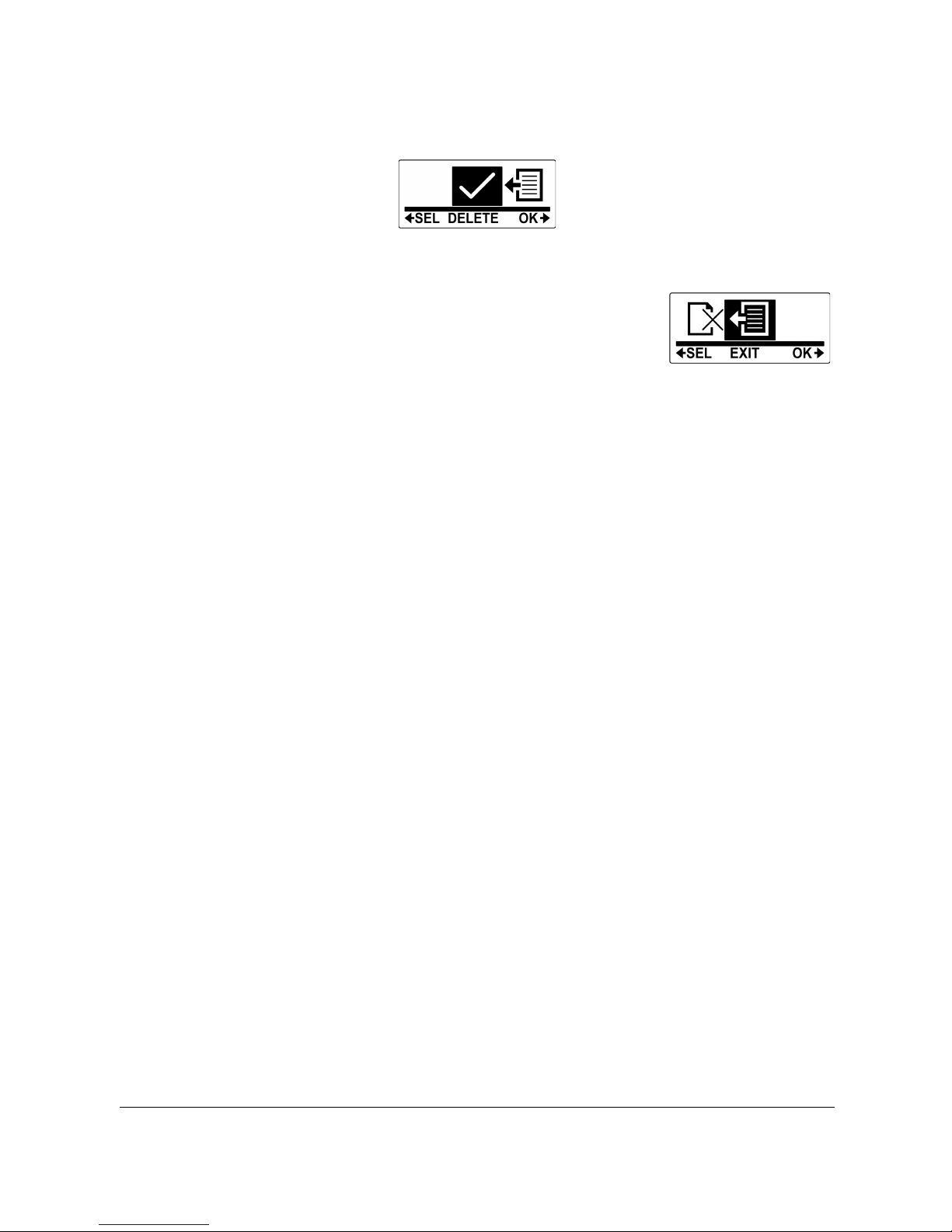

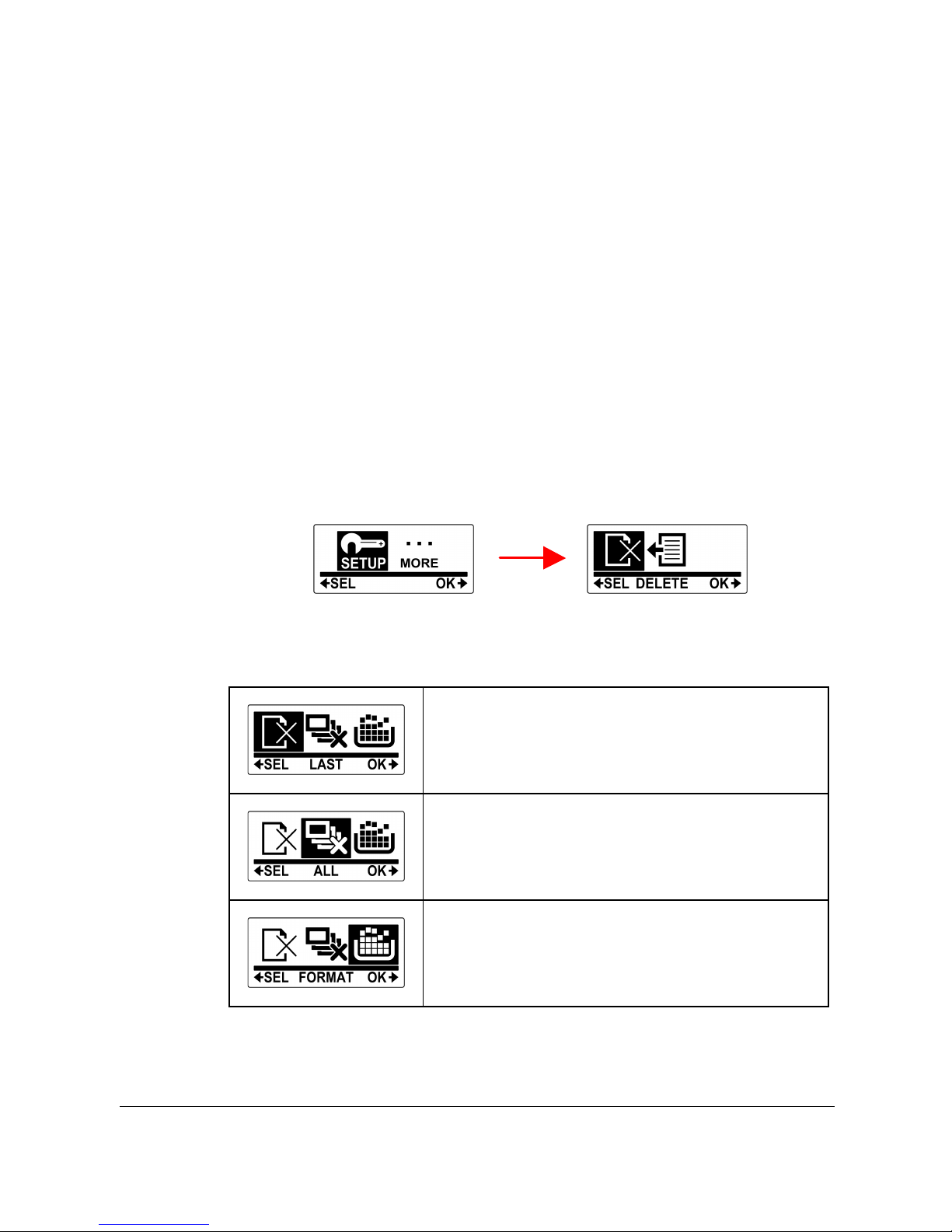

4.6! Delete ..................................................................... 31!

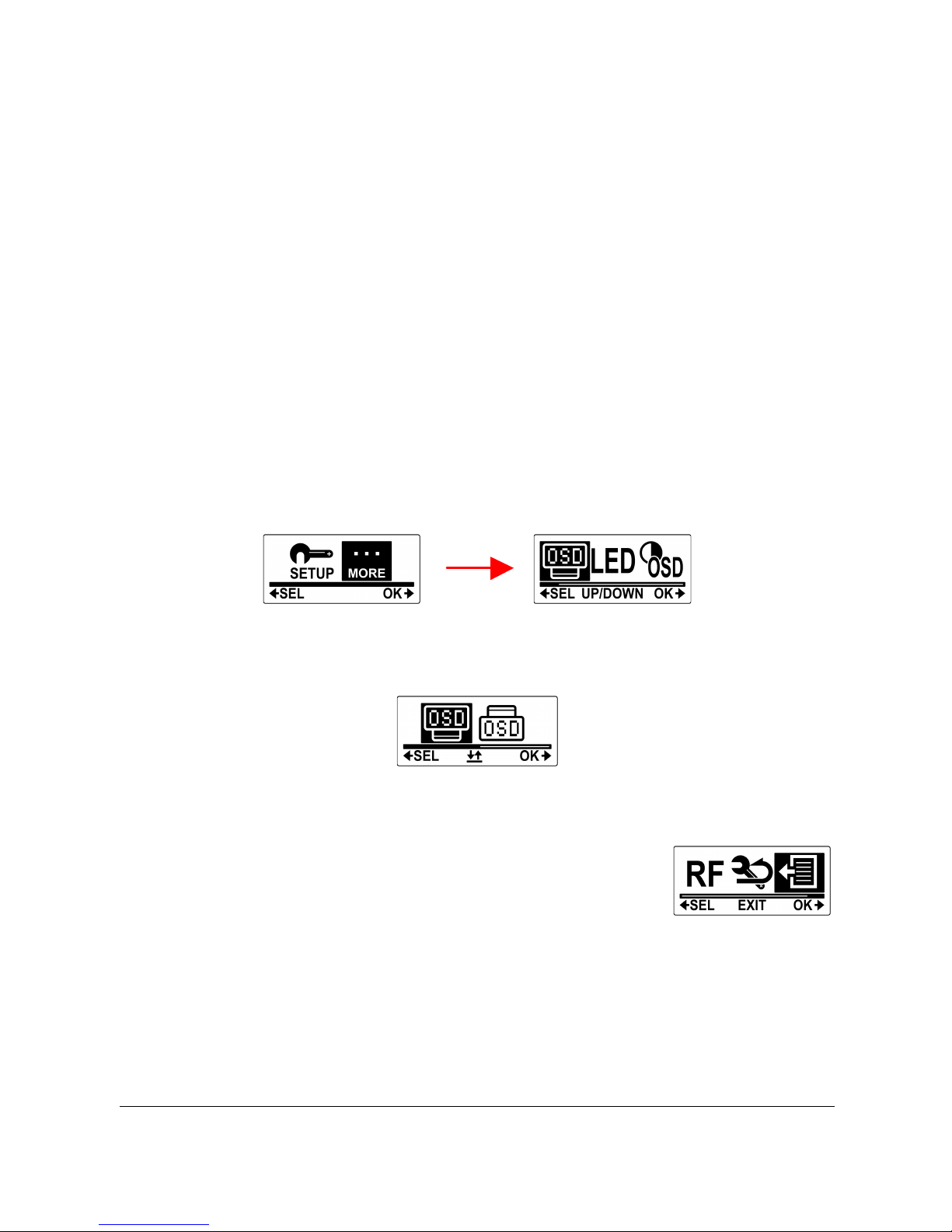

4.7! OSD Up/Down ....................................................... 33!

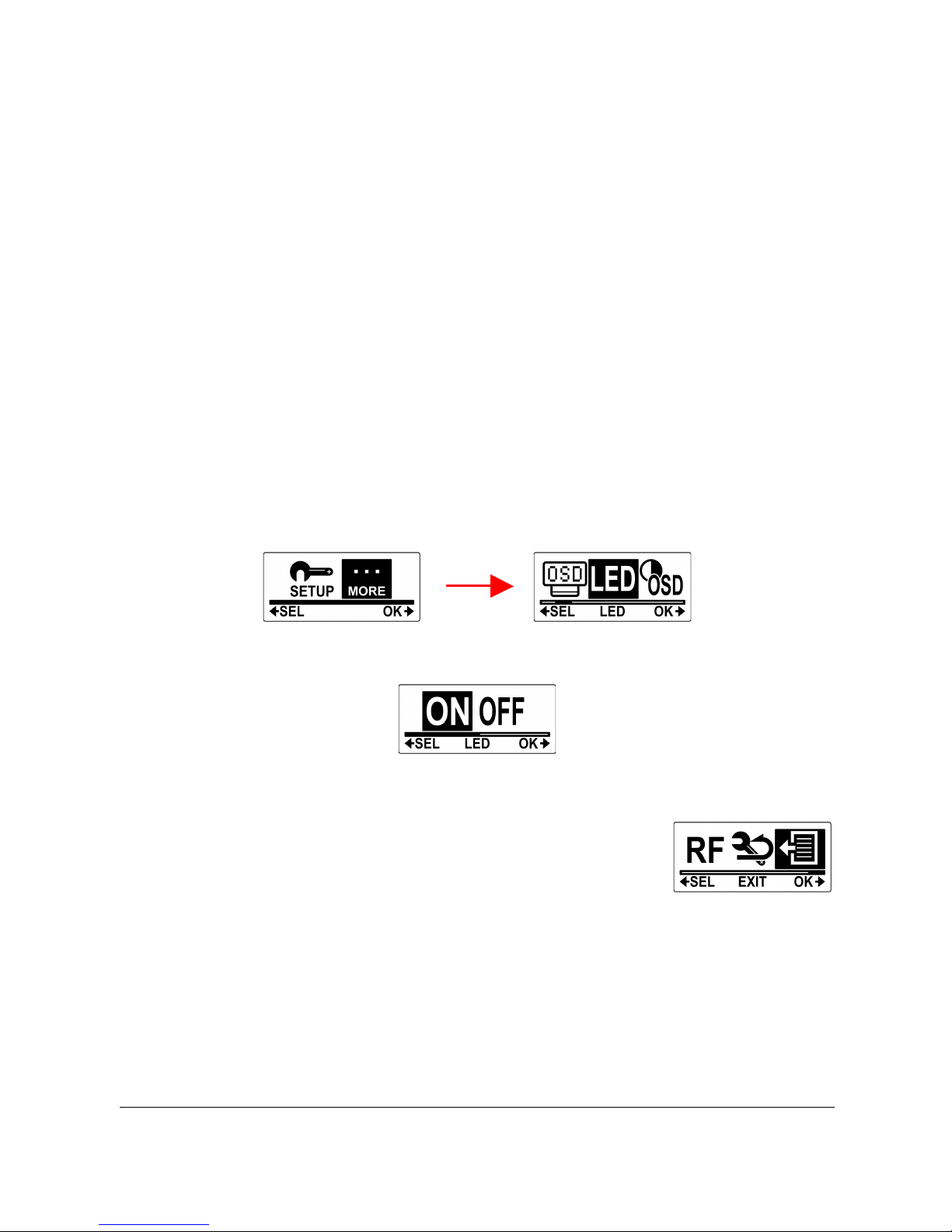

4.8! LED ........................................................................ 34!

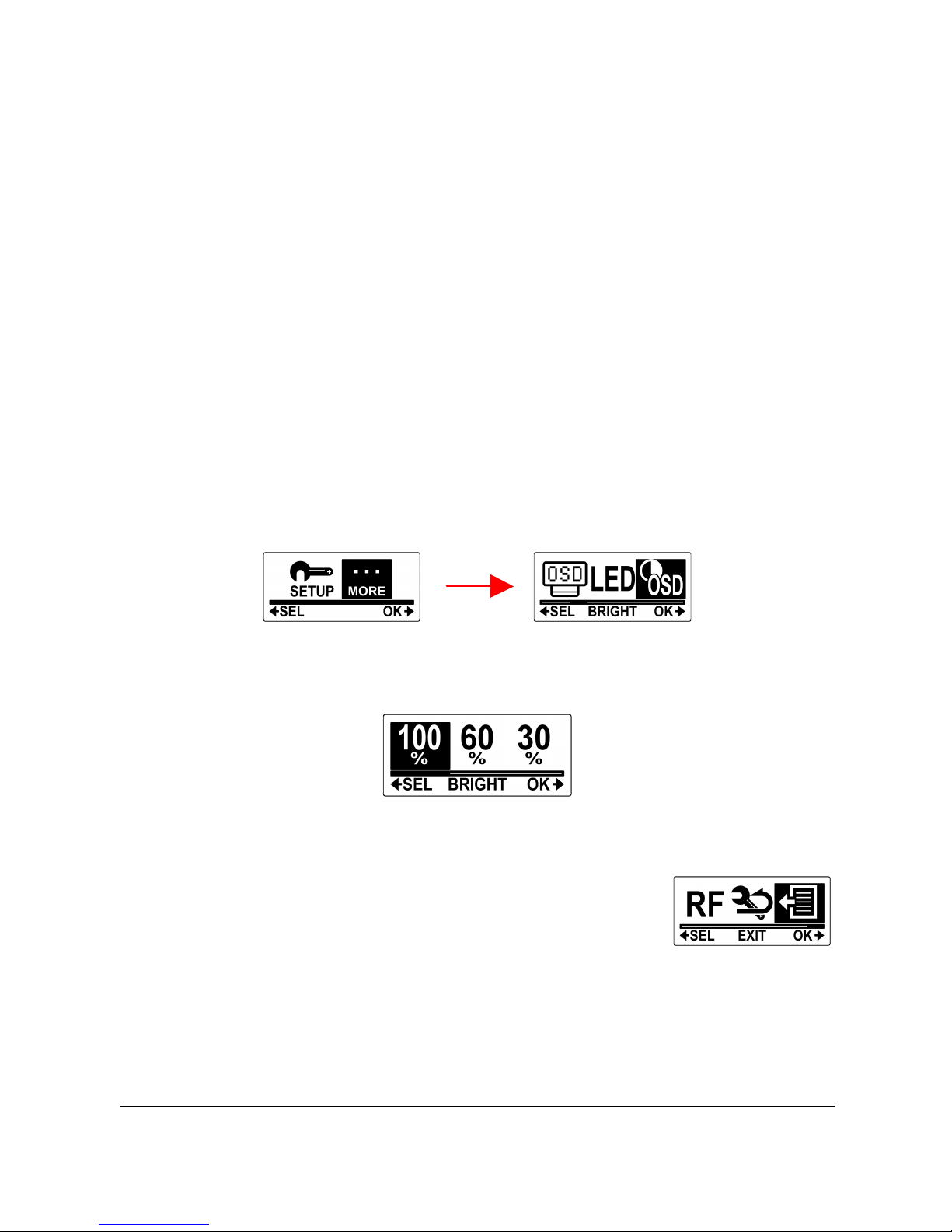

4.9! Brightness .............................................................. 35!

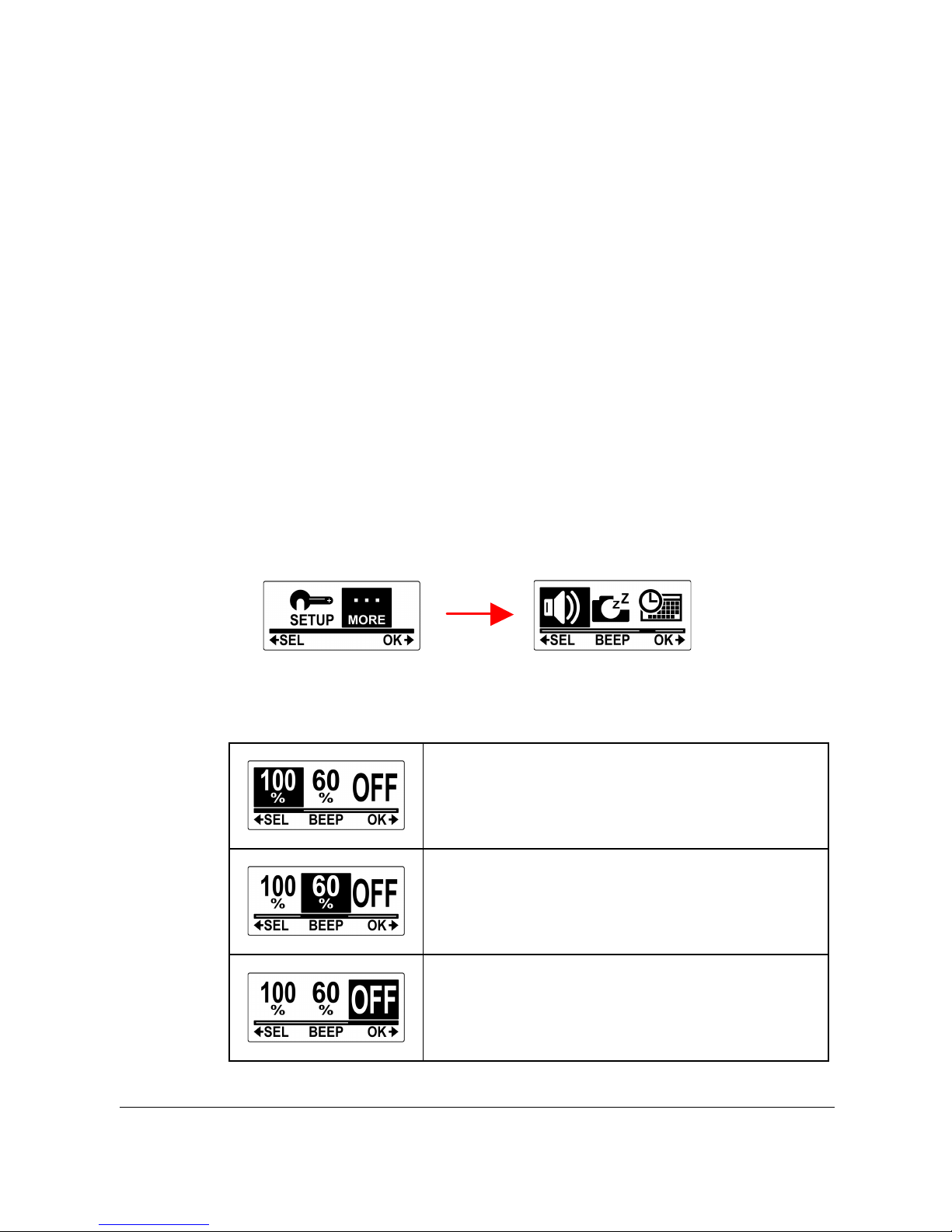

4.10! Beep ....................................................................... 36!

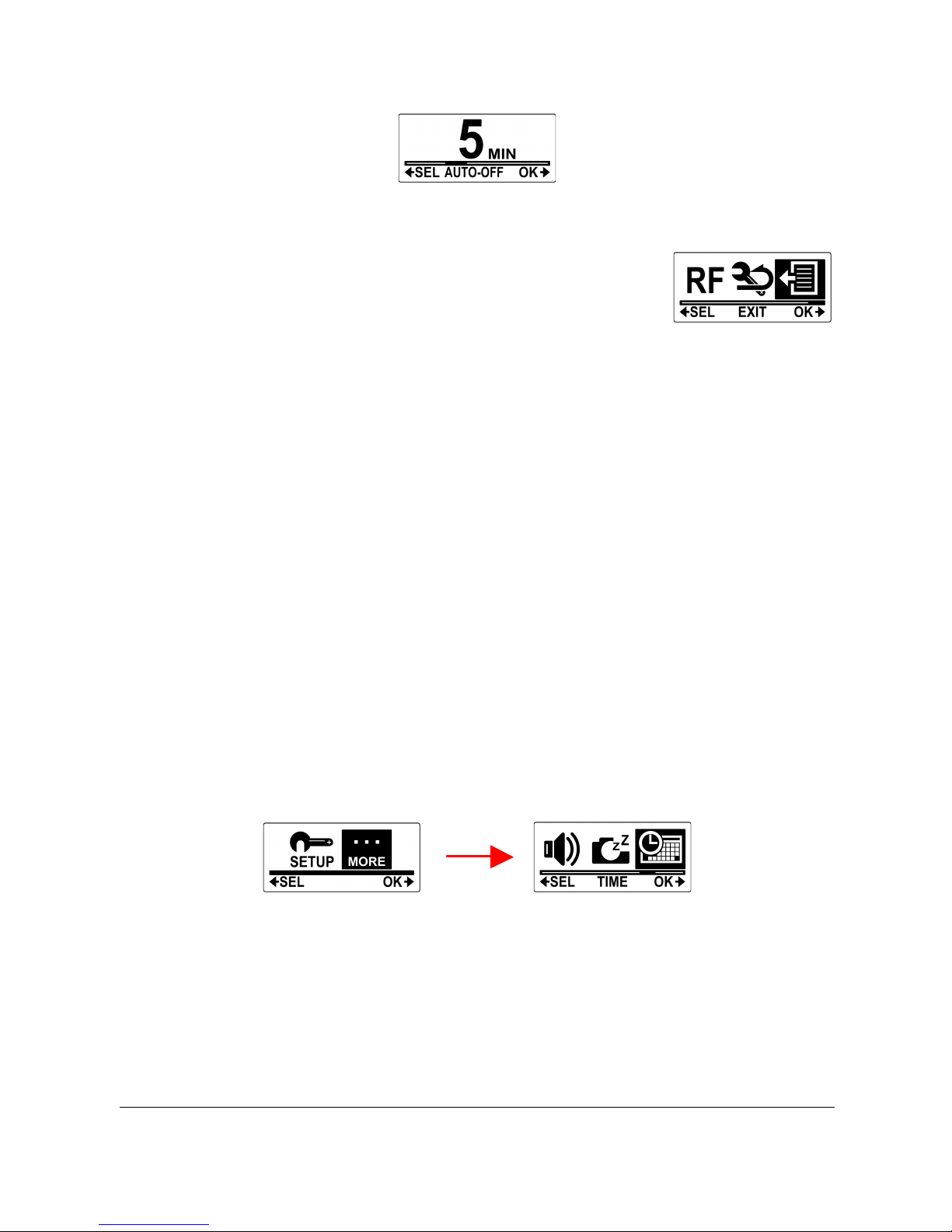

4.11! Auto-Off ................................................................ 37!

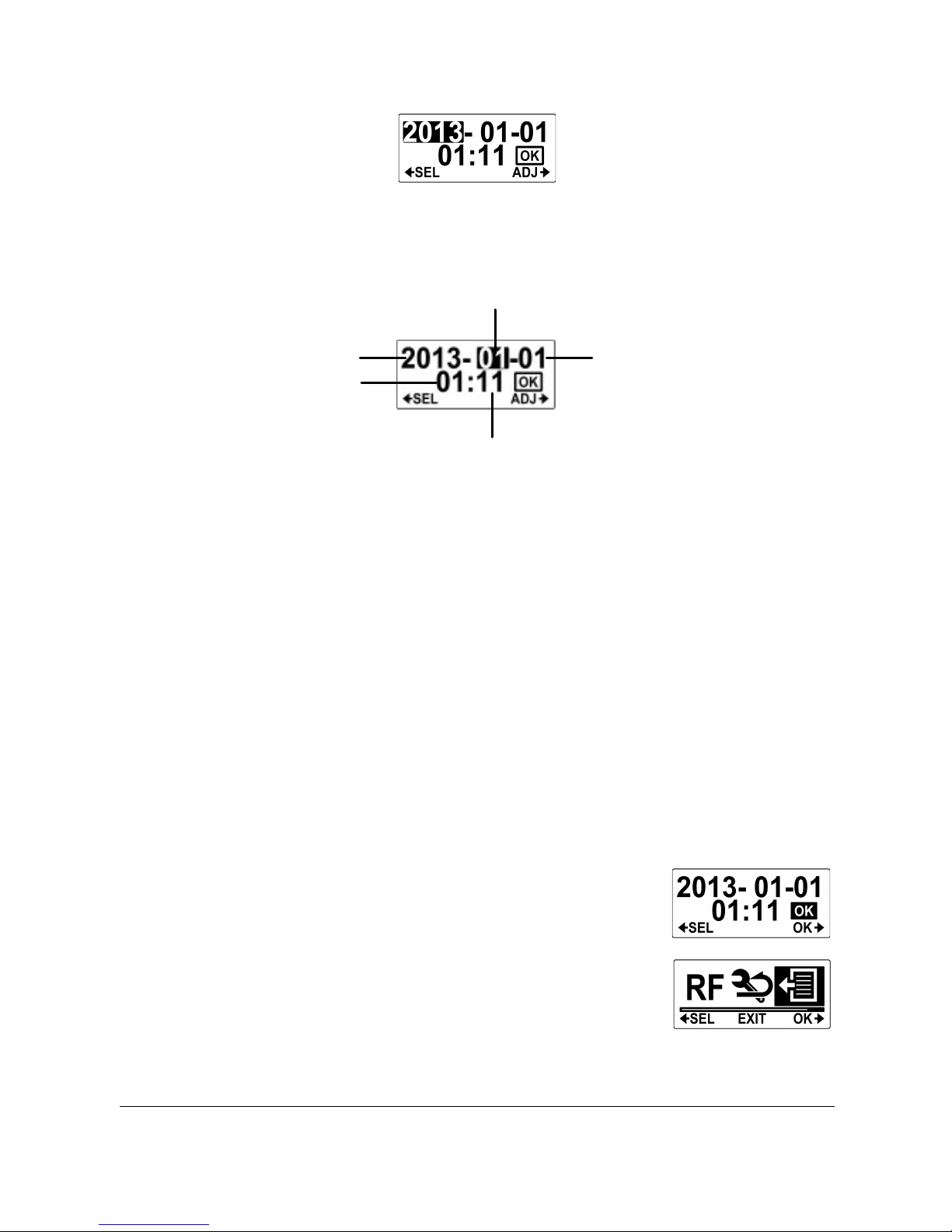

4.12! Date and Time ....................................................... 38!

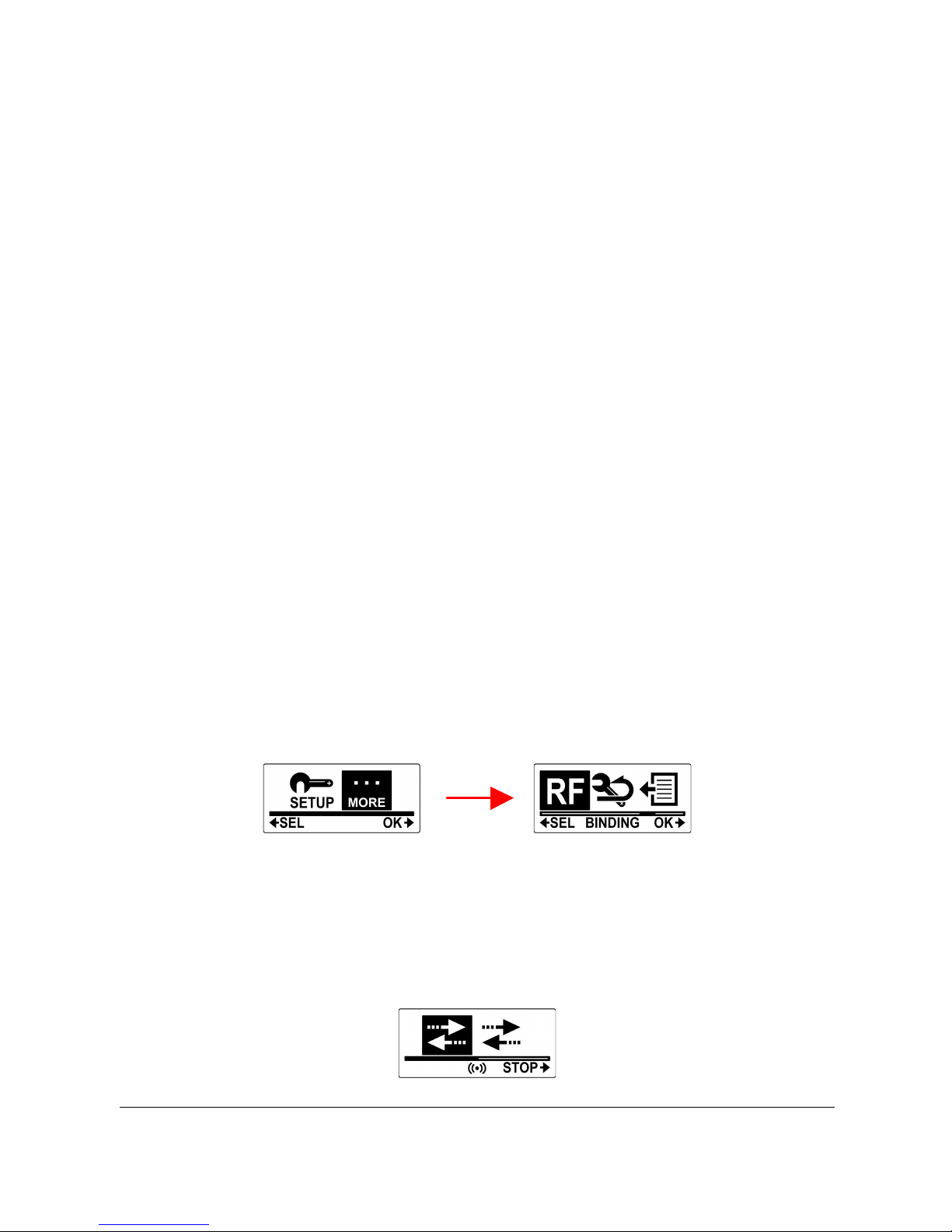

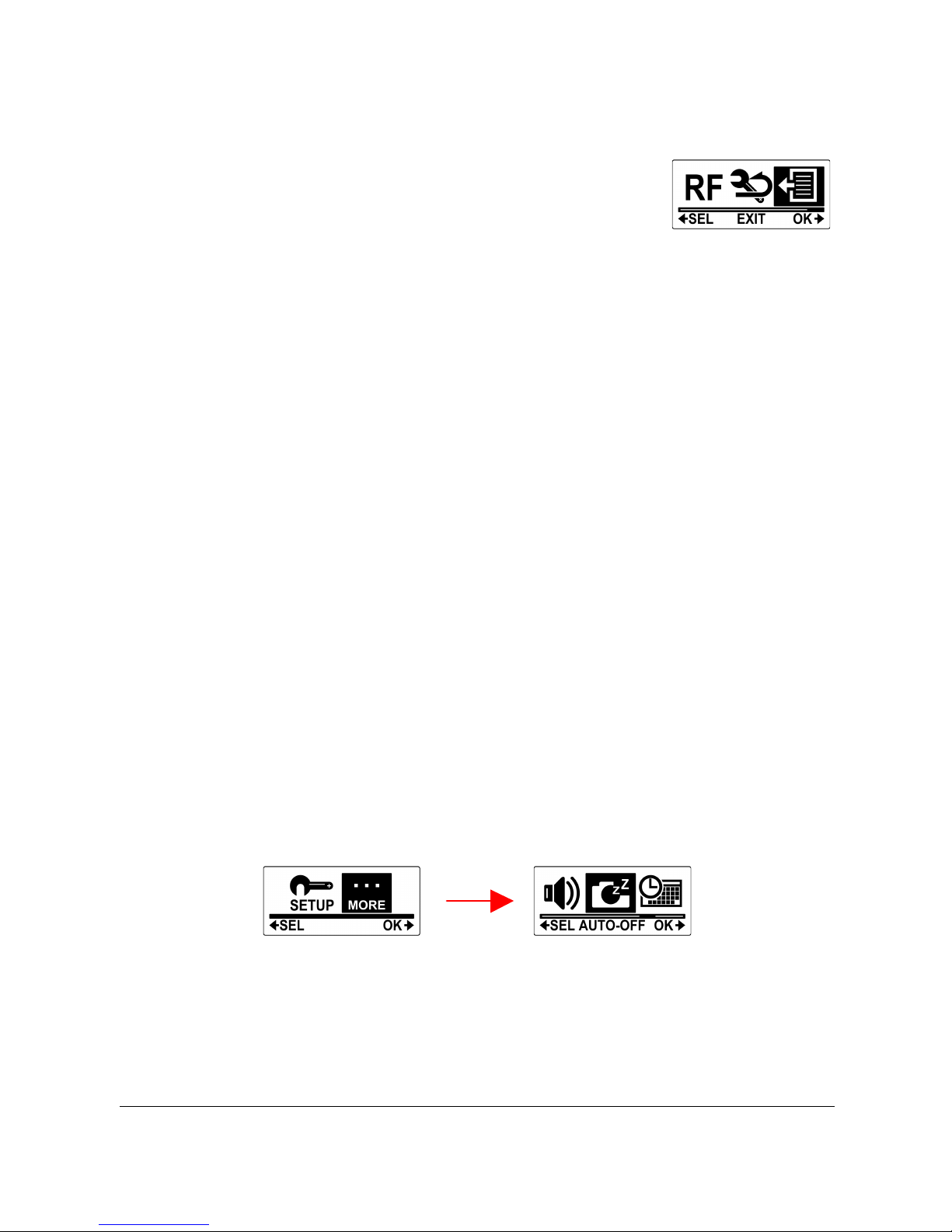

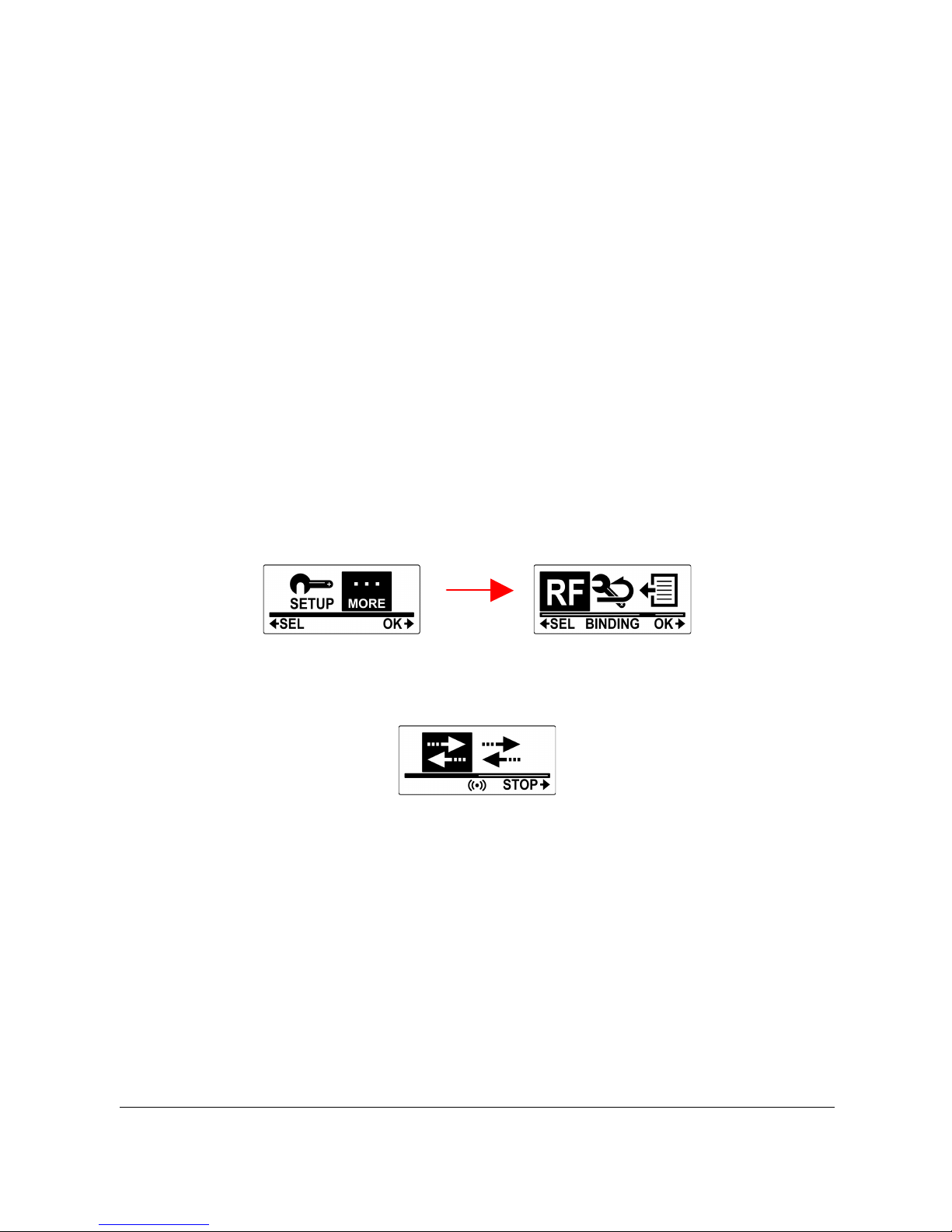

4.13! RF .......................................................................... 40!

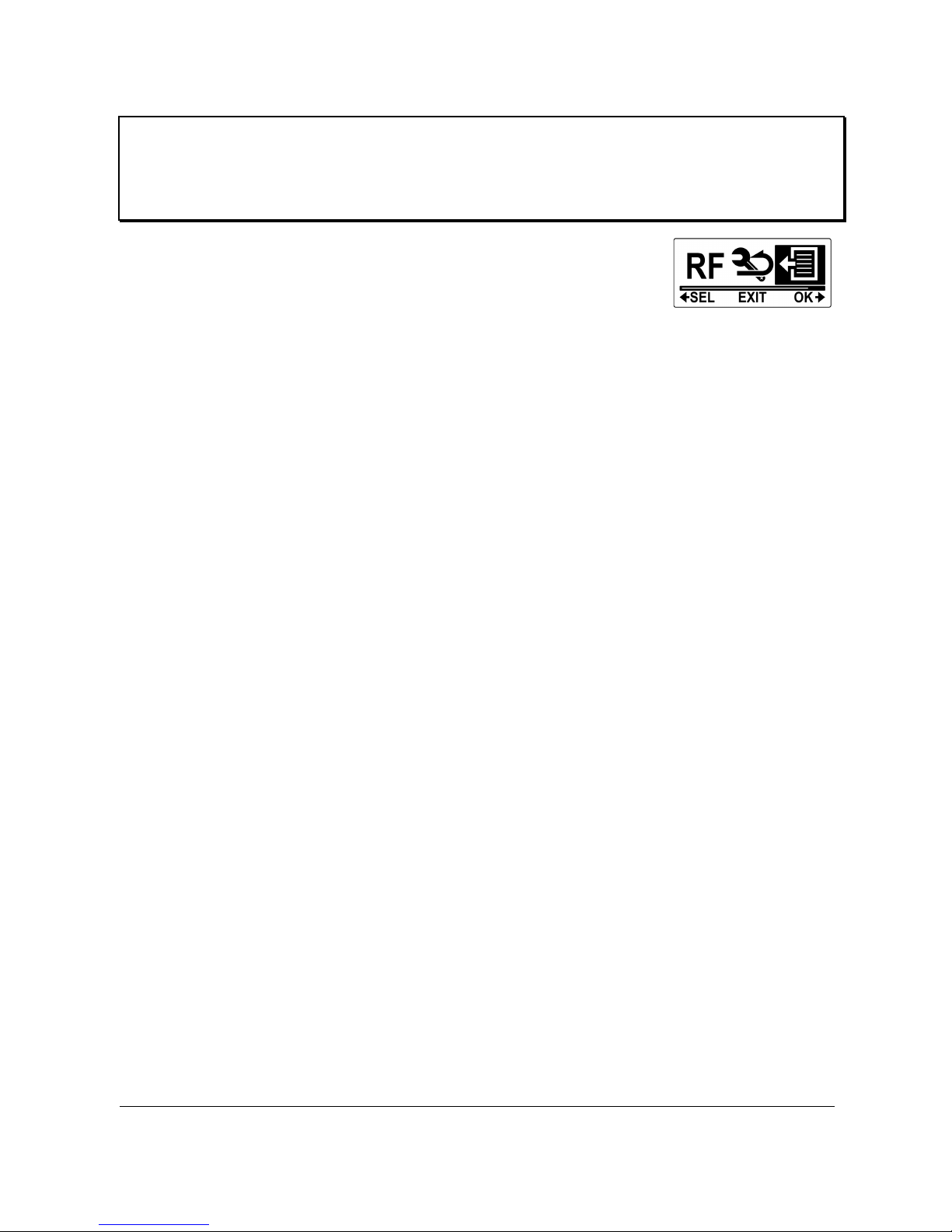

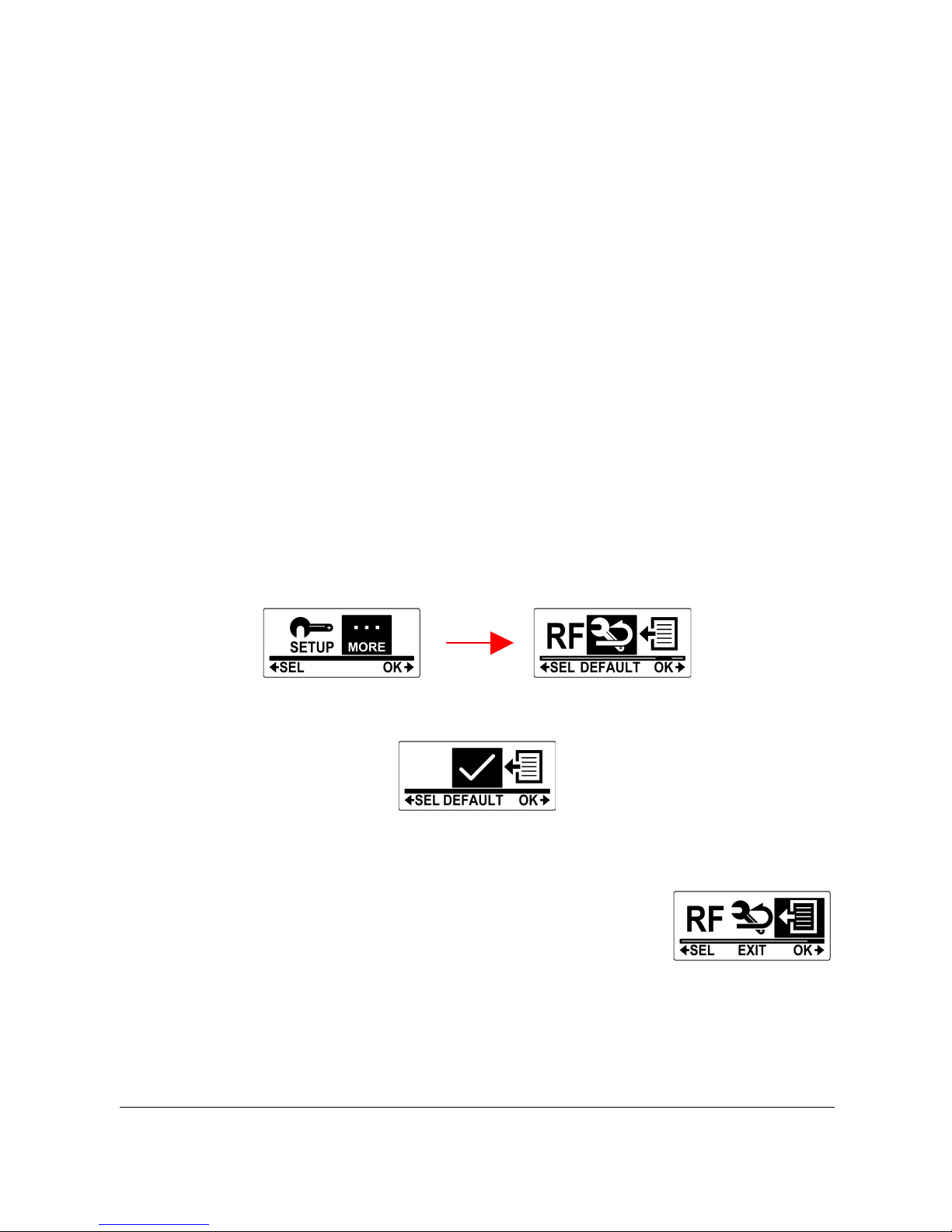

4.14! Factory Default ..................................................... 42!
5! Using the Accessories .................................. 43!
iii

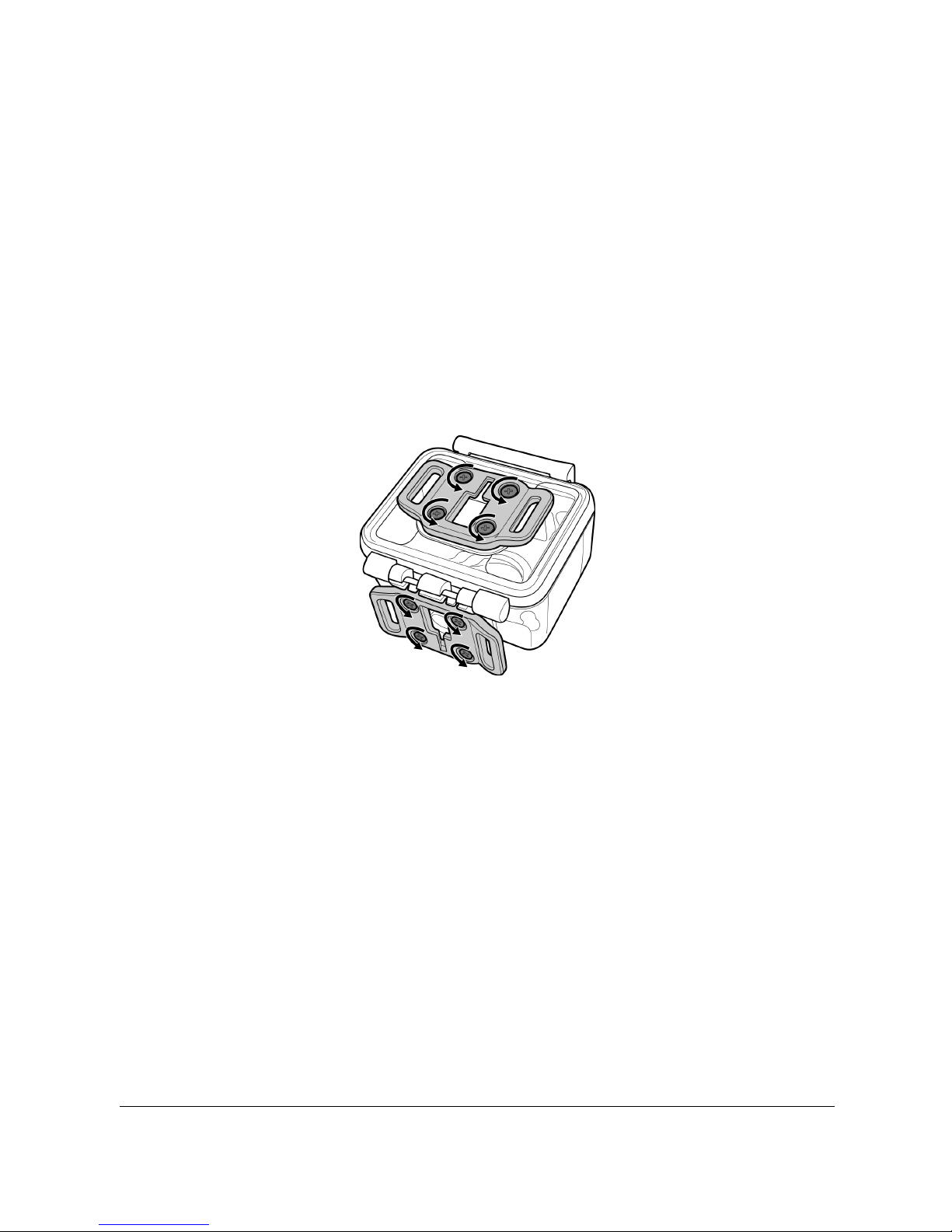

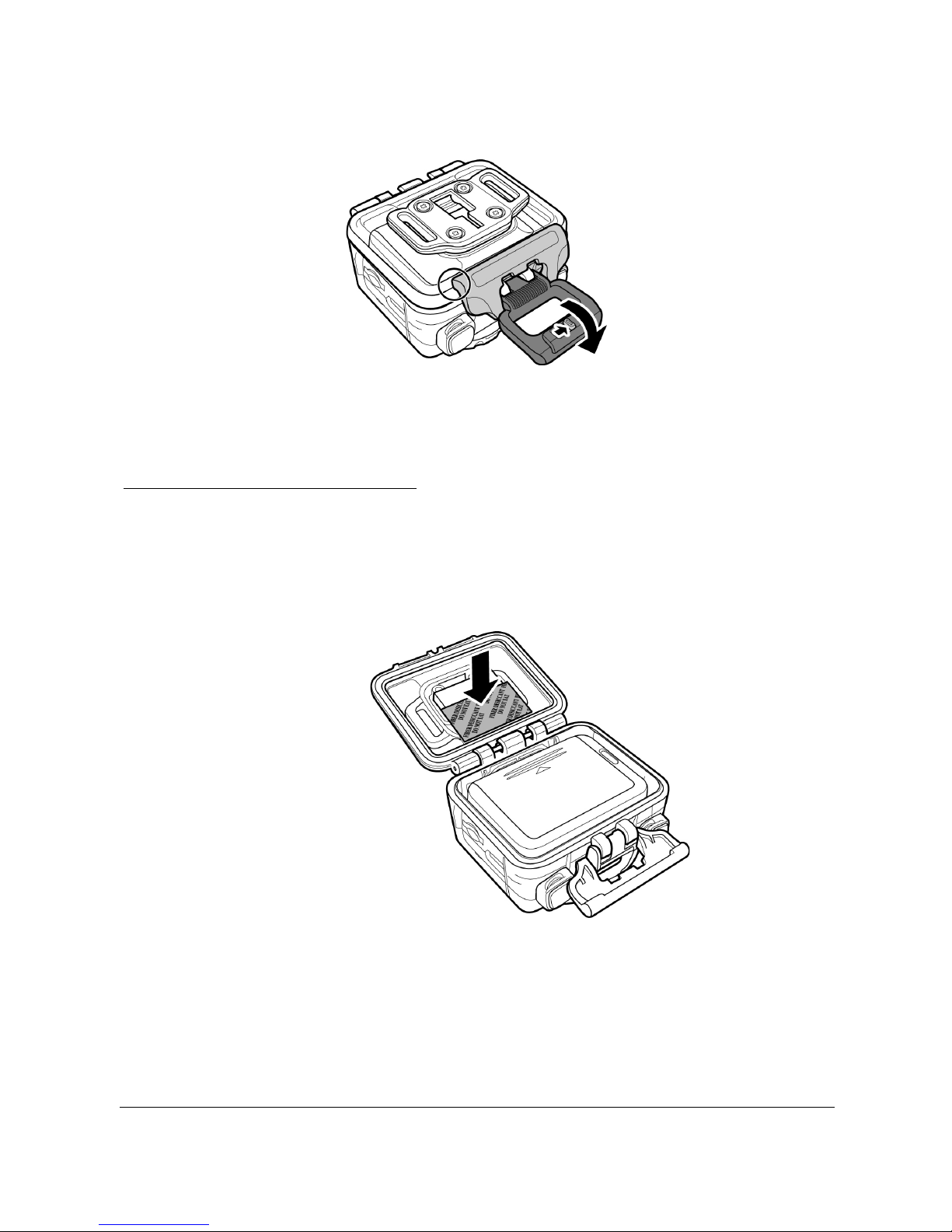

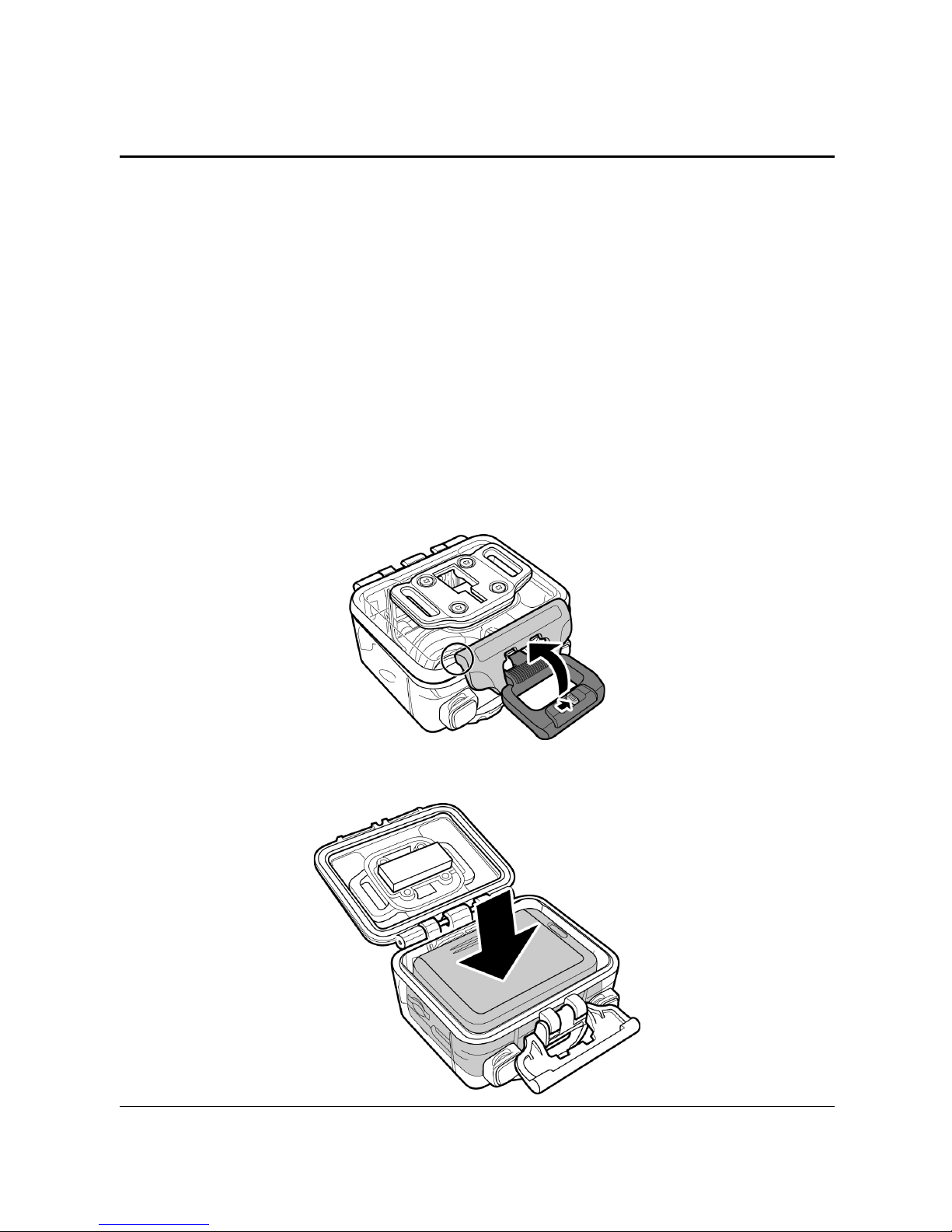

5.1! Waterproof Case .................................................... 43!

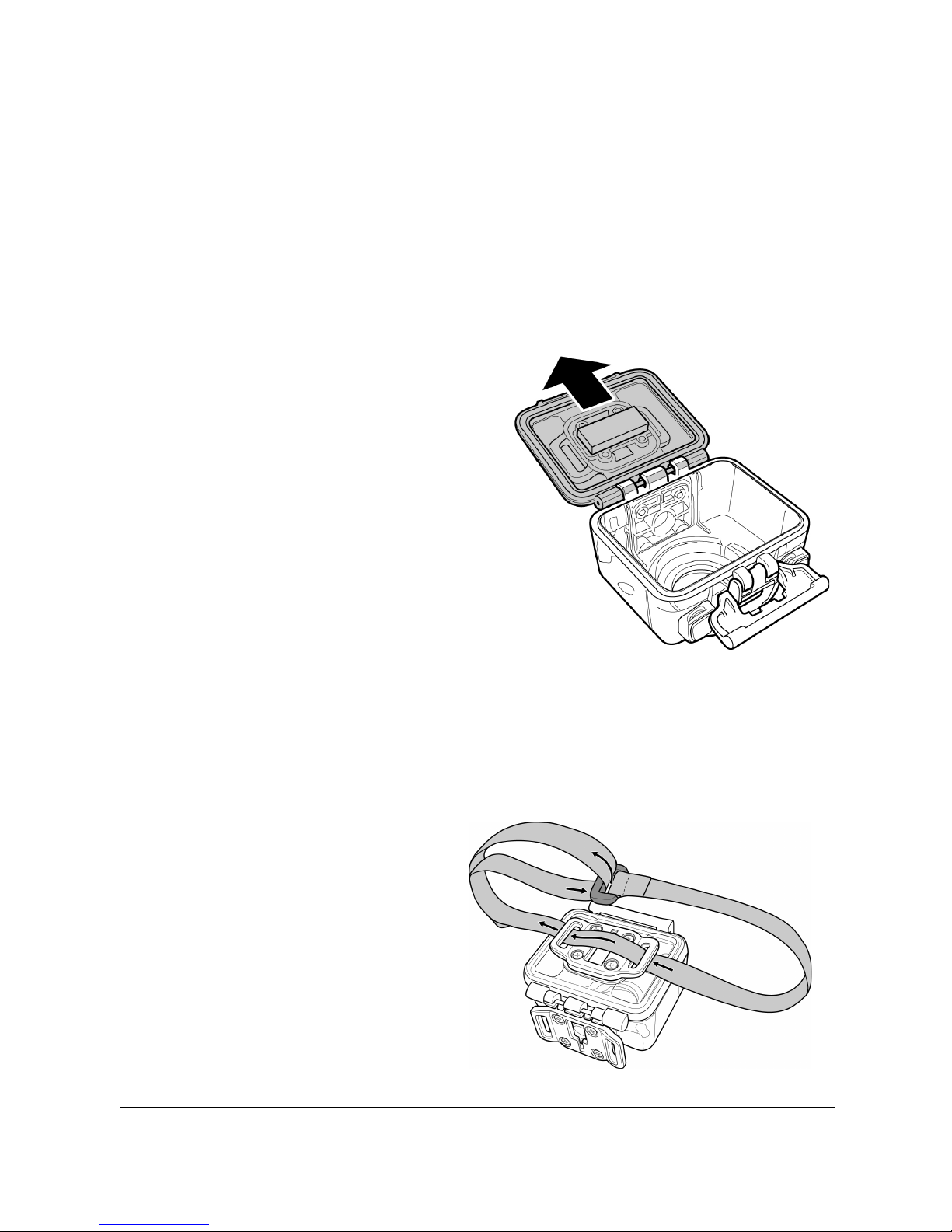

5.2! Velcro Strap ........................................................... 46!

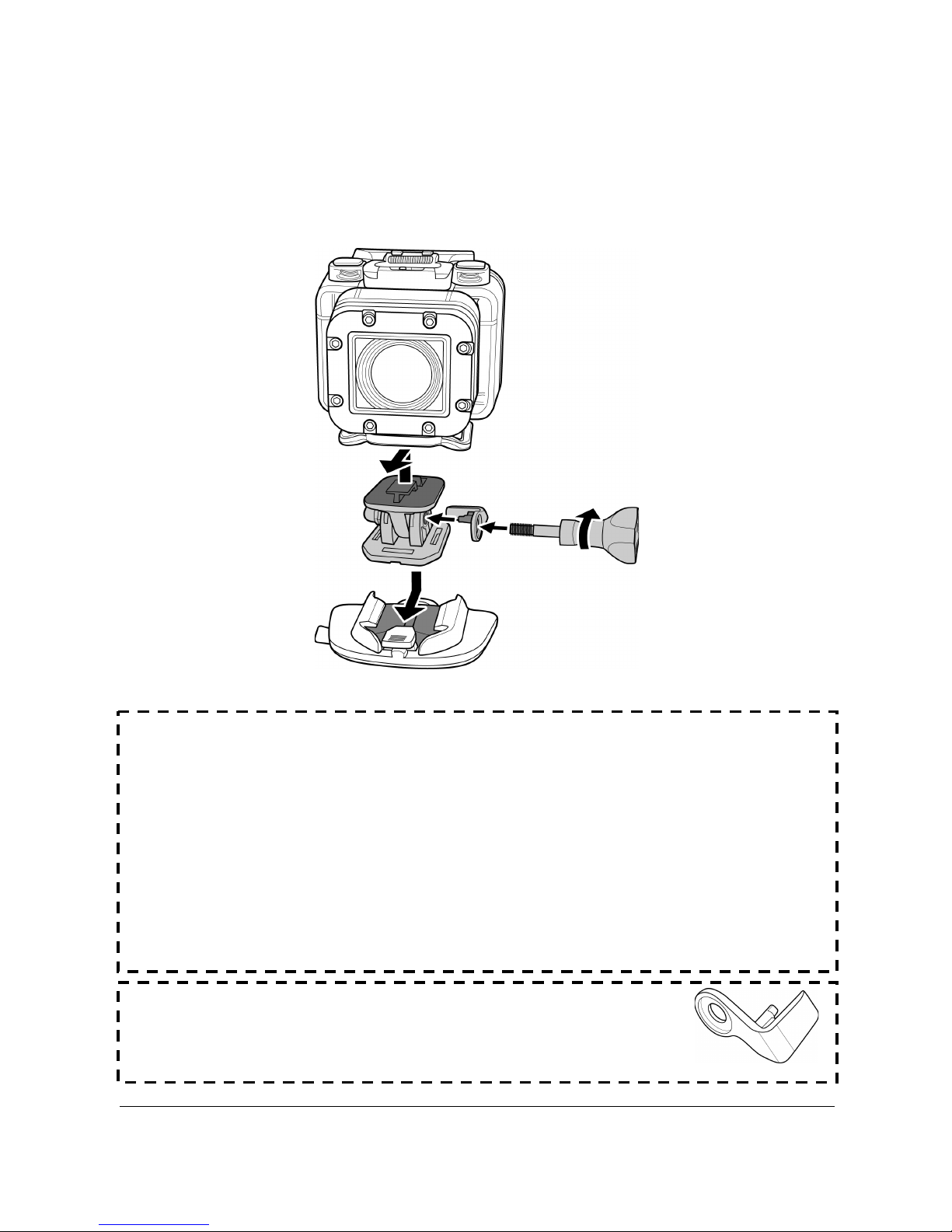

5.3! Assembling the Camera Accessories .................... 47!

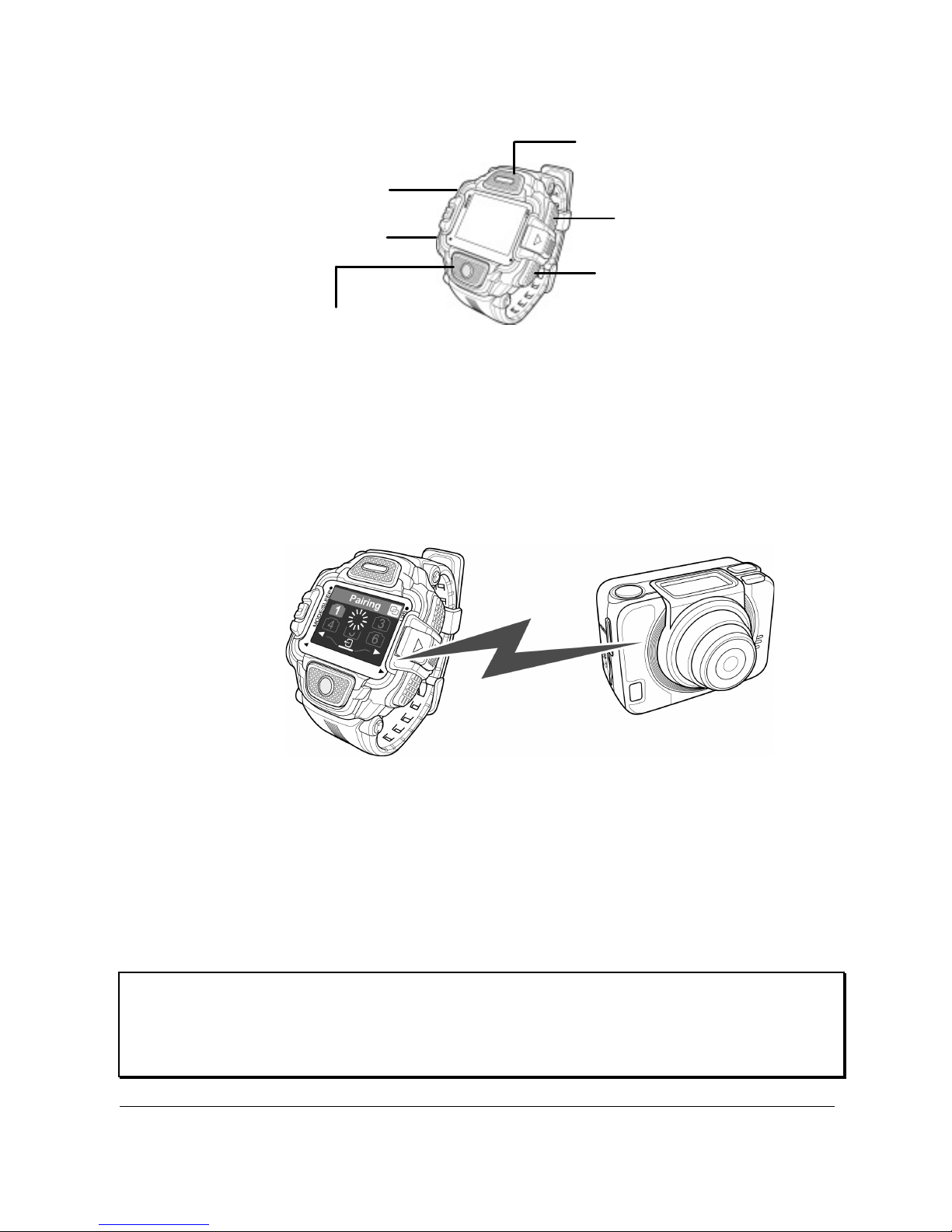

5.4! RF Watch Remote Control .................................... 48!
Appendix ............................................................ 50!
Specifications ................................................................... 50!
Troubleshooting ............................................................... 52!
FCC Statement ................................................................. 53!
Radiation Exposure Statement ........................................ 53!
iv
Preface
Congratulations on your purchase of this advanced camera. Ensure that you read this manual carefully and keep it in a safe place for future reference.
About this manual
Every effort has been made to ensure that the contents of this manual are correct and up to date. However, no guarantee is made regarding the accuracy of the contents. The manufacturer reserves the right to change the contents, technology, and specifications without notice.
Copyright
© Copyright 2013.
All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, manual or otherwise, without the prior written permission of the manufacturer.
v
Precautions
General precautions
• Do not store the product in dusty, dirty, or sandy areas, as its components may be damaged.
• Do not store the product in a hot environment. High temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics.
• Do not store the product in cold areas. When the product warms up to its normal temperature, moisture can form inside, which may damage the electronic circuits.
• Do not attempt to open the casing or attempt your own repairs. High-voltage internal components create the risk of electric shock when exposed.
• Do not drop or knock the product. Rough handling may damage the internal components.
• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.
• Do not open the battery cover while an image is being recorded. Doing so will not only make storage of the current image impossible, it can also corrupt other image data already stored on file.
• If the product or any of its accessories are not working properly, take them to your nearest qualified service center. The personnel there will assist you and if necessary, arrange for the product to be repaired.
• Test for proper operation before using the camera.
vi
Operating conditions
• This camera is designed for use in temperatures ranging from 0°C to 40°C (32°F to 104°F).
• Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
Power supply
• Use only the type of battery that came with your camera. Using any other type of battery may damage the equipment and invalidate the warranty.
• Do not short the battery terminals. The battery could overheat.
• Do not attempt to split or peel the outer casing.
• Remove the battery if the camera is not going to be used for a
long time. If the battery is left unused for more than 3 months, you need to charge the battery before use.
vii
Notes on Waterproof Case
Waterproof Case performance
• The waterproof case performance is equivalent to IPX8 (60m/1hr).
• Underwater time limit: Do not use the waterproof case underwater for more than 60 minutes and 60 meters to ensure water resistance.
• The waterproof case is not dust-proof.
• The camera and other accessories are not waterproof unless
enclosed by the waterproof case.
• When using the camera in cold or humid environments or when going underwater, use the anti-fog insert to prevent fogging. The anti-fog insert only provides a certain degree of prevention, results vary depending on the actual environment. The anti-fog insert is not for long-term use, it must be replaced regularly.
Notes before going underwater:
(Do the following actions indoors. Do not do these actions on sandy or dusty environment or near the water’s edge.)
• Check if the area surrounding the waterproof case lock is clean, do not allow dirt or sand or foreign objects around it.
• Ensure that the waterproof case is closed.
• Ensure that the waterproof case has no cracks or scratches. If
the waterproof case has been dropped, contact your dealer for a replacement.
viii
Notes for general use:
• Avoid opening or closing the waterproof case near the water’s edge (sea, lake, beach, lake, etc.). Do not open or close the waterproof case lock with wet hands, or hands with sand or dust.
• The accessories (batteries, etc.) used with the camera are not water resistant, be careful in using them.
• Do not drop the waterproof case to ensure waterproof durability.
• Do not place the waterproof case in temperatures above 40°C or below 0°C to ensure waterproof durability.
• Do not attempt to make alterations on the waterproof case or seal the vents yourself, doing so may damage its ability to maintain the camera waterproof.
When using the camera
• The waterproof properties of the waterproof case apply to fresh water and saltwater only; they do not apply to cleaning substances, chemicals, or water from spas, etc. Any such liquids should be wiped off immediately.
• Do not immerse the waterproof case in water at a depth greater than 60 meters.
• Do not subject the waterproof case to highly pressurized water.
• Do not immerse in water for longer than 60 minutes. After 60 minutes of use in water, allow the waterproof case to dry for at least 10 minutes.
• Do not immerse in water warmer than 40°C (104°F).
• Do not open or close the waterproof case lock with wet hands.
• Do not open the waterproof case lock next to water or a pool.
• The waterproof case is not dust-proof.
ix
• Do not bump or knock the waterproof case underwater, otherwise the lock may open.
Notes on waterproof case maintenance
• The waterproof of sealing material is replaceable for a fee. The material should be replaced once a year to maintain its water resistance.
After using the waterproof case
• Be sure to come ashore within 60 minutes after going underwater, this will maintain the appearance, quality and water resistance of the waterproof case.
• After taking pictures underwater, clean the waterproof case with running tap water. Do not use any soapy water, mild detergents, alcohol or similar liquids to clean the case.
• Wipe off water drops on the waterproof case with a soft lint-free cloth (avoid fiber). Be sure to wait until the waterproof case is completely dry before opening the waterproof case lock.
• After removing the camera from the waterproof case, soak the waterproof case in a bucket of clean water for about 10 minutes. After 10 minutes, wipe the waterproof case dry with a lint-free cloth. Place the waterproof case in a well ventilated cool place to dry naturally (do not place under direct sunlight).
Other notes
• If water accidentally enters the camera or any problem occurs when it is in water, please get it out of the water immediately and take proper actions. Dry the camera and send it for repair, if required.
• Information is subject to change without notice. Refer to the important notes in the manual supplied with the camera.
x
Before You Start
Take some test shots before you use your camera.
Before taking pictures with this camera, test the camera beforehand to ensure that it functions properly. Any additional loss caused by the malfunction of this product (such as costs of photography or any loss of benefit generated by the photography) is not the responsibility of the manufacturer and no compensation will be given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations. In these cases, you cannot record any live performance, improvisation or exhibits, even for personal purposes. Any transfer of pictures or memory card data must be conducted under the constraints of copyright law.
1
1 Introducing the Camera
Read this section to learn about the features and functions of the camera. This chapter also covers system requirements, package contents, and descriptions of the hardware components.
1.1 System Requirements
The camera requires a PC with the following specifications for full HD 1080p 30fps and 720p 60fps playback:
• Windows® 8 /Windows® 7 /Vista / XP (SP2) / MAC OS X
10.5 and later
• Intel® / AMD Dual-Core CPU and later
• At least 1 GB of RAM or higher
• At least DirectX 9 video card, DirectX 10 is recommended
• Standard USB 1.1 port and later
• At least 2GB or greater available hard disk space
1.2 Features
The camera offers a variety of features and functions including:
• Full HD 1080p (60fps.)
• H.264 Video Clip
• 140° Wide Angle Lens
• WLAN 802.11 b/g/n
• 2.4GHz RF remote control
• 16 Megapixel Photos
• Sports Camera functionality
! Note:
A USB 1.1 port will enable you to transfer files to and from your host PC, but transfer speeds will be faster with a USB 2.0 port.
2
• Li-ion Rechargeable Battery
• External Waterproof Case/Standard Mounts/Watch Remote
• Smartphone App Supported
1.3 Unpacking the Camera
The following items should be present in the package. If any item is missing or appears damaged, contact your dealer immediately.
Camera
Li-ion Battery
User Manual
CD-ROM
Micro USB Cable
3
Standard Accessories
Waterproof Case
Vented Housing
Backdoor
Waterproof
Housing Backdoor
T Tip Adapter
Flat Adhesive
Socket
Curved Adhesive
Socket
Secure Tether
Velcro Strap
Swivel T Tip
Adapter for optional GoXtreme®
Accessories
Anti-fog Inserts
Safety Lock
4
1.4 About the Camera
Refer to the following illustrations to familiarize yourself with the buttons and controls of this camera.
1.4.1 Camera Views
Power/Status LED 1
Lens
Speaker
HDMI port
Shutter button
Power/Status/ Battery LED 2
Power / Mode button
OLED screen
Micro SD
card slot
Battery compartment cover
Power/Status LED 4
Microphone
jack
Micro USB
port
Microphone
Power/Status
LED 3
5
1.4.2 Button Functions
Power / Mode
Button

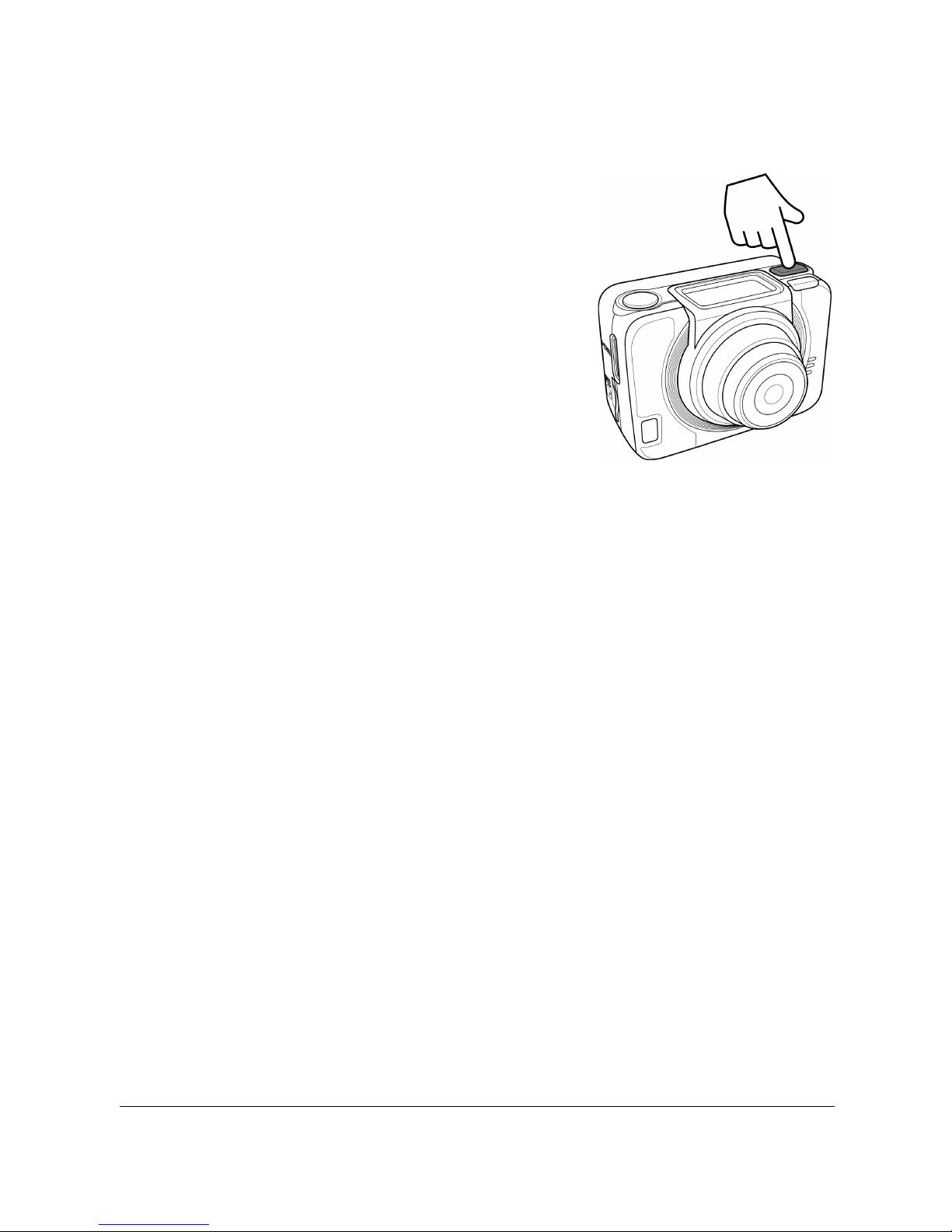

• Press and hold for 3 seconds to turn the camera on or off.
• Press to switch to different modes: Video, Photo, WiFi, Burst, Time Lapse, Self-timer, and Set mode.
• In Set mode, press to scroll through menu items.
Shutter Button
• In Video mode, press to start/stop video
recording.
• In Photo mode, press to take a photo.
• In Set mode, press to select an item.
6
1.4.3 LED Indicators
The camera has four LED indicators.
The Power/Status LEDs are located on top, on the bottom, and on the back of the camera. These LEDs are designed for users to see the status of the camera whichever way the camera is held or mounted.
LED
Color
Description
Power / Status LED
Green
During startup
Green Blinking
Taking photos/ WiFi initial setup is complete and connection is in progress
Red Blinking
Video recording in progress
Red Blinking Rapidly
Self-timer
Battery LED
Red Blinking
Battery is charging
Off
Full charge
7
2 Getting Started
Read this section to learn how to start using the camera. This section covers basic functions such as switching on, installing the battery and micro SD card, and configuring preliminary settings. See later chapters for advanced functions.
2.1 Installing the Micro SD Card
A micro SD card is required to capture photos and videos. The camera supports micro SDHC cards up to 32GB.
1. Insert the micro SD card into the card slot with the gold contacts facing the front of the device.
2. Push the micro SD card until it clicks into place.
" Warning: Do not remove the micro SD card while data is being
recorded. Doing so may corrupt the saved data and damage the card.
8
2.1.1 Removing the Micro SD card
1. Turn off the camera.
2. With a fingertip, push the micro SD card to eject it from the slot.
3. Remove the micro SD card.
2.2 Installing the Battery
" Warning: Use only the supplied battery or a similar battery
recommended by the manufacturer or the dealer.
1. Push down the battery compartment cover to open it.
2. Align the battery contacts and then insert the battery into the compartment with the ribbon underneath the battery.
9
3. Close the battery compartment cover.
2.2.1 Removing the battery
1. Open the battery compartment cover.
2. Pull the ribbon to remove the battery.
Loading...
+ 45 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
