Easypix Foto/Name Card User Manual
0
Contents
1. Introduction ................................................................. 2
2. Preparation ................................................................. 3
Package Contents ............................................ 3
Scanner Overview ............................................ 4
3. Installation & Operation .............................................. 5
3.1 Initial Setup ................................................ 5
3.2 Power on the Scanner ............................... 6
3.3 Scan an Original ........................................ 8
3.4 Power off the Scanner ............................... 9
4. Connecting to a Computer ........................................ 11
4.1 How to connect the scanner to a computer
……………………………………………………11
4.2 Disconnecting the scanner from a computer
....................................................................... 13
5. Maintenance ............................................................. 14
5.1 Cleaning the Roller of the scanner……....14
5.2 Calibrating the scanner ……………………15
5.3 Cleaning the Image Sensor ..................... 16
6. Troubleshooting ........................................................ 17
6.1 Frequently Asked Questions .................... 17
7. Arcsoft BizScanner ................................................... 19
7.1 Install BizScanner………………………….19

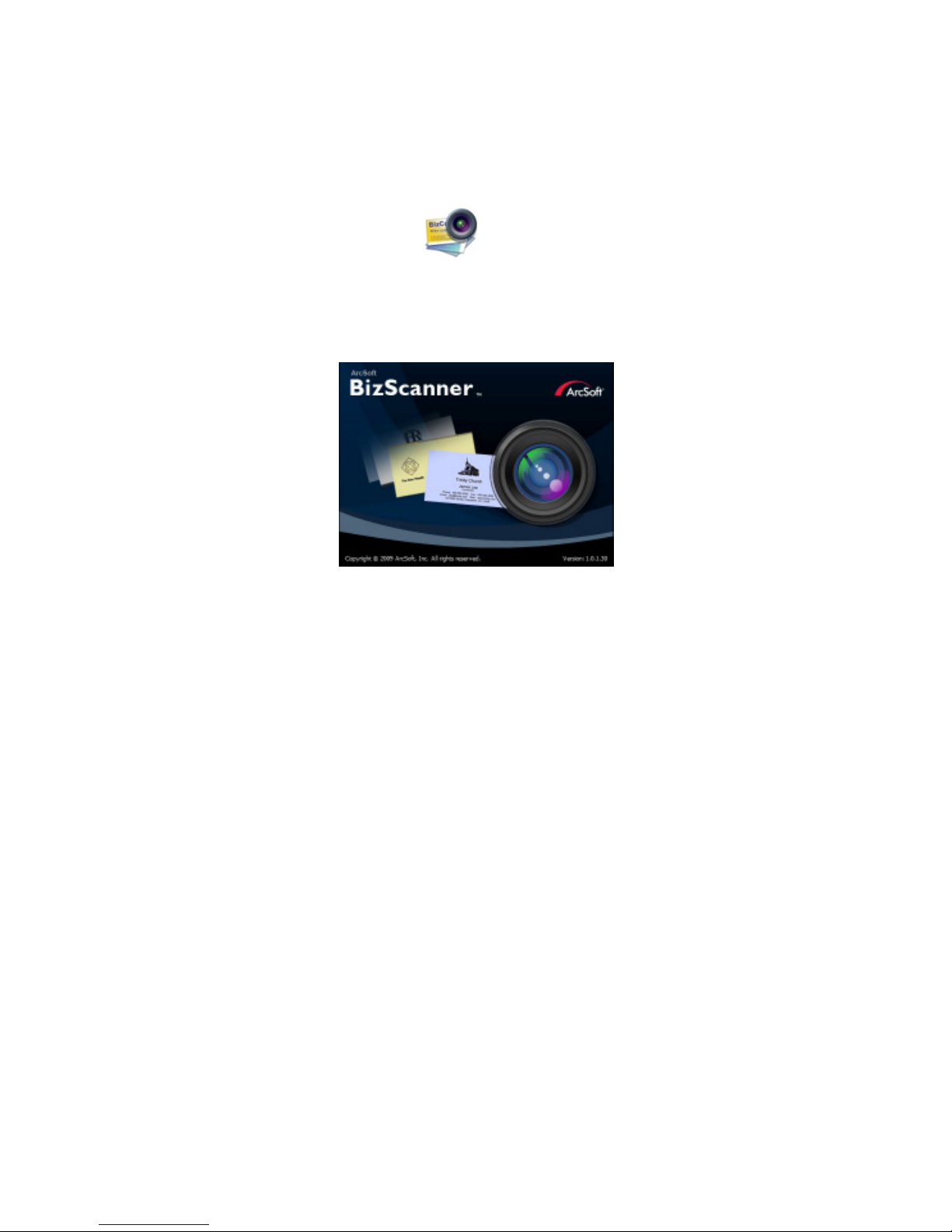

7.2 Run BizScanner……………………………21
7.3 Start to use BizScanner…………….……. 22
7.4 System requirements…………………….. 31
8. Specifications ............................................................ 32
1
1. Introduction
Congratulations on your purchase of the scanner. Now you
can scan and store your printed photos directly to your
memory card or flash disk without connecting to any
computer. If you want to store your photos directly into your
computer, just connect the scanner with SD card to the
computer.
Before you install and operate the product, please take a
few minutes to read through this manual. It provides proper
instructions for you to install, operate and maintain the
product.
Precautions
Keep the product out of direct sunlight. Direct
exposure to the sun or excessive heat may cause
damage to the unit.
Do not install the product in a humid or dusty place.
Be sure to use the proper AC power source.
Place the product securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.
Retain the product box and packing materials for
shipping purposes.
System Requirements
Free USB 2.0 port
Windows® XP
Windows® Vista™
Windows® 7 (32 / 64 bit or later version)
2
2. Preparation
Package Contents
Scanner CD
QSG Roller Cleaning Tool
Sensor Cleaning Swab Calibration Card
AC Power Adapter USB cable
3
Scanner Overview
4
3. Installation & Operation
3.1 Initial Setup
1. Connect the plug on the power adapter cable to the
power connector on the scanner.
2. Plug the power adapter into a power outlet.
3. Insert a memory card into the memory card slot or a
flash disk into the flash disk slot.
Note : The SD card is
the high priority when you insert the SD card and
flash disk together.
5
3.2 Power on the Scanner
1. Press and hold the Power button for about 0.5 seconds.
The power indicator green light blinks.
2. Wait until the power indicator stops blinking then
change to orange and stays on to indicate the scanner
is ready.
6
The indicator light patterns represent function status as
follows:
Light Function Status
1. Green
Blinks
2. Orange
Steadily on
3. Orange
Blinks
Continuously
The scanner is power on and initiating.
The scanner is ready for use.
Initializing system and memory card.
Please wait until the initialization process
is complete before using the scanner.
Busy scanning and storing image files.
Please wait until the process is complete
before scanning another original.
Sensor cleaning in progress. Please wait
until the process is complete before
performing any operations.
4. Red
Blinks
5. No light The scanner is powered off.
Paper jam. Press the Custom button for
about 0.5 seconds; the scanner will back
out the original so you can remove it
from the input slot.
Memory card error. Remove the memory
card to clear this error status.
Calibration failed. Error indication only.
7
3.3 Scan an Original
1. Insert your photo or name card with the side to be
scanned facing upward and in correct orientation, place
the left edge of the original against the left edge of the
feed slot, and then adjust the guide lever so that it is
against the right side of the original. Do not apply any
force to the original.
2. Gently push the original into the feeding slot and let
go when it begins to feed into the slot.
3. When the scan is completed, the scanner will
automatically create a folder titled “Photo1” on your
memory card or flash disk, which will hold the first 9999
scans. Then “Photo2” folder will be created for the next
9999 scans, and so on.
(Each scanned image is given a file name with the prefix
scan followed by a 4- digit sequential number in the
order the images are stored. For example,
IMG 0001.jpg, IMG 0002.jpg, etc.)
Note
Do not remove the memory card or disconnect the power
This scanner only supports output images in JPEG (.jpg)
If the memory card is near full (lower than 1MB), the power
Insert only one original at a time, and insert the next original
:
supply while the indicators are blinking.
format, and the date/ time attribute will not be added.
indicator light blinks. Use another card or delete some files on
it if necessary.
only when the previous one is done and the blinking has
stopped, otherwise the scanner may malfunction.
8
3.4 Power off the Scanner
etc.)
After all originals were scanned, press and hold the power
button until the indicator blank. Now you can safely
disconnect the power and remove the memory card or flash
card from the scanner.
Important:
1. Insert only one photo at a time, and insert the next one
only when the previous one is done, and the indicator
light stops blinking. Otherwise, the scanner may
malfunction.
2. The acceptable paper size is 2”x 2” ~ 4” x 6”.
3. Do not use the following types of originals for scanning;
otherwise the scanner may malfunction or cause the
original to jam in the slot.
Originals thicker than 0.5mm
Originals with either side shorter than 50mm(below 2”)
Originals with lots of black or dark colors
Originals with dark colors surrounding the edges
Transparencies(filmstrips, celluloid, etc.)
Printed images (pictures on newspapers, magazines,
Soft and thin materials (thin paper, cloth, etc.)
Originals that exceed or below the acceptable size
4. The scanner has a built-in cropping function that is
capable to detect and crop the edges of an original.
9
The max cropping size is 1.5mm per edge, as
Max. 1.5mm
illustrated below:
5. If the photo is incautiously skew in the feeding slot, the
four edges of the scanned image will become dark as
illustrated.
10
