Earthquake
POWERED CHORE EQUIPMENT
Operator's Manual
Original Operating Instructions
Two-Man
Earth Auger Powerhead
9800 Series
SN
Get parts online at
www.getearthquake.com
Includes models:
9800B
9800H
9800BCE (European)
P/N: 0M9800B
ECN:10322
REV5:03/01/14
0 2014 Ardisam, Inc.
All Rights Reserved
Operator's Manual
Earthquake
Two-Man Earth Auger Powerhead 9800 Series
INTRODUCTION
Congratulations on your investment in quality. Thank you for purchasing an Earthquake' Two-Man Auger Powerhead. We have
worked to ensure that this powerhead meets the highest standards for usability and durability. With proper care, this powerhead
will provide many years of service.
Please read this entire manual before installation and use. Earthquake reserves the right to change, alter or improve the
product and this document at anytime without prior notice.
CONTENTS
Introduction/Contents/Registration
Warnings and Safety Precautions
Features
Assembly
Operation
Maintenance and Storage
Troubleshooting and Repair
Illustrated Parts Breakdown
Warranty
CE Declaration of Conformity
2
3-7
7
8
9-10
11-12
12-13
14-18
22
23
REGISTRATION, SERVICE AND MAINTENANCE LOG
Record the model number and serial number in the space provided for easy reference. Warranty is valid only if the completed registration is received by Earthquake within 30 days of purchase. You can register your warranty online by visiting www.getearthquake.
. If you do not have a computer, call our customer service department at (800) 345-6007 Mondays through Fridays from 8 a.m.
com
to 5 p.m. CST.
'OWNERSHIP RECORDS
Owner's Name:
Owner's Address:
City:
Model Number:
Date of Purchase:
Notes:
This manual may contain information for several models. Read and keep this manual for future reference. This manual contains important information on SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the
product information is included with the unit. This information includes the MANUAL, the REPLACEMENT PARTS and the WARRANTIES. This information must be included to make sure state laws
with the unit
even if it is resold.
State/Province:
Serial Number:
and other laws are followed. This manual should remain
Zip Code/Postal Code:
or call 800-345-6007 M-F 8-5
2
Check for parts online at
www.getearthquake.com
Eorthquakd
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
WARNINGS AND SAFETY PRECAUTIONS
OPERATOR'S RESPONSIBILITY
Accurate assembly and safe and effective use of the machine is
the operator's responsibility.
Read and follow all safety instructions.
•
Carefully follow all assembly instructions.
•
Maintain the machine according to directions and schedule
included in this operator's manual.
Ensure that anyone who uses the machine is familiar with all
controls and safety precautions.
SPECIAL SAFETY MESSAGES
Your manual contains special messages to bring attention to
potential safety concerns, machine damage as well as helpful
operating and servicing information. Please read all the infor-
mation carefully to avoid injury and machine damage.
NOTE: General information is given throughout the manual
that may help the operator in the operation or service of the
machine.
This symbol points out important safety instruc-
A
tions which if not followed could endanger your
personal safety.
A
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS
INJURY TO PERSONNEL AND/OR PROPERTY DAMAGE.
A
CAUTION
CAUTION INDICATES YOUR EQUIPMENT CAN BE
DAMAGED IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
IMPORTANT
A
INDICATES HELPFUL INFORMATION FOR PROPER
ASSEMBLY, OPERATION, OR MAINTENANCE OF YOUR
EQUIPMENT.
WARNING
A
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER
REPRODUCTIVE HARM.
BEFORE OPERATING ENGINE:
WARNING
A
READ ENTIRE OPERATING AND MAINTENANCE
INSTRUCTIONS FOR THIS PRODUCT AND THE
INSTRUCTIONS FOR THE ENGINE THAT POWERS THIS
UNIT. FAILURE TO FOLLOW INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR DEATH. OPERATE THE
ENGINE ACCORDING TO THE SAFETY INSTRUCTIONS
OUTLINED HERE AND INSERTED THROUGHOUT THE
TEXT. ANYONE WHO USES THIS PRODUCT MUST
READTHE INSTRUCTIONS AND BE FAMILIAR WITH THE
CONTROLS.
WARNING
A
YOU MUST READ, UNDERSTAND AND COMPLY WITH
ALL SAFETY AND OPERATING INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO SETUP AND
OPERATE YOUR MACHINE.
FAILURE TO COMPLY WITH ALL SAFETY AND
OPERATING INSTRUCTIONS CAN RESULT IN LOSS OF
MACHINE CONTROL SERIOUS PERSONAL INJURY TO
YOU AND/OR BYSTANDERS, AND RISK OF EQUIPMENT
AND PROPERTY DAMAGE. THE TRIANGLE IN THETEXT
SIGNIFIES IMPORTANT CAUTIONS OR WARNINGS
WHICH MUST BE FOLLOWED.
Intended Use /
CE
This is a motorized earth auger that drills into soil. It is pedestrian controlled. It has a petrol-fuelled internal combustion engine that powers the auger blades. It shall not be used for any
other purpose.
Foreseeable Misuse
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
3
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
GENERAL SAFETY RULES
Read, understand, and follow all instructions on the machine
and in the man ual(s). Be thoroughly familiar with the controls
and the proper use of the machine before starting.
Use this equipment for its intended purpose only.
Familiarize yourself with all of the safety and operating
decals on this equipment and on any of its attachments or
accessories.
Do not put hands or feet near or under rotating parts.
Only allow responsible individuals who are familiar with the
instructions to operate the machine. Do not allow children
to operate this machine. Do not allow adults to operate the
machine without proper instruction.
Thoroughly inspect the area where the machine is to be
used and remove all foreign objects. Your equipment can
propel small objects at high speed causing personal injury
or property damage. Stay away from breakable objects, such
as house windows, automobile, greenhouses, etc.
Wear appropriate clothing such as a long-sleeved shirt or
jacket. Also wear long trousers or slacks. Do not wear shorts.
Never wear sandals, sneakers, or open shoes, and never
Operate the machine with bare feet.
Do not wear loose clothing or jewelry.They can get caught in
moving parts. Always keep hands, feet, hair and loose clothing
away from any moving parts on engine and machine.
Always wear safety goggles or safety glasses with side shields
when operating the machine to protect your eyes from
foreign objects which can be thrown from the unit. Always
wear a protective hearing device.
Always wear work gloves and sturdy footwear. Wear
footwear that will improve footing on slippery surfaces.
Leather work shoes or short boots work well for most people.
These will protect theoperator's ankles and shins from small
sticks, splinters, and other debris.
It is advisable to wear protective headgear to prevent the
possibility of being struck by small flying particles, or being
struck by low hanging branches, twigs, or other objects
which may be unnoticed by the operator.
Do not operate the machine without proper guards or other
safety protective devices in place.
See manufacturer's instructions for proper operation and
installation of accessories. Only use accessories approved
by the manufacturer.
Operate only in daylight or good artificial light.
Do not operate product when fatigued or under the
influence of alcohol, drugs or other medication which
can cause drowsiness or affect your ability to operate this
machine safely.
Watch for traffic when operating near, or when
crossing roads.
If the equipment should start to vibrate abnormally, stop the
engine (motor), disconnect the spark plug wire and prevent
it from touching the spark plug. Check immediately for cause.
Vibration is generally a warning of trouble. lithe noise or
vibrations of the machine increase, stop immediately and
perform an inspection.
Never leave the machine unattended when the engine is
running.
Regularly inspect the machine. Make sure parts are not bent
damaged or loose. Keep all screws, nuts and bolts tight.
Temperature of muffler and nearby areas may exceed 150° F
(65°C). Allow muffler and engine areas to cool before touching.
Never pick up or carrythe machine while the engine is running.
Prolonged exposureto noise and vibrationfrom gasoline engine-
powered equipment should be avoided. Take intermittent
breaks and/or wear ear protection from engine noise as well as
heavy work gloves to reduce vibration in the hands.
Do not transport the machine from one place to another
with the engine running.
When moving the packaged machine, always do so with a
partner.
Check local regulations for age restrictions on use of this
machine.
PRODUCT-SPECIFIC SAFETY RULES
Do not drill above underground utilities, including water
lines, gas lines, electric cables, or pipes. Do not operate the
auger in soil with large rocks and foreign objects which can
damage the equipment
Afterstriking a foreign object, stop the engine. Removethe wire
from the spark plug. Inspect the auger for damage. If damaged,
repair before starting and operating the auger.
The blades of the auger should not rotate when the engine
is idling. If it does rotate when engine is idling, contact
customer service for instructions.
If an object becomes lodged in the auger, turn engine off,
remove the wire from the spark plug and secure, allow to
cool before attempting to remove the foreign object.
The earth blade is very sharp. Use extreme caution when
drilling a hole or replacing the blade.
Do not carry the earth auger unit between holes with the
engine running.
4
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
WARNING
A
ENGINES GIVE OFF CARBON MONOXIDE, AN
ODORLESS, COLORLESS, POISON GAS. CARBON
MONOXIDE MAY BE PRESENT EVEN IF YOU DO NOT
SMELL OR SEE ANY ENGINE EXHAUST. BREATHING
CARBON MONOXIDE CAN CAUSE NAUSEA, FAINTING
OR DEATH, IN ADDITION TO DROWSINESS, DIZZINESS
AND CONFUSION.
IF YOU EXPERIENCE ANY OF THESE SYMPTOMS, SEEK
FRESH AIR AND MEDICAL ATTENTION IMMEDIATELY.
ENGINE SAFETY PRECAUTIONS
If your product comes with a separate engine manual, be
sure to read and follow all safety and warning precautions
outlined there, in addition to any in this manual.
Preventing Carbon Monoxide Poisoning
Always start and run engine outdoors. Do not start or run
engine in an enclosed area, even if doors or windows are open.
Never try to ventilate engine exhaust indoors. Carbon
monoxide can reach dangerous levels very quickly.
Never run engine outdoors where exhaust fumes may be
pulled into a building.
Never run engine outdoors in a poorly ventilated area where
the exhaust fumes may be trapped and not easily taken
away. (Examples include: in a large hole or areas where hills
surround your working area.)
Never run engine in an enclosed or partially enclosed area.
(Examples include: buildings that are enclosed on one or
more sides, under tents, car ports or basements.)
Always run the engine with the exhaust and muffler pointed
in the direction away from the operator.
Never point the exhaust muffler towards anyone. Bystanders
should always be a safe distance from the operation of the
engine and its attachments.
Do not change the engine governor settings or over-speed
the engine.
Gasoline Fires and Handling Fuel Safely
Use extra care in handling gasoline and other fuels. They are
flammable and vapors are explosive.
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
A
CAUTION
HOT GASES ARE A NORMAL BY-PRODUCT OF A
FUNCTIONING CATALYTIC CONVERTER. FOLLOW ALL
SAFETY INSTRUCTIONS TO PREVENT BURNS AND
FIRES.
DO NOT ALTER/MODIFY ENGINE:
NEVER ALTER OR MODIFY THE ENGINE FROM THE
FACTORY. SERIOUS INJURY OR DEATH MAY OCCUR IF
ENGINE IS MODIFIED OR ALTERED.
WHEN WORKING ON OR REPLACING PARTS FOR
THE ENGINE OR PRODUCT, YOU MUST ALWAYS
DISCONNECT SPARK PLUG WIRE FROM THE SPARK
PLUG AND KEEP IT AWAY FROM THE SPARK PLUG.
Always fill fuel tank outside in a well ventilated area. Never
fill your fuel tank with fuel indoors. (Examples include:
basement garage, barn, shed, house, porch, etc.) Never
fill tank near appliances with pilot lights, heaters, or othe
ignition sources. If the fuel has to be drained, this should
be done outdoors. The drained fuel should be stored in a
container specifically designed for fuel storage or it should
be disposed of carefully.
Never remove the fuel cap or add fuel with the engine
running. Stop engine and allow to cool before filling.
Never drain fuel from engine in an enclosed area.
Always wipe up excess (spilled) fuel from engine before
starting. Clean up spilled fuel immediately. If fuel is spilled,
do not start the engine but move product and fuel container
from area. Clean up spilled fuel and allow to evaporate and
dry after wiping and before starting.
Allow fuel fumes/vapors to escape from the area before
starting engine.
Test the fuel cap for proper installation before starting and
using engine.
Always run the engine with fuel cap properly installed on
the engine.
Never smoke while refilling engine fuel tank or while
operating the unit.
When storing extra fuel be sure that it is in an appropriate
container and away from any fire hazards.
Prevent fire and explosion caused by static electric discharge.
Use only nonmetal, porta ble fuel containers approved by the
Underwriter's Laboratory (U.L.) or the American Society for
Testing & Materials (ASTM).
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
5
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
Do not store engine with fuel in fuel tank indoors. Fuel and
fuel vapors are highly explosive.
During storage, screw down gas cap vent screw tightly if
equipped.
Never pour fuel from engine fuel tank.
Never siphon fuel by mouth to drain fuel tank.
Always have an adult fill the fuel tank and never allow
children to fill the engine.
Never allow an adult or anyone under the influence of drugs
or alcohol to fill engine.
When storing gasoline or equipment with fuel in the tank,
store away from furnaces, stoves, water heaters or other
appliances that have a pilot light or other ignition source
because they can ignite gasoline vapors.
BURNS AND FIRES
The muffler, muffler guard and other parts of the engine become extremely hot during the operation of the engine. These
parts remain extremely hot after the engine has stopped.
Prevention of Burns and Fires
Never remove the muffler guard from the engine.
Never touch the muffler guard because it is extremely hot
and will cause severe burns.
Never touch parts of the engine that become hot after
operation.
Always keep materials and debris away from muffler guard
and other hot parts of the engine to avoid fires.
CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the
presence of children and/or bystanders. Never assume that
others will remain where you last saw them.
Keep the area of operation clean of all persons, especially
small children and pets. Keep children under the watchful
care of a responsible adult
Be alert and turn machine off if children enter the area.
Before and while moving backwards, look behind and down
for small children.
Never allow children to operate the machine.
SERVICE
Always stop the engine whenever you leave the equipment,
before cleaning, repairing or inspecting the unit. Engine
should be turned off and cool, spark plug wire must be
removed from spark plug before any repairs or adjustments
are attempted. Never make adjustments or repairs with the
engine (motor) running. Disconnect the spark plug wire,
and keep the wire away from the plug to prevent accidental
starting. Remove the ignition key if equipped with an electric
start.
Always wear eye protection when you make adjustments or
repairs.
Keep all nuts and bolts tight and keep equipment in good
condition.
Never tamper with safety devices. Check their proper
operation regularly.
When servicing or repairing the machine, do not tip the
machine over or up unless specifically instructed to do so in
this manual. Service and repair procedures can be done with
the machine in an upright position. Some procedures will be
easier if the machine is lifted on a raised platform or working
surface.
To reduce fire hazard, keep machine free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage. Allow
machine to cool before storing.
Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
Clean and replace safety a nd instruction decals as necessary.
To guard against engine over-heating, always have engine
debris filter mounted and clean.
Inspect machine before storage.When not in use, disconnect
spark plug lead and store indoors in a dry place locked or
otherwise inaccessible to children.
Use only original equipment parts from Earthquake,
including all nuts and bolts.
or call 800-345-6007 M-F 8-5
5
Check for parts online at
www.getearthquake.com
Operator's Manual
Earthquake
Two-Man Earth Auger Powerhead 9800 Series
SAFETY DECALS (9800BCE EUROPEAN MODELS ONLY)
This auger unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry
leader in outdoor power equipment manufacturing.
Reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operated this
equipment safely and effectively. Several safety labels on the powerhead remind you of this important information while you are
operating the unit.
These important safety labels are illustrated below, and are shown here to help familiarize you with the location and content of the
safety messages you will see as you perform normal drilling operations. Please review these labels now. If you have any questions
regarding their meaning or how to comply with these instructions, reread the complete safety instruction text on the preceding
pages, or contact your local dealer.
Should any of the safety labels become unreadable because of being worn, faded, or otherwise damaged during the use of your
auger, please use the part number information provided to order a replacement label from your local authorized dealer.
The safety labels are easily applied, and will act as a constant visual reminder to you, and others who may use the equipment. Follow
the safety instructions necessary for safe, effective operation of your auger.
ARDISAM, INC.
,160
81hAvenue
Serial No.
Model: 98008CE Type: Earth Auger
Mass: 10.89 kg
Max. Operating Speed: 8500 rpm
LpA
(dBA): 100 LWA (cIBA): 108.4
SERIAL NUMBER LOCATION DECAL
Cumbeland.WIS4829
I
C E
I USA
Part No.
HOT SURFACE DECAL NOISE LEVEL DECAL
FEATURES (9800B/9800BCE SHOWN)
starter handle
fuel cap
10502
1021
Part No.
oil fill
LWA
10508
Part No. 10505
SAFETY PRECAUTIONS DECAL
- Read entire manual before operating product
- Wear eye and hearing protection
-Throttle speed control
choke lever
throttle control
fuel shut off valve
Check for parts online at
www.getearthquake.com
an filter
or call 800-345-6007 M-F 8-5
uffier
park plug
ON/OFF switch
primer bulb
7
Earthquokd

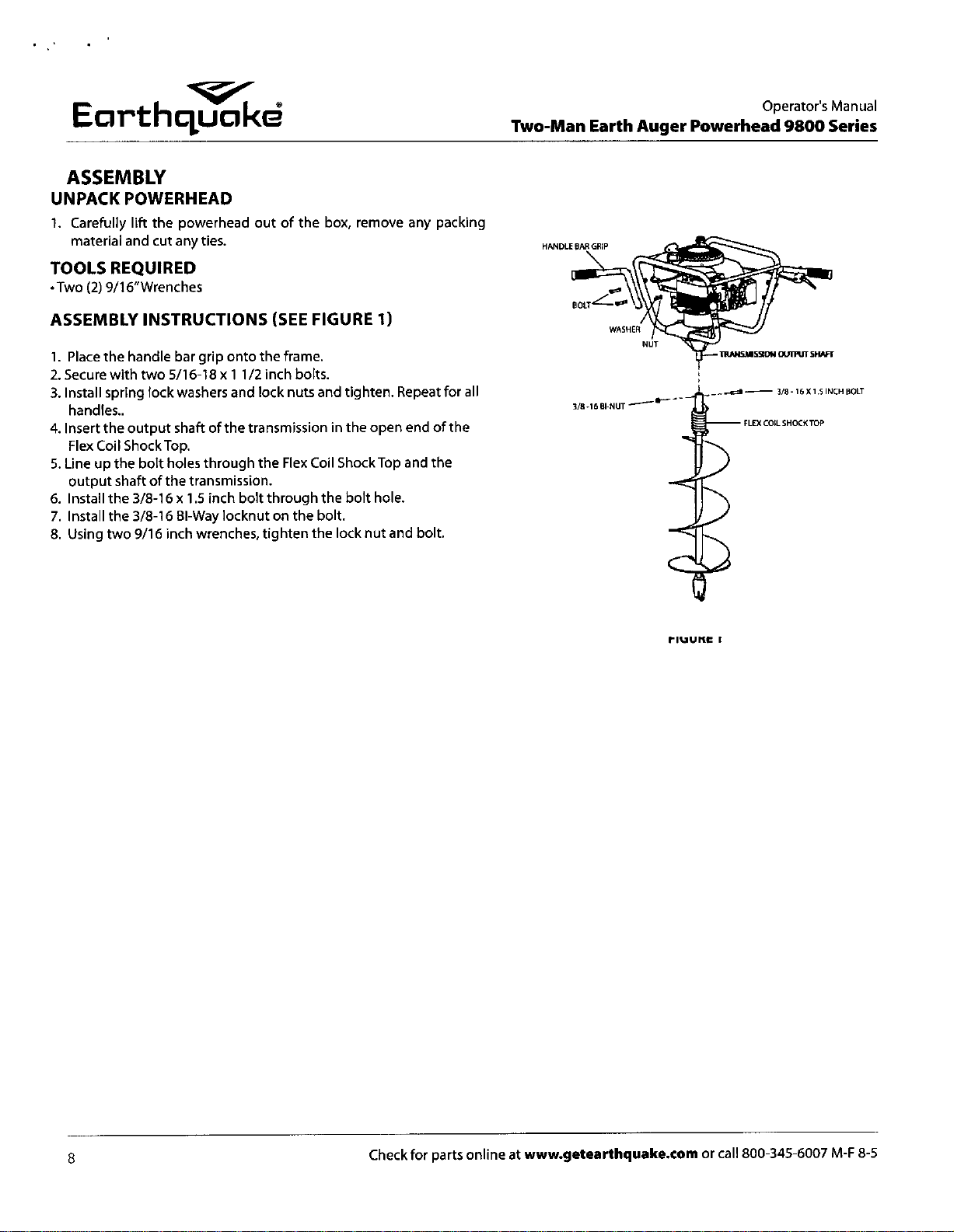

ASSEMBLY
UNPACK POWERHEAD
1. Carefully lift the powerhead out of the box, remove any packing
material and cut any ties.
TOOLS REQUIRED
Two (2) 9/16"Wrenches
ASSEMBLY INSTRUCTIONS (SEE FIGURE 1)
Place the handle bar grip onto the frame.
Secure with two 5/16-18 x 1 1/2 inch bolts.
Install spring lock washers and lock nuts and tighten. Repeat for all
handles..
Insert the output shaft of the transmission in the open end of the
Flex Coil Shock Top.
Line up the bolt holes through the Flex Coil Shock Top and the
output shaft of the transmission.
Install the 3/8-16 x 1.5 inch bolt through the bolt hole.
Install the 3/8-1681-Way locknut on the bolt.
Using two 9/16 inch wrenches, tighten the lock nut and bolt.
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
HANDLE BAR GRP
BOLTZ-t
WASHER
NUT
3/8 -16 Ell-NUT
TRANSIASSION OU1PUT SHAFT
--- 3/8 - 16 X15 INCH BOLT
FLEX COIL SHOCK TOP
FIVIJIlt I
8
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
OPERATION
PRE-START CHECKLIST
Read and understand the operator's manual that came with
your unit and the engine.
Fill oil sump or check oil level. Check oil level often during
engine break-in.
Fill fuel tank. Use unleaded, regular gasoline.
Be sure spark plug wire is attached to spark plug.
PREPARING ENGINE FOR STARTING
TO CHECK THE OIL
Check the engine oil level with the engine stopped and in a
level position.
Remove the oil filler cap/dipstick and wipe it clean.
(On the Briggs & Stratten Engine) Insert the oil filler cap/
dipstick into the oil filler neck and retighten.
(On the Honda Engine:) Insert the oil filler cap/dipstick into
the oil filler neck but do not screw it in.
Remove the dipstick to check the oil level.
S. If the oil level is near or below the lower limit mark on the
dipstick, fill with the recommended oil to the upper limit
mark. Do not overfill.
6. Reinstall the oil filler cap/dipstick.
FUEL RECOMMENDATIONS
Use clean, fresh, regular unleaded gasoline with a minimum of
87 octane/ 87 AK! (91 RON).
These engines are certified to operate on unleaded gasoline.
Unleaded gasoline produces fewer engine and spark plug
deposits and extends exhaust system life.
Never use stale or contaminated gasoline or an oil/gasoline
mixture. Avoid getting dirt or water in the fuel tank.
Occasionally, you may hear a light "spark knock"or"pinging"
(metallic rapping noise) while operating under heavy loads.
This is no cause for concern.
If spark knock or pinging occurs at a steady engine speed,
under a normal load, change gasoline brands. If spark knock
or pinging persists, see an authorized servicing dealer.
Gasoline with up to 10% Ethanol (Gasohol) is acceptable.
Do not used unapproved gasolines such as El 5 and E85.
FILLING FUEL TANK
Shut-off engine and allow engine to completely cool before
refilling the gas tank.
Move to a well-ventilated area, outdoors, away from flames
and sparks.
A
CAUTION
DO NOT START YOUR EARTH AUGER UNIT UNTIL YOU
HAVE READ THE ENGINE MANUAL THAT CAME WITH
YOUR ENGINE, AND THE "WARNINGS AND SAFETY
PRECAUTIONS" SECTION IN THIS MANUAL. IF YOU
HAVE READTHESE, FOLLOW THE STEPS TO STARTYOUR
EARTH AUGER UNIT. ALWAYS PERFORM PRE-START
CHECKLIST BEFORE STARTING THE ENGINE.
IT IS RECOMMENDED THAT THE EARTH AUGER UNIT
NOT BE TILTED AT MORE THAN A 30 DEGREE ANGLE
FROM THE UPRIGHT POSITION. FAILURE TO DO SO
CAN CAUSE FUEL AND/OR OIL LEAKAGE.
A
CAUTION
NEVER ADD GAS WHEN ENGINE IS RUNNING OR HOT
FROM OPERATION. NEVER FILL THE TANK INDOORS.
DO NOT SMOKE WHEN FILLING FUEL TANK.
NEVER FILL FUELTANK COMPLETELY. Fl LL TANKTO 1/2"
BELOW BOTTOM OF FILLER NECK TO PROVIDE SPACE
FOR FUEL EXPANSION.WIPE ANY FUEL SPILLAGE FROM
ENGINE AND EQUIPMENT BEFORE STARTING ENGINE.
DO NOT HOLD THROTTLE LEVER WIDE OPEN WHILE
STARTING. LOSS OF CONTROL OF POWERHEAD/AUGER
COULD RESULT.
NEVER RUN ENGINE INDOORS OR IN ENCLOSED,
POORLY VENTILATED AREAS. ENGINE EXHAUST
CONTAINS CARBON MONOXIDE, AN ODORLESS AND
DEADLY GAS.
KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING
AWAY FROM ANY MOVING PARTS ON ENGINE AND
EQUIPMENT.
TEMPERATURE OF MUFFLER AND NEARBY AREAS MAY
EXCEED 150° F. AVOID THESE AREAS.
BEFORE STORING UNIT, DISCONNECT SPARK PLUG
WIRE FROM SPARK PLUG ANDATTACH ITTO RETAINING
POST.
NEVER STORE ENGINE WITH FUEL IN TANK INDOORS
OR IN ENCLOSED, POORLY VENTILATED AREAS,WHERE
FUEL FUMES MAY REACH AN OPEN FLAME, SPARK OR
PILOT LIGHT.
A
IMPORTANT
NEVER MIX OIL WITH GASOLINE IN A FOUR CYCLE
ENGINE.
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
9
Earthquake
Clean debris from area around the gas cap.
Loosen gas cap slowly. Place the cap on a clean, dry surface.
Carefully add fuel without spilling.
Do notfill gastankcompletelyfull; allow spacefor fueltoexpand.
Immediately replace gas cap and tighten.Wipe off spilled fuel
and allow to dry before starting engine.
IMPORTANT OPERATION NOTES
Read engine manual and follow instructions for fuel type,
starting, etc.
The clutch will transfer maximum power after about two
hours of normal operation. During this break-in period clutch
slippage may occur. The clutch should be kept free of oil or
other moisture for efficient operation.
The earth auger unit should be operated no more than 20
degrees many direction during continuous use, and limited to
30 degrees intermittently. This is recommended for adequate
lubrication and fuel delivery.
When digging in heavy soil, lift the earth auger unit out of
the hole once for every one foot of depth.
Never run engine indoors. Exhaust fumes are deadly.
Do not use an earth auger in ice.
Drill holes without placing excessive body weight on the unit.
The auger operates most efficiently with a shaving action
caused by the weight of the unit itself.
STARTING AND STOPPING ENGINE
TO START ENGINE:
Check the engine oil level.
Make sure engine drive controls, if equip are disengaged.
Open fuel shut-off valve.
ON
Flip the on/off switch to
Move choke lever to the
NOTE: Do not use the choke to restart a warm engine after
a short shut down.
Grasp starter handle and pull rope out slowly, until it pulls
slightly harder. Then pull rope with a rapid full arm stroke.
Let rope return to starter slowly.
When engine fires or starts running, gradually move the choke
lever back to the
TO STOP ENGINE:
Flip the on/off switch to the
Close fuel shut-off valve.
RUN
position.
CHOKE
position.
OFF
position.
position.
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
A
WARNING
MAKE SURE THE UNIT IS IN A STABLE POSITION
BEFORE PULLING THE STARTER HANDLE.
WHEN THE UNIT STARTS TO FIRE OR RUN, RELEASE
THE THROTTLE CONTROL MOMENTARILY WITH YOUR
RIGHT HAND AND RETURN YOUR LEFT HAND TO THE
HANDLEBAR POSITION TO MAINTAIN CONTROL AND
STABILITY OF THE UNIT WITH BOTH HANDS.
A
CAUTION
ALWAYS HANDLE FUEL IN A WELL VENTILATED AREA,
OUTDOORS, AWAY FROM FLAMES OR SPARKS.
DO NOT START ENGINE IF FUEL IS SPILLED. WIPE OFF
EXCESS FUEL AND ALLOW TO DRY. REMOVE ENGINE
FROM AREA TO AVOID SPARKS.
TO PREVENT ACCIDENTAL STARTING; ENGINE MUST BE
TURNED OFF AND COOL, AND SPARK PLUG WIRE MUST
BE REMOVED FROM SPARK PLUG BEFORE CHECKING
AND ADJUSTING ENGINE OR EQUIPMENT.
DO NOT OPERATE AUGER BEFORE READING THE
ENGINE MANUAL PROVIDED IN THE PARTS PACKET.
ALWAYS WEAR A PROTECTIVE HEARING DEVICE.
IF AUGER ISMOUNTEDTO ENGINE,ALLSAFETYGUARDS
MUST BE SECURELY ON TO AVOID SERIOUS INJURY.
STARTER ROPE CAN CAUSE AN UNANTICIPATED JERK
TOWARDS ENGINE. PLEASE FOLLOW INSTRUCTIONS
TO AVOID INJURY.
IF ENGINE FAILS TO START AFTER PERFORMING THE
STARTING PROCEDURES, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT AT 800-345-6007.
NEVER LEAVEENGINE RUNNING WHILEUNATTENDED.
TURN OFF AFTER EVERY USE.
NEVER CARRY POWERHEAD AND AUGER BETWEEN
HOLES WHILE ENGINE IS RUNNING.
IMPORTANT
A
ENGINE CAN OVERHEAT AND BECOME DAMAGED
IF DEBRIS BLOCKS THE COOLING FINS OR RECOIL
HOUSING.
NEVER RUN
CLEANER INSTALLED ON ENGINE.
ENGINE WITHOUT COMPLETE AIR
10
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
MAINTENANCE AND STORAGE
POWER AUGER MAINTENANCE
The gear case has 4 oz. of grease installed at the factory. It
is recommended that once a year the gear case be split and
the grease level checked. Add grease only if level of grease is
below top of the gears.
Keep all screws, nuts, and bolts tight.
For cold weather operation, store the unit in a cool environ-
ment Transferring the unit from a warm to a cold place can
cause the build up of harmful condensation.
If blade performance decreases, turn unit off and disconnect
spark plug wire. Carefully inspect cutting edge of blade for
any signs of wear. If blades show any of these signs, they need
be
sharpened or replaced.
to
Always allow muffler to cool before filling fuel tank.
When storing for over one month, use gas stabilizer in fuel.
Do not fill gas tank indoors or when engine is running or is
hot.
ENGINE MAINTENANCE
Please read your engine manual and observe these recommen-
dations to extend the life of your engine. Your engine manual
provides detailed information and a maintenance schedule for
performing the following tasks:
Check oil level every five (5) operating hours and before each
use.
Change oil after first five (5) operating hours and every
50 operating hours thereafter, more often if operated in
extremely dusty or dirty conditions. Change oil while engine
is still warm from recent running.
Frequently remove dirt and debris from cooling fins, air intake
screen, levers and linkage. This will help ensure adequate
cooling and correct engine speed.
Clean air cleaner every 25 hours of operation, replace yearly.
S. Check spark plug yearly or every 100 operating hours.
6. Check engine and auger often for loose nuts and bolts.
Good maintenance is essential for safe, economical, and trou-
ble-free operation. It will also help reduce air pollution. To help
you properly care for your engine, read your engine manual
and pay close attention to the maintenance schedule, routine
inspection procedures, and simple maintenance procedures.
Other service tasks that are more difficult, or require special
tools, are best handled by professionals and are normally performed by a technician or other qualified mechanic.
DO NOT OVERFILL.
A
CAUTION
TO PREVENT ACCIDENTAL STARTING.
ENGINE MUST BE SHUT-OFF AND COOL AND SPARK
PLUG WIRE MUST BE REMOVED FROM SPARK PLUG
BEFORE CHECKING AND ADJUSTING ENGINE OR
EQUIPMENT.
CHECK AUGER OFTEN FOR LOOSE NUTS AND BOLTS.
KEEP THESE ITEMS TIGHTENED.
NEVER STORE ENGINE WITH FUEL IN THE TANK INSIDE
A BUILDING. POTENTIAL SPARKS MAY BE PRESENT
FOR IGNITION OF FUEL AND FUEL VAPORS.
ANY MAINTENANCE AND REPAIR ON THE ENGINE
AND AUGER MUST ALWAYS BE DONE BY AN ADULT.
ENGINE MUST BE SHUT-OFF, COOL AND SPARK
PLUG WIRE REMOVED BEFORE ANY REPAIR OR
MAINTENANCE CAN BE DONE.
Maintenance, replacement or repair of the emissions control
devices and systems may be performed by any non-road
engine repair establishment or individuals. However, items
must be serviced by an authorized dealer to obtain "no
charge" emissions control service.
The maintenance schedule applies to normal operating conditions. If you operate your engine under unusual conditions,
such as sustained high-load or high-temperature operation, or
use in unusually wet or dusty conditions, consult your servicing dealer for recommendations applicable to your individual
needs and use.
TRANSPORTING YOUR EARTH AUGER
Never transport engine inside an enclosed space or vehicle.
Fuel or fuel vapors may ignite causing serious injury or death.
If fuel is present in the fuel tank, transport in an open vehicle
in an upright position.
If an enclosed vehicle must be used, remove gas into an approved red fuel container.
Run engine to use up the fuel in the carburetor and fuel tank.
Always run engine in a well ventilated area.
Wipe away any spilled fuel from engine and earth auger. Allow
to dry.
DO NOT siphon by mouth.
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
11
Earthquake
Operators Manual
Two-Man Earth Auger Powerhead 9800 Series
LONG-TERM STORAGE
If your earth auger will not be used for more than one month,
prepare it for long-term storage.
Follow the steps below to prepare your earth auger unit for
storage. Read your engine manual for detailed instructions on
preparing the engine for storage.
Run with gas stabilizer in fuel. The screen in the carburetor
will glaze shut if gas stabilizer is not used before storage.
Drain the fuel system. Run the engine until it stops.
Change oil.
Remove spark plug, pour one (1) ounce of clean engine oil
into spark plug hole. Cover hole with a rag. Pull starter handle
slowly several times to distribute oil. Install spark plug.
connect spark plug wire.
Clean entire earth auger unit
Store your earth auger unit in a clean, dry building that is
inaccessible to children.
Do not
TROUBLESHOOTING AND REPAIR
At Earthquake, we build quality and durability into the design of
our products; but no amount of careful design by us, and careful
maintenance by you, can guarantee a repair-free life for your
Earthquake powerhead. Most repairs will be minor, and easily
fixed by following the suggestions in the troubleshooting guide
in this manual.
The troubleshooting guide will help you pinpoint the causes of
common problems and identify remedies.
For more complicated repairs, you may want to rely on your
retailer, an authorized service center or Earthquake. A parts
breakdown is located toward the end of this manual.
We will always be glad to answer any questions you have, or
help you find suitable assistance.To order parts or inquire about
warranty, call or e-mail us using the contact information found
under "Ordering Replacement Parts".
CAUTION
A
TO AVOID INJURY OR DEATH, NEVER SIPHON FUEL BY
MOUTH.
NEVER STORE EARTH AUGER WITH FUEL IN THE GAS
TANK INSIDE AN ENCLOSED AREA OR BUILDING.
MAINTENANCE AND REPAIR ON THE ENGINE AND
AUGER MUST ALWAYS BE DONE BY AN ADULT.
ENGINE MUST BE SHUT-OFF, COOL AND SPARK
PLUG WIRE REMOVED BEFORE ANY REPAIR OR
MAINTENANCE CAN BE DONE.
A
CAUTION
DO NOT STORE EARTH AUGER UNIT WITH FUEL IN
TANK INDOORS OR IN ENCLOSED, POORLY VENTILATED
AREAS, WHERE FUEL FUMES MAY REACH AN OPEN
FLAME, SPARK, PILOT LIGHT OR AN IGNITED OBJECT.
DRAIN FUEL OUTDOORS AWAY FROM ANY IGNITION
SOURCES. USE ONLY APPROVED FUEL CONTAINERS.
FOR LONG TERM STORAGE: CLOSE FUEL SHUT-OFF
VALVE AND STORE EARTH AUGER UNIT IN AN UPRIGHT
POSITION. FAI LURETO DO SO CAN CAUSE OIL LEAKAGE
OVER A PROLONGED PERIOD.
ORDERING REPLACEMENT PARTS
Parts can be obtained from the store where the auger was
purchased or direct from the factory. To order parts visit www.
getearthq uake.com
For other general questions, you can e-mail us at info@getearthquake.com
IN CASE OF A SERVICE PROBLEM, DO NOT SEND EARTH
AUGER UNIT BACK TO RETAILER. CONTACT EARTHQUAKE
AT 800-345-6007.
.
or call 1-800-345-6007.
12
Please include the following information with your order:
Check for parts online at
Part numbers
Part description
Quantity
Model number and serial number
www.getearthquake.com
or call 800-345-6007 M-F 8-5
•
Earthquokd
TROUBLESHOOTING GUIDE
While normal care and routine maintenance will extend the life
of your auger powerhead, prolonged or constant use may eventually require that service be performed to allow it to continue
operating properly. The troubleshooting guide below lists the
most common problems, causes and remedies.
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
A
CAUTION
PRACTICE SAFETY AT ALL TIMES. ENGINE MUST BE
TURNED OFF AND ALLOWED TO COOL AND SPARK
PLUG WIRE MUST BE DISCONNECTED BEFORE
ATTEMPTING ANY MAINTENANCE OR REPAIR.
PROBLEM
Engine will not start
Engine runs rough, floods during
operation
Engine is hard to start
Engine misses or lacks power
Auger turns at idle
Auger turns, but has no power
Auger cuts slowly
Engine runs, then quits
POSSIBLE CAUSE
1. Power switch off
2. Spark plug wire disconnected
Fuel valve closed
1. Dirty air cleaner
2. Carburetor out of adjustment
Fuel valve closed
1. Stale fuel
2. Spark plug wire loose
Dirty carburetor
1. Clogged fuel tank
2. Clogged air cleaner
Improper carburetor adjustment
Spark plug dirty, improper gap, or wrong
type
1. Idle speed too high
2. Broken clutch spring
1. Carburetor out of adjustment
2. Broken transmission
Worn clutch shoes
4. Worn engine lower seal
1. Damaged point
2. Worn out blade
1. Screen in carburetor plugged
2. Fuel valve closed
REMEDY/ACTION
1. Flip switch to
Connect spark plug wire to spark plug
3. Open fuel valve
1. Clean or replace air cleaner
Take to authorized Briggs & Stratton/Honda
service center
3. Open fuel valve
1. Drain old fuel and replace with fresh. Use gas stabi-
lizer at end of season
Make sure spark wire is securely attached to spark
plug
3. Clean carburetor, use gas stabilizer, new gas can
1. Remove and clean
Clean or replace
3.Take to authorized Briggs & Stratton/Honda service
center
4. Replace spark plug and adjust gap
1. Adjust idle speed lower
2. Replace both springs
1. Take to authorized Briggs & Stratton/Honda service
center
Replace transmission
3. Replace clutch
4. Take to authorized Briggs & Stratton / Honda ser-
vice center
1. Replace fishtail point
2. Replace blade
1. Clean screen, use gas stabilizer, clean gas can
2. Open fuel valve
ON
position
NOTE: Please see the engine manual for any engine issues.
or call 800-345-6007 M-F 8-5
Check for parts online at
www.getearthquake.com
13
-/.
Earthquake
ILLUSTRATED PARTS BREAKDOWN
9800B/980013CE/9800H
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
14
21
18
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
24
25
40
30
29
29
33
26
5=9"
1111
1111
1111
1111111111111111
111111111111111111
26
27
28
29
31
32
34
28
Check for parts online at
www.getearthquake.com
••••.
or call 800-345-6007 M-F 8-5
36
26
37
38
15
Earthquake
Two-Man Earth Auger Powerhead 9800 Series
9800B/9800BCE/9800H EARTH AUGER ILLUSTRATED PARTS BREAKDOWN
ITEM
NO.
I
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
PART NO.
•
•
•
60G56
60G56
WK6
9825
9822
9840
1423
9832
53664
48300
9837A
420
185810
53596A
9841
IN58
60G70
4819
9805A
9801
4814
9819
9827
503
504
3004149
9016
9018
—
—
DESCRIPTION
ENGINE, BRIGGS 675 SERIES (98008)
ENGINE, BRIGGS 675 SERIES CE
(9800BCE)
ENGINE ,160CC HONDA (9800H)
NUT, LOCK. (5/16-1881-WAY)
(980013,9800BCE)
NUT, LOCK, (5/16-18 8I-WAY)
(9800H MODEL)
KEY, WOODRUFF (#6,5/32 X 5/8')
ROTOR CENTRIFUGAL CLUTCH
BEARING, BALL (R14-2135) (9800H ONLY)
PLATE ADAPTER, MOUNTING RING
(9800H ONLY)
BOLT, (5/16-18X 2' HHCS GR5)
(9800H ONLY)
SPRING, THROTTLE CONTROL
(9800H ONLY)
TAB, THROTTLE (9800H ONLY)
BOLT, (5/16 X-18 X 21/4" HHCS GR5)
(9800H ONLY)
MOUNT RING COMPLETE 9800 SERIES
BOLT, (5/16-24 X 3/4" PFCS)
BOLT, (5MM X 0.8 X 10MM HH)
(9800H ONLY)
CLAMP, CABLE (YELLOW ZINC)
(9800H ONLY)
BRACKET, THROTTLE CABLE CLAMP
(9800H ONLY)
NUT, (5MM X 0.8 X IOMM NH)
(9800H ONLY)
SWITCH, TOGGLE, (ON-OFF)
(9800H ONLY)
TRIGGER ASSEMBLY, LONG THROW
(INCLUDES P/N 4814) (9800H ONLY)
CABLE (NO TRIGGER) (9800H ONLY)
CABLE THROTTLE W/TRIGGER
(9800B/9800BCE ONLY)
BOLT, (10-24 X 1 1/4" PHILLIPS TRUSS
HEAD) (9800H ONLY)
WELDMENT, FRAME 9800
HANDLE AND THROTTLE GRIP 9800
BOLT (5/16-18 X 1-1/2 NH)
LOCKWASHER SPRING (5/16")
SHIM, (9800 TRANSMISSION TOP)
CLUTCH DRUM,
(3" THREADED) (9800H ONLY)
CLUTCH DRUM,
(3" THREADED SHORT)
(98008, 9800BCE ONLY)
QTY.
I
1
1
8
12
1
1
1
1
3
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
4
8
8
1
1
1
*Contact you local engine dealer for parts and service. Contact
Information can be found in the engine manual accompanying
this product.
ITEM
NO,
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
------- PART NO..
8922
75300
8923
8924
9814
8914
8915
8912
9214A
8919
75600
8913
8929
8935
9800BTRANKIT
98005
9020A
Operator's Manual
DESCRIPTION
BEARING, BALL (Al? DOUBLE LIP)
KIT, GEAR CASE, UPPER HALF (INCLUDES
BEARINGS 8922,8923, SHIM 3004149,
AND GASKET 8919)
BEARING, BALL RIO
RING, SNAP EXTERNAL (3/4')
GEAR, PINION (7 TOOTH THREADED)
GEAR, (48 TOOTH HARD)
DOWEL PIN, STEEL (1/4 X 1/2')
GEAR, (44 TOOTH 3/4 HOLE)
GEAR, (10 TOOTH CLUSTER PINION, HT)
GASKET, POWERHEAD TRANSMISSION
KIT, GEAR CASE, LOWER HALF,
(INCLUDES BEARINGS 8922, 8923, AND
POWERHEAD TRANSMISSION GASKET
8919)
SHAFT, OUTPUT (7/8")
BOLT, (1/4-20 X 1 1/2" SHCS)
BOLT, (1/4-20 X 2 1/2' SHCS)
KIT, TRANSMISSION ASSEMBLY
(9800B/98008CE ONLY)
KIT, TRANSMISSION ASSEMBLY
(9800H ONLY)
SPRING, CENTRIFUGAL CLUTCH
QTY.
3
1
2
3
1
1
2
1
1
1
1
1
2
4
1
1
2
16
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
AUGER PARTS ILLUSTRATED PARTS BREAKDOWN
EA2F, EA3F
EA4F
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
EA6F
27
10
18
15
19
18
EA8F
21
19
EA1OF
EA12F, EA14F
19
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
17
Earthquake
Operator's Manual
Two-Man Earth Auger Powerhead 9800 Series
AUGER ILLUSTRATED PARTS BREAKDOWN
-
ITEM
. NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
--
--
PART
NO.
1423
1433
53684
60G56
8958HD
8970
8980
EA2F
EA3F
EA4F
EA6F
EA8F
EA1OF
EB4
EB6
EB8
EB10
EBOLT
ENUT
2104
WF516
715
EA12F
EA14F
EB12
EB14
8955
EXT12
EXT18
EB6HD
EB8HD
EB1OHD
9811
---- - —
DESCRIPTION
BOLT-HHCS, 5/16-18 X 4 GRADES
(auger shock spring)
BOLT-HHCS, 3/8
(auger to powerhead)
SHOCKTOP 1-PC (used on 6"and 8" earth augers)
NUT-HEX 2-WAY REVERSIBLE LOCKNUT, 5/16-18
FISHTAIL POINT (used on 4"or larger earth auger)
EARTH POINT (used on 2'& 3" earth auger)
SHOCK SPRING (Used on 6"and largerearth augers)
EARTH AUGER, 2"W/FISHTAIL POINT
EARTH AUGER, 3"W/FISHTAIL POINT
EARTH AUGER, 4" W/FISHTAIL POINT
EARTH AUGER, 6"W/FISHTAIL POINT
EARTH AUGER, 8"W/FISHTAIL POINT
EARTH AUGER, 10"W/FISHTAIL POINT
EARTH BLADE, 4" (includes EBOLT& ENUT)
EARTH BLADE, 6" (includes EBOLT & ENUT)
EARTH BLADE, 8" (includes EBOLT & ENUT)
EARTH BLADE, 10" (includes EBOLT& ENUT)
BOLT-HEX, 1/4-28 X 5/8", GRADES (earth
blade to auger)
NUT-NYLOC, 1/4-28
NUT HEX LOCKING, 3/8-16
WASHER-FLAT, 5/16"
SET SCREW 1/4-20 X 1/4 SCPC BLK OXIDED
EARTH AUGER, 12" W/FISHTAIL POINT
EARTH AUGER, 14" W/FISHTAIL POINT
EARTH BLADE, 12" (includes EBOLT & ENUT)
EARTH BLADE, 14" (includes EBOLT& ENUT)
BOLT 3/8-16 X 1-1/4 SHCS
DEPTH EXTENSION, 12"
DEPTH EXTENSION, 18"
HEAVY DUTY EARTH BLADE, 6" (includes
EBOLT & ENUT)
HEAVY DUTY EARTH BLADE, 8" (includes
EBOLT& ENUT)
HEAVY DUTY EARTH BLADE, 10" (includes
EBOLT & ENUT)
SWITCH, ON/OFF (Not Shown)
-
16 X 1-1/2"
-
ITEMS NOT SHOWN
_ _
QTY.
2
2
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
18
Check for parts online at
www.getearthquake.com
or call 800-345-6007 M-F 8-5
Earthquake
Two-Man Earth Auger Powerhead 9800 Series
WARRANTY TERMS AND CONDITIONS
PRODUCT WARRANTY: 1-YEAR LIMITED WARRANTY
Ardisam, Inc. (Ardisam) warrants the product(s) under a one-year limited warranty to be free from defects in the material or
workmanship or both for a period not exceeding twelve consecutive months from the date of original purchase by the first retail
consumer or first commercial end user."Consumer use" means personal recreational use by a retail consumer."Commercial use"
or"commercia I application" means all other uses, including use for commercial, income producing or rental purposes. Once
a product has experienced commercial use, it shall thereafter be considered as a commercial use product for the purpose of
this warra nty. This warranty applies to the original owner that provides a proof of purchase.The warranty is not transferable.
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for
the twelve month consecutive period thereafter. Any unit used in a commercial application is covered for a period of 90 days
after purchase by the first commercial end user. For the warranty to be valid, the product must be registered online, or the
warranty card must be filled out and received by Ardisam, within 30 days of purchase. Ardisam shall not be obligated to ship
any repair or replacement product to any location outside of the United States of America or Canada.*
Operator's Manual
For replacement parts, phone 800-345-6007.
This warranty policy applies only to products which have not been subjected to negligent use, misuse, uses other than
those indicated in the product's operator's manual, alteration, accident use of unauthorized parts, failure to perform periodic
maintenance as specified in product's operator's manual, normal wear and tear, use of unauthorized parts or repairs performed
at unauthorized service centers.There is no other expressed warranty. Implied warranties, including those of merchantability
and fitness bra particular purpose, are limited to one year from purchase, or to the extent permitted bylaw. All other implied
warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by
law. Ardisam does not assume, and does not authorize any other person to assume for Ardisam, any liability in connection with
the sale of Ardisam products.
an Ardisam Authorized Warranty Service Facility.
Ardisam Customer Service Department at 800-345-6007. If you choose to ship your product to Ardisam for warranty repair,
you must first have prior approval from Ardisam by calling the Ardisam Customer Service Department for a return material
authorization number (RMAft). Under these circumstances, all items must be shipped prepaid. Ardisam will at no charge, repair
or replace, at the discretion of Ardisam, any defective part which satisfies all conditions stated above. Ardisam retains the right
to change models, specifications and price without notice. Ardisam shall not be obligated to ship any repair or replacement
product to any location outside of the United States of America or Canada.
To be at"No Charge,"warranty work must be sent directly to and performed by Ardisam or
To obtain warranty service and/or replacement instructions, contact the
NOTE: For detailed information on this product's Engine Warranty, refer to the warranty section in the Engine Manual that
accompanies this Operator's Manual.
17649.REV1
22
Earthquake', Division of Ardisam, Inc.
1160 Eighth Avenue; P.O. Box 666
Cumberland, Wisconsin 54829
800-345-6007 • Fax (715) 822-4180
E-mail: info@getearthguake.com
Check for parts online at
www.getearthguake.com
or call 800-345-6007 M-F 8-5
Loading...
