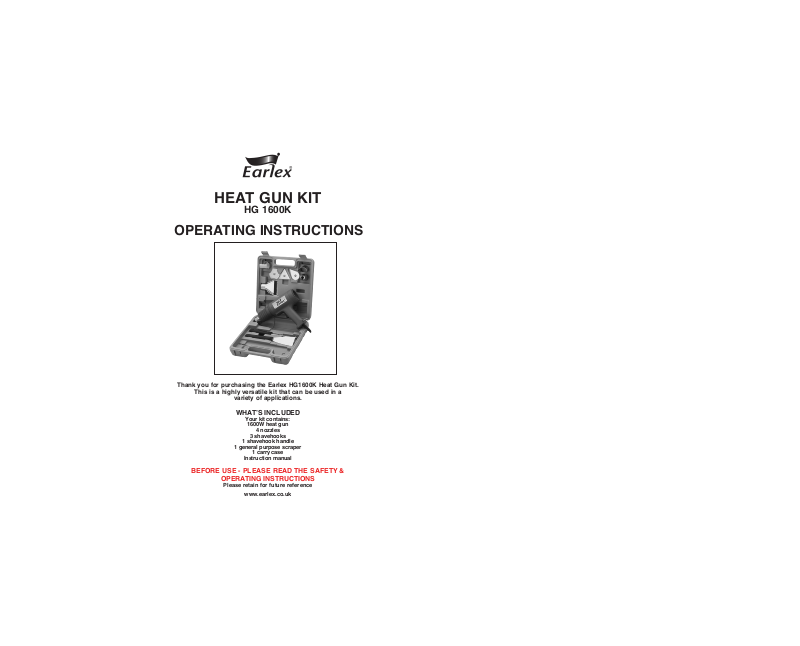

Page 1
HEAT GUN KIT
HG 1600K
OPERATING INSTRUCTIONS
Thank you for purchasing the Earlex HG1600K Heat Gun Kit.
This is a highly versatile kit that can be used in a
variety of applications.
WHAT’S INCLUDED
Your kit contains:
1600W heat gun
4 nozzles
3 shavehooks
1 shavehook handle
1 general purpose scraper
1 carry case
Instruction manual
BEFORE USE - PLEASE READ THE SAFETY &
OPERATING INSTRUCTIONS
Please retain for future reference
www.earlex.co.uk
Page 2
!
SAFETY OPERATING INSTRUCTIONS
DO NOT
TECHNICAL SPECIFICATION
Power Supply 230V 50Hz~
Max. Output 1600 Watts
Temp at Outlet Position 1) 350°C
Weight
(exc nozzles) 765g
ABOUT THE HG1600K
The HG1600 is a highly versatile
electric heat gun, which can be used for
many different applications, such as:
• Removal of paint
• Defrosting metal water pipes
• Forming and welding plastic
PLEASE READ BEFORE USE
Touch the nozzle.
Change/rotate the nozzle while the
unit is turned on.
Leave the heat gun unattended
when it is switched on.
Allow children to operate or
play with the heat gun.
Carry the heat gun by the
mains cable.
Do not allow heat to be directed onto
the mains cable.
Use the tool as a hair dryer.
Restrict any air flow from the
nozzle outlet or fan inlets.
Allow the machine to become damp or
be operated in damp conditions.
Use the heat gun close to
inflammable materials, heat may be
conducted to combustible materials
which are out of sight.
Apply to the same place for a
long time.
Under any circumstances aim
the heat gun at another person or
animal.
Use in presence of explosive
atmosphere.
Danger of burns - Always wear
a pair of heavy grade, non PVC
type work gloves.
Danger of fire or explosion if the
appliance is not used with care.
When changing the nozzle, switch
off and allow the accessory and
nozzle to cool.
Position 2) 520°C
Allow to cool down before storage.
A hot nozzle can cause damage.
Before every use check the condition
of the plug and cable. If this is
damaged in any way do not use.
Repairs must be carried out by a fully
qualified electrician.
Always ensure there is adequate
ventilation as gases and vapours
may be given off when stripping
paint. Ensure that protective goggles
and masks are used.
Poisonous or inflammable gases may
be produced when working with
paints (especially older type lead
paints), varnishes, plastics and
similar materials.
Ensure the heat gun switch is in the
off position when connecting to the
mains.
Ensure children and pets are
xcluded from the work area.
e
t is recommended a RCD (residual
I
current device) rated at 30mA is fitted
into the mains socket for added
protection against electric shock.
This product is intended for
‘household’ use only.
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.
• Removing vinyl floor tiles
• Reducing heat shrinking tubing
• Soldering
It can also be used for:
• Barbeques
• Tinning and loosening of some
adhesive joints and over-tight screws
• Age wood (the heat can
darken the surface)
• Clean paint off tools
TO OBTAIN THE BEST RESULTS FROMYOUR
HEAT GUN KITPLEASEREAD THE
INSTRUCTIONS CAREFULLY BEFORE USE.
2
EAT SETTINGS
H
The Heat Gun has two settings:
.Low heat - for use where the
1
orkpiece or surroundings must
w
not be allowed to get too hot.
Setting~350°C.
2.High heat - for faster heat up
time of the workpiece where you
can also operate the gun at a
reater distance.
g
Setting~520°C.
OPERATION
Before starting work it is
advisable to test the work surface
for the ideal temperature to use.
The table below gives an indication
of the likely heat settings required
but always start with the low heat
setting.
The distance between the nozzle
and the work surface will vary
according to the material being
worked on but this should always
be at least 50mm (2”) or more on
either heat setting.
All applications, with the exception
of removing paint from the window
frames, can be performed without
using a nozzle, however for best
results nozzles are recommended.
Suggested Ratings
Welding Plastic Low Setting
Bending Plastic Low Setting
Heat shrinking plastic Low Setting
Paint Stripping High Setting
Defrosting Pipes High Setting
Removes vinyl
floor tiles High Setting
Soldering High Setting
Lighting BBQ’s High Setting
Nozzles
he kit is supplied with 4 different
T
haped nozzles, which can be used
s
as follows.
Concentrator Nozzle
• Directs a
oncentrated
c
heat flow to the
work surface.
• Ideal for
removing paint
in awkward
corners,
crevices, mouldings, beading or
architraves.
Deflector Nozzle
• Directs a long,
narrow heat
pattern to the
work surface.
• Ideal for
removing paint
or varnish from
large, flat
surfaces such
as skirting boards, doors, stairs,
etc.
• It should be used in conjunction
with a flat scraper.
• Vinyl tiles can be removed by
softening the tile and adhesive.
Glass
Protection
Nozzle
• Deflects the
heat away from
glass or other
fragile areas.
3
oncentrator Nozzle
C
Deflector Nozzle
Glass Protection Nozzle
Page 3

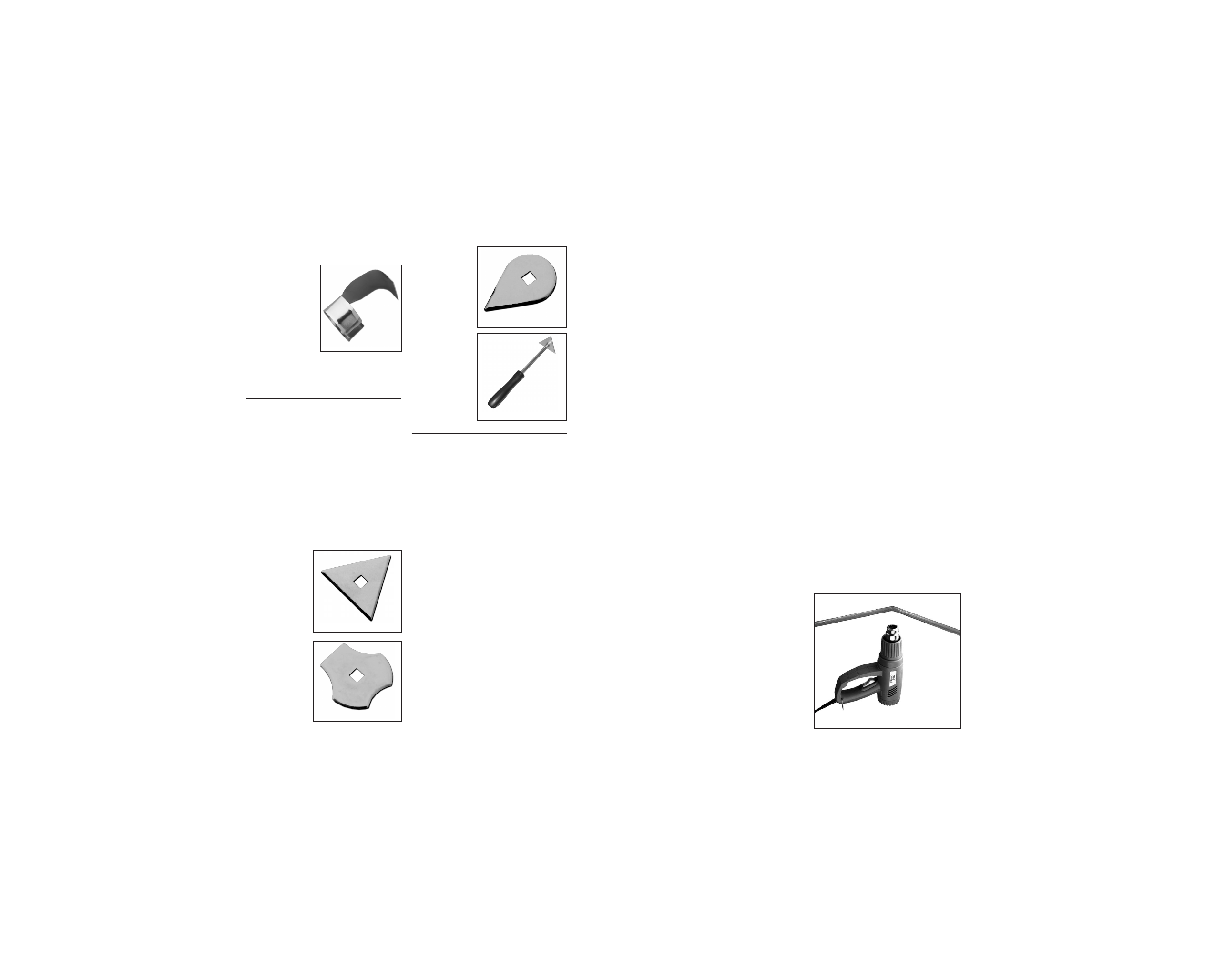

Hook Nozzle
• Disperses the
heat flow
venly around
e
the whole work
surface.
• Ideal for
efrosting
d
Hook Nozzle
frozen pipes,
soldering pipe work, bending
plastics or heat shrinking electrical
parts.
Shavehooks
1. Select the required blade.
2. Take the shavehook handle from
the set, remove the nut from the
end and fit the required blade.
3. Fix in place by refitting and
tightening the nut.
Use the:
• Triangular shavehook for
stripping paint from flat,
wooden
surfaces and
edges.
• Combination
or Heart
shavehook for
mouldings in
convex or
concave
profiles.
Remember to
clean the
blade after use
with wire wool
and lightly oil
before storing.
Triangular Shavehook
Combination Shavehook
eart Shavehook
H
Assembly of Shavehook
REMOVING PAINT - GENERAL
Do not heat the paint for too long
as this will burn the paint,
making it difficult to remove.
1. Choose the required nozzle and
fit onto the heat outlet.
2. Hold the gun with nozzle
approximately 50mm (2 inches)
from surface of paintwork.
3. Starting with the low heat setting,
move the gun slowly backwards
and forwards until the paint blisters
and bubbles.
4. Immediately remove the paint
with a scraper or shavehook.
5. Aim to heat the paint just ahead
of the scraper so that you can
develop a continuous action.
Most stickers can also be removed
from paint work by using the heat to
soften the adhesive. Be careful not
to direct the heat for too long if you
are trying to just remove the
stickers as this will blister the paint.
EMOVING PAINT - WINDOW
R
FRAMES
WARNING – Glass can break
asily when heated.
e
1. Use the glass protection nozzle
.
2. Ensure the nozzle is facing the
correct way to deflect heat away
rom the glass before you switch on
f
the heat gun.
3. Rotate the gun/nozzle 90º as you
move to horizontal or vertical bead.
4. Paint can be removed by using a
shavehook and/or a soft, wire
brush.
DEFROSTING FROZEN PIPES
WARNING – Do not attempt to
defrost PVC pipes. Always check
that it is a water pipe and not a
gas pipe. Never heat a gas pipe.
1. Choose the hook nozzle and fit
over the heat outlet.
2. Always heat from one or other
end of the frozen portion, not from
the middle.
SHRINK SEALING ELECTRICAL
CABLES
1. Choose the hook nozzle and fit
over the heat outlet.
2. Select a suitably sized, heat
shrinkable sleeve.
3. Evenly heat the sleeve over the
electrical cable.
WELDING PLASTICS
WARNING – Plastic can very
quickly change from being tacky
to becoming liquid. Beware of
burns from hot plastic. Do not
remove molten plastic from a
burn. Run under cold water and
seek medical advice.
1. Choose the concentrator or
eflector nozzle and fit over the
d
heat outlet.
2. The materials being welded must
be of exactly the same type of
plastic.
. The areas being welded must be
3
clean and grease-free.
4. Heat the seam until the plastic
becomes tacky, then apply the
other surface.
BENDING PLASTIC TUBE
WARNING – Protect hands from
heat.
1. Choose the hook nozzle and fit
over heat outlet.
2. Turn the gun upside down and
place on its clip stand so it is
resting on a secure surface with the
nozzle pointing upwards (see
picture below).
3. To avoid buckling or kinking the
tube, fill the tube with dry sand and
seal at both ends.
4. Heat the tube evenly by moving
from side to side and bend to
required shape.
Bending Plastic
Tubing
4
5
Page 4
Maintenance
Always allow the heat gun to cool
own and disconnect from power
d
supply after use. The heat gun
should be cleaned before being
stored away by wiping over with a
clean damp cloth. DO NOT USE
NY CHEMICALS. Ensure that the
A
ventilation slots are not blocked.
MAINS CONNECTION
This unit is a Class II appliance which means it is double insulated for your
protection, no earthing wire is necessary.
If the supply cord is damaged, it must be replaced by Earlex Ltd or our
appointed agents.
Please read the following safety instructions before use.
1. If the plug is cut off from the mains lead then the plug must be disposed
of safely. NEVER under any circumstances insert such a plug into a 13
amp socket.
2. A replacement fuse must be rated at 13 amp. These must be
manufactured and approved to BS 1362.
3. IF IN ANY DOUBT CONTACT AN ELECTRICIAN.
If you need to fit a plug to the mains lead, this should be fitted in
accordance with the wiring instructions below, and will need to be used
with a 13 amp fuse. If in doubt consult an electrician.
If you are using an extension lead it must be rated at a minimum of 10
amps and fully unwound. Do not operate with a lead rated at less than 10
amps as this will cause premature component failure which is not covered
by the guarantee.
As the colours of the wires in the mains lead of the application may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black.The wire which is
coloured brown must be connected to the
terminal which is marked
with the letter L or coloured red.
Trouble Shooting
If a problem occurs always
witch the unit off immediately.
s
My unit fails to work?
Check the fuse in the plug is sound
and rated 13 amps. If an extension
cable is used it must be fully
nwound and rated at least 10
u
amps capacity.
GUARANTEE
The heat gun is guaranteed for a period of 12 months against faulty
manufacture or materials. It is not guaranteed for industrial or hire
purposes. The scraper, shavehooks and nozzles are classed as
consumables and are not covered by the guarantee. This guarantee
oes not affect your statutory rights.
d
In the event of any problem occurring, please contact our
helpline on 01483 454666.
Monday-Friday 08:30-17:00 (excluding Bank Holidays) or
email enquiries@earlex.co.uk
INFORMATION ON THE DISPOSAL OF WASTE ELECTRICAL EQUIPMENT KNOWN AS
Your attention is brought to new directives applicable to the
disposal of this electrical equipment, where in accordance with
the legislation this product must not be disposed of in your
normal household waste. Instead it is your responsibility to
dispose of this type of waste by handing it over to special
designated collection points for recovery and recycling. This
product is marked with a ‘Wheelie bin’ symbol with a cross on it to remind
you of this action. The objective of this directive is to help conserve
resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can
drop off your waste please contact your local authority, take back facilities
are free of charge.
EC Declaration of Conformity
We declare that the unit: HG1600 conforms to: 2006/95/EC,
EN60335-2-45 & 2004/108/EC EN61000-3-2, EN61000-3-3 &
EN55014-1,EN55014-2 & EMF 50366.
WEEE
Tim Hopper - Technical Director
6
7
Page 5
OTHER PRODUCTS FROM EARLEX
Steam Wallpaper Strippers: Designed to remove all
types of wallpaper, multi-layered papers and Artex .
®
SS77
SC165
HV3900
• Large capacity 5L
water tank
• 90 minutes
stripping time
• 2000w element
Large, lightweight
steam plate
• Small steam plate for
awkward areas
• Jet nozzle accessory
• Complete steam
cleaning system
• Carpet cleaning head
• Window/tile cleaner
• Jet nozzle
• Upholstery cleaner
• Large & small steam plate
for wallpaper stripping
• The complete paint spray
spraying system
• Easy to use & saves time
• Fast professional finish
with no brush marks
• Makes light work of
painting banisters, spindles,
coving and skirting
• Complete with 4 litre
spray pack
ASG55 Super Sprayer
• Ideal for spraying a
wide variety of materials
• Supplied with 2 nozzles
for spraying materials
of differing thickness
• ‘Easy - Clean’ system
enables user to dismantle
and clean the gun
in seconds
• Powerful 55W motor
WD1000 CombiVac Wet’n’Dry & Blower
• Powerful 1100W motor for
fast suction
• 13.5L dry and 12L wet
recovery tank
• Minimum emptying, no
messy bags
• On board storage
for attachments
• Easy to replace filters
Opus Park, Moorfield Road, Guildford, Surrey, GU1 1SZ, UK
Tel: +44 (0) 1483 454666. Fax: +44 (0) 1483 454548
Email: enquiries@earlex.co.uk www.earlex.co.uk
©Earlex Ltd. 2008 G81 08/08
Earlex Limited,
8
Loading...
