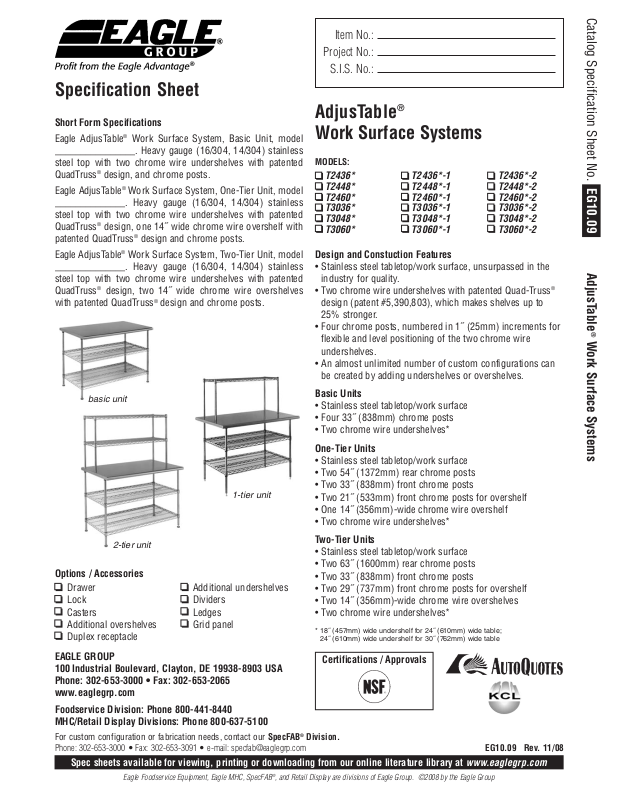

Specification Sheet
Short Form Specifications
Eagle AdjusTable®Work Surface System, Basic Unit, model
________________. Heavy gauge (16/304, 14/304) stainless
steel top with two chrome wire undershelves with patented
QuadTruss
Eagle AdjusTable®Work Surface System, One-Tier Unit, model
______________. Heavy gauge (16/304, 14/304) stainless
steel top with two chrome wire undershelves with patented
QuadTruss
patented QuadTruss
Eagle AdjusTable®Work Surface System, Two-Tier Unit, model
______________. Heavy gauge (16/304, 14/304) stainless
steel top with two chrome wire undershelves with patented
QuadTruss
with patented QuadTruss®design and chrome posts.
®
design, and chrome posts.
®
design, one 14˝ wide chrome wire overshelf with
®
design and chrome posts.
®
design, two 14˝ wide chrome wire overshelves
Item No.:
Project No.:
S.I.S. No.:
AdjusTable
®
Work Surface Systems
MODELS:
T2436*
T2448*
T2460*
T3036*
T3048*
T3060*
Design and Constuction Features
• Stainless steel tabletop/work surface, unsurpassed in the
industry for quality.
• Two chrome wire undershelves with patented Quad-Truss
design (patent #5,390,803), which makes shelves up to
25% stronger.
• Four chrome posts, numbered in 1˝ (25mm) increments for
flexible and level positioning of the two chrome wire
undershelves.
• An almost unlimited number of custom configurations can
be created by adding undershelves or overshelves.
T2436*-1
T2448*-1
T2460*-1
T3036*-1
T3048*-1
T3060*-1
T2436*-2
T2448*-2
T2460*-2
T3036*-2
T3048*-2
T3060*-2
®
Catalog Specification Sheet No.
EG10.09
AdjusTable
®
Work Surface Systems
basic unit
Basic Units
• Stainless steel tabletop/work surface
• Four 33˝ (838mm) chrome posts
• Two chrome wire undershelves*
One-Tier Units
• Stainless steel tabletop/work surface
• Two 54˝ (1372mm) rear chrome posts
• Two 33˝ (838mm) front chrome posts
1-tier unit
• Two 21˝ (533mm) front chrome posts for overshelf
• One 14˝ (356mm)-wide chrome wire overshelf
• Two chrome wire undershelves*
2-tier unit
Two-Tier Units
• Stainless steel tabletop/work surface
• Two 63˝ (1600mm) rear chrome posts
Options / Accessories
Drawer
Lock
Casters
Additional overshelves
Duplex receptacle
EAGLE GROUP
Additional undershelves
Dividers
Ledges
Grid panel
• Two 33˝ (838mm) front chrome posts
• Two 29˝ (737mm) front chrome posts for overshelf
• Two 14˝ (356mm)-wide chrome wire overshelves
• Two chrome wire undershelves*
* 18˝ (457mm) wide undershelf for 24˝ (610mm) wide table;
24˝ (610mm) wide undershelf for 30˝ (762mm) wide table
Certifications / Approvals
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
EG10.09 Rev. 11/08
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group
EG10.09
AdjusTable®Work Surface Systems
16 gauge 14 gauge
type 304 type 304 width length weight
model # model # in. mm in. mm lbs. kg
T2436EBW T2436EW 24˝ 610 36˝ 914 65 29.5
T2448EBW T2448EW 24˝ 610 48˝ 1219 81 36.7
T2460EBW T2460EW 24˝ 610 60˝ 1524 99 44.9
Catalog Specification Sheet No.
basic unit
T3036EBW T3036EW 30˝ 762 36˝ 914 75 34.0
T3048EBW T3048EW 30˝ 762 48˝ 1219 94 42.6
T3060EBW T3060EW 30˝ 762 60˝ 1524 115 52.2
Item No.:
Project No.:
S.I.S. No.:
Basic Units
One-Tier Units
Work Surface Systems
®
AdjusTable
16 gauge 14 gauge
type 304 type 304 width length weight
model # model # in. mm in. mm lbs. kg
T2436EBW-1 T2436EW-1 24˝ 610 36˝ 914 73 33.1
T2448EBW-1 T2448EW-1 24˝ 610 48˝ 1219 91 41.3
T2460EBW-1 T2460EW-1 24˝ 610 60˝ 1524 113 51.3
T3036EBW-1 T3036EW-1 30˝ 762 36˝ 914 83 37.6
T3048EBW-1 T3048EW-1 30˝ 762 48˝ 1219 104 47.2
T3060EBW-1 T3060EW-1 30˝ 762 60˝ 1524 129 58.5
1-tier unit
Two-Tier Units
16 gauge 14 gauge
type 304 type 304 width length weight
model # model # in. mm in. mm lbs. kg
T2436EBW-2 T2436EW-2 24˝ 610 36˝ 914 81 36.7
T2448EBW-2 T2448EW-2 24˝ 610 48˝ 1219 101 45.8
T2460EBW-2 T2460EW-2 24˝ 610 60˝ 1524 127 57.6
T3036EBW-2 T3036EW-2 30˝ 762 36˝ 914 91 41.3
T3048EBW-2 T3048EW-2 30˝ 762 48˝ 1219 114 51.7
T3060EBW-2 T3060EW-2 30˝ 762 60˝ 1524 143 64.9
2-tier unit
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2008 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 11/08
