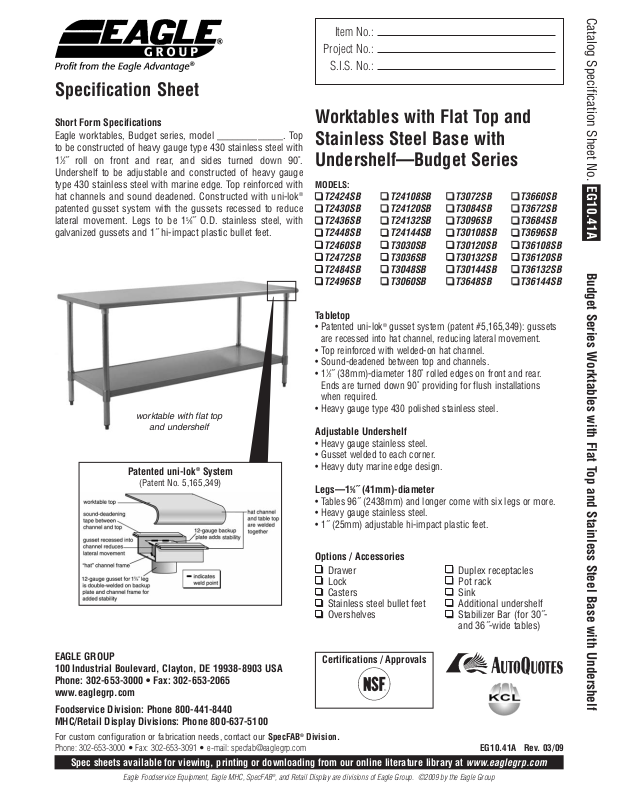

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle worktables, Budget series, model _____________. Top
to be constructed of heavy gauge type 430 stainless steel with

1

⁄2˝ roll on front and rear, and sides turned down 90˚.

1
Undershelf to be adjustable and constructed of heavy gauge
type 430 stainless steel with marine edge. Top reinforced with
hat channels and sound deadened. Constructed with uni-lok
patented gusset system with the gussets recessed to reduce
lateral movement. Legs to be 15⁄8˝ O.D. stainless steel, with
galvanized gussets and 1˝ hi-impact plastic bullet feet.

worktable with flat top

and undershelf

Patented uni-lok®System

(Patent No. 5,165,349)

Worktables with Flat Top and
Stainless Steel Base with
Undershelf—Budget Series

MODELS:

®

T2424SB
T2430SB
T2436SB
T2448SB
T2460SB
T2472SB
T2484SB
T2496SB

Tabletop

• Patented uni-lok®gusset system (patent #5,165,349): gussets
are recessed into hat channel, reducing lateral movement.

• Top reinforced with welded-on hat channel.

• Sound-deadened between top and channels.

• 11⁄2˝ (38mm)-diameter 180˚ rolled edges on front and rear.
Ends are turned down 90˚ providing for flush installations
when required.

• Heavy gauge type 430 polished stainless steel.

Adjustable Undershelf

• Heavy gauge stainless steel.

• Gusset welded to each corner.

• Heavy duty marine edge design.

Legs—15⁄8˝ (41mm)-diameter

• Tables 96˝ (2438mm) and longer come with six legs or more.

• Heavy gauge stainless steel.

• 1˝ (25mm) adjustable hi-impact plastic feet.

T24108SB
T24120SB
T24132SB
T24144SB
T3030SB
T3036SB
T3048SB
T3060SB

T3072SB
T3084SB
T3096SB
T30108SB
T30120SB
T30132SB
T30144SB
T3648SB

T3660SB
T3672SB
T3684SB
T3696SB
T36108SB
T36120SB
T36132SB
T36144SB

EG10.41A

Budget Series Worktables with Flat Top and Stainless Steel Base with Undershelf

Options / Accessories

Drawer
Lock
Casters
Stainless steel bullet feet
Overshelves

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group

Certifications / Approvals

Duplex receptacles
Pot rack
Sink
Additional undershelf
Stabilizer Bar (for 30˝­and 36˝-wide tables)

EG10.41A Rev. 03/09

Item No.:

Project No.:

EG10.41A

S.I.S. No.:

Worktables with Flat Top and Stainless Steel Base
with Undershelf—Budget Series

**For custom sizes - fill in required

dimensions in layout provided

Catalog Specification Sheet No.

TOP VIEW

model # legs in. mm in. mm lbs. kg

T2424SB 4 24˝ 610 24˝ 610 42 19.0
T2430SB 4 24˝ 610 30˝ 762 45 20.4
T2436SB 4 24˝ 610 36˝ 914 50 22.7
T2448SB 4 24˝ 610 48˝ 1219 61 27.7
T2460SB 4 24˝ 610 60˝ 1524 71 32.2
T2472SB 4 24˝ 610 72˝ 1829 82 37.2
T2484SB 4 24˝ 610 84˝ 2134 94 42.6
T2496SB 6 24˝ 610 96˝ 2438 114 51.7
T24108SB 6 24˝ 610 108˝ 2743 131 59.4
T24120SB 6 24˝ 610 120˝ 3048 148 67.1
T24132SB 8 24˝ 610 132˝ 3353 165 74.8
T24144SB 8 24˝ 610 144˝ 3658 182 82.6

T3030SB 4 30˝ 762 30˝ 762 49 22.0
T3036SB 4 30˝ 762 36˝ 914 52 23.6
T3048SB 4 30˝ 762 48˝ 1219 68 30.1
T3060SB 4 30˝ 762 60˝ 1524 79 35.8
T3072SB 4 30˝ 762 72˝ 1829 92 41.7
T3084SB 4 30˝ 762 84˝ 2134 105 47.6
T3096SB 6 30˝ 762 96˝ 2438 126 57.2
T30108SB 6 30˝ 762 108˝ 2743 146 66.2
T30120SB 6 30˝ 762 120˝ 3048 165 74.8
T30132SB 8 30˝ 762 132˝ 3353 185 84.0
T30144SB 8 30˝ 762 144˝ 3658 204 92.5

T3648SB 4 36˝ 914 48˝ 1219 75 34.0
T3660SB 4 36˝ 914 60˝ 1524 88 40.0
T3672SB 4 36˝ 914 72˝ 1829 104 47.2
T3684SB 4 36˝ 914 84˝ 2134 120 54.4
T3696SB 6 36˝ 914 96˝ 2438 139 63.1
T36108SB 6 36˝ 914 108˝ 2743 164 74.4
T36120SB 6 36˝ 914 120˝ 3048 188 85.3
T36132SB 8 36˝ 914 132˝ 3353 213 96.6
T36144SB 8 36˝ 914 144˝ 3658 237 107.5

# of width length weight

rolled edge

construction

SIDE VIEWFRONT VIEW

11/2˝
38mm

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]

Budget Series Worktables with Flat Top and Stainless Steel Base with Undershelf

www.eaglegrp.com
Foodservice Division: Phone [phone]

MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
