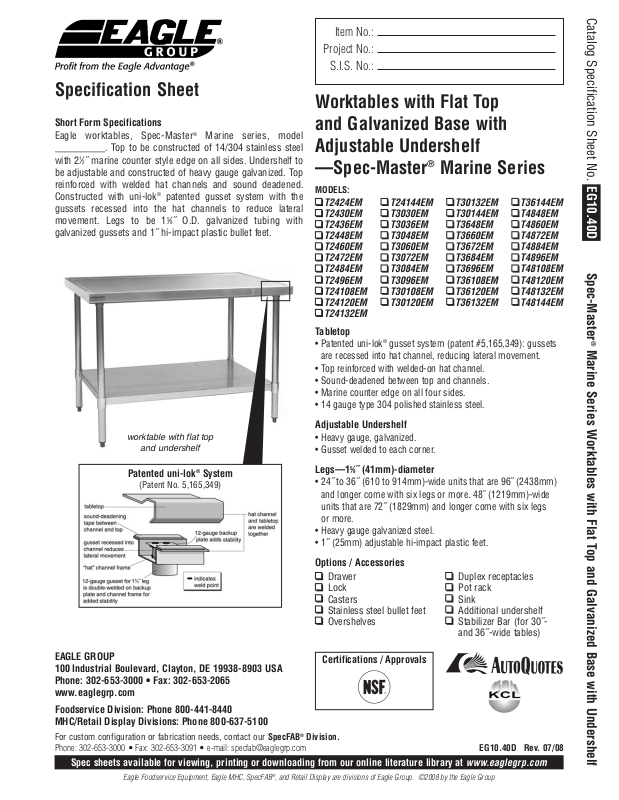

Eagle T24108EM User Manual

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Worktables with Flat Top

Short Form Specifications

Eagle worktables, Spec-Master®Marine series, model
__________. Top to be constructed of 14/304 stainless steel
with 21⁄2˝ marine counter style edge on all sides. Undershelf to
be adjustable and constructed of heavy gauge galvanized. Top
reinforced with welded hat channels and sound deadened.
Constructed with uni-lok®patented gusset system with the
gussets recessed into the hat channels to reduce lateral
movement. Legs to be 15⁄8˝ O.D. galvanized tubing with
galvanized gussets and 1˝ hi-impact plastic bullet feet.

and Galvanized Base with
Adjustable Undershelf

®

—Spec-Master

MODELS:

T2424EM
T2430EM
T2436EM
T2448EM
T2460EM
T2472EM
T2484EM
T2496EM
T24108EM
T24120EM
T24132EM

Tabletop

• Patented uni-lok®gusset system (patent #5,165,349): gussets
are recessed into hat channel, reducing lateral movement.

• Top reinforced with welded-on hat channel.

• Sound-deadened between top and channels.

• Marine counter edge on all four sides.

• 14 gauge type 304 polished stainless steel.

T24144EM
T3030EM
T3036EM
T3048EM
T3060EM
T3072EM
T3084EM
T3096EM
T30108EM
T30120EM

Marine Series

T30132EM
T30144EM
T3648EM
T3660EM
T3672EM
T3684EM
T3696EM
T36108EM
T36120EM
T36132EM

T36144EM
T4848EM
T4860EM
T4872EM
T4884EM
T4896EM
T48108EM
T48120EM
T48132EM
T48144EM

EG10.40D

Spec-Master

®

Marine Series Worktables with Flat Top and Galvanized Base with Undershelf

Adjustable Undershelf

worktable with flat top

and undershelf

Patented uni-lok®System

(Patent No. 5,165,349)

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodser
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

vice Division: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature librar

Eagle Foodser

vice Equipment, Eagle MHC, SpecFAB

®

, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group

• Heavy gauge, galvanized.

• Gusset welded to each corner.

Legs—15⁄8˝ (41mm)-diameter

• 24˝ to 36˝ (610 to 914mm)-wide units that are 96˝ (2438mm)
and longer come with six legs or more. 48˝ (1219mm)-wide
units that are 72˝ (1829mm) and longer come with six legs
or more.

• Heavy gauge galvanized steel.

• 1˝ (25mm) adjustable hi-impact plastic feet.

Options / Accessories

Drawer
Lock
Casters
Stainless steel bullet feet
Overshelves

Certifications / Approvals

Duplex receptacles
Pot rack
Sink
Additional undershelf
Stabilizer Bar (for 30˝­and 36˝-wide tables)

EG10.40D Rev. 07/08

y at

.eaglegrp.com

www

Item No.:

Project No.:

EG10.40D

S.I.S. No.:

Worktables with Flat Top and Galvanized Base
with Adjustable Undershelf—Spec-Master

**For custom sizes - fill in required

dimensions in layout provided

Catalog Specification Sheet No.

TOP VIEW

model # legs in. mm in. mm lbs. kg

T2424EM 4 24˝ 610 24˝ 610 44 20.0
T2430EM 4 24˝ 610 30˝ 762 50 22.7
T2436EM 4 24˝ 610 36˝ 914 55 24.9
T2448EM 4 24˝ 610 48˝ 1219 67 30.4
T2460EM 4 24˝ 610 60˝ 1524 78 35.4
T2472EM 4 24˝ 610 72˝ 1829 90 40.8
T2484EM 4 24˝ 610 84˝ 2134 103 46.3
T2496EM 6 24˝ 610 96˝ 2438 112 50.8
T24108EM 6 24˝ 610 108˝ 2743 123 55.8
T24120EM 6 24˝ 610 120˝ 3048 134 60.8
T24132EM 8 24˝ 610 132˝ 3353 145 65.8
T24144EM 8 24˝ 610 144˝ 3658 156 70.8

T3030EM 4 30˝ 762 30˝ 762 52 23.6
T3036EM 4 30˝ 762 36˝ 914 58 26.3
T3048EM 4 30˝ 762 48˝ 1219 71 32.2
T3060EM 4 30˝ 762 60˝ 1524 84 38.1
T3072EM 4 30˝ 762 72˝ 1829 93 42.2
T3084EM 4 30˝ 762 84˝ 2134 107 48.5
T3096EM 6 30˝ 762 96˝ 2438 120 54.4
T30108EM 6 30˝ 762 108˝ 2743 134 60.8
T30120EM 6 30˝ 762 120˝ 3048 147 66.7
T30132EM 8 30˝ 762 132˝ 3353 160 72.6
T30144EM 8 30˝ 762 144˝ 3658 174 78.9

T3648EM 4
T3660EM 4
T3672EM 4 36˝ 914 72˝ 1829 107 48.5
T3684EM 4 36˝ 914 84˝ 2134 120 54.4
T3696EM 6 36˝ 914 96˝ 2438 134 60.8
T36108EM 6 36˝ 914 108˝ 2743 147 66.7
T36120EM 6
T36132EM 8 36˝ 914 132˝ 3353 174 78.9
T36144EM 8

T4848EM 4 48˝ 1219 48˝ 1219 124 54.9
T4860EM 4 48˝ 1219 60˝ 1524 146 66.2
T4872EM 6
T4884EM 8 48˝ 1219 84˝ 2134 197 89.4
T4896EM 8 48˝ 1219 96˝ 2438 241 109.3
T48108EM 8
T48120EM 8
T48132EM 8
T48144EM 8 48˝ 1219 144˝ 3658 391 177.4

# of width length weight

36˝ 914 48˝ 1219 78 35.4

914

36˝

914

36˝

36˝ 914 144˝ 3658 187 84.8

48˝ 1219 72˝ 1829 171 77.6

1219 108˝ 2743 278 126.1

48˝

1219

48˝

1219

48˝

120˝ 3048 160 72.6

120˝
132˝

®

Marine Series

edge construction

1524

60˝

3048
3353

marine counter

SIDE VIEWFRONT VIEW

41.7

92

143.3

316

160.1

353

21/16˝
52mm

EAGLE GROUP

Marine Series Worktables with Flat Top and Galvanized Base with Undershelf

100 Industrial Boulevard, Clayton, DE 19938-8903 USA

®

Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

Spec-Master

Spec sheets available for viewing, printing or downloading from our online literature librar

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order

y at

©2008 by Eagle Group

.eaglegrp.com

www

Printed in U.S.A.

Rev. 07/08

.
