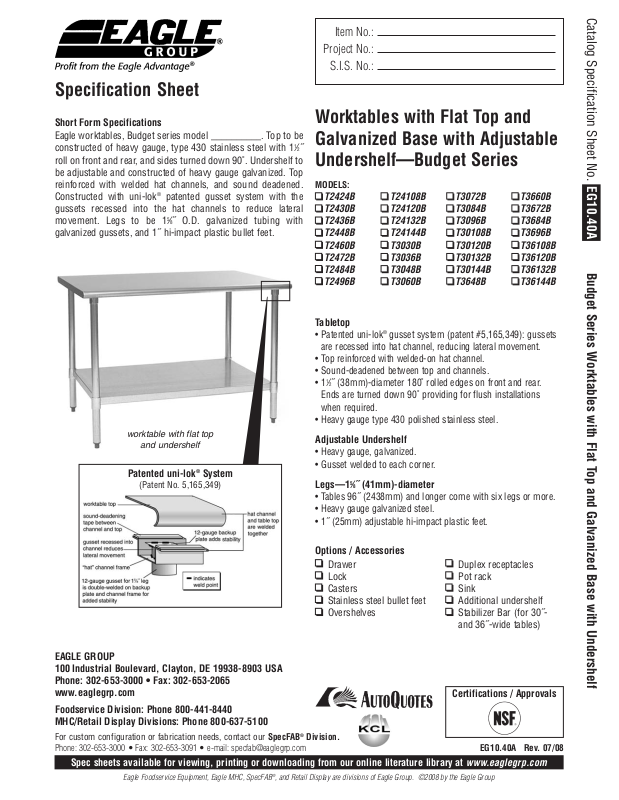

Eagle T24108B User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle worktables, Budget series model __________. Top to be
constructed of heavy gauge, type 430 stainless steel with 11⁄2˝
roll on front and rear, and sides turned down 90˚. Undershelf to
be adjustable and constructed of heavy gauge galvanized. Top
reinforced with welded hat channels, and sound deadened.
Constructed with uni-lok
gussets recessed into the hat channels to reduce lateral
movement. Legs to be 15⁄8˝ O.D. galvanized tubing with
galvanized gussets, and 1˝ hi-impact plastic bullet feet.
®
patented gusset system with the
worktable with flat top
and undershelf
Patented uni-lok®System
(Patent No. 5,165,349)
Worktables with Flat Top and
Galvanized Base with Adjustable
Undershelf—Budget Series
MODELS:
T2424B
T2430B
T2436B
T2448B
T2460B
T2472B
T2484B
T2496B
Tabletop
• Patented uni-lok®gusset system (patent #5,165,349): gussets
are recessed into hat channel, reducing lateral movement.
• Top reinforced with welded-on hat channel.
• Sound-deadened between top and channels.
1
⁄2˝ (38mm)-diameter 180˚ rolled edges on front and rear.
• 1
Ends are turned down 90˚ providing for flush installations
when required.
• Heavy gauge type 430 polished stainless steel.
Adjustable Undershelf
• Heavy gauge, galvanized.
• Gusset welded to each corner.
Legs—15⁄8˝ (41mm)-diameter
• Tables 96˝ (2438mm) and longer come with six legs or more.
• Heavy gauge galvanized steel.
1˝ (25mm) adjustable hi-impact plastic feet.
•
T24108B
T24120B
T24132B
T24144B
T3030B
T3036B
T3048B
T3060B
T3072B
T3084B
T3096B
T30108B
T30120B
T30132B
T30144B
T3648B
T3660B
T3672B
T3684B
T3696B
T36108B
T36120B
T36132B
T36144B
EG10.40A
Budget Series Worktables with Flat Top and Galvanized Base with Undershelf
Options / Accessories
Drawer
Lock
Casters
Stainless steel bullet feet
Overshelves
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodser
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
vice Division: Phone 800-441-8440
Spec sheets available for viewing, printing or downloading from our online literature librar
Eagle Foodser
vice Equipment, Eagle MHC, SpecFAB
®
, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group
Duplex receptacles
Pot rack
Sink
Additional undershelf
Stabilizer Bar (for 30˝and 36˝-wide tables)
Certifications / Approvals
EG10.40A Rev. 07/08
y at
.eaglegrp.com
www
Item No.:
Project No.:
EG10.40A
S.I.S. No.:
Worktables with Flat Top and Galvanized Base
with Adjustable Undershelf—Budget Series
**For custom sizes - fill in required
dimensions in layout provided
Catalog Specification Sheet No.
TOP VIEW
model # legs in. mm in. mm lbs. kg
T2424B 4 24˝ 610 24˝ 610 40 18.1
T2430B 4 24˝ 610 30˝ 762 45 20.4
T2436B 4 24˝ 610 36˝ 914 50 22.7
T2448B 4 24˝ 610 48˝ 1219 60 27.2
T2460B 4 24˝ 610 60˝ 1524 70 31.8
T2472B 4 24˝ 610 72˝ 1829 80 36.3
T2484B 4 24˝ 610 84˝ 2134 90 40.8
T2496B 6 24˝ 610 96˝ 2438 100 45.4
T24108B 6 24˝ 610 108˝ 2743 110 49.9
T24120B 6 24˝ 610 120˝ 3048 120 54.4
T24132B 8 24˝ 610 132˝ 3353 130 59.0
T24144B 8 24˝ 610 144˝ 3658 140 63.5
T3030B 4 30˝ 762 30˝ 762 46 20.9
T3036B 4 30˝ 762 36˝ 914 52 23.6
T3048B 4
T3060B 4
T3072B 4 30˝ 762 72˝ 1829 84 38.1
T3084B 4 30˝ 762 84˝ 2134 96 43.6
T3096B 6 30˝ 762 96˝ 2438 108 49.0
T30108B 6
T30120B 6 30˝ 762 120˝ 3048 132 59.9
T30132B 8 30˝ 762 132˝ 3353 144 65.3
T30144B 8
T3648B 4 36˝ 914 48˝ 1219 70 31.8
T3660B 4 36˝ 914 60˝ 1524 82 37.2
T3672B 4 36˝ 914 72˝ 1829 96 43.6
T3684B 4 36˝ 914 84˝ 2134 108 49.0
T3696B 6 36˝ 914 96˝ 2438 120 54.4
T36108B 6
T36120B 6
T36132B 8 36˝ 914 132˝ 3353 156 70.8
T36144B 8 36˝ 914 144˝ 3658 168 76.2
# of width length weight
762 48˝ 1219 64 29.0
30˝
30˝ 762 60˝ 1524 76 34.5
762 108˝ 2743 120 54.4
30˝
762 144˝ 3658 156 70.8
30˝
914
36˝
914
36˝
108˝
120˝
2743
3048
rolled edge
construction
132
144
11/2˝
38mm
SIDE VIEWFRONT VIEW
59.9
65.3
EAGLE GROUP
Budget Series Worktables with Flat Top and Galvanized Base with Undershelf
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature librar
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order
y at
©2008 by Eagle Group
.eaglegrp.com
www
Printed in U.S.A.
Rev. 07/08
.
