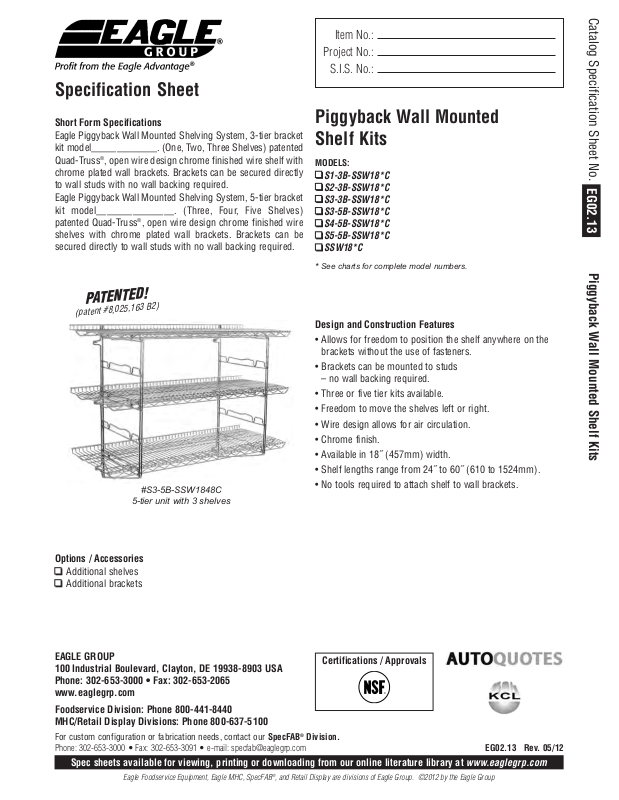

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Piggyback Wall Mounted Shelving System, 3-tier bracket kit model_____________. (One, Two, Three Shelves) patented Quad-Truss chrome plated wall brackets. Brackets can be secured directly to wall studs with no wall backing required.
Eagle Piggyback Wall Mounted Shelving System, 5-tier bracket kit model_______________. (Three, Four, Five Shelves) patented Quad-Truss shelves with chrome plated wall brackets. Brackets can be secured directly to wall studs with no wall backing required.
®
, open wire design chrome finished wire shelf with
®
, open wire design chrome finished wire
PATENTED!
(patent #8,025,163 B2)
#S3-5B-SSW1848C
5-tier unit with 3 shelves
Piggyback Wall Mounted Shelf Kits
MODELS:
S1-3B-SSW18*C S2-3B-SSW18*C S3-3B-SSW18*C S3-5B-SSW18*C S4-5B-SSW18*C S5-5B-SSW18*C SSW18*C
* See charts for complete model numbers.
Design and Construction Features
• Allows for freedom to position the shelf anywhere on the brackets without the use of fasteners.
• Brackets can be mounted to studs – no wall backing required.
• Three or five tier kits available.
• Freedom to move the shelves left or right.
• Wire design allows for air circulation.
• Chrome finish.
• Available in 18˝ (457mm) width.
• Shelf lengths range from 24˝ to 60˝ (610 to 1524mm).
• No tools required to attach shelf to wall brackets.
EG02.13
Piggyback Wall Mounted Shelf Kits
Options / Accessories
Additional shelves Additional brackets
EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com
Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2012 by the Eagle Group
Certifications / Approvals
EG02.13 Rev. 05/12
EG02.13
Piggyback Wall Mounted Shelf Kits
TOP VIEW
24˝ - 60˝
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
337⁄8˝
(5-Tier)
7
23
8˝
(3-Tier)
18˝
FRONT VIEW
SIDE VIEW
(5-tier bracket kit shown with 3 shelves - S3-5B-SSW1848C)
Three-Tier Bracket Kits – Includes one pair of 23
shelf Units with 1 Chrome Shelf Units with 2 Chrome Shelves Units with 3 Chrome Shelves chrome length x width weight weight weight weight in. mm lbs. kg model # lbs. kg model # lbs. kg model # lbs. kg model #
18˝ x 24˝ 457 x 610 12 5.4 S1-3B-SSW1824C 17 7.7 S2-3B-SSW1824C 22 10.0 S3-3B-SSW1824C 5 2.3 SSW1824C
Piggyback Wall Mounted Shelf Kits
18˝ x 30˝ 457 x 762 13 5.9 S1-3B-SSW1830C 19 8.6 S2-3B-SSW1830C 25 11.3 S3-3B-SSW1830C 6 2.7 SSW1830C 18˝ x 36˝ 457 x 914 14 6.4 S1-3B-SSW1836C 21 9.5 S2-3B-SSW1836C 28 12.7 S3-3B-SSW1836C 7 3.2 SSW1836C 18˝ x 42˝ 457 x 1067 16 7.3 S1-3B-SSW1842C 24 10.9 S2-3B-SSW1842C 33 15.0 S3-3B-SSW1842C 9 4.1 SSW1842C 18˝ x 48˝ 457 x 1219 17 7.7 S1-3B-SSW1848C 27 12.2 S2-3B-SSW1848C 37 16.8 S3-3B-SSW1848C 10 4.5 SSW1848C 18˝ x 60 457 x 1524 22 10.0 S1-3B-SSW1860C 37 16.8 S2-3B-SSW1860C 51 23.1 S3-3B-SSW1860C 15 6.8 SSW1860C
Five-Tier Bracket Kits – Includes one pair of 33
shelf Units with 1 Chrome Shelf Units with 2 Chrome Shelves Units with 3 Chrome Shelves chrome length x width weight weight weight weight in. mm lbs. kg model # lbs. kg model # lbs. kg model # lbs. kg model #
18˝ x 24˝ 457 x 610 19 8.6 S3-5B-SSW1824C 22 10.0 S4-5B-SSW1824C 29 13.2 S5-5B-SSW1824C 5 2.3 SSW1824C 18˝ x 30˝ 457 x 762 22 10.0 S3-5B-SSW1830C 28 12.7 S4-5B-SSW1830C 34 15.4 S5-5B-SSW1830C 6 2.7 SSW1830C 18˝ x 36˝ 457 x 914 25 11.3 S3-5B-SSW1836C 32 14.5 S4-5B-SSW1836C 39 17.6 S5-5B-SSW1836C 7 3.2 SSW1836C 18˝ x 42˝ 457 x 1067 30 13.6 S3-5B-SSW1842C 38 17.2 S4-5B-SSW1842C 47 21.3 S5-5B-SSW1842C 9 4.1 SSW1842C 18˝ x 48˝ 457 x 1219 34 15.4 S3-5B-SSW1848C 44 20.0 S4-5B-SSW1848C 54 24.5 S5-5B-SSW1848C 10 4.5 SSW1848C 18˝ x 60 457 x 1524 49 22.2 S3-5B-SSW1860C 64 29.0 S4-5B-SSW1860C 79 35.8 S5-5B-SSW1860C 15 6.8 SSW1860C
7
8˝ (606mm)-high brackets.
7
8˝ (860mm)-high brackets.
Add’l Shelves
Add’l Shelves
Additional Wall Brackets (pair) - Chrome
width x height weight in. mm lbs. kg model #
7
8˝ 457 x 606 7.3 3.3 SSW18B3-C
18˝ x 23 18˝ x 337⁄8˝ 457 x 860 10.8 4.9 SSW18B5-C
EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 • www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2012 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 05/12
