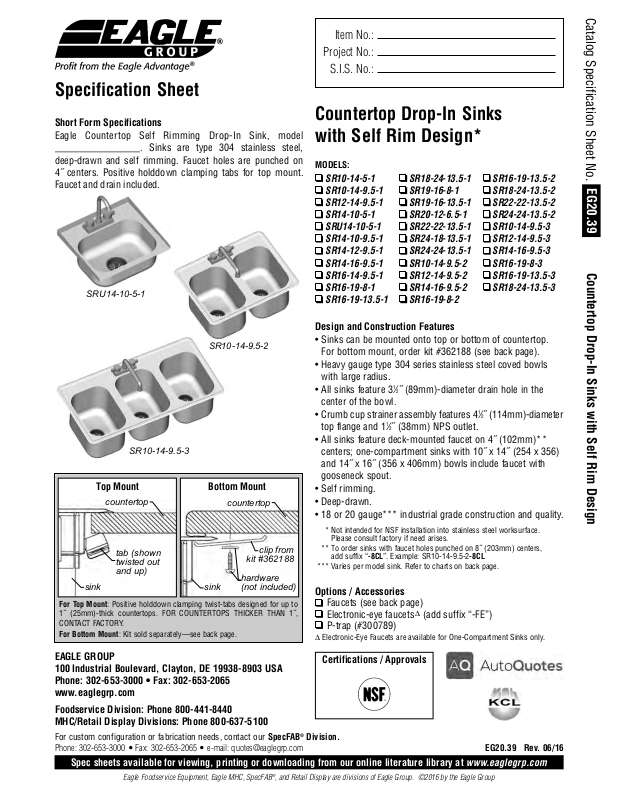

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Countertop Self Rimming Drop-In Sink, model
_________________. Sinks are type 304 stainless steel,
deep-drawn and self rimming. Faucet holes are punched on
4˝ centers. Positive holddown clamping tabs for top mount.
Faucet and drain included.
SRU14-10-5-1
SR10-14-9.5-2
SR10-14-9.5-3
Top Mount Bottom Mount
countertop
tab (shown
twisted out
and up)
sink
For Top Mount: Positive holddown clamping twist-tabs designed for up to
1˝ (25mm)-thick countertops. FOR COUNTERTOPS THICKER THAN 1˝,
CONTACT FACTORY.
For Bottom Mount: Kit sold separately—see back page.
sink
countertop
clip from
kit #362188
hardware
(not included)
Countertop Drop-In Sinks
with Self Rim Design*
MODELS:
SR10-14-5-1
SR10-14-9.5-1
SR12-14-9.5-1
SR14-10-5-1
SRU14-10-5-1
SR14-10-9.5-1
SR14-12-9.5-1
SR14-16-9.5-1
SR16-14-9.5-1
SR16-19-8-1
SR16-19-13.5-1
Design and Construction Features
• Sinks can be mounted onto top or bottom of countertop.
For bottom mount, order kit #362188 (see back page).
• Heavy gauge type 304 series stain less steel coved bowls
with large radi us.
• All sinks feature 3
center of the bowl.
• Crumb cup strainer as sem bly features 41⁄2˝ (114mm)-diameter
top flange and 11⁄2˝ (38mm) NPS outlet.
• All sinks feature deck-mounted faucet on 4˝ (102mm)**
centers; one-compartment sinks with 10˝ x 14˝ (254 x 356)
and 14˝ x 16˝ (356 x 406mm) bowls include faucet with
gooseneck spout.
• Self rimming.
• Deep-drawn.
• 18 or 20 gauge*** industrial grade construction and quality.
* Not intended for NSF installation into stainless steel worksurface.
Please consult factory if need arises.
** To order sinks with faucet holes punched on 8˝ (203mm) centers,
add suffix “-8CL”. Example: SR10-14-9.5-2-8CL
*** Varies per model sink. Refer to charts on back page.
Options / Accessories
Faucets (see back page)
Electronic-eye faucets
P-trap (#300789)
∆ Electronic-Eye Faucets are available for One-Compartment Sinks only.
SR18-24-13.5-1
SR19-16-8-1
SR19-16-13.5-1
SR20-12-6.5-1
SR22-22-13.5-1
SR24-18-13.5-1
SR24-24-13.5-1
SR10-14-9.5-2
SR12-14-9.5-2
SR14-16-9.5-2
SR16-19-13.5-2
SR18-24-13.5-2
SR22-22-13.5-2
SR24-24-13.5-2
SR10-14-9.5-3
SR12-14-9.5-3
SR14-16-9.5-3
SR16-19-8-3
SR16-19-13.5-3
SR18-24-13.5-3
SR16-19-8-2
1
⁄2˝ (89mm)-diameter drain hole in the
∆
(add suffix “-FE”)
EG20.39
Countertop Drop-In Sinks with Self Rim Design
EAGLE GROUP
Certifications / Approvals
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com
EG20.39 Rev. 06/16
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2016 by the Eagle Group
EG20.39
Item No.:
Project No.:
S.I.S. No.:
One-Compartment Sinks — Furnished with a #302004 faucet with gooseneck spout, except where noted.
inside bowl dimensions overall dimensions cutout for top mount cutout for bottom mount
model # in. mm in. mm in. mm in. mm lbs. kg gauge
SR10-14-5-1 14˝ x 10˝ x 5˝ 356 x 254 x 127 19˝ x 123⁄4˝ 483 x 324 175⁄8˝ x 111⁄4˝ 448 x 286 1413⁄16˝ x 1013⁄16˝ 376 x 275 10 4.5 20
SR10-14-9.5-1 14˝ x 10˝ x 91⁄2˝ 356 x 254 x 241 187⁄8˝ x 123⁄4˝ 480 x 324 171⁄2˝ x 111⁄4˝ 445 x 286 1413⁄16˝ x 1013⁄16˝ 376 x 275 12 5.4 18
SR12-14-9.5-1 14˝ x 12˝ x 91⁄2˝ 356 x 305 x 241 19˝ x 143⁄4˝ 483 x 375 175⁄8˝ x 131⁄4˝ 448 x 337 143⁄8˝ x 123⁄8˝ 321 x 314 14 6.4 20
SR14-10-5-1 10˝ x 14˝ x 5˝ 254 x 356 x 127 15˝ x 163⁄4˝ 381 x 426 135⁄8˝ x 151⁄4˝ 346 x 387 1013⁄16˝ x 1413⁄16˝ 275 x 376 10 4.5 20
SRU14-10-5-1 10˝ x 14˝ x 5˝ 254 x 356 x 127 15˝ x 163⁄4˝ 381 x 426 135⁄8˝ x 151⁄4˝ 346 x 387 n/a 12 5.4 20
SR14-10-9.5-1 10˝ x 14˝ x 91⁄2˝ 254 x 356 x 241 15˝ x 165⁄8˝ 381 x 422 135⁄8˝ x 151⁄8˝ 346 x 384 1013⁄16˝ x 1413⁄16˝ 275 x 376 12 5.4 18
SR14-12-9.5-1 12˝ x 14˝ x 91⁄2˝ 305 x 356 x 241 17˝ x 163⁄4˝ 432 x 426 155⁄8˝ x 151⁄4˝ 397 x 387 123⁄8˝ x 143⁄8˝ 314 x 365 14 6.4 20
SR14-16-9.5-1 16˝ x 14˝ x 91⁄2˝ 406 x 356 x 241 21˝ x 163⁄4˝ 533 x 425 195⁄8˝ x 151⁄4˝ 499 x 387 165⁄8˝ x 145⁄8˝ 422 x 372 23 10.4 20
SR16-14-9.5-1 14˝ x 16˝ x 91⁄2˝ 356 x 406 x 241 19˝ x 183⁄4˝ 483 x 476 175⁄8˝ x 171⁄4˝ 448 x 438 145⁄8˝ x 165⁄8˝ 372 x 422 23 10.4 20
SR16-19-8-1 20˝ x 16˝ x 8˝ 508 x 406 x 203 243⁄4˝ x 181⁄2˝ 629 x 470 233⁄8˝ x 17˝ 594 x 432 205⁄8˝ x 165⁄8˝ 524 x 422 26 11.8 18
SR16-19-13.5-1 20˝ x 16˝ x 131⁄2˝ 508 x 406 x 343 243⁄4˝ x 181⁄2˝ 629 x 470 233⁄8˝ x 17˝ 594 x 432 205⁄8˝ x 165⁄8˝ 524 x 422 28 12.7 18
Catalog Specification Sheet No.
SR18-24-13.5-1 24˝ x 18˝ x 131⁄2˝ 610 x 457 x 343 283⁄4˝ x 201⁄2˝ 730 x 521 273⁄8˝ x 19˝ 695 x 483 245⁄8˝ x 185⁄8˝ 626 x 473 32 14.5 18
SR19-16-8-1* 16˝ x 20˝ x 8˝ 406 x 508 x 203 203⁄4˝ x 221⁄2˝ 527 x 572 193⁄8˝ x 21˝ 492 x 533 165⁄8˝ x 205⁄8˝ 422 x 524 24 10.9 18
SR19-16-13.5-1* 16˝ x 20˝ x 131⁄2˝ 406 x 508 x 343 203⁄4˝ x 221⁄2˝ 527 x 572 193⁄8˝ x 21˝ 492 x 533 165⁄8˝ x 205⁄8˝ 422 x 524 25 11.3 18
SR20-12-6.5-1 12˝ x 20˝ x 61⁄2˝ 305 x 508 x 165 17˝ x 223⁄4˝ 432 x 578 155⁄8˝ x 211⁄4˝ 397 x 540 123⁄16˝ x 201⁄8˝ 310 x 511 28 12.7 20
SR22-22-13.5-1* 22˝ x 22˝ x 131⁄2˝ 559 x 559 x 343 27˝ x 243⁄4˝ 686 x 629 255⁄8˝ x 231⁄4˝ 651 x 591 see template ** 34 15.4 18
SR24-18-13.5-1* 18˝ x 24˝ x 131⁄2˝ 457 x 610 x 343 223⁄4˝ x 261⁄2˝ 578 x 673 213⁄8˝ x 25˝ 543 x 635 185⁄8˝ x 245⁄8˝ 473 x 626 32 14.5 18
SR24-24-13.5-1* 24˝ x 24˝ x 131⁄2˝ 610 x 610 x 343 283⁄4˝ x 261⁄2˝ 730 x 673 273⁄8˝ x 25˝ 695 x 635 2411⁄16˝ x 2411⁄16˝ 627 x 627 36 16.3 18
#SRU14-10-5-1 features an upturn on sides and rear; *These sinks utilize a #300490 faucet with 12˝ (305mm) swivel spout; ** Template included with sink.
width x length x depth width x length width x length width x length weight 18 or 20
Two-Compartment Sinks — Furnished with a #300490 faucet with 12˝ (203mm) spout, except where noted.
inside bowl dimensions overall dimensions cutout for top mount cutout for bottom mount
model # in. mm in. mm in. mm in. mm lbs. kg gauge
SR10-14-9.5-2* 14˝ x 10˝ x 91⁄2˝ 356 x 254 x 241 187⁄8˝ x 243⁄4˝ 480 x 629 171⁄2˝ x 231⁄4˝ 445 x 591 1413⁄16˝ x 23˝ 376 x 584 25 11.3 18
SR12-14-9.5-2 14˝ x 12˝ x 91⁄2˝ 356 x 305 x 241 19˝ x 283⁄4˝ 483 x 730 175⁄8˝ x 271⁄4˝ 448 x 692 143⁄8˝ x 265⁄8˝ 365 x 676 27 12.2 20
SR14-16-9.5-2 16˝ x 14˝ x 91⁄2˝ 406 x 356 x 241 21˝ x 323⁄4˝ 525 x 832 195⁄8˝ x 311⁄4˝ 499 x 794 165⁄8˝ x 305⁄8˝ 422 x 778 42 19.1 20
SR16-19-8-2 20˝ x 16˝ x 8˝ 508 x 406 x 203 243⁄4˝ x 361⁄4˝ 527 x 921 233⁄8˝ x 343⁄4˝ 594 x 883 205⁄8˝ x 341⁄4˝ 524 x 870 48 21.8 18
SR16-19-13.5-2 20˝ x 16˝ x 131⁄2˝ 508 x 406 x 343 243⁄4˝ x 361⁄4˝ 527 x 921 233⁄8˝ x 343⁄4˝ 594 x 883 205⁄8˝ x 341⁄4˝ 524 x 870 52 23.6 18
SR18-24-13.5-2 24˝ x 18˝ x 131⁄2˝ 610 x 457 x 343 283⁄4˝ x 401⁄4˝ 730 x 1022 273⁄8˝ x 383⁄4˝ 695 x 984 245⁄8˝ x 381⁄2˝ 626 x 978 56 24.9 18
SR22-22-13.5-2 22˝ x 22˝ x 131⁄2˝ 559 x 559 x 343 27˝ x 483⁄4˝ 686 x 1238 255⁄8˝ x 471⁄4˝ 651 x 1200 see template ** 57 25.9 18
SR24-24-13.5-2 24˝ x 24˝ x 131⁄2˝ 610 x 610 x 343 283⁄4˝ x 521⁄8˝ 730 x 1324 273⁄8˝ x 505⁄8˝ 695 x 1286 2413⁄16˝ x 501⁄4˝ 630 x 1276 64 29.0 18
* Model #SR10-14-9.5-2 utilizes a #301248 faucet with 8˝ (203mm) swivel spout; ** Template included with sink.
width x length x depth width x length width x length width x length weight 18 or 20
Three-Compartment Sinks — Furnished with a #300490 faucet with 12˝ (305mm) spout, except where noted.
inside bowl dimensions overall dimensions cutout for top mount cutout for bottom mount
model # in. mm in. mm in. mm in. mm lbs. kg gauge
SR10-14-9.5-3 14˝ x 10˝ x 91⁄2˝ 356 x 254 x 241 187⁄8˝ x 363⁄4˝ 480 x 933 171⁄2˝ x 351⁄4˝ 445 x 895 1413⁄16˝ x 35˝ 376 x 889 37 16.8 18
SR12-14-9.5-3 14˝ x 12˝ x 91⁄2˝ 356 x 305 x 241 19˝ x 423⁄4˝ 483 x 1086 175⁄8˝ x 411⁄4˝ 448 x 1031 143⁄8˝ x 405⁄8˝ 331 x 1032 39 17.6 20
SR14-16-9.5-3 16˝ x 14˝ x 91⁄2˝ 406 x 356 x 241 21˝ x 483⁄4˝ 533 x 1238 195⁄8˝ x 471⁄4˝ 498 x 1200 165⁄8˝ x 465⁄8˝ 422 x 1184 66 29.9 20
SR16-19-8-3 20˝ x 16˝ x 8˝ 508 x 406 x 203 243⁄4˝ x 54˝ 629 x 1372 233⁄4˝ x 521⁄2˝ 594 x 1334 205⁄8˝ x 521⁄4˝ 524 x 1327 72 32.7 18
SR16-19-13.5-3 20˝ x 16˝ x 131⁄2˝ 508 x 406 x 343 243⁄4˝ x 54˝ 629 x 1372 233⁄4˝ x 521⁄2˝ 594 x 1334 205⁄8˝ x 521⁄4˝ 524 x 1327 77 34.9 18
Countertop Drop-In Sinks with Self Rim Design
SR18-24-13.5-3* 24˝ x 18˝ x 131⁄2˝ 610 x 457 x 343 283⁄4˝ x 60˝ 730 x 1524 273⁄4˝ x 581⁄2˝ 695 x 1486 245⁄8˝ x 581⁄4˝ 626 x 1480 82 37.2 18
* These sinks utilize a #301440 faucet with 14˝ (356mm) swivel spout.
Optional Deck Mount Faucets
description model # model #
gooseneck faucet, 4˝ (102mm) center, for single bowls
8˝ (203mm) spout, 4˝ (102mm) center, for single and double bowls
12˝ (305mm) spout, 4˝ (102mm) center, for triple bowls
14˝ (356mm) spout, 8˝ (203mm) center, for triple bowls
8˝ (203mm) spout, 4˝ (102mm) center, for single and double bowls, w/spray arm
8˝ (203mm) spout, 8˝ (203mm) center, for single and double bowls, w/spray arm
12˝ (305mm) spout, 8˝ (203mm) center, for triple bowls, w/spray arm
14˝ (356mm) spout, 8˝ (203mm) center, for triple bowls, w/spray arm
* Faucets with spray arm require special faucet holes.
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065 • www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
width x length x depth width x length width x length width x length weight 18 or 20
#313306
T&S faucet
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
Standard
302004 313308
301248 313306
300490 313303
301440 313307
— 377430
— 303560*
— 303561*
— 303562*
T&S
Bottom-Mount Kit
One kit per one-compartment sink,
two kits per two-compartment sink,
three kits per three-compartment sink.
description model #
8 undermount
clips per kit
362188
©2016 by Eagle Group
Printed in U.S.A.
Rev. 06/16
