Page 1
EAGLE-OH
OVERHEAD GATE OPERATOR
Eagle-OH Overhead Gate Operator
For Single Tilt-up Gates to 500 lbs
Eagle-OH=1HP Overhead Gate Operator
For Single Tilt-up Gates to 700 lbs
Page 2

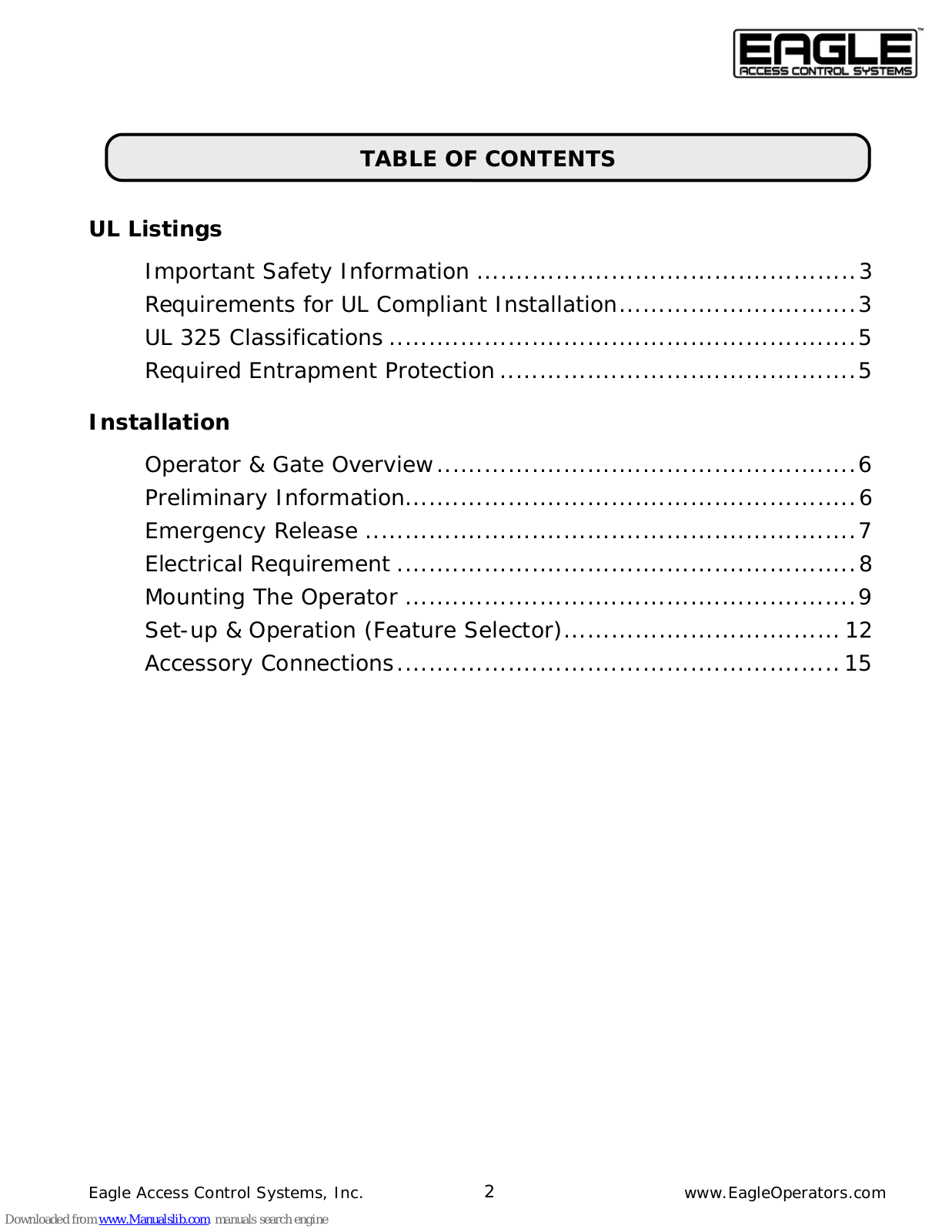

TABLE OF CONTENTS
UL Listings
Important Safety Information ................................................3
Requirements for UL Compliant Installation..............................3
UL 325 Classifications ...........................................................5
Required Entrapment Protection.............................................5
Installation
Operator & Gate Overview.....................................................6
Preliminary Information.........................................................6
Emergency Release ..............................................................7
Electrical Requirement ..........................................................8
Mounting The Operator .........................................................9
Set-up & Operation (Feature Selector)................................... 12
Accessory Connections........................................................15
Eagle Access Control Systems, Inc. www.EagleOperators.com
2
Page 3

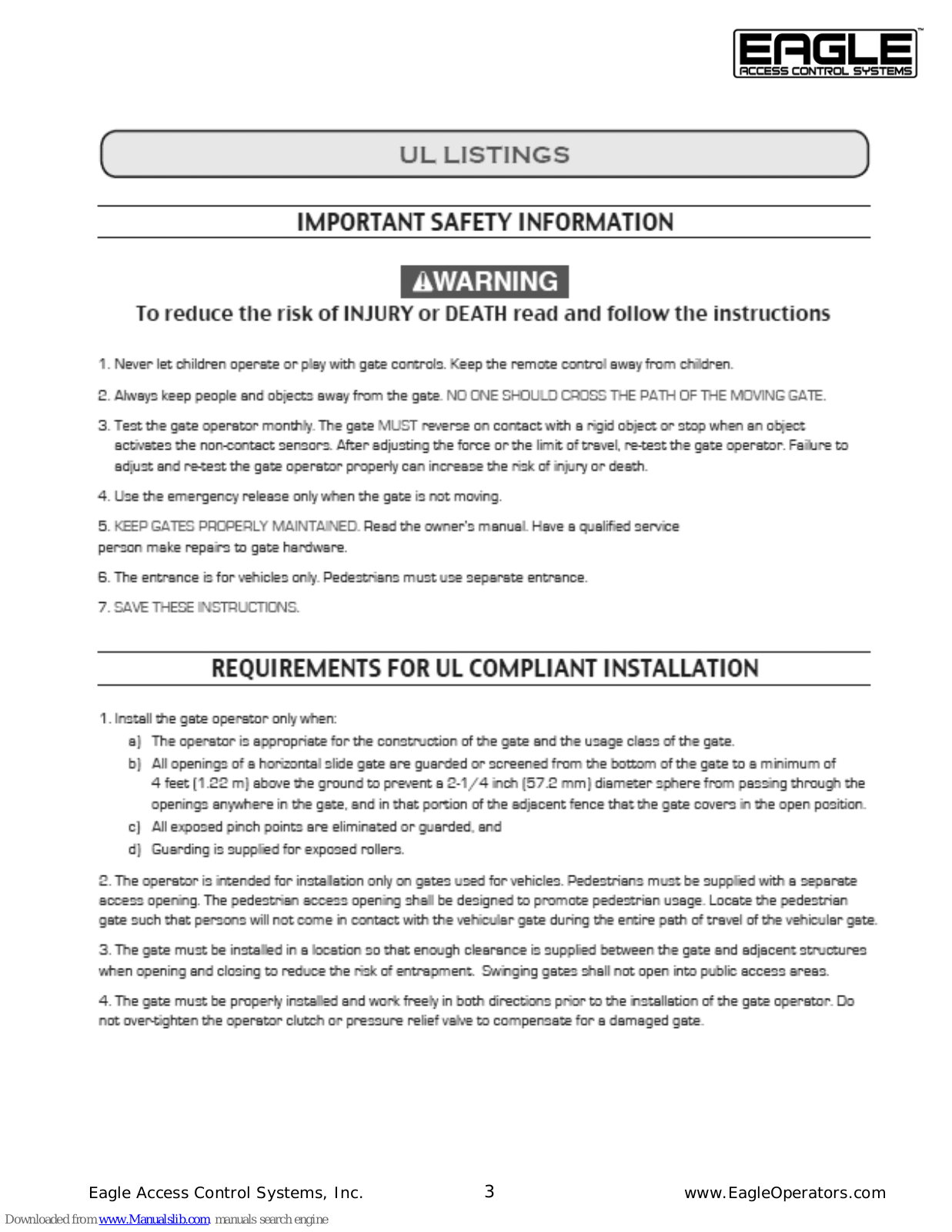

Eagle Access Control Systems, Inc. www.EagleOperators.com
3
Page 4

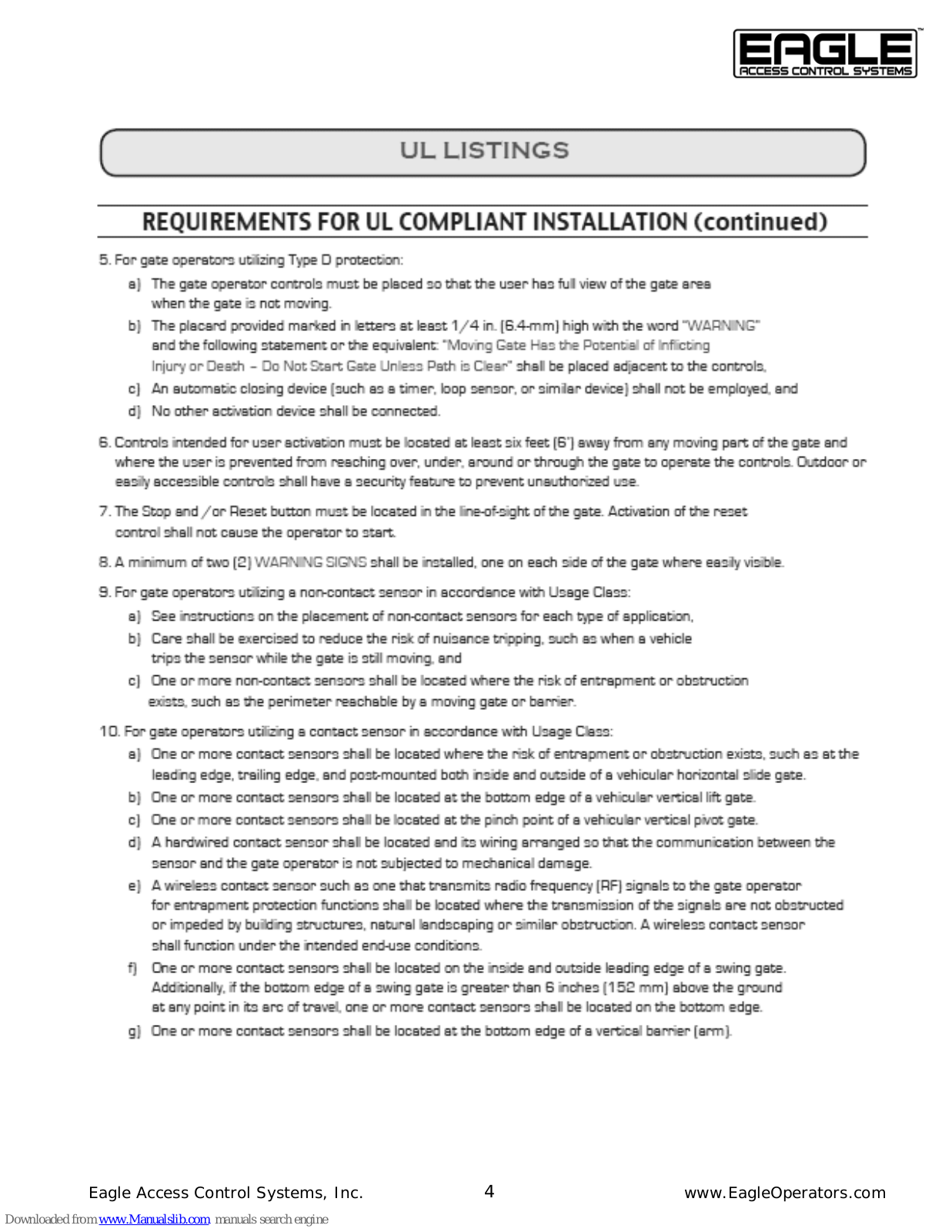

Eagle Access Control Systems, Inc. www.EagleOperators.com
4

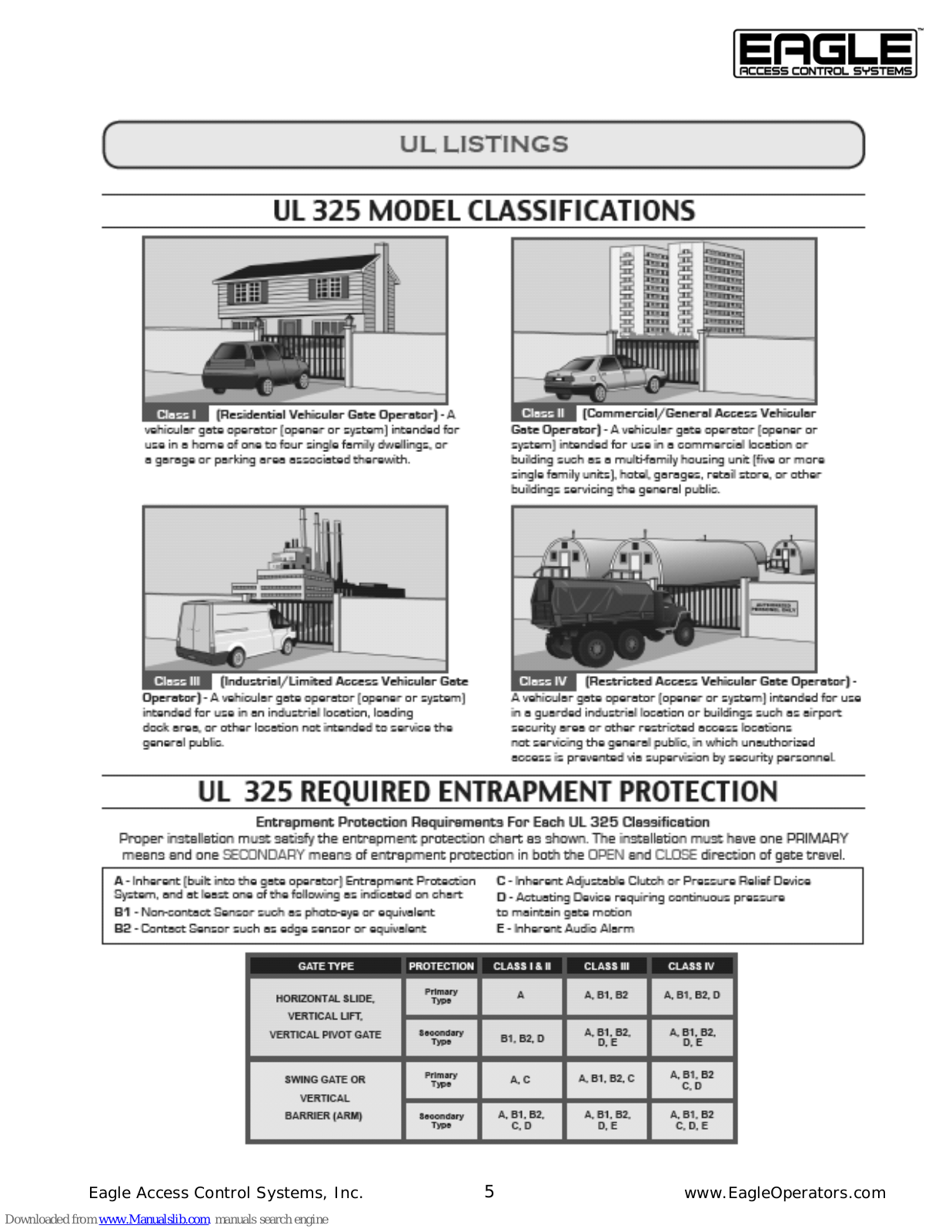

Page 5
Eagle Access Control Systems, Inc. www.EagleOperators.com
5
Page 6

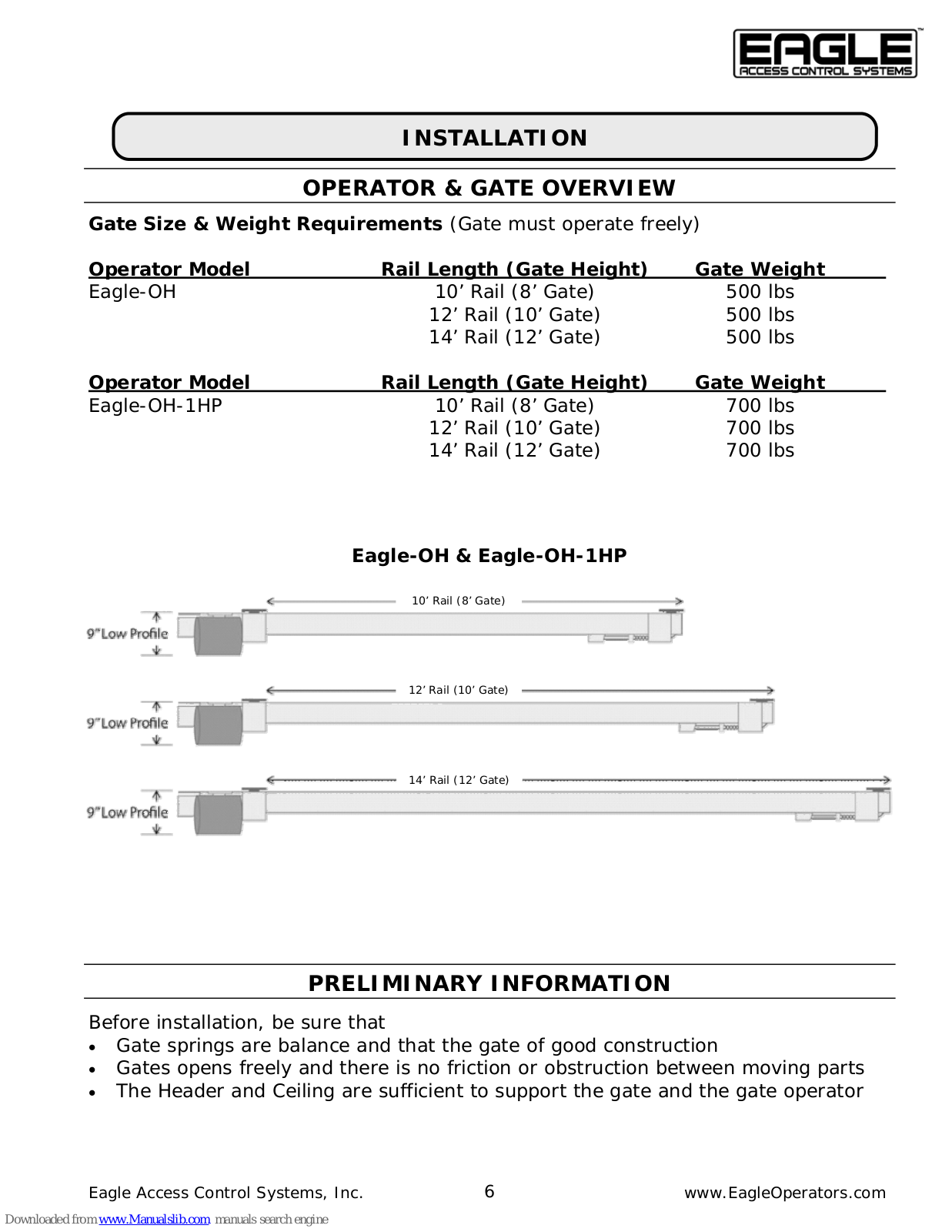

INSTALLATION
OPERATOR & GATE OVERVIEW
Gate Size & Weight Requirements (Gate must operate freely)
Operator Model Rail Length (Gate Height) Gate Weight
Eagle-OH 10’ Rail (8’ Gate) 500 lbs
12’ Rail (10’ Gate) 500 lbs
14’ Rail (12’ Gate) 500 lbs
Operator Model Rail Length (Gate Height) Gate Weight
Eagle-OH-1HP 10’ Rail (8’ Gate) 700 lbs
12’ Rail (10’ Gate) 700 lbs
14’ Rail (12’ Gate) 700 lbs
Eagle-OH & Eagle-OH-1HP
10’ Rail (8’ Gate)
12’ Rail (10’ Gate)
14’ Rail (12’ Gate)
PRELIMINARY INFORMATION
Before installation, be sure that
Gate springs are balance and that the gate of good construction
Gates opens freely and there is no friction or obstruction between moving parts
The Header and Ceiling are sufficient to support the gate and the gate operator
Eagle Access Control Systems, Inc. www.EagleOperators.com
6
Page 7

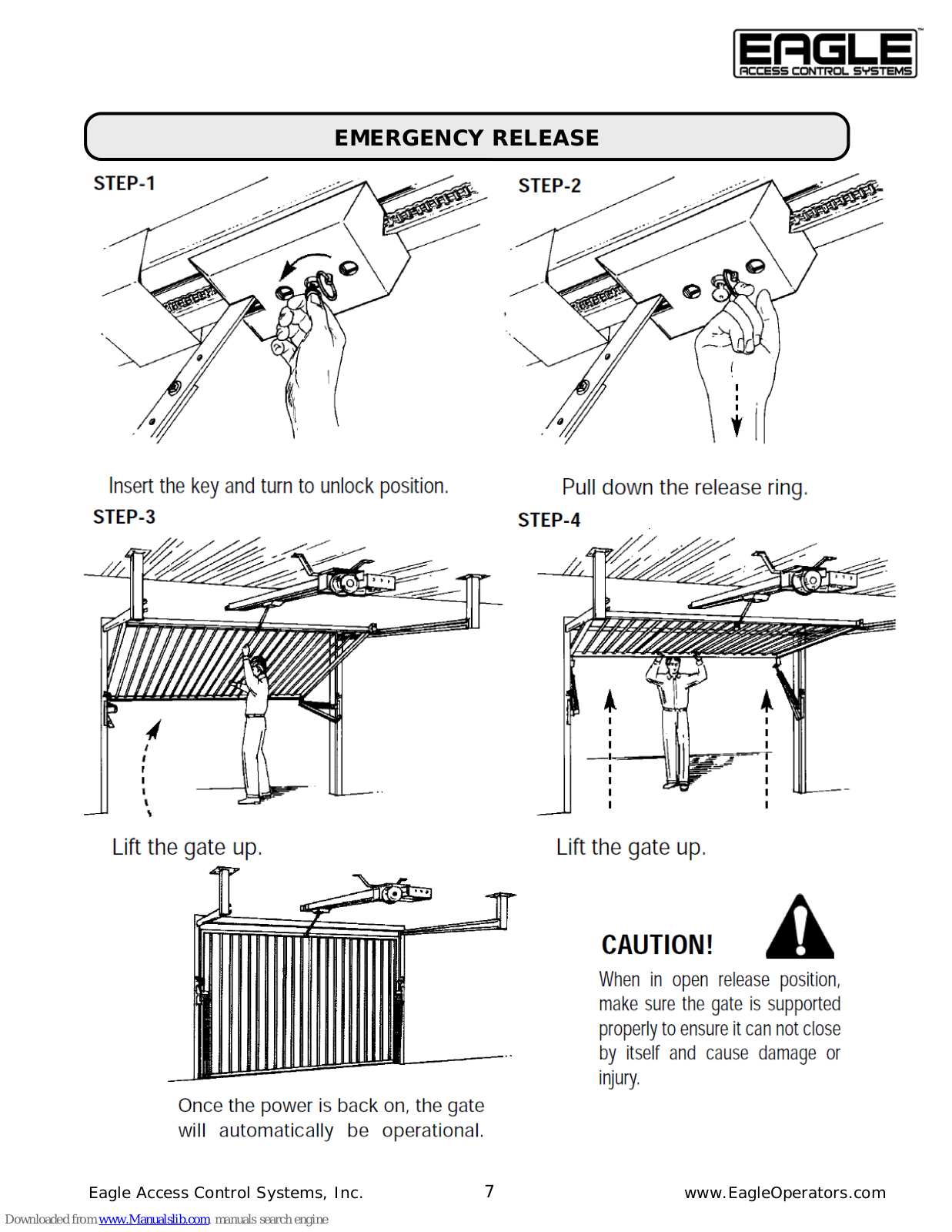

EMERGENCY RELEASE
Eagle Access Control Systems, Inc. www.EagleOperators.com
7
Page 8

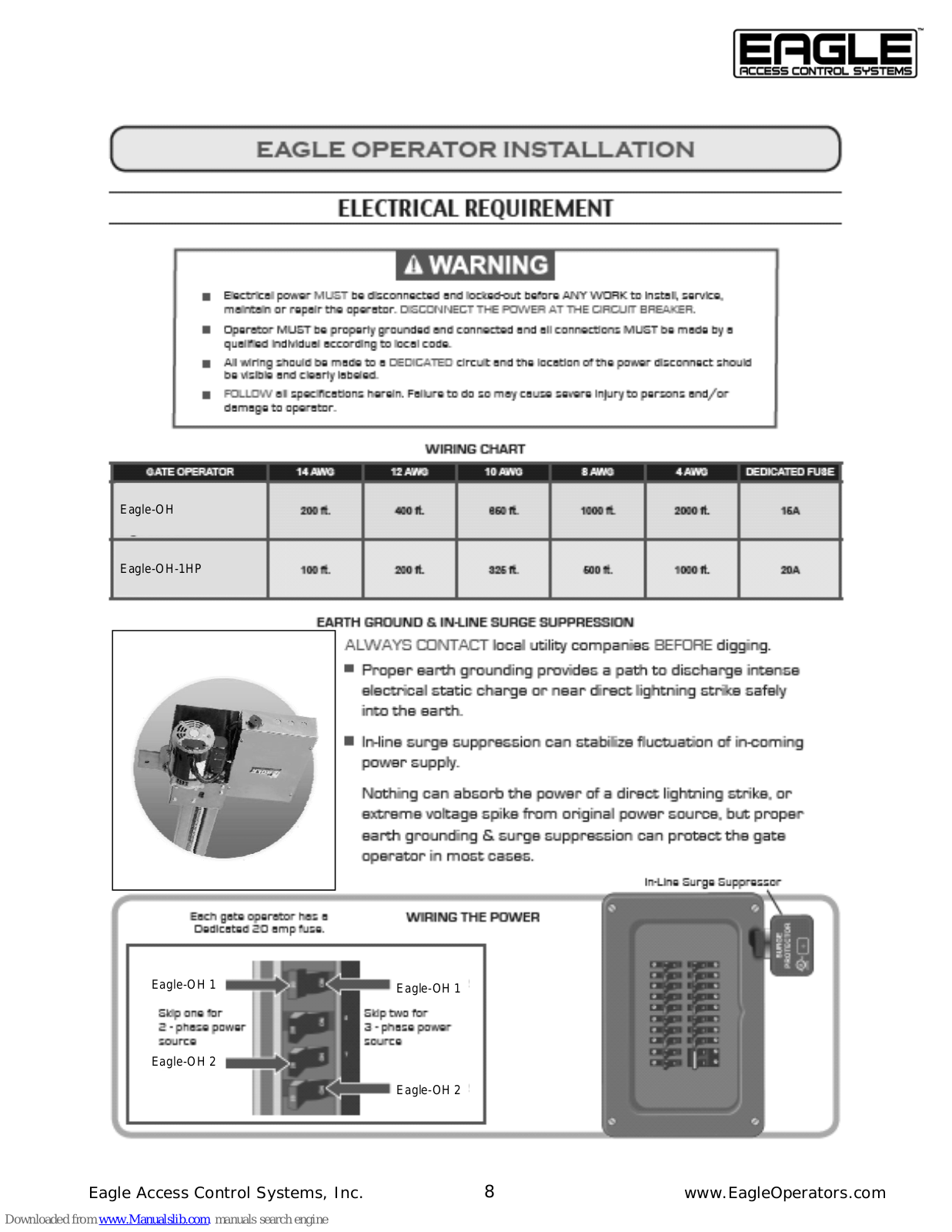

Eagle-OH
Eagle-OH-1HP
Eagle-OH 1
Eagle-OH 2
Eagle Access Control Systems, Inc. www.EagleOperators.com
Eagle-OH 1
Eagle-OH 2
8
Page 9

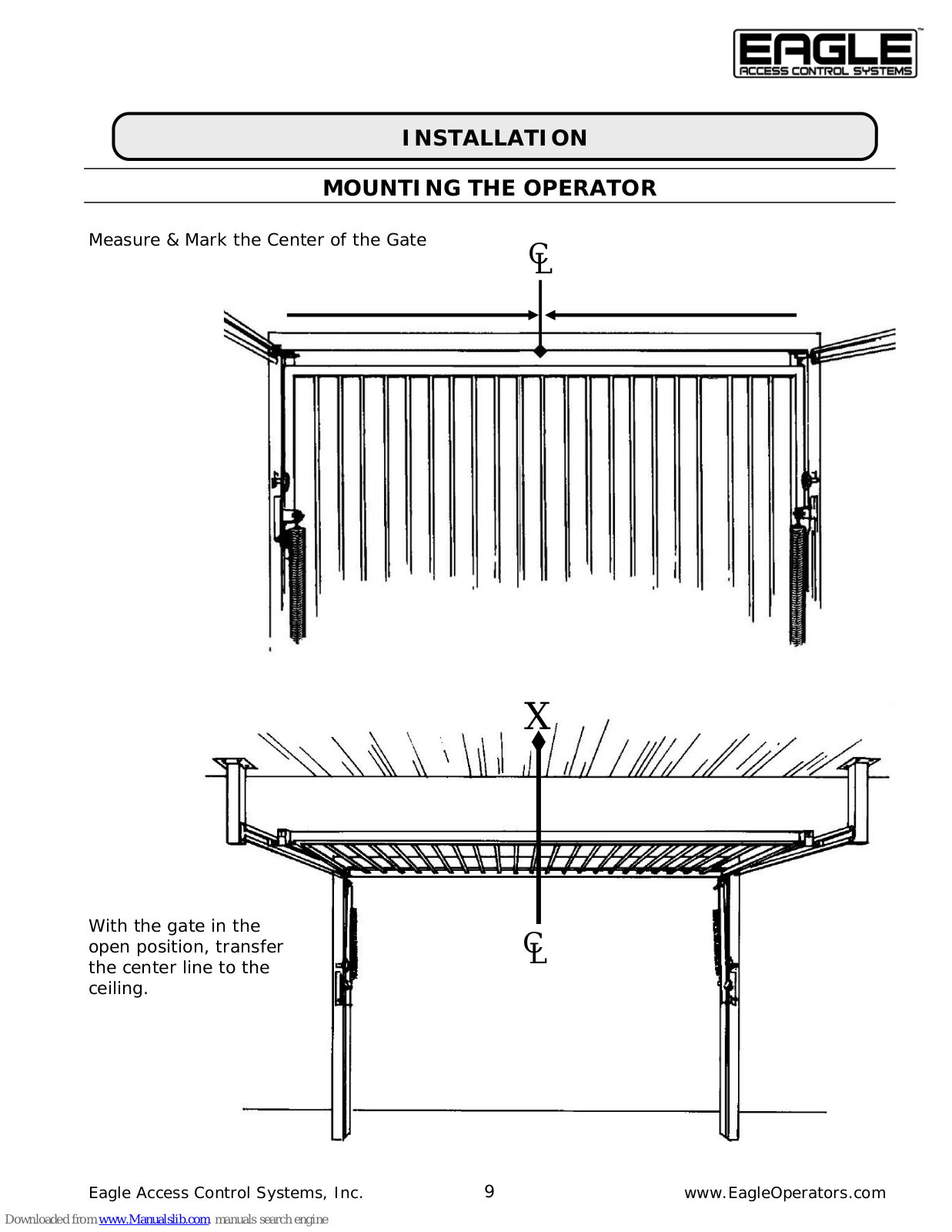

INSTALLATION
MOUNTING THE OPERATOR
Measure & Mark the Center of the Gate
C
L
With the gate in the
open position, transfer
the center line to the
ceiling.
X
C
L
Eagle Access Control Systems, Inc. www.EagleOperators.com
9
Page 10

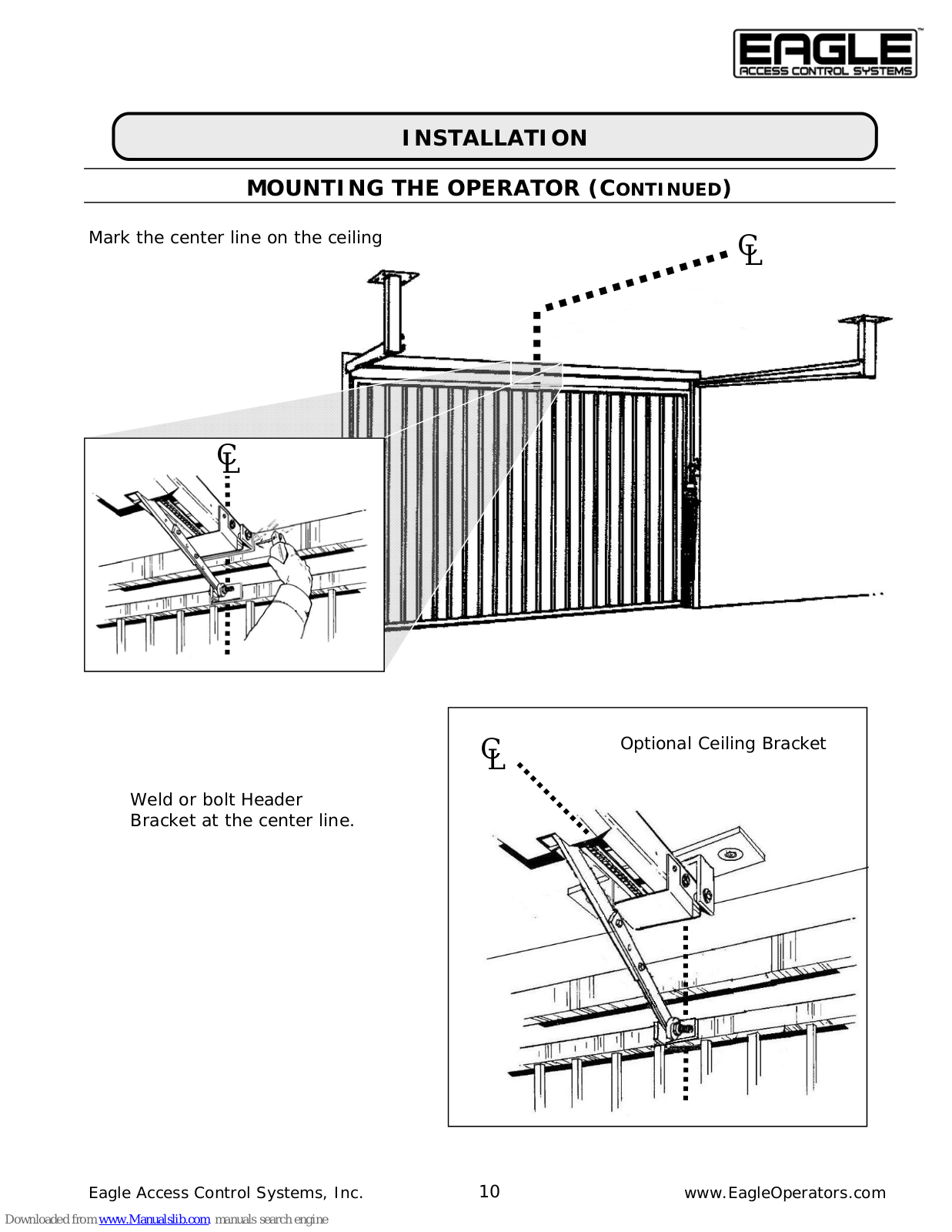

INSTALLATION
MOUNTING THE OPERATOR (CONTINUED)
Mark the center line on the ceiling
C
L
C
L
Weld or bolt Header
Bracket at the center line.
Eagle Access Control Systems, Inc. www.EagleOperators.com
C
L
10
Optional Ceiling Bracket
Page 11

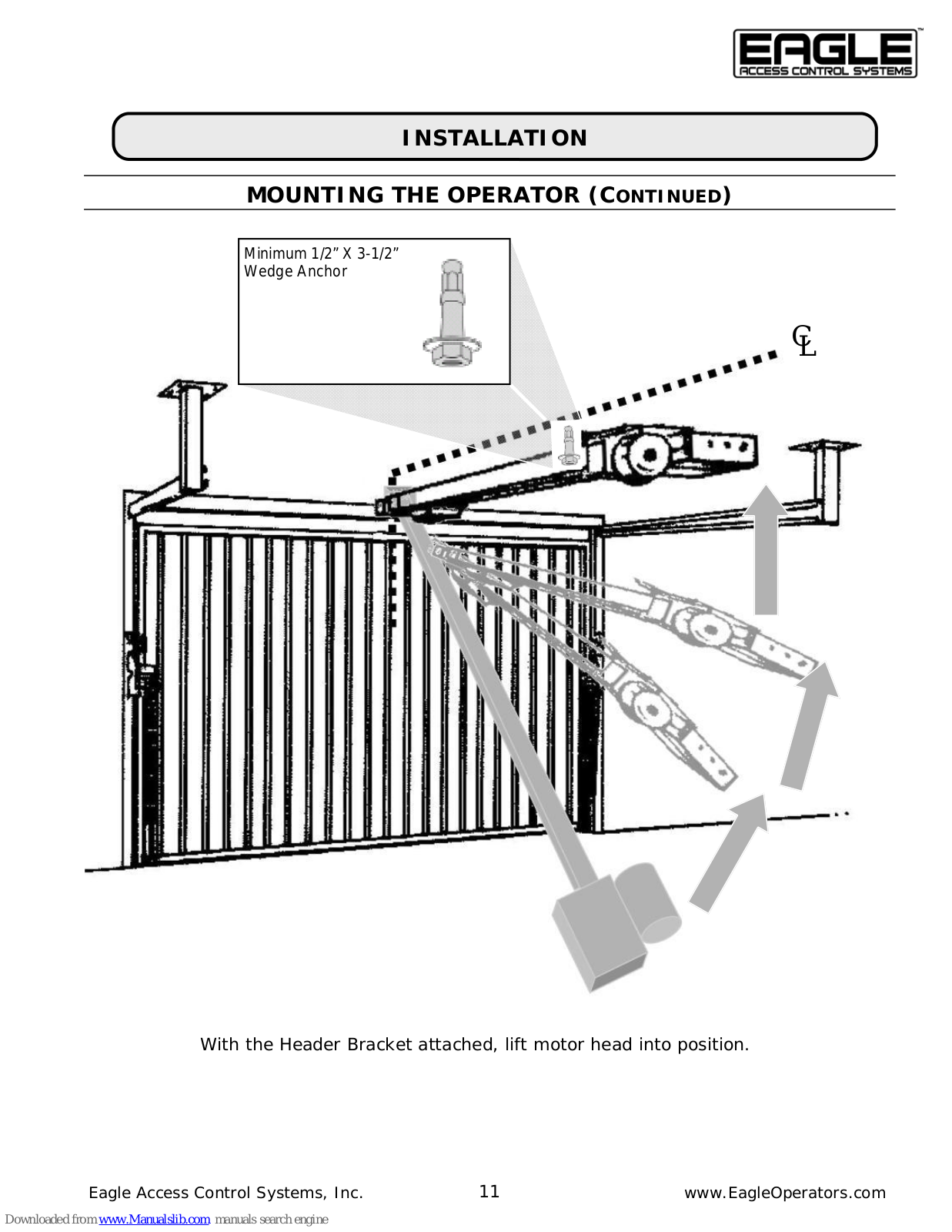

INSTALLATION
MOUNTING THE OPERATOR (CONTINUED)
Minimum 1/2” X 3-1/2”
Wedge Anchor
C
L
With the Header Bracket attached, lift motor head into position.
Eagle Access Control Systems, Inc. www.EagleOperators.com
11
Page 12

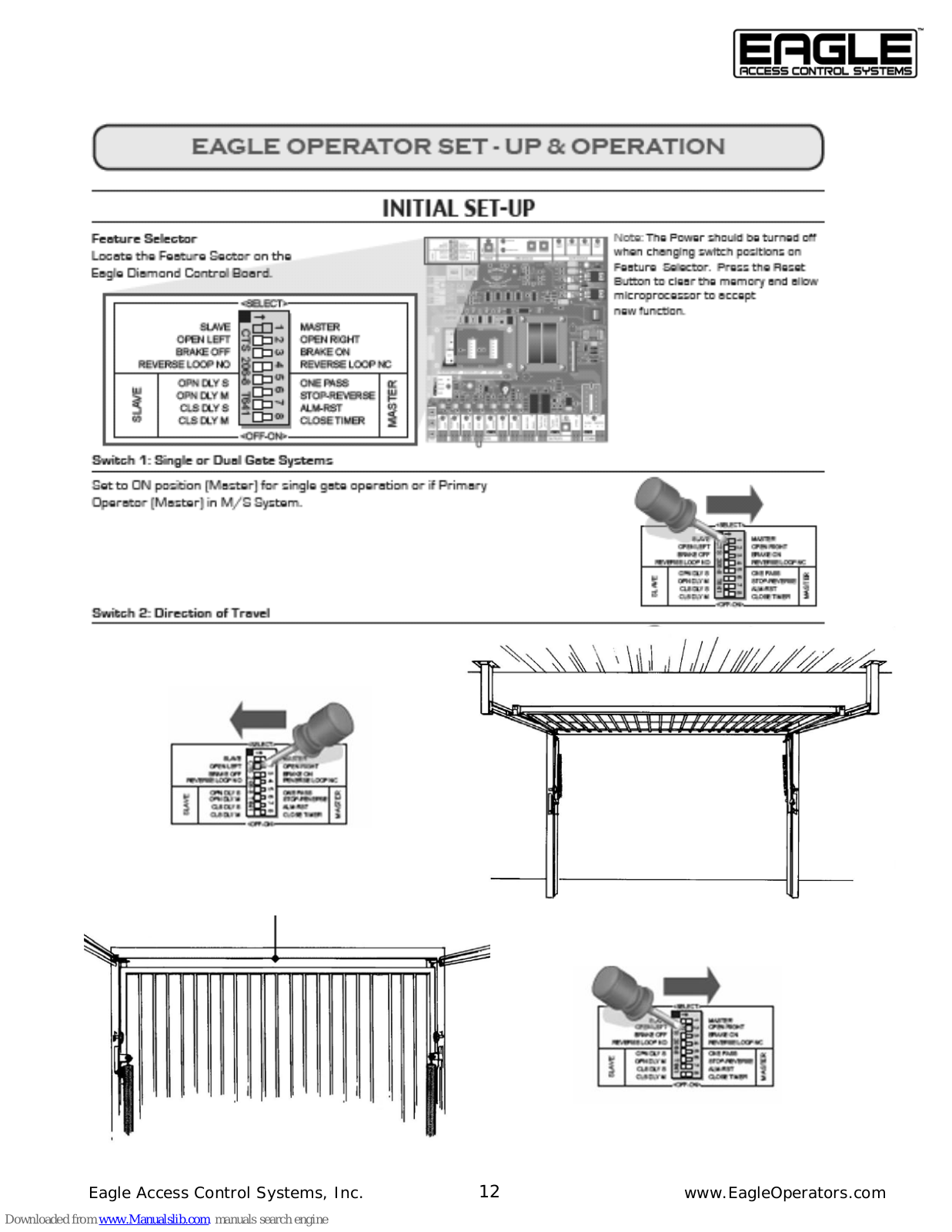

Eagle Access Control Systems, Inc. www.EagleOperators.com
12

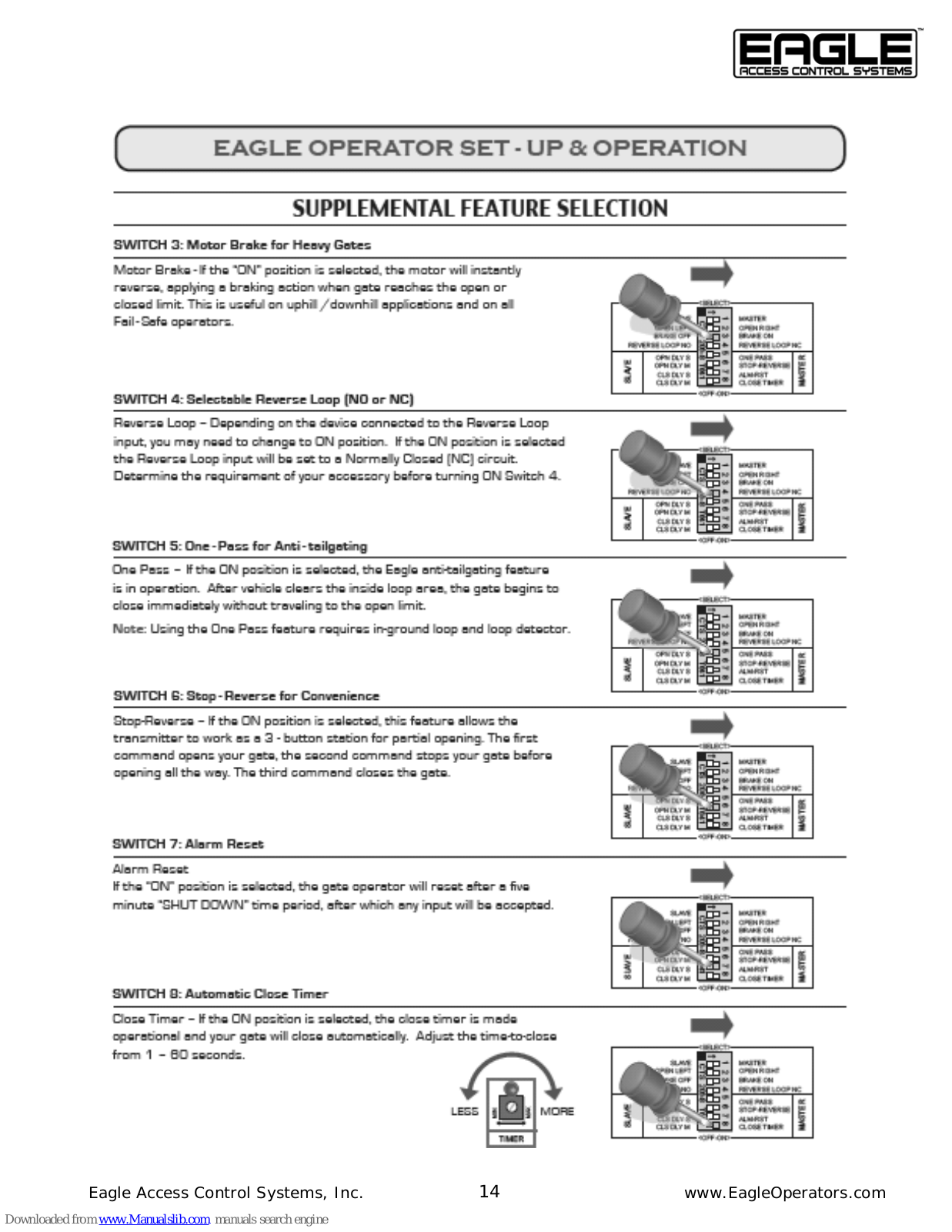

Page 13

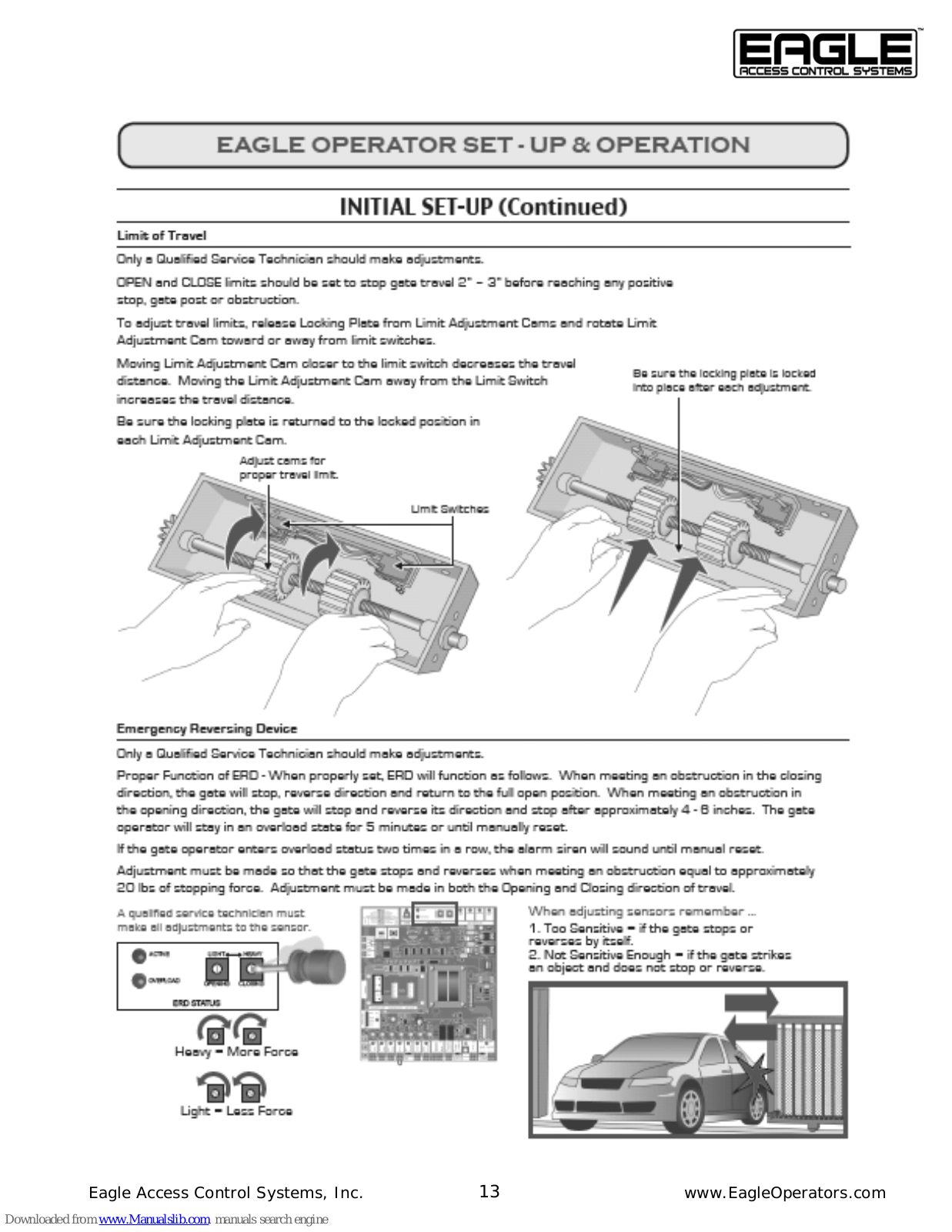

Eagle Access Control Systems, Inc. www.EagleOperators.com
13
Page 14
Eagle Access Control Systems, Inc. www.EagleOperators.com
14
Page 15

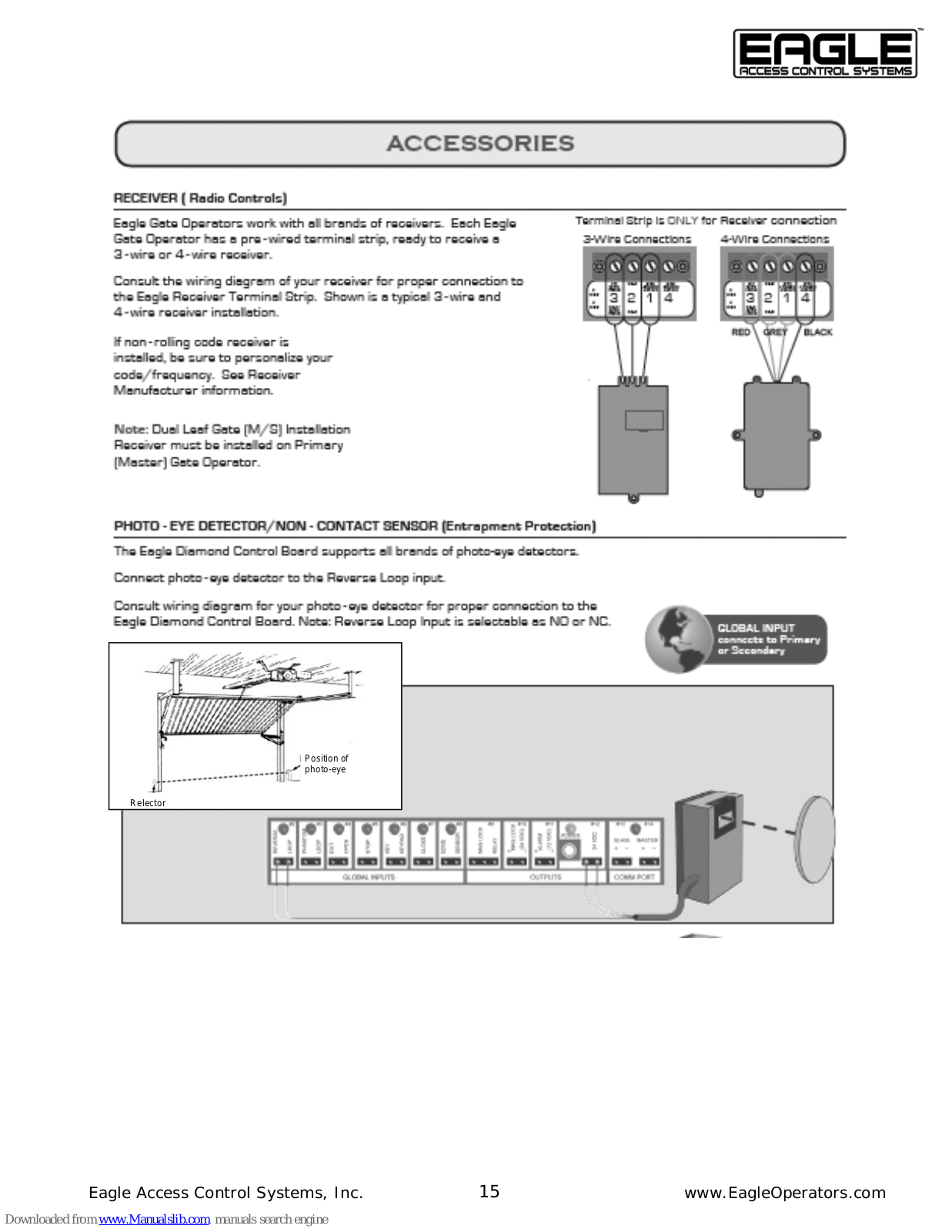

Relector
Position of
photo-eye
Eagle Access Control Systems, Inc. www.EagleOperators.com
15
Page 16

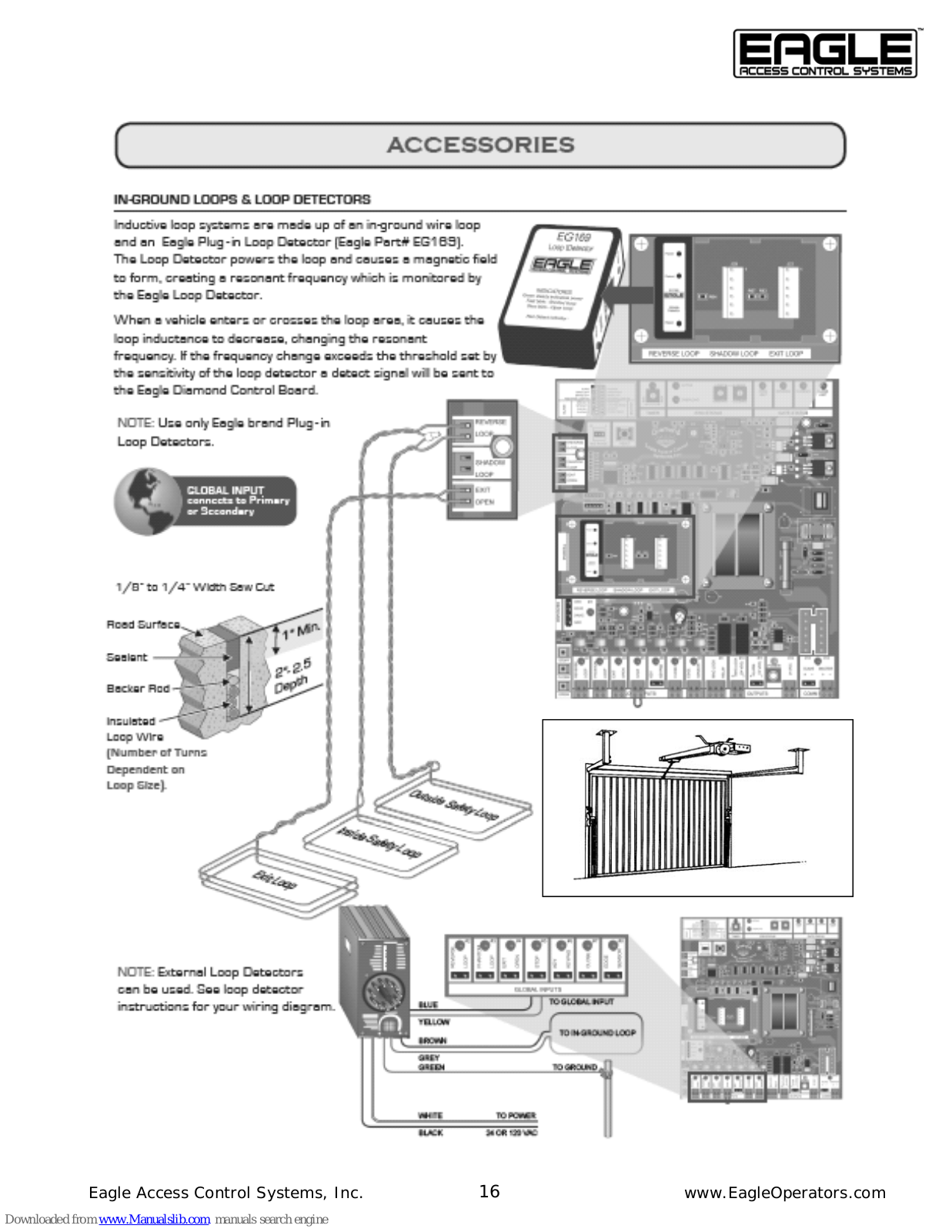

Eagle Access Control Systems, Inc. www.EagleOperators.com
16
Page 17

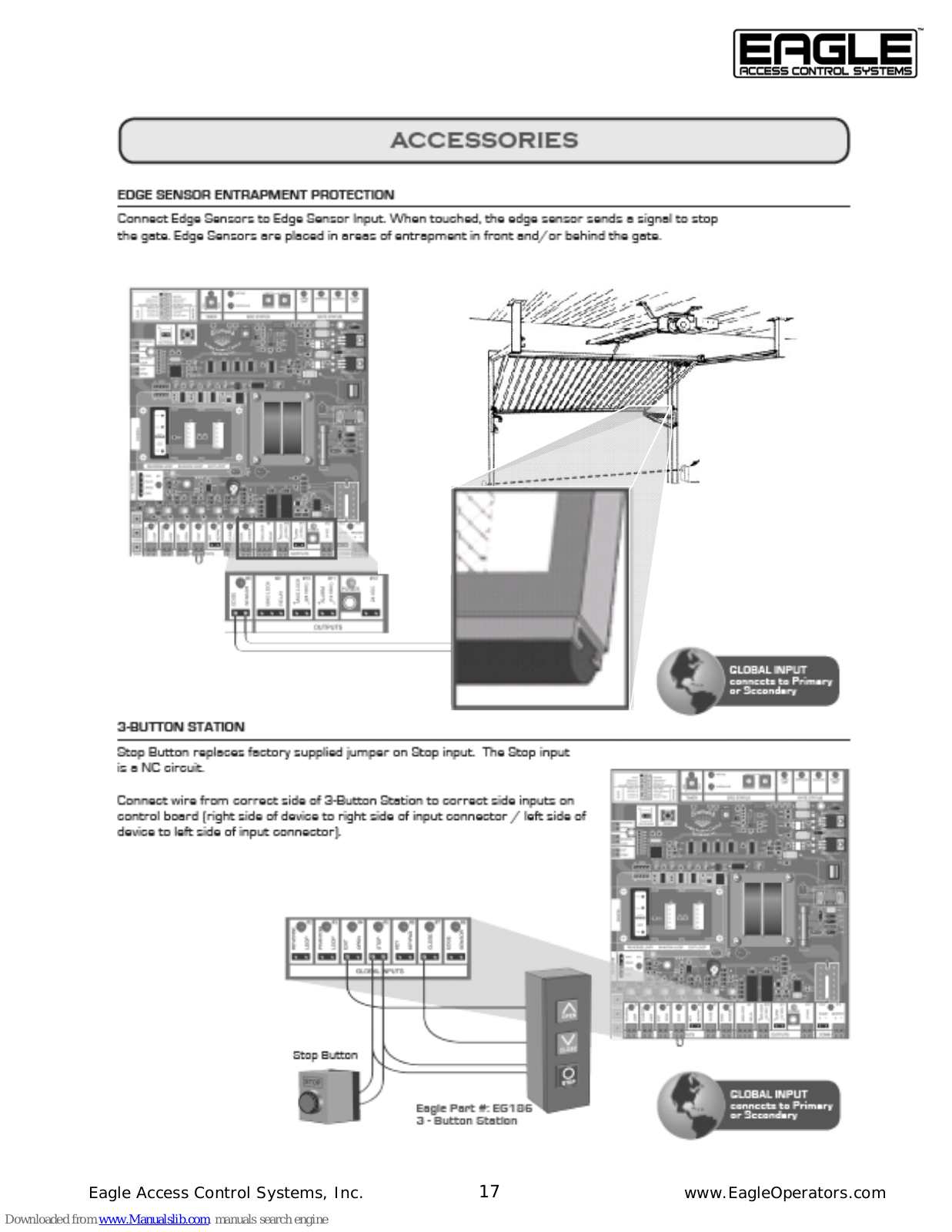

Eagle Access Control Systems, Inc. www.EagleOperators.com
17
Page 18

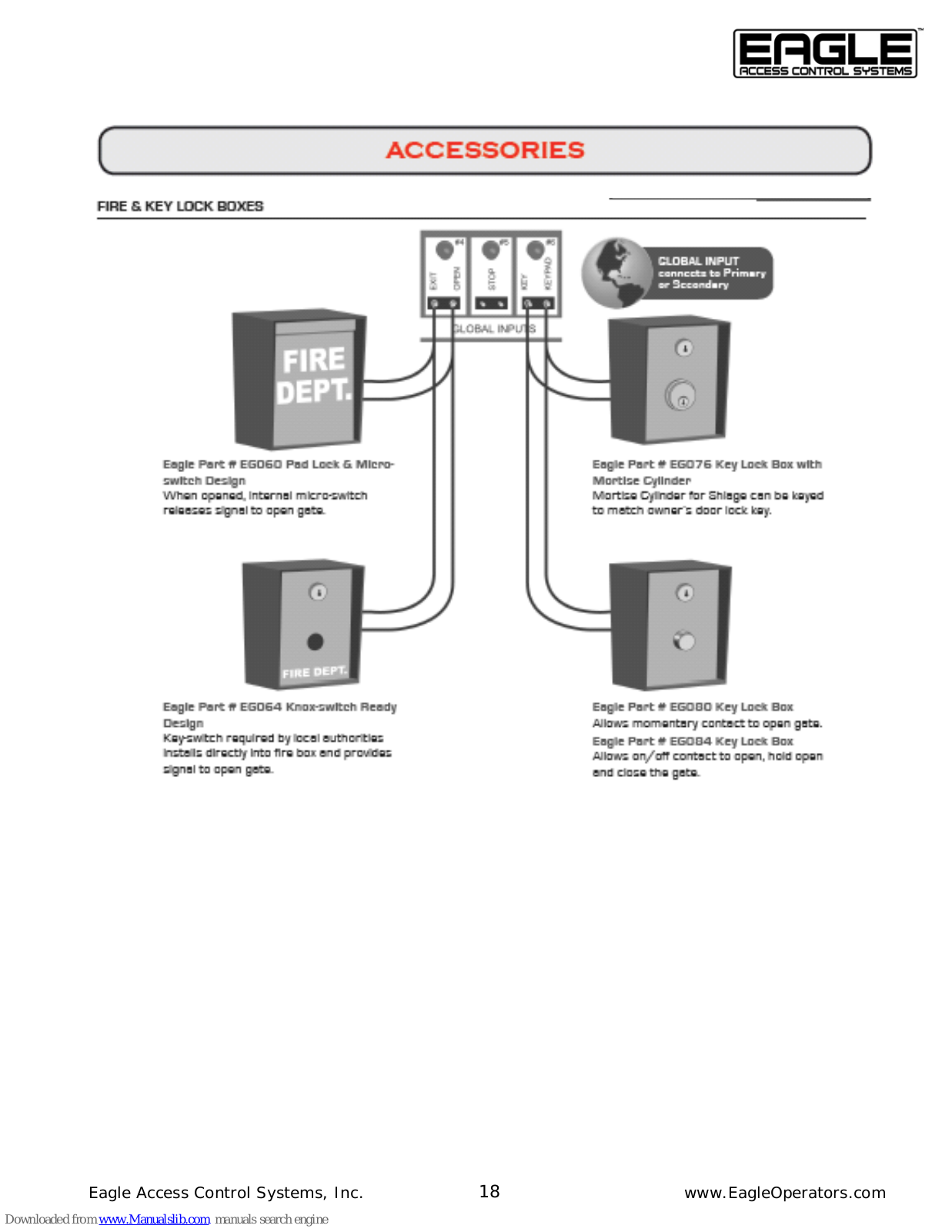

Eagle Access Control Systems, Inc. www.EagleOperators.com
18

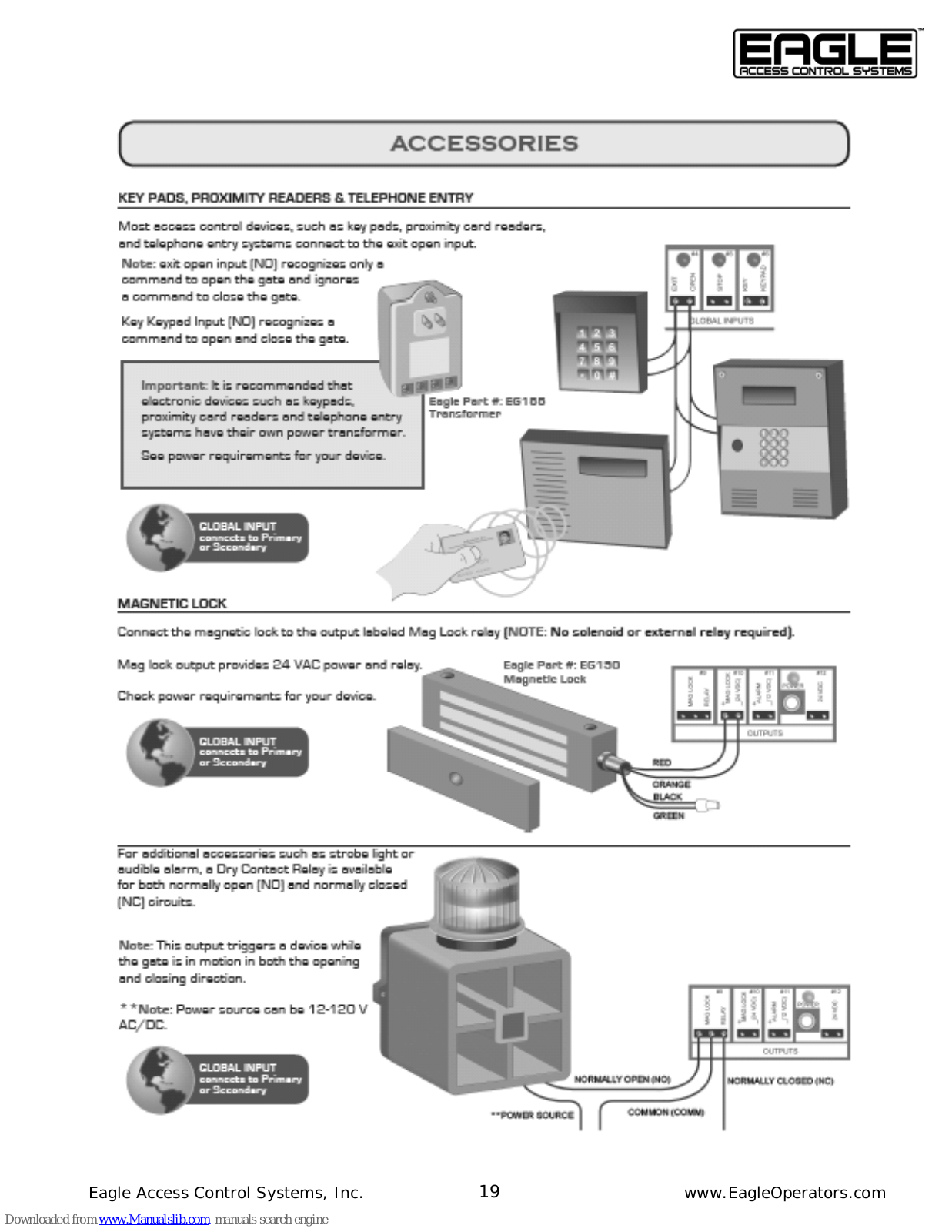

Page 19
Eagle Access Control Systems, Inc. www.EagleOperators.com
19
Page 20
Eagle Access Control Systems, Inc.
12953 Foothill Blvd.
Sylmar, CA 91342
Toll Free: 800-708-8848
www.EagleOperators.com
