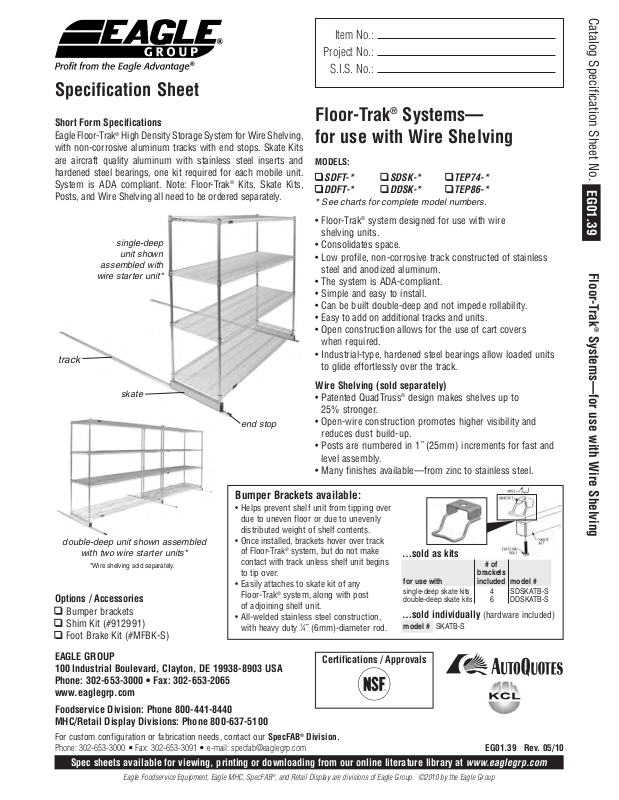

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Floor-Trak®High Density Storage System for Wire Shelving,
with non-corrosive aluminum tracks with end stops. Skate Kits
are aircraft quality aluminum with stainless steel inserts and
hardened steel bearings, one kit required for each mobile unit.

®

System is ADA compliant. Note: Floor-Trak

Kits, Skate Kits,

Posts, and Wire Shelving all need to be ordered separately.

single-deep

unit shown

assembled with

wire starter unit*

track

skate

end stop

Floor-Trak®Systems—
for use with Wire Shelving

MODELS:

SDFT-*
DDFT-*

* See charts for complete model numbers.

• Floor-Trak®system designed for use with wire
shelving units.

• Consolidates space.

• Low profile, non-corrosive track constructed of stainless
steel and anodized aluminum.

• The system is ADA-compliant.

• Simple and easy to install.

• Can be built double-deep and not impede rollability.

• Easy to add on additional tracks and units.

• Open construction allows for the use of cart covers
when required.

• Industrial-type, hardened steel bearings allow loaded units
to glide effortlessly over the track.

Wire Shelving (sold separately)

• Patented QuadTruss
25% stronger.

• Open-wire construction promotes higher visibility and
reduces dust build-up.

• Posts are numbered in 1˝ (25mm) increments for fast and
level assembly.

• Many finishes available—from zinc to stainless steel.

SDSK-*
DDSK-*

®

design makes shelves up to

TEP74-*
TEP86-*

EG01.39

Floor-Trak

®

Systems—for use with Wire Shelving

Bumper Brackets available:

• Helps prevent shelf unit from tipping over
due to uneven floor or due to unevenly
distributed weight of shelf contents.

double-deep unit shown assembled

with two wire starter units*

*Wire shelving sold separately.

Options / Accessories

Bumper brackets
Shim Kit (#912991)
Foot Brake Kit (#MFBK-S)

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2010 by the Eagle Group

• Once installed, brackets hover over track
of Floor-Trak
contact with track unless shelf unit begins
to tip over.

• Easily attaches to skate kit of any
Floor-Trak
of adjoining shelf unit.

• All-welded stainless steel construction,
with heavy duty

®

system, but do not make

®

system, along with post

1

⁄4˝ (6mm)-diameter rod.

Certifications / Approvals

…sold as kits

# of

brackets

for use with included model #

single-deep skate kits 4 SDSKATB-S
double-deep skate kits 6 DDSKATB-S

…sold individually (hardware included)

model # SKATB-S

EG01.39 Rev. 05/10

Item No.:

Project No.:

EG01.39

S.I.S. No.:

Floor-Trak®Systems—for use with Wire Shelving

Single-Deep Floor Track

Each kit consists of a pair of aluminum tracks with end
stops. All hardware and assembly instructions included.
For tracks longer than 21´ (6401mm), order multiple
tracks. Example: for 30´ (9144mm), use one 20´
(6096mm) track and one 10´ (3048mm) track.

length weight

Catalog Specification Sheet No.

model # in. mm lbs. kg

SDFT-6 6´ 1829 5 2.3
SDFT-7 7´ 2134 5 2.3
SDFT-8 8´ 2438 6 2.7
SDFT-9 9´ 2743 7 3.2
SDFT-10 10´ 3048 8 3.6
SDFT-11 11´ 3353 8 3.6
SDFT-12 12´ 3658 9 4.1
SDFT-13 13´ 3962 10 4.5
SDFT-14 14´ 4267 11 5.0
SDFT-15 15´ 4572 11 5.0
SDFT-16 16´ 4877 12 5.4
SDFT-17 17´ 5181 13 5.8
SDFT-18 18´ 5486 14 6.4
SDFT-19 19´ 5791 14 6.4
SDFT-20 20´ 6096 15 6.8
SDFT-21 21´ 6401 16 7.3

Single-Deep Skate Kits

Kit includes two aluminum skates and all necessary parts
and hardware. Skates are aircraft-quality aluminum with
stainless steel inserts and hardened steel ball bearings.
One kit is required for each mobile unit. Shelves and posts
not included.

Note: When assembling with shelf unit, add 1˝ (25mm) to

Systems—for use with Wire Shelving

width and length of shelf unit.

®

Floor-Trak

model # in. mm lbs. kg

SDSK-18 18˝ 457 6 2.7
SDSK-21 21˝ 533 7 3.2
SDSK-24 24˝ 610 7 3.2
SDSK-30 30˝ 762 8 3.6
SDSK-36 36˝ 914 10 4.5

width weight

Double-Deep Floor Track

Each kit consists of a pair of aluminum tracks with end
stops. All hardware and assembly instructions included.
For tracks longer than 21´ (6401mm), order multiple
tracks. Example: for 30´ (9144mm), use one 20´
(6096mm) track and one 10´ (3048mm) track.

model # in. mm lbs. kg

DDFT-6 6´ 1829 7 3.2
DDFT-7 7´ 2134 8 3.6
DDFT-8 8´ 2438 9 4.1
DDFT-9 9´ 2743 10 4.5
DDFT-10 10´ 3048
DDFT-11 11´ 3353
DDFT-12 12´ 3658
DDFT-13 13´ 3962
DDFT-14 14´ 4267 16 7.3
DDFT-15 15´ 4572 17 7.7
DDFT-16 16´ 4877 18 8.2
DDFT-17 17´ 5181 19 8.6
DDFT-18 18´ 5486 21 9.5
DDFT-19 19´ 5791 22 10.0
DDFT-20 20´ 6096 23 10.4
DDFT-21 21´ 6401 24 10.9

NOTE: Double deep units should not exceed shelving depths of 10 feet.

length weight

13 5.8
14 6.4
15 6.8
16 7.3

Double-Deep Skate Kits

Kit includes three aluminum skates and all necessary parts
and hardware. Skates are aircraft-quality aluminum with
stainless steel inserts and hardened steel ball bearings.
One kit is required for each mobile unit. Shelves and posts
not included.

Note: When assembling with shelf unit, add 1˝ (25mm) to
width and 3˝ (76mm) to length of shelf unit.

model # in. mm lbs. kg

DDSK-18 18˝ 457 10 4.5
DDSK-21 21˝ 533 11 5.0
DDSK-24 24˝ 610 12 5.4
DDSK-30 30˝ 762 14 6.4
DDSK-36 36˝ 914 16 7.3

width weight

bottom wing

for double

deep units

Inside Posts for Double-Deep Units

Each double deep unit requires set of four ‘inside posts’ (listed below) along with four standard ‘stationary posts’ (not included).

SET OF FOUR 74˝ (1880mm) POSTS SET OF FOUR 86˝ (2184mm) POSTS

EAGLEbrite®chrome EAGLEgard®weight EAGLEbrite®chrome EAGLEgard®weight

model # model # model # lbs. kg model # model # model # lbs. kg

TEP74-Z TEP74-C TEP74-E 17 7.7 TEP86-Z TEP86-C TEP86-E 21 9.5

IMPORTANT – Maximum post height per skate size:

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

For 18˝-, 21˝-, and 24˝- wide skates: 74˝ or less post height; For 30˝- and 36˝-wide skates: 86˝ or less post height.

©2010 by Eagle Group

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

Printed in U.S.A.

Rev. 05/10
