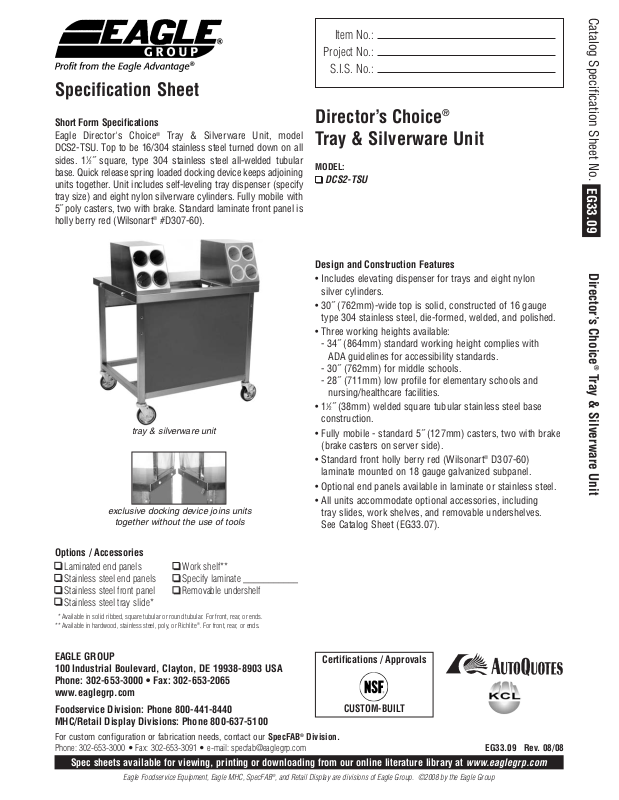

Eagle DCS2-TSU User Manual

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Director's Choice®Tray & Silverware Unit, model DCS2-TSU. Top to be 16/304 stainless steel turned down on all sides. 11⁄2˝ square, type 304 stainless steel all-welded tubular base. Quick release spring loaded docking device keeps adjoining units together. Unit includes self-leveling tray dispenser (specify tray size) and eight nylon silverware cylinders. Fully mobile with 5˝ poly casters, two with brake. Standard laminate front panel is

holly berry red (Wilsonart

exclusive docking device joins units

together without the use of tools

#D307-60).

tray & silverware unit

Director’s Choice

Tray & Silverware Unit

MODEL:

DCS2-TSU

Design and Construction Features

• Includes elevating dispenser for trays and eight nylon silver cylinders.

• 30˝ (762mm)-wide top is solid, constructed of 16 gauge type 304 stainless steel, die-formed, welded, and polished.

• Three working heights available:

- 34˝ (864mm) standard working height complies with

ADA guidelines for accessibility standards.

- 30˝ (762mm) for middle schools.

- 28˝ (711mm) low profile for elementary schools and

nursing/healthcare facilities.

• 1

⁄2˝ (38mm) welded square tubular stainless steel base

construction.

• Fully mobile - standard 5˝ (127mm) casters, two with brake (brake casters on server side).

• Standard front holly berry red (Wilsonart laminate mounted on 18 gauge galvanized subpanel.

Optional end panels available in laminate or stainless steel.

• All units accommodate optional accessories, including

• tray slides, work shelves, and removable undershelves. See Catalog Sheet (EG33.07).

D307-60)

EG33.09

Director’s Choice

Tray & Silverware Unit

Options / Accessories

Laminated end panels Stainless steel end panels Stainless steel front panel

Work shelf** Specify laminate ___________ Removable undershelf

Stainless steel tray slide*

* Available in solid ribbed, square tubular or round tubular. For front, rear, or ends.

** Available in hardwood, stainless steel, poly, or Richlite

EAGLE GROUP

. For front, rear, or ends.

Certifications / Approvals

100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodser

vice Division: Phone 800-441-8440

CUSTOM-BUILT

MHC/Retail Display Divisions: Phone 800-637-5100

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com

Spec sheets available for viewing, printing or downloading from our online literature librar

Eagle Foodser

vice Equipment, Eagle MHC, SpecFAB

y at

EG33.09 Rev. 08/08

.eaglegrp.com

www

EG33.09

Director’s Choice®Tray & Silverware Unit

Catalog Specification Sheet No.

TOP VIEW

Item No.:

Project No.:

S.I.S. No.:

Tray & Silverware Unit

FRONT VIEW SIDE VIEW

Director’s Choice

model # in. mm lbs. kg (14˝ x 18˝ trays)

DCS2-TSU 36˝ 914 270 122.5 100

Optional laminate end panels available. T Optional stainless steel front panel in lieu of laminate front panel available. To order, add suffix “-S” to model number. Example: DCS2-TSU-S Optional stainless steel end panels available. To order, add suffix “-SEP” to model number. Example: DCS2-TSU-SEP

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065

.eaglegrp.com

www Foodservice Division: Phone 800-441-8440

MHC/Retail Display Divisions: Phone 800-637-5100

Spec sheets available for viewing, printing or downloading from our online literature librar

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order

o order

length weight tray capacity

, add suffix “

-LEP” to model number

. Example: DCS2-TSU

-LEP

y at

.eaglegrp.com

www

Printed in U.S.A.

Rev. 08/08
