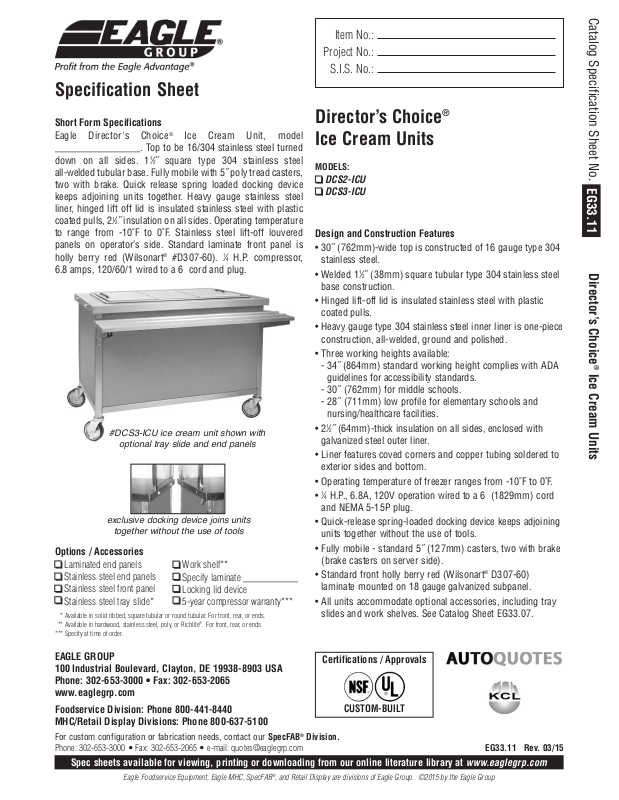

Eagle DCS2-ICU User Manual

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Director's Choice

________________. Top to be 16/304 stainless steel turned

_ down on all sides. 1

Ice Cream Unit, model

⁄2˝ square type 304 stainless steel all-welded tubular base. Fully mobile with 5˝ poly tread casters, two with brake. Quick release spring loaded docking device keeps adjoining units together. Heavy gauge stainless steel liner, hinged lift off lid is insulated stainless steel with plastic coated pulls, 21⁄2˝ insulation on all sides. Operating temperature to range from -10˚F to 0˚F. Stainless steel lift-off louvered panels on operator’s side. Standard laminate front panel is holly berry red (Wilsonart®#D307-60). 1⁄4 H.P. compressor,

6.8 amps, 120/60/1 wired to a 6 cord and plug.

#DCS3-ICU ice cream unit shown with

optional tray slide and end panels

exclusive docking device joins units

together without the use of tools

Options / Accessories

Laminated end panels Stainless steel end panels Stainless steel front panel Stainless steel tray slide*

* Available in solid ribbed, square tubular or round tubular. For front, rear, or ends.

** Available in hardwood, stainless steel, poly, or Richlite

*** Specify at time of order.

Work shelf** Specify laminate ___________ Locking lid device 5-year compressor warranty***

. For front, rear, or ends.

Director’s Choice

Ice Cream Units

MODELS:

DCS2-ICU DCS3-ICU

Design and Construction Features

• 30˝ (762mm)-wide top is constructed of 16 gauge type 304 stainless steel.

• Welded 1 base construction.

• H

inged lift-off lid is insulated stainless steel with plastic

coated pulls.

• Heavy gauge type 304 stainless steel inner liner is one-piece construction, all-welded, ground and polished.

• Three working heights available:

- 34˝ (864mm) standard working height complies with ADA

guidelines for accessibility standards.

- 30˝ (762mm) for middle schools.

- 28˝ (711mm) low profile for elementary schools and

nursing/healthcare facilities.

• 2 galvanized steel outer liner.

• Liner features coved corners and copper tubing soldered to exterior sides and bottom.

• Operating temperature of freezer ranges from -10˚F to 0˚F.

• 1⁄4 H.P., 6.8A, 120V operation wired to a 6 (1829mm) cord and NEMA 5-15P plug.

• Quick-release spring-loaded docking device keeps adjoining units together without the use of tools.

• Fully mobile - standard 5˝ (127mm) casters, two with brake (brake casters on server side).

• Standard front holly berry red (Wilsonart®D307-60) laminate mounted on 18 gauge galvanized subpanel.

• All units accommodate optional accessories, including tray slides and work shelves. See Catalog Sheet EG33.07.

⁄2˝ (38mm) square tubular type 304 stainless steel

⁄2˝ (64mm)-thick insulation on all sides, enclosed with

EG33.11

Director’s Choice

Ice Cream Units

EAGLE GROUP

Certifications / Approvals

100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440

CUSTOM-BUILT

MHC/Retail Display Divisions: Phone 800-637-5100

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: 302-653-3000 • Fax: 302-653-2065 • e-mail: quotes@eaglegrp.com

EG33.11 Rev. 03/15

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

EG33.11

Director’s Choice®Ice Cream Units

Catalog Specification Sheet No.

TOP VIEW

Item No.:

Project No.:

S.I.S. No.:

Ice Cream Units

FRONT VIEW (OPERATOR’S SIDE)

Director’s Choice

(note: model #DCS3-ICU shown with optional lift-off panels)

model # electrical data in. mm lbs. kg lbs. kg capacity

DCS2-ICU 1/4HP, 120V, 6.8A 36˝ 914 250 113.4 100 45.4 2.6 DCS3-ICU 1/4HP, 120V, 6.8A 50˝ 1270 285 129.3 150 68.0 4.2

Optional laminate end panels available. To order, add suffix “-LEP” to model number. Example: DCS2-ICU-LEP Optional stainless steel front panel in lieu of laminate front panel available. To order, add suffix “-S” to model number. Example: DCS2-ICU-S Optional stainless steel end panels available. To order, add suffix “-SEP” to model number. Example: DCS2-ICU-SEP

EAGLE GROUP 100 Industrial Boulevard, Clayton, DE 19938-8903 USA Phone: 302-653-3000 • Fax: 302-653-2065 www.eaglegrp.com

Foodservice Division: Phone 800-441-8440 MHC/Retail Display Divisions: Phone 800-637-5100

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.

SIDE VIEW

clearance on units 30˝ (763mm) height = 3.25˝ (83mm)

clearance on units 28˝ (711mm) height = 1.25˝ (32mm)

length weight capacity feet

ice cream cubic
