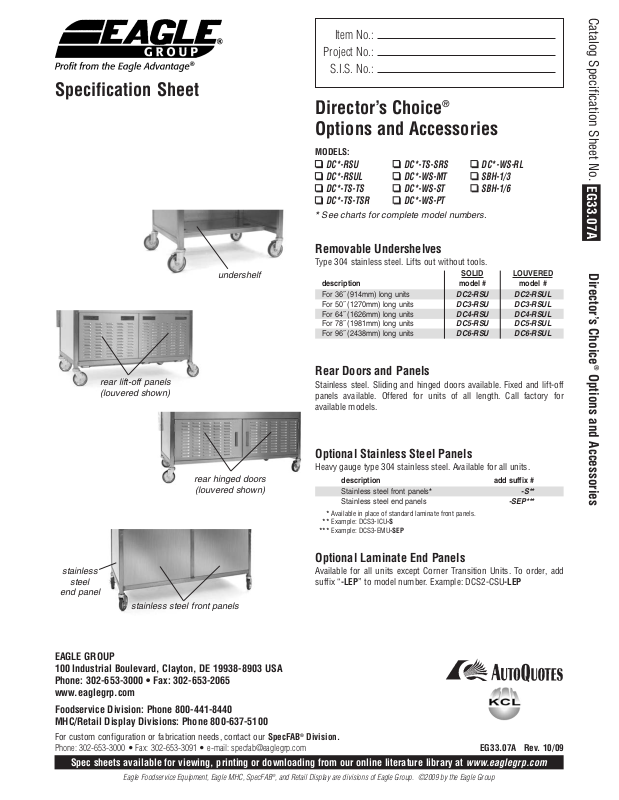

Eagle DC-RSU User Manual

Specification Sheet

undershelf

Item No.:

Project No.:

S.I.S. No.:

Director’s Choice

®

Options and Accessories

MODELS:

DC*-RSU
DC*-RSUL
DC*-TS-TS
DC*-TS-TSR

* See charts for complete model numbers.

DC*-TS-SRS
DC*-WS-MT
DC*-WS-ST
DC*-WS-PT

Removable Undershelves

Type 304 stainless steel. Lifts out without tools.

description model # model #

For 36˝ (914mm) long units DC2-RSU DC2-RSUL
For 50˝ (1270mm) long units DC3-RSU DC3-RSUL
For 64˝ (1626mm) long units DC4-RSU DC4-RSUL
For 78˝ (1981mm) long units DC5-RSU DC5-RSUL
For 96˝ (2438mm) long units DC6-RSU DC6-RSUL

DC*-WS-RL
SBH-1/3
SBH-1/6

SOLID LOUVERED

Catalog Specification Sheet No.

EG33.07A

Director’s Choice

stainless

steel

end panel

rear lift-off panels
(louvered shown)

stainless steel front panels

rear hinged doors

(louvered shown)

Rear Doors and Panels

Stainless steel. Sliding and hinged doors available. Fixed and lift-off
panels available. Offered for units of all length. Call factory for
available models.

Optional Stainless Steel Panels

Heavy gauge type 304 stainless steel. Available for all units.

description add suffix #

Stainless steel front panels* -S**
Stainless steel end panels -SEP***

* Available in place of standard laminate front panels.

** Example: DCS3-ICU-S

*** Example: DCS3-EMU-SEP

Optional Laminate End Panels

Available for all units except Corner Transition Units. To order, add
suffix “-LEP” to model number. Example: DCS2-CSU-LEP

®

Options and Accessories

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

EG33.07A Rev. 10/09

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group

EG33.07A

Director’s Choice®Options and Accessories

Tray Slides

111⁄2˝ (292mm)-wide. Heavy gauge type 304 stainless steel. Stainless steel drop brackets included.
Available in 1˝ (25mm) square tubular 3-bar style, 1
with two raised “ribs”.

length weight TUBULAR TUBULAR RIBBED

length weight HARDWOOD

Catalog Specification Sheet No.

Options and Accessories

®

tray slide

work shelf

description in. mm lbs. kg model # model # model #

For end only * 30˝ 762 26 11.8 DCE-TS-TS DCE-TS-TSR DCE-TS-SRS
For 36˝ (914mm) long units 36˝ 914 30 13.6 DC2-TS-TS DC2-TS-TSR DC2-TS-SRS
For 50˝ (1270mm) long units 50˝ 1270 36 16.3 DC3-TS-TS DC3-TS-TSR DC3-TS-SRS
For 64˝ (1626mm) long units 64˝ 1626 40 18.1 DC4-TS-TS DC4-TS-TSR DC4-TS-SRS
For 78˝ (1981mm) long units 78˝ 1981 52 23.6 DC5-TS-TS DC5-TS-TSR DC5-TS-SRS
For 96˝ (2438mm) long units 96˝ 2438 75 34.0 DC6-TS-TS DC6-TS-TSR DC6-TS-SRS

* Must be factory-installed.

Work Shelves

8˝ (203mm) wide. Includes stainless steel drop brackets.

description in. mm lbs. kg model # model # model # model #

For end only * 30˝ 762 26 11.8 DCE-WS-MT DCE-WS-ST DCE-WS-PT DCE-WS-RL
For 36˝ (914mm) long units 36˝ 914 30 13.6 DC2-WS-MT DC2-WS-ST DC2-WS-PT DC2-WS-RL
For 50˝ (1270mm) long units 50˝ 1270 36 16.3 DC3-WS-MT DC3-WS-ST DC3-WS-PT DC3-WS-RL
For 64˝ (1626mm) long units 64˝ 1626 40 18.1 DC4-WS-MT DC4-WS-ST DC4-WS-PT DC4-WS-RL
For 78˝ (1981mm) long units 78˝ 1981 52 23.6 DC5-WS-MT DC5-WS-ST DC5-WS-PT DC5-WS-RL
For 96˝ (2438mm) long units 96˝ 2438 75 34.0 DC6-WS-MT DC6-WS-ST DC6-WS-PT DC6-WS-RL

* Must be factory-installed.

Item No.:

Project No.:

S.I.S. No.:

1

⁄4˝ (32mm)-diameter round tubular 3-bar style, or solid

SQUARE ROUND SOLID

11⁄4˝-THICK 18/304

STAINLESS POLY RICHLITE

1

⁄2˝-THICK1⁄2˝-THICK

®

Stainless Steel Bottle Holders

#SBH-1/6

stainless steel

bottle holder

(bottles not

included)

Director’s Choice

U.S. Patent #7,003,969. Type 300 series stainless steel construction.

7

⁄16˝ (63mm)-diameter holes punched to accommodate plastic

2
condiment bottles. Fits Cold Food Units, Hot Food Units, Hot Food
Service Counters, and traditional 1/3- or 1/6-size food pan applications.

description model #

7˝ x 61⁄2˝ x 51⁄2˝ (178 x 165 x 140mm), holds four bottles SBH-1/6

3

⁄4˝ x 51⁄2˝ (178 x 324 x 140mm), holds eight bottles SBH-1/3

7˝ x 12

Varied Working Heights of Director’s Choice®Units

Available for Director’s Choice®units except for Refrigerated Milk Unit. Consult factory for limitations.

description of unit of unit of DCS #

“Elementary School” 28˝ (711mm) 25˝ (635mm) E***
“Middle School” 30˝ (762mm) 27˝ (686mm) M
“High School” 34˝ (864mm) **** 31˝ (787mm)

* To order units with varied tray slide heights, consult factory.

** Example: MDCS3-HFU-A

*** Elementary School height currently not available for “-CFURN” Cold Food Units (EG33.01).

**** Standard overall height of all units.
