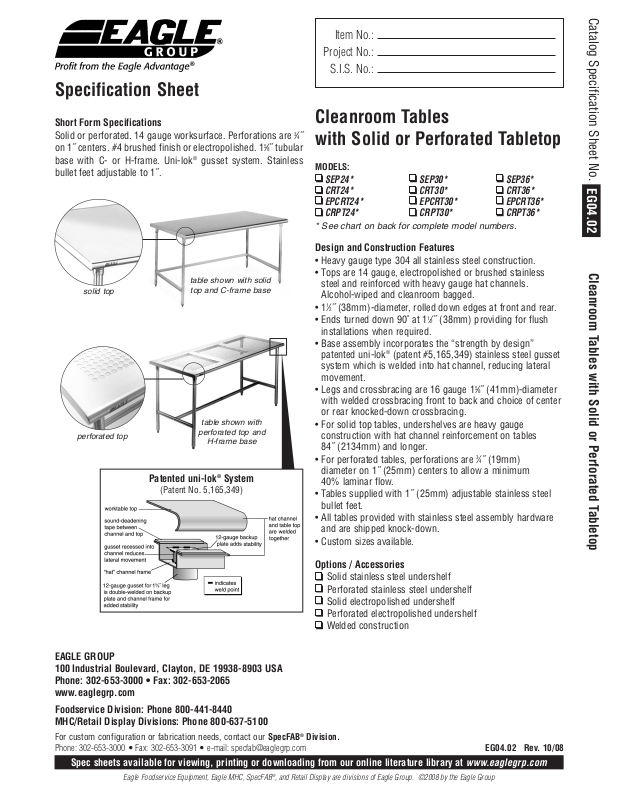

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Solid or perforated. 14 gauge worksurface. Perforations are

n 1˝ centers. #4 brushed finish or electropolished. 1

o
base with C- or H-frame. Uni-lok
bullet feet adjustable to 1˝.

solid top

perforated top

Patented uni-lok®System

(Patent No. 5,165,349)

®

gusset system. Stainless

table shown with solid
top and C-frame base

table shown with

perforated top and

H-frame base

5

⁄8˝

tubular

Cleanroom Tables

3

⁄4˝

with Solid or Perforated Tabletop

MODELS:

SEP24*
CRT24*
EPCRT24*
CRPT24*

* See chart on back for complete model numbers.

Design and Construction Features

• Heavy gauge type 304 all stainless steel construction.

• Tops are 14 gauge, electropolished or brushed stainless
steel and reinforced with heavy gauge hat channels.
Alcohol-wiped and cleanroom bagged.

• 11⁄2˝ (38mm)-diameter, rolled down edges at front and rear.

• Ends turned down 90˚ at 11⁄2˝ (38mm) providing for flush
installations when required.

• Base assembly incorporates the “strength by design”
patented uni-lok®(patent #5,165,349) stainless steel gusset
system which is welded into hat channel, reducing lateral
movement.

• Legs and crossbracing are 16 gauge 15⁄8˝ (41mm)-diameter
with welded crossbracing front to back and choice of center
or rear knocked-down crossbracing.

• For solid top tables, undershelves are heavy gauge
construction with hat channel reinforcement on tables
84˝ (2134mm) and longer.

• For perforated tables, perforations are3⁄4˝ (19mm)
diameter on 1˝ (25mm) centers to allow a minimum
40% laminar flow.

• Tables supplied with 1˝ (25mm) adjustable stainless steel
bullet feet.

• All tables provided with stainless steel assembly hardware
and are shipped knock-down.

• Custom sizes available.

SEP30*
CRT30*
EPCRT30*
CRPT30*

SEP36*
CRT36*
EPCRT36*
CRPT36*

EG04.02

Cleanroom Tables with Solid or Perforated Tabletop

Options / Accessories

Solid stainless steel undershelf
Perforated stainless steel undershelf
Solid electropolished undershelf
Perforated electropolished undershelf
Welded construction

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group

EG04.02 Rev. 10/08

Item No.:

Project No.:

EG04.02

S.I.S. No.:

Cleanroom Tables with Solid or Perforated Tabletop

Catalog Specification Sheet No.

FRONT VIEW

SIDE VIEW

1) Select a tabletop.

Choose from the following:

Solid Tabletops Perforated Tabletops

electropolished stainless * electropolished stainless * width length weight *

model # model # model # model # in. mm in. mm lbs. kg

SEP2424T CRT2424T EPCRT2424T CRPT2424T 24˝ 610 24˝ 610 30 13.6
SEP2436T CRT2436T EPCRT2436T CRPT2436T 24˝ 610 36˝ 914 40 18.1
SEP2448T CRT2448T EPCRT2448T CRPT2448T 24˝ 610 48˝ 1219 50 22.7
SEP2460T CRT2460T EPCRT2460T CRPT2460T 24˝ 610 60˝ 1524 58 26.3
SEP2472T CRT2472T EPCRT2472T CRPT2472T 24˝ 610 72˝ 1829 76 34.5

n/a CRT2484T n/a CRPT2484T 24˝ 610 84˝ 2134 80 36.3
n/a CRT2496T n/a CRPT2496T 24˝ 610 96˝ 2438 101 45.8

n/a CRT3030T n/a CRPT3030T 30˝ 762 30˝ 762 32 14.5
SEP3036T CRT3036T EPCRT3036T CRPT3036T 30˝ 762 36˝ 914 42 19.1
SEP3048T CRT3048T EPCRT3048T CRPT3048T 30˝ 762 48˝ 1219 55 24.9
SEP3060T CRT3060T EPCRT3060T CRPT3060T 30˝ 762 60˝ 1524 66 29.9
SEP3072T CRT3072T EPCRT3072T CRPT3072T 30˝ 762 72˝ 1829 79 35.8
SEP3084T CRT3084T EPCRT3084T CRPT3084T 30˝ 762 84˝ 2134 91 41.3
SEP3096T CRT3096T EPCRT3096T CRPT3096T 30˝ 762 96˝ 2438 112 50.8

SEP3636T CRT3636T EPCRT3636T CRPT3636T 36˝ 914 36˝ 914 50 22.7
SEP3648T CRT3648T EPCRT3648T CRPT3648T 36˝ 914 48˝ 1219 63 28.6
SEP3660T CRT3660T EPCRT3660T CRPT3660T 36˝ 914 60˝ 1524 75 34.0
SEP3672T CRT3672T EPCRT3672T CRPT3672T 36˝ 914 72˝ 1829 90 40.8

Cleanroom Tables with Solid or Perforated Tabletop

SEP3684T CRT3684T EPCRT3684T CRPT3684T 36˝ 914 84˝ 2134 106 48.1
SEP3696T CRT3696T EPCRT3696T CRPT3696T 36˝ 914 96˝ 2438 125 56.7

* For brushed stainless steel tabletops, add 10 lbs. to weight.

brushed brushed

2) Select a base frame.

Shipped knocked down. Must be specified with your choice of tabletop.
Choose from the following:

• Stainless steel C-frame.

• Electropolished C-frame.

• Stainless steel H-frame.

• Electropolished H-frame.

H-frame

C-frame
