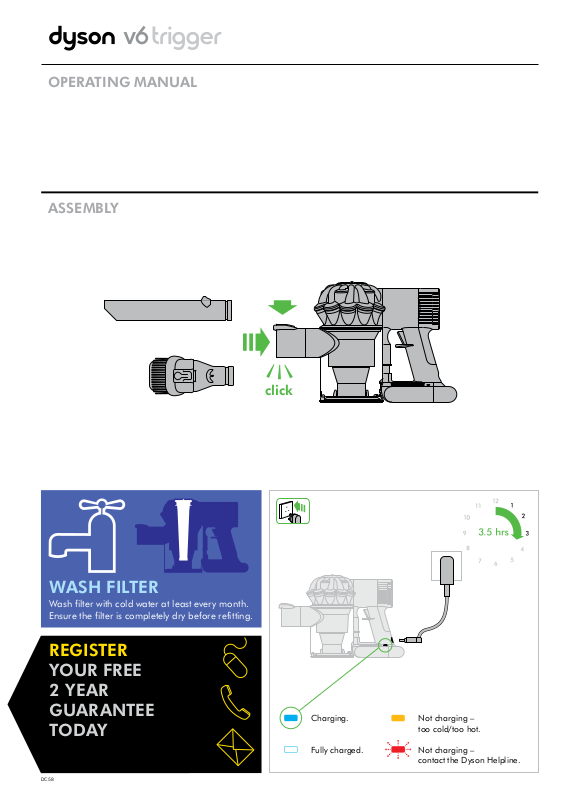

Dyson V6 trigger Instruction manual

OPERATING MANUAL
ASSEMBLY
WASH FILTER
Wash filter with cold water at least every month. Ensure the filter is completely dry before refitting.
REGISTER
click
YOUR FREE 2 YEAR GUARANTEE TODAY
DC58
Charging.
Fully charged.
Not charging – too cold/too hot.
Not charging – contact the Dyson Helpline.
DYSON CUSTOMER CARE THANK YOU FOR CHOOSING TO BUY
A DYSON APPLIANCE
After registering your free 2 year guarantee, your Dyson appliance will be covered for parts and labour for 2 years from the date of purchase, subject to the terms of the guarantee. If you have any questions about your Dyson appliance, call the Dyson Helpline with your serial number and details of where/when you bought the appliance. Most questions can be solved over the phone by one of our trained Dyson Helpline staff.
Visit www.dyson.co.uk/support (UK) or www.dyson.ie/ support (ROI) for online help, support videos, general tips and useful information about Dyson.
Your serial number can be found on your rating plate which is on the main body of the appliance behind the clear bin.
DYSON CONTACT DETAILS UK: Website: www.dyson.co.uk/support Dyson Helpline: 08002980298 Email: askdyson@dyson.co.uk Address: Dyson Ltd, Tetbury Hill, Malmesbury, Wiltshire,
SN160RP
ROI: Website: www.dyson.ie/suppor t Dyson Helpline: 014757109 Email: askdyson@dyson.co.uk Address: Dyson Ireland Limited, Unit G10, Grants Lane,
Greenogue Business Park, Rathcoole, Dublin 24
This illus tration is for example purposes only.
3 EASY WAYS TO REGISTER YOUR FREE 2 YEAR GUARANTEE
REGISTER
ONLINE
Visit our website to register your full parts and labour guarantee online.
www.dyson.co.uk/register www.dyson.ie/register
2
REGISTER
BY PHONE
Call our dedicated Helpline. Open Monday to Friday 8am-8pm & Saturday and Sunday 8am-6pm.
UK: 08002980298 ROI: 014757109
REGISTER
BY MAIL
Complete and return the form to Dyson in the envelope supplied.
EN
IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE APPLIANCE
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING
These warnings apply to the appliance, and also where applicable, to all tools, accessories, chargers or mains adaptors.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
1. This Dyson appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge, only if they have been given supervision or instruction by a responsible person concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Children should be supervised to ensure that they do not play with the appliance.
3. Use only as described in this Dyson Operating Manual. Do not carry out any maintenance other than that shown in this manual, or advised by the Dyson Helpline.
4. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces.
5. Do not handle any part of the plug or appliance with wet hands.
6. Do not use with a damaged cable or plug. If the supply cable is damaged it must be replaced by Dyson, its service agent or similarly qualified person in order to avoid a hazard.
7. If the appliance is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Dyson Helpline.
8. Contact the Dyson Helpline when service or repair is required. Do not disassemble the appliance as incorrect reassembly may result in an electric shock or fire.
9. Do not stretch the cable or place the cable under strain. Keep the cable away from heated surfaces. Do not close a door on the cable, or pull the cable around sharp edges or corners. Arrange the cable away from traffic areas and where it will not be stepped on or tripped over. Do not run over the cable.
10. Do not unplug by pulling on the cable. To unplug, grasp the plug, not the cable. The use of an extension cable is not recommended.
11. Do not use to pick up water.
12. Do not use to pick up flammable or combustible liquids, such as petrol, or use in areas where they or their vapours may be present.
13. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
14. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts, such as the brush bar. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth.
15. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
16. Use only Dyson recommended accessories and replacement parts.
17. Do not use without the clear bin and filter in place.
18. Unplug when not in use for extended periods and before maintenance or servicing.
19. Use extra care when cleaning on stairs.
20. Do not install, charge or use this appliance outdoors, in a bathroom or within 3 metres (10 feet) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or snow.
21. Use only Dyson chargers for charging this Dyson appliance. Use only Dyson batteries: other types of batteries may burst, causing injury to persons and damage.
22. FIRE WARNING – Do not place this product on or near a cooker or any other hot surface and do not incinerate this appliance even if it is severely damaged. The battery might catch fire or explode.
23. Always turn ‘OFF’ the appliance before connecting or disconnecting the motorised brush bar.
24. FIRE WARNING – Do not apply any fragrance or scented product to the filter(s) of this appliance. The chemicals in such products are known to be flammable and can cause the appliance to catch fire.
READ AND SAVE THESE INSTRUCTIONS
THIS DYSON APPLIANCE IS INTENDED FOR HOUSEHOLD USE ONLY
Do not use near naked flames.
Do not store near heat sources.
Do not pick up water or liquids.
Do not pick up burning objects.
Do not put hands near the brush bar when the appliance is in use.
Do not place on or near the cooker
3
Looking for blockages
Power mode and run-time
If you hear the motor pulsing, there is a blockage. Please look for blockages in the following places.
2
1
Combination tool
click
click
4
4
Powerful suction 17 minutes.
Diagnostics – main body and battery.
1
Solid blue: Max 'ON'.
Charging
Max mode 6 minutes.
Flashing blue: Low battery warning.
Fast flashing blue: No power, temporary fault (e.g. check filter or for blockages).
Charging.
Fully charged.
Not charging – too cold/too hot.
Not charging – contact the Dyson Helpline.
Emptying the clear bin
5
5
IMPORTANT!
WASH FILTER
Wash filter with cold water at least every month. Ensure the filter is completely dry before refitting.
6
7
USING YOUR DYSON APPLIANCE
PLEASE RE AD THE ‘IMPORTANT SAFE TY IN STRU CTIO NS’ IN TH IS DYSON OPERATING MANUAL BEFORE PROCEEDING.
OPERATION
Do not use outdoors or on wet surfaces or to vacuum water or other liquids –
electric shock could occur.
Ensure the appliance remains upright in use and in storage. Dirt and debris may
be released if it is turned upside down.
Do not operate while checking for blo ckages.
For dome stic indoor and car use only. Do not use it whilst the car is in motion or
while driving.
To operate the Max mo de, hold the trigger down and press the ‘M ax’ button.
The ‘Max’ but ton will light up.
To switch of f Max mode, hold the trigger down and press the ‘M ax’ bu tton
again. Note: The appliance will retain the last used mode. S o if you use it in max mode and do not disengage it, the appliance will operate in Max mode when it is next used until you depress the ‘Max’ but ton to disengage it.
CARPETS OR HARD FLOORS
Before vacuuming your flooring, rugs and carp ets, che ck the manufacturer’s
recommended cleaning instructions.
The brush bar on the appliance can damage certain carp et types and floors.
Some carpets will fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming without the motorised floor tool and consulting with your flooring manufacturer.
Before vacuuming highly polished floors, such as wood or lino, first check that
the underside of the floor tool and its brushes are free from foreign objects that could cause marking.
LOOKING AFTER YOUR DYSON APPLIANCE
Do not car ry out any maintenance or repair work other than that shown in this
Dyson Operating Manual, or advised by the Dyson Helpline.
Only use p arts recommended by Dyson. If you do not this could invalidate your
guarantee.
Store th e appliance indoors. Do not use or store it below 3°C (37.4°F).
Ensure the appliance is at room temperature before operating.
Clean th e appliance only with a dry cloth. Do not use any lubricants, cleaning
agents, polishes or air fresheners on any par t of the appliance.
Check the brush bar regularly and cle ar away any debris (such as hair).
Debris left on the brush bar may cause damage to flooring when vacuuming.
VACUUMING
Do not use without the clear bin and filter in place.
Fine dir t such as flour should only be vacuumed in very small amount s.
Do not use the appliance to pick up sharp hard objects, small toys, pins,
paper clips, etc. T hey may damage the appliance.
When vacuuming, certain carpets may generate small static charges in the clear
bin. These are harmless and are not associated with the mains elec tricity supply. To minimise any effect from this, do not put your hand or insert any objec t into the clear bin unless you have f irst emptied it. Clean the clear bin with a damp cloth only. (See ‘Cleaning the clear bin’.)
Use extra care wh en cleaning on stairs.
Do not rest the appliance on chairs, tables, etc.
Do not pre ss down on the nozzle with excessive force when using the appliance
as this may cause damage.
Do not leave the cle aner head in one pla ce on delicate floors.
On waxed floors the moveme nt of the cleaner he ad may cre ate an uneven
lustre. If this happens, wipe with a damp cloth, polish the are a with wax, and wait for it to dry.
DIAGNOSTICS – M AIN BODY
When in use, trigger pressed:
Solid blue: Max 'ON'.
Light of f: Power ful suction.
Flashing blue: Low batter y warning.
Fast flashing blue: No power, temporary fault (e.g. check filter or for blocka ges).
EMPTYING THE CLEAR BIN
Empty as soon as the dirt re aches the level of the MA X mark – do not overfill.
Ensure the appliance is disconnected from th e charger before emptying the clear bin. Be careful not to pull the 'ON' trigger.
To release the dirt, push the red button by the clear bin: Press once to open the bin base. Press a se cond time to release the clear bin from th e main body of the appliance.
To minimise dust/allergen contac t when emptying, encase the clear bin tightly in a plastic bag and empty.
Remove the clear bin carefully from the b ag.
Seal the bag tightly, dispose as normal.
Close the clear bin b ase so it clicks into place and is secure.
CLEANING THE CLEAR BIN
Ensure the appliance is disconnected from th e charger before re moving the clear bin. Be careful not to pull the ‘ON’ trigger.
Push the red button by the clear bin: Press once to open the bin base. Pre ss a second time to release the clear bin from the main b ody of the appliance.
Remove the clear bin carefully.
Clean th e clear bin with a damp cloth only.
Do not use detergents, polishes or air fresheners to clean the clear bin.
Do not put the clear bin in a dishwasher.
Clean th e cyclone shroud with the brush on the combination tool to re move lint and dust.
Ensure the clear bin is completely dr y before replacing.
To replace the clear bin, push the clear bin up and in to the main body of the appliance. It will click into place.
Close the clear bin b ase so it clicks into place and is secure.
WASHING YOUR FILTER
Ensure the appliance is disconnected from th e charger before re moving the filter. Be careful not to pull the ‘ON’ trig ger.
Your appliance has one washable filter, located as shown.
To remove the f ilter, lift it out of the top of the appliance.
Check an d wash the f ilter regularly according to instructions to maintain performance.
The filter may require more f requent washing if vacuuming fine dus t or if used mainly in ‘Powerf ul suction’ mode.
Wash the filter with cold water only. No hot water and no detergents.
Run water over the ou tside of the filter until the water runs clear.
Squeeze and twist with both hands to make sure the excess water is removed.
Leave the filter to dry completely for a minimum of 24 hours.
Do not put the filter in a dishwasher, washing machine, tumble dryer, oven, microwave or near a naked flame.
To refit, place the dry filter back into the top of the appliance. Make sure it is seate d properly.
To watch a shor t online video visit:
– www.dyson.co.uk/sv03filterwash – www.dyson.ie/sv03filterwash
LOOKING FOR B LOCKAGES
The motor will pulse when there is a blockage. Please follow the instructions below to locate the blockage:
Ensure the appliance is disconnected from th e charger before looking for blockages. Be careful not to pull the ‘O N’ trigger.
Do not operate while checking for blo ckages. Doing so could result in personal injury.
Beware of sharp objects w hen checking for blockage s.
If you cannot clear an obstruction you may need to remove the brush bar. Use a coin to unlock the fastener, slide the brush bar out of the cle anerhead and remove the obstruction. Replace the brush bar and secure it by tightening the fas tener. Ensure it is fixed firmly before operating the appliance.
Refit all part s securely before using.
Clearing blockages is not covered by your guarantee.
BLOCK AGES – THERMAL CUT-OUT
This appliance is fitted with an automatically resetting thermal cut-out.
Large items may block the tools or nozzle. If any part becomes blocked the appliance may overheat and automatically cut-out.
Leave to cool down for 1-2 hours bef ore checking the filter or for blockag es.
Ensure the appliance is disconnected from th e charger before looking for blockages. Failure to do so could result in personal injury.
Clear any blockage before re star ting.
Refit all part s securely before using.
Clearing blockages is not covered by your guarantee.
CHARGING AND STORING
This appliance will switch ‘O FF’ if the batte ry temperature is below 3 °C (37.4°F). This is designed to protect the motor and battery. Do not charge the applian ce and then move it to an are a with a temperature below 3 °C (37.4°F) for storage purposes.
To help prolong battery lif e, avoid recharging immediately after a full discharge. Allow to cool for a few minutes.
Avoid usin g the appliance with the bat tery flush to a surface. This will help it run cooler and prolong battery run time and lif e.
88
DIAGNOSTICS – BATTERY
When in use, trigger pressed:
Solid blue: 'ON '.
Flashing blue: No power, charge batter y.
Flashing amber: No power, temporary fault (e.g. too hot/cold).
Solid amber: Fault (contac t Dyson Helpline).
Flashing red: Fault (contact Dyson helpline).
When charging batter y:
Solid blue: Charging.
Flashing blue: Not charging – Re -fit charger or tr y another socket. If persis ts, contact Dyson Helpline.
Lights off: Charging complete.
Solid amber: Not charging, temporar y fault (e.g. too hot/cold).
Flashing red: Fault (contact Dyson helpline).
BATTERY SAFETY INSTRUCTIONS
If the batter y needs replacing please contac t the Dyson Helpline.
Use only D yson chargers for charging this Dyson appliance.
The bat ter y is a seale d unit and under normal circums tances poses no s afet y concerns. In the unlikely event that liquid leaks from the battery do not touch the liquid and observe the following precautions:
– Skin contact – can cause irritation. Wash with soap and wa te r. – Inhalation – can cause respirator y irritation. Expose to fresh air and seek
medical advice.
– Eye contact – can cause irritation. Immediately flush eyes thoroughly with
water for at leas t 15minutes. Seek medical attention.
– Disposal – wear gloves to handle the batter y and dispose of immediately,
following local ordinances or regulations.
CAUTION
The bat ter y used in this device may prese nt a risk of fire or chemical burn if mistreated. D o not disassemble, short contacts, heat above 60°C(140°F), or incinerate. Keep away from children. Do not disassemble and do not dispose of in fire.
DISPOSAL INFORMATION
Dyson products are made from high grade recyclable materials. Recycle where possible.
The bat ter y should be removed f rom the pro duct before disposal.
Dispose of or recycle the battery in accordance with local ordinances or regulations.
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or hum an health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reus e of mater ial resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
ONLINE SUPPORT
For online help, gene ral tips, videos and useful information about Dyson.
– www.dyson.co.uk/sv03supportvideos – www.dyson.ie/sv03supportvideos
DYSON CUSTOMER CARE
THANK YOU FOR CHOOSING TO BUY A DYSON APPLIANCE
After registering your free 2 year guarantee, your Dyson appliance will be covered for parts and labour for 2 years from th e date of purchase, subject to the terms of the guarantee. If you have any questions about your Dy son appliance, call the D yson Helpline with your serial number and details of where/when you bought the appliance. Most questions can be solved over the phone by one of our trained Dy son Helpline s taf f. Visit www.dyson.co.uk/support (UK) or www.dyson.ie/support (R OI) for online help, support videos, general tips and useful information about Dyson. Your serial number can be found on your rating plate which is on the main body of the appliance behind the clear bin. If your Dyson appliance ne eds a ser vice, call the Dyson Helpline so we can discuss the available options. If your Dyson appliance is under guarantee, and the repair is covered, it will be repaire d at no cost.
PLEASE REGISTER AS A DYSON APPLIANCE OWNE R
To help us ensure you receive prompt and efficient service, please register as a Dyson appliance owner. There are three ways to do this:
Online at www.dyson.co.uk /register (UK) or ww w.dyson.ie/register (ROI).
Telephone the Dyson Helpline on 08002980298 (U K) or 014757109 (ROI).
Complete the enclosed form and pos t it to us. This will confirm ownership of your Dy son appliance in the event of an insurance loss, and enable us to contac t you if necessary.
LIMITED 2 YEAR GUAR ANTEE
TER MS AND CONDITIONS OF THE DYSON 2 YEA R LIMITED GUARANTEE
WHAT IS COVERED
The repair or replacement of your Dyson appliance (at Dy son’s discretion) if it is found to be defective due to fault y mater ials, workmanship or function within 2 years of purchase or delivery (if any part is no longer available or out of manufacture D yson will replace it with a functional replac ement part).
Where this machin e is sold outside of the EU, this war ranty will only be valid if the appliance is used in the country in which it was sold.
Where this machin e is sold within the EU, this warranty will only be valid (i) if the appliance is used in the country in which it was sold or (ii) if the appliance is used in Austria, B elgium, France, Ger many, Ireland, Italy, Netherlands, Spain or the United Kingdom and the same model as this appliance is sold at the same voltage rating in the relevant countr y.
WHAT IS NOT COVERED
Dyson does not guarantee the repair or replacement of a product where a defect is the result of:
Accidental damage, faults caused by negligent use or care, misuse, neglec t, carelessness or operation or handling of the appliance which is not in accordance with the Dyson Operating Manual.
Use of the appliance for anything other than normal domestic household purposes.
Use of parts not assembled or installed in accordance with the instructions of Dyson.
Use of parts and a ccessories which are not genuine Dy son comp onents.
Fault y installation (except where installed by Dyson).
Repairs or alterations carried out by parties other than Dyson or its authorised agents.
Blockages – please refer to the Dyson Operating Manual for de tails of how to look for and clear blockages.
Normal wear and tear (e.g. fuse, brush bar etc.).
Use of this appliance on rubble, ash, plaster.
Reduc tion in batter y discharge time due to battery age or use (where applicable). If you are in any doubt as to what is covered by your guarantee, please contac t the Dyson Helpline.
SUMMARY OF COVER
The guarantee becomes effective at the date of purchase (or the date of deliver y if this is later).
You must provide proof of (both the original an d any subse quent) delivery/purchase before any work can be carried out on your Dyson appliance. Without this proof, any work car ried out will be chargeable. Keep your receipt or delivery note.
All work w ill be carried out by Dyson or its authorised agents.
Any par ts which are replaced by Dyson will become the proper ty of Dyson.
The repair or replacement of your Dyson appliance under guarantee will not extend the period of guarantee.
The guarantee provides benefit s which are a ddition al to and do not affe ct your statutory rights as a consumer.
ABOUT YOUR PRIVACY
Your information will b e held by Dyson and its agents for promotional, marketing and servicing purposes.
If your personal d etails change, if you change your mind about any of your marketing prefe rences or if you have any queries about how we use your information, please contact the Dyson Helpline.
For more information on how we protect your privacy, please see our privacy policy on the Dyson website.
99
IMPORTANT!
WASH FILTER
Wash filter with cold water at least every month. Ensure the filter is completely dry before refitting.
DYSON CUSTOMER CARE
After registering your free 2 year guarantee, your Dyson appliance will be covered for parts and labour for 2 years from the date of purchase, subject to the terms of the guarantee. If you have any questions about your Dyson appliance, call the Dyson Helpline with your serial number and details of where/when you bought the appliance. Most questions can be solved over the phone by one of our trained Dyson Helpline staff.
DYSON CONTACT DETAILS UK: Website: www.dyson.co.uk/support Dyson Helpline: 08002980298 Email: askdyson@dyson.co.uk Address: Dyson Ltd, Tetbury Hill,
Malmesbury, Wiltshire, SN160RP
ROI: Website: www.dyson.ie/suppor t Dyson Helpline: 014757109 Email: askdyson@dyson.co.uk Address: Dyson Ireland Limited,
Unit G10, Grants Lane, Greenogue Business Park, Rathcoole, Dublin 24
JN. 8023 0 PN.2 08652- 32-0 2 29.01.16
www.dyson.com
Serial number
GUARANTEE FORM
Date of purchase
Title
First name
Address
Postcode
email
Telephone Mobile
As a Dyson appliance owner, you can hear about Dyson inventions, services and products before anyone else. If it’s okay to contact you, please let us know how we may do this.
By mail Yes No
By phone Yes No
By email Yes No
By text message Yes No
/ /
Surname
We sometimes ask other companies (such as market researchers) to contact owners on our behalf. We do this to get feedback on ideas or ask you to try new products and services. Would this be okay?
Yes No
Country of purchase
UK ROI
3 EASY WAYS TO REGISTER YOUR FREE 2 YEAR GUARANTEE
REGISTER
ONLINE
Visit our website to register your full parts and labour guarantee online.
www.dyson.co.uk/register www.dyson.ie/register
REGISTER
BY PHONE
Call our dedicated Helpline. Open Monday to Friday 8am-8pm & Saturday and Sunday 8am-6pm.
UK: 08002980298 ROI: 014757109
REGISTER
BY MAIL
Complete and return the form to Dyson in the envelope supplied.
Loading...
