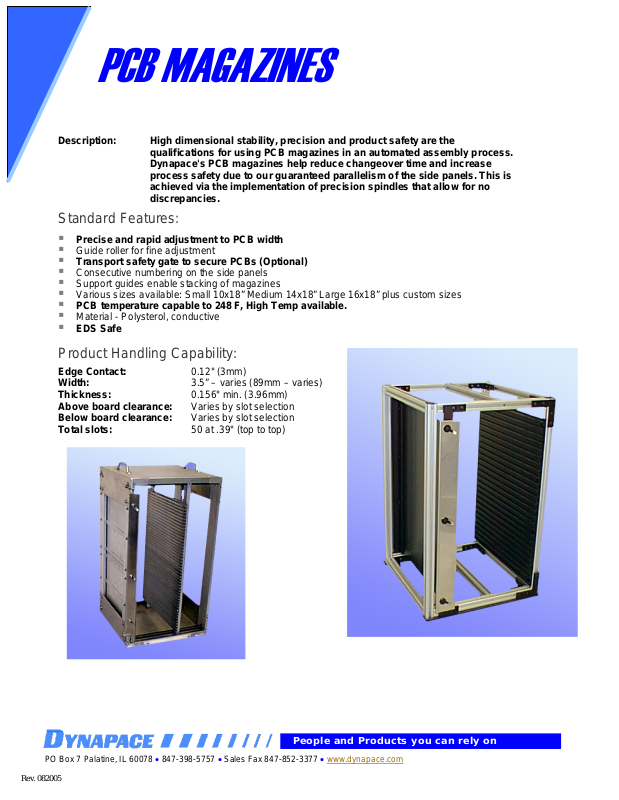

PCB MAGAZINES

Description: High dimensional stability, precision and product safety are the

qualifications for using PCB magazines in an automated assembly process.
Dynapace's PCB magazines help reduce changeover time and increase
process safety due to our guaranteed parallelism of the side panels. This is
achieved via the implementation of precision spindles that allow for no

S tandard Features:



Precise and rapid adjustment to PCB width

 Guide roller for fine adjustment
 Transport safety gate to secure PCBs (Optional)
 Consecutive numbering on the side panels
 Support guides enable stacking of magazines
 Various sizes available: Small 10x18” Medium 14x18” Large 16x18” plus custom sizes
 PCB temperature capable to 248 F, High Temp available.
 Material - Polysterol, conductive
 EDS Safe

Product Handling Capability:

Edge Contact:
Width:
Thickness:
Above board clearance:
Below board clearance:
Total slots:

discrepancies.

0.12" (3mm)

3.5” – varies (89mm – varies)

0.156" min. (3.96mm)
Varies by slot selection
Varies by slot selection
50 at .39" (top to top)
