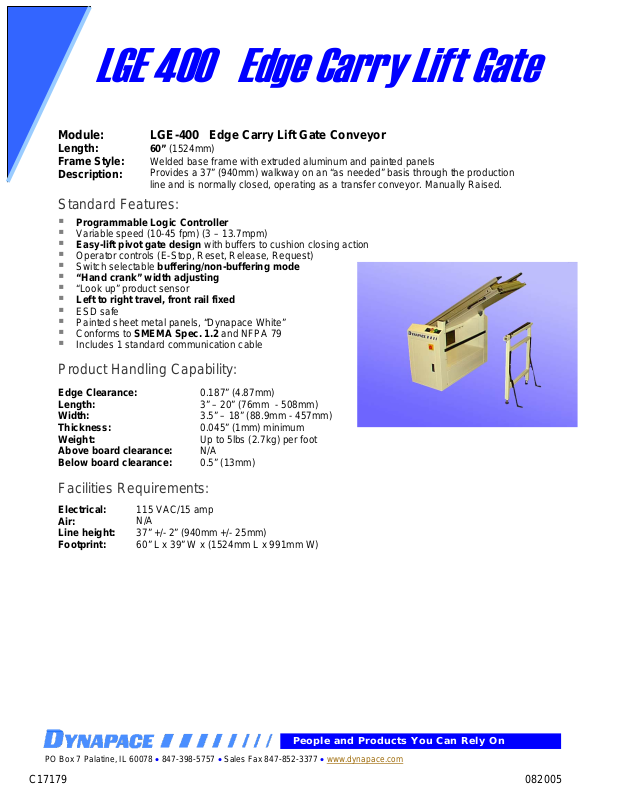

LGE 400 Edge Carry Lift Gate

Module: LGE-400 Edge Carry Lift Gate Conveyor

Length:
Frame Style:
Description:

Standard Features:

 Programmable Logic Controller
 Variable speed (10-45 fpm) (3 – 13.7mpm)
 Easy-lift pivot gate design with buffers to cushion closing action
 Operator controls (E-Stop, Reset, Release, Request)
 Switch selectable buffering/non-buffering mode
 “Hand crank” width adjusting
 “Look up” product sensor
 Left to right travel, front rail fixed
 ESD safe
 Painted sheet metal panels, “Dynapace White”
 Conforms to SMEMA Spec. 1.2 and NFPA 79
 Includes 1 standard communication cable

Product Handling Capability:

Edge Clearance:
Length:
Width:
Thickness:
Weight:
Above board clearance:
Below board clearance:

Facilities Requirements:

Electrical:
Air:
Line height:
Footprint:

60” (1524mm)

Welded base frame with extruded aluminum and painted panels
Provides a 37” (940mm) walkway on an “as needed” basis through the production
line and is normally closed, operating as a transfer conveyor. Manually Raised.

0.187” (4.87mm)
3” – 20” (76mm - 508mm)

3.5” – 18” (88.9mm - 457mm)

0.045” (1mm) minimum
Up to 5lbs (2.7kg) per foot
N/A

0.5” (13mm)

115 VAC/15 amp
N/A
37” +/- 2” (940mm +/- 25mm)
60” L x 39” W x (1524mm L x 991mm W)
