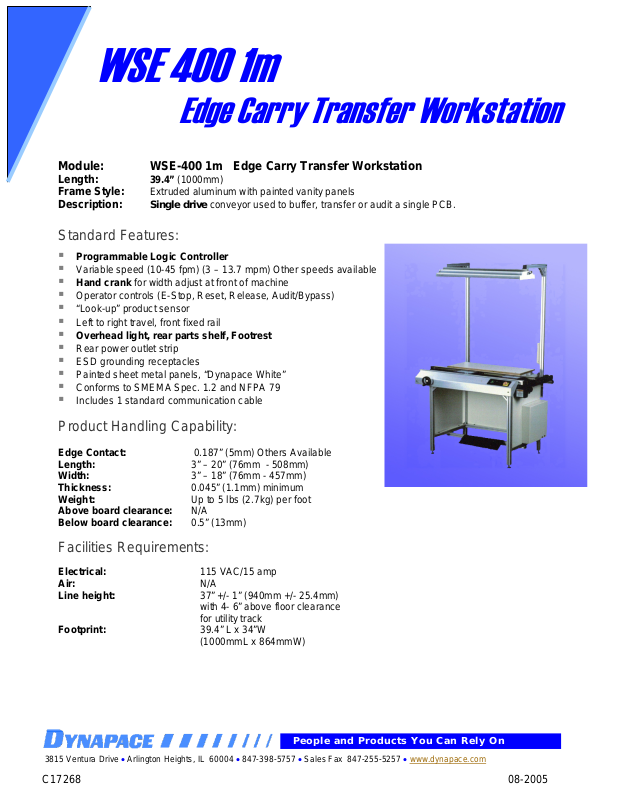

WSE 400 1m
Edge Carry Transfer Workstation
Module: WSE-400 1m Edge Carry Transfer Workstation
Length:
Frame Style:
Description:
Standard Features:
Programmable Logic Controller
Variable speed (10-45 fpm) (3 – 13.7 mpm) Other speeds available
Hand crank for width adjust at front of machine
Operator controls (E-Stop, Reset, Release, Audit/Bypass)
“Look-up” product sensor
Left to right travel, front fixed rail
Overhead light, rear parts shelf, Footrest
Rear power outlet strip
ESD grounding receptacles
Painted sheet metal panels, “Dynapace White”
Conforms to SMEMA Spec. 1.2 and NFPA 79
Includes 1 standard communication cable
Product Handling Capability:
Edge Contact:
Length:
Width:
Thickness:
Weight:
Above board clearance:
Below board clearance:
Facilities Requirements:
Electrical:
Air:
Line height:
Footprint:
39.4” (1000mm)
Extruded aluminum with painted vanity panels
Single drive conveyor used to buffer, transfer or audit a single PCB.
0.187” (5mm) Others Available
3” – 20” (76mm - 508mm)
3” – 18” (76mm - 457mm)
0.045” (1.1mm) minimum
Up to 5 lbs (2.7kg) per foot
N/A
0.5” (13mm)
115 VAC/15 amp
N/A
37” +/- 1” (940mm +/- 25.4mm)
with 4- 6” above floor clearance
for utility track
39.4” L x 34”W
(1000mmL x 864mmW)
3815 Ventura Drive • Arlington Heights, IL 60004 • 847-398-5757 • Sales Fax 847-255-5257 • www.dynapace.com
C17268 08-2005
