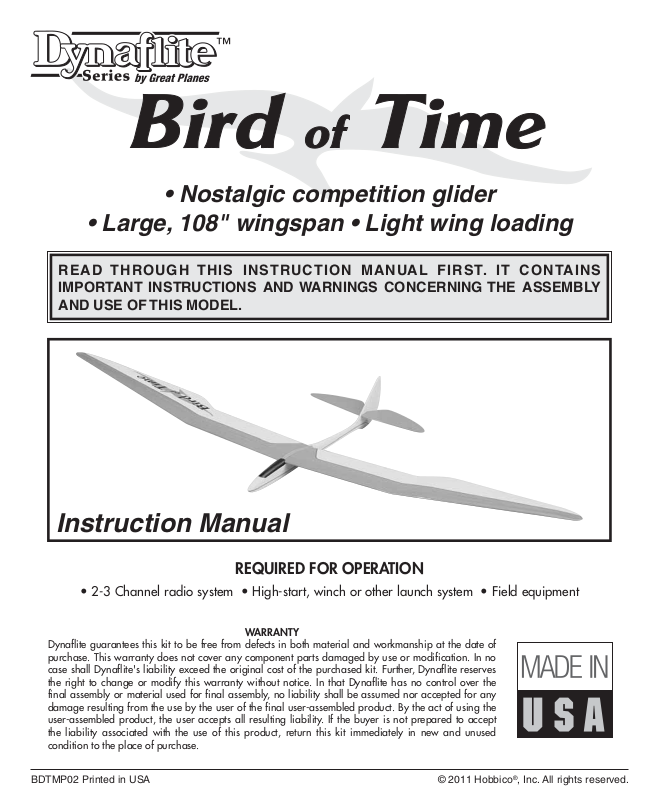

Dynaflite GPMA0570 User Manual

™

• Nostalgic competition glider

• Large, 108" wingspan • Light wing loading

READ THROUGH THIS INSTRUCTION MANUAL FIRST. IT CONTAINS
IMPORTANT INSTRUCTIONS AND WARNINGS CONCERNING THE ASSEMBLY
AND USE OF THIS MODEL.

Instruction Manual

REQUIRED FOR OPERATION

• 2-3 Channel radio system • High-start, winch or other launch system • Field equipment

Dynaflite guarantees this kit to be free from defects in both material and workmanship at the date of
purchase. This warranty does not cover any component parts damaged by use or modification. In no
case shall Dynaflite's liability exceed the original cost of the purchased kit. Further, Dynaflite reserves
the right to change or modify this warranty without notice. In that Dynaflite has no control over the
final assembly or material used for final assembly, no liability shall be assumed nor accepted for any
damage resulting from the use by the user of the final user-assembled product. By the act of using the
user-assembled product, the user accepts all resulting liability. If the buyer is not prepared to accept
the liability associated with the use of this product, return this kit immediately in new and unused
condition to the place of purchase.

BDTMP02 Printed in USA

WARRANTY

© 2011 Hobbico®, Inc. All rights reserved.

PROTECT YOUR MODEL,

YOURSELF & OTHERS BY

FOLLOWING THIS

IMPORTANT SAFETY

PRECAUTION

Your Bird of Time is not a toy, but a sophisticated
working model that functions very much like a full­size airplane. Because of its realistic performance,
the Bird of Time, if not assembled and operated
correctly, could possibly cause injury to yourself or
spectators and damage property.

To make your R/C modeling experience totally
enjoyable, we recommend that you get experienced,
knowledgeable help with assembly and during your
first flights. You'll learn faster and avoid risking your
model before you're truly ready to solo. Your local
hobby shop has information about flying clubs in your
area whose membership includes qualified instructors.

2. You must take sufficient time to build straight, true
and strong.

3. You must properly install all R/C and other
components so that the model operates properly on
the ground and in the air.

4. You must test the operation of the model before the
first and each successive flight to insure that all
equipment is operating correctly. You must also make
certain that the model has remained structurally sound.

NOTE:

you with a quality kit and great instructions, but
ultimately the quality and flyability of your
finished model depends on how you assemble it;
therefore, we cannot in any way guarantee the
performance of your completed model and no
representations are expressed or implied as to the
performance or safety of your completed model.

We, as the kit manufacturer, can provide

You can also contact the national Academy of Model
Aeronautics (AMA), which has more than 2,300
chartered clubs across the country. Through any one
of them, instructor training programs and insured
newcomer training are available. Contact the AMA
at the address or toll-free phone number below.

Academy of Model Aeronautics

5151 East Memorial Drive

Muncie, IN 47302

[phone]

Fax [phone]

PRECAUTIONS

1. You must assemble the plane according to the
instructions. Do not alter or modify the model, as
doing so may result in an unsafe or unflyable model.
In a few cases the instructions may differ slightly
from the drawings or plan. In those instances you
should assume the written instructions are correct.

INTRODUCTION

Congratulations on your choice of this kit for your
next project. The Bird of Time is an unusual looking
model that has the presence only a big model can
carry off.

At Dynaflite we take pride in offering kits that are
simple and straightforward to build and provide
value for your modeling dollar. Because of the size
and cost of this model, we assume you have built
several models and have a general working
knowledge of modeling and its terms. If you HAVE
NOT built and flown several kits, we suggest that
you get some experience before beginning this kit.

Please inventory and inspect all parts carefully
before starting to build! If any parts are missing,
broken or defective or if you have any questions
about building or flying this model, please call us at
[phone] and we'll be glad to help. If you
are calling for replacement parts, please look up the
part numbers and have them ready when calling.

2

REQUIRED ITEMS

❏ 2-3 channel radio with 2-3 micro or

mini servos

❏ Top Flite

(approx. 3 rolls)

®

MonoKote® covering

❏ 1/4" Latex Foam Rubber (HCAQ1000)

OPTIONAL

❏ Remote tow hook release

❏ Paint for fuselage

SUGGESTED SUPPLIES

IMPORTANT BUILDING NOTE:

you will be using a number of balsa sticks to frame
various assemblies. Ample material is included but
you should study the plans, then make an effort to cut
the longest pieces you will need first. Label the pieces
as you cut them for later reference. By doing this
now, you won’t have to splice pieces together later.

During construction

❏ 2 oz. Thin CA Adhesive - (GPMR6003)

❏ 1 oz. Thick CA Adhesive - (GPMR6015)

❏ CA Accelerator - (GPMR6035)

❏ CA Applicator Tips - (HCAR3780)

❏ 6-Minute Epoxy - (GPMR6045)

❏ 30-Minute Epoxy - (GPMR6047)

❏ 4 oz. Aliphatic Resin Glue (TITR2010)

On our workbench, we have four 11" Easy-Touch™
Bar Sanders, equipped with #50, #80, #150 and
#220-grit sandpaper. This setup is all that is required
for almost any sanding task. Custom sanding blocks
can be made from balsa for sanding hard-to-reach
spots. We also keep some #320-grit wet-or-dry
sandpaper handy for finish sanding before covering.

3

DIE-CUT PATTERNS

4
