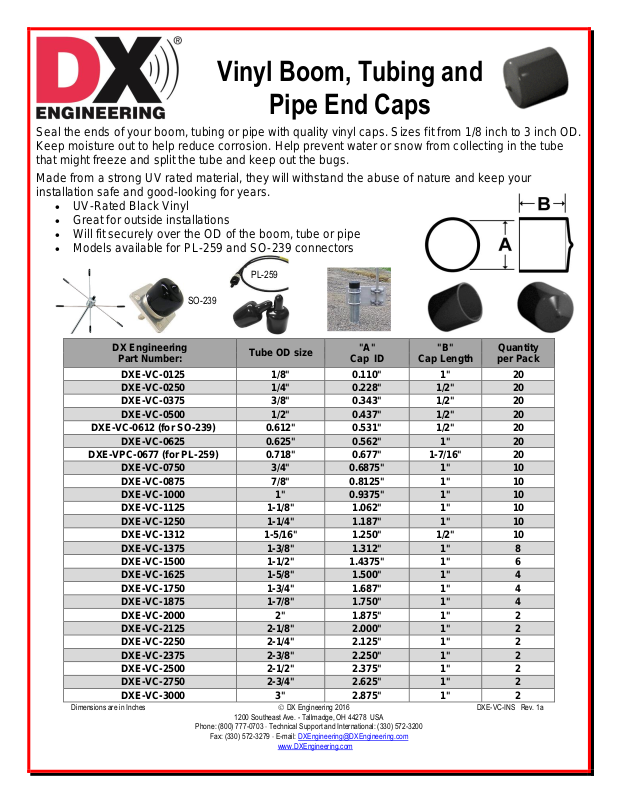

DX Engineering DXE-VPC-0677 Selection Chart

DX Engineering

Part Number:

Tube OD size

"A"

Cap ID

"B"

Cap Length

Quantity
per Pack

DXE-VC-0125

1/8"

0.110"

1"

20

DXE-VC-0250

1/4"

0.228"

1/2"

20

DXE-VC-0375

3/8"

0.343"

1/2"

20

DXE-VC-0500

1/2"

0.437"

1/2"

20

DXE-VC-0612 (for SO-239)

0.612"

0.531"

1/2"

20

DXE-VC-0625

0.625"

0.562"

1"

20

DXE-VPC-0677 (for PL-259)

0.718"

0.677"

1-7/16"

20

DXE-VC-0750

3/4"

0.6875"

1"

10

DXE-VC-0875

7/8"

0.8125"

1"

10

DXE-VC-1000

1"

0.9375"

1"

10

DXE-VC-1125

1-1/8"

1.062"

1"

10

DXE-VC-1250

1-1/4"

1.187"

1"

10

DXE-VC-1312

1-5/16"

1.250"

1/2"

10

DXE-VC-1375

1-3/8"

1.312"

1" 8 DXE-VC-1500

1-1/2"

1.4375"

1" 6 DXE-VC-1625

1-5/8"

1.500"

1" 4 DXE-VC-1750

1-3/4"

1.687"

1" 4 DXE-VC-1875

1-7/8"

1.750"

1" 4 DXE-VC-2000

2"

1.875"

1" 2 DXE-VC-2125

2-1/8"

2.000"

1" 2 DXE-VC-2250

2-1/4"

2.125"

1" 2 DXE-VC-2375

2-3/8"

2.250"

1" 2 DXE-VC-2500

2-1/2"

2.375"

1" 2 DXE-VC-2750

2-3/4"

2.625"

1"

2

DXE-VC-3000

3"

2.875"

1"

2

Vinyl Boom, Tubing and
Pipe End Caps

Seal the ends of your boom, tubing or pipe with quality vinyl caps. Sizes fit from 1/8 inch to 3 inch OD.
Keep moisture out to help reduce corrosion. Help prevent water or snow from collecting in the tube
that might freeze and split the tube and keep out the bugs.

Made from a strong UV rated material, they will withstand the abuse of nature and keep your
installation safe and good-looking for years.

 UV-Rated Black Vinyl
 Great for outside installations
 Will fit securely over the OD of the boom, tube or pipe
 Models available for PL-259 and SO-239 connectors

PL-259

SO-239

Dimensions are in Inches  DX Engineering 2016 DXE-VC-INS Rev. 1a
