DX Engineering DXE-VA-PIVOT-3 Instructions manual

DX Engineering

Heavy Duty Pivot

Base for Three Inch

Base Section

Vertical Antennas

DXE-VA-PIVOT-3

US Patent No. 8,130,168

DXE-VA-PIVOT-3-INS Revision 0c

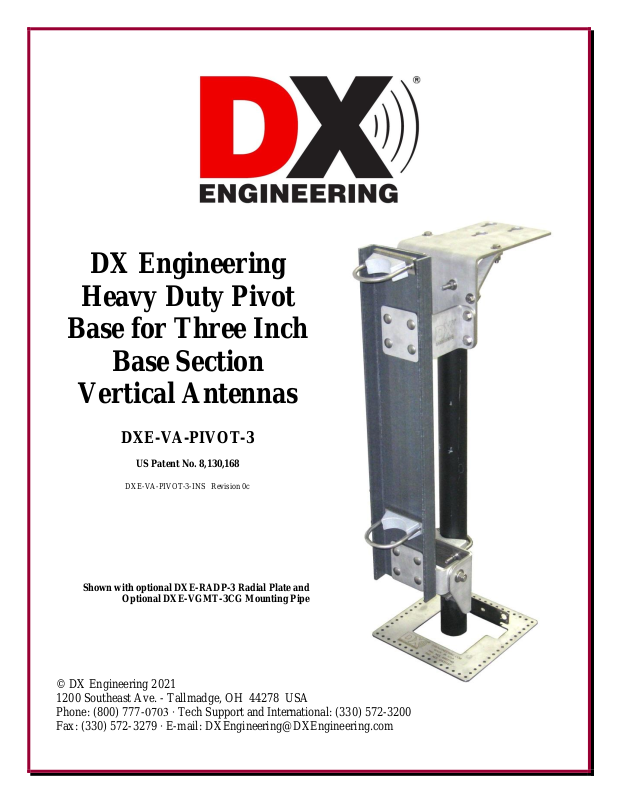

Shown with optional DXE-RADP-3 Radial Plate and

Optional DXE-VGMT-3CG Mounting Pipe

© DX Engineering 2021
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: [phone] ∙ Tech Support and International: [phone]
Fax: [phone] ∙ E-mail: [e-mail]

- 1 -

Introduction

Congratulations on obtaining your DX Engineering Three Inch Base Pivot Assembly DXE-VA­Pivot-3. Now you can have a high-performance pivot base for a vertical antenna with a three inch

base section. This is the same rugged pivot base assembly used on the DXE-8040VA-1 fifty-five
foot tall dual-band vertical antenna.

Features

High Strength Pivoting Fixture - US Patent No. 8,130,168

 Ultra-rugged construction for vertical antennas starting with a 3 inch OD heavy wall tubing
 Massive Extren® channel insulator
 Laser-cut high strength Stainless Steel brackets
 All Stainless Steel Hardware

The optional DXE-VRW-1 Manual Winch for easy one-person raising and lowering of your
vertical antenna is available from DX Engineering. You can move the DXE-VRW-1 winch
between similar antennas in a multi-antenna installation.

This heavy duty pivot base system requires the installation of a heavy duty mounting pipe set in
concrete. Specifically, 3" OD (max) high strength galvanized steel tubing with 0.250” minimum

wall thickness and 7’ minimum length, which is available from DX Engineering; part number DXE-
VGMT-3CG. A customer supplied 2-1/2" Schedule 80 pipe that has an outside diameter of 2.875"
is also suitable. Thirty six inches of the mounting pipe should extend above ground level. Depth of
the mounting hole and amount of concrete is dependent on local soil type, condition and
antenna guying.

WARNING!

INSTALLATION OF ANY ANTENNA NEAR POWER LINES IS DANGEROUS

Warning: Do not locate the antenna near overhead power lines or other electric light or power

circuits, or where it can come into contact with such circuits. When installing the antenna, take
extreme care not to come into contact with such circuits, because they may cause serious injury or
death. Keep your distance! Remember the 10-foot rule: When carrying and using ladders and other
long tools, keep them at least 10 feet away from all overhead lines - including any lines from the
power pole to your home.

- 2 -

Tools Required

Two 9/16" wrenches, (one of them should be open-end)
One 7/16" open end wrench
Two 3/4" wrenches

Manual Updates and Information

Every effort is made to supply the latest manual revision with each product. Occasionally a manual
will be updated between the time your DX Engineering product is shipped and when you receive it.
Please check the DX Engineering web site (www.dxengineering.com) for the latest revision manual.

Please - Take the time to read the entire manual before you start assembly. There are plenty of

pictures and drawings to see, and if you read the entire manual first, you'll get a better feel for the
overall construction methods described. Assembly is not difficult, but there are a number of parts
that must go together in a certain sequence to make assembly easier.

Installation Sequence

1. Site Selection

2. Mounting Pipe

3. Coaxial Cable to Mounting Pipe

4. Radial System Suggestions

5. Pivot Base Assembly (US Patent No. 8,130,168)

6. Mounting Pivot Base to Mounting Pipe

7. Optional DXE-VRW-1 Manual Winch installation and use

Site Selection

Select a mounting location clear from power lines, structures and other antennas by a minimum of
your antenna height plus 10 feet (10 ft. safety rule). Consider overhead power lines, utility cables
and wires. The further away your vertical antenna is mounted from local noise sources or other
metallic objects, which can re-radiate noise and affect the tuning, radiation pattern and SWR, the
better. Determine the direction you want the antenna to pivot and make sure there is adequate
clearance.

- 3 -

Mounting Pipe

DX Engineering has a Chromoly Steel mounting mast available - Part Number
DXE-VGMT-3CG is 3 inches OD, Chrome-Moly 4130 Steel Tubing, 100K
PSI Min. Yield, 3 in. OD, 0.250 in. Wall, 7 ft. Length,

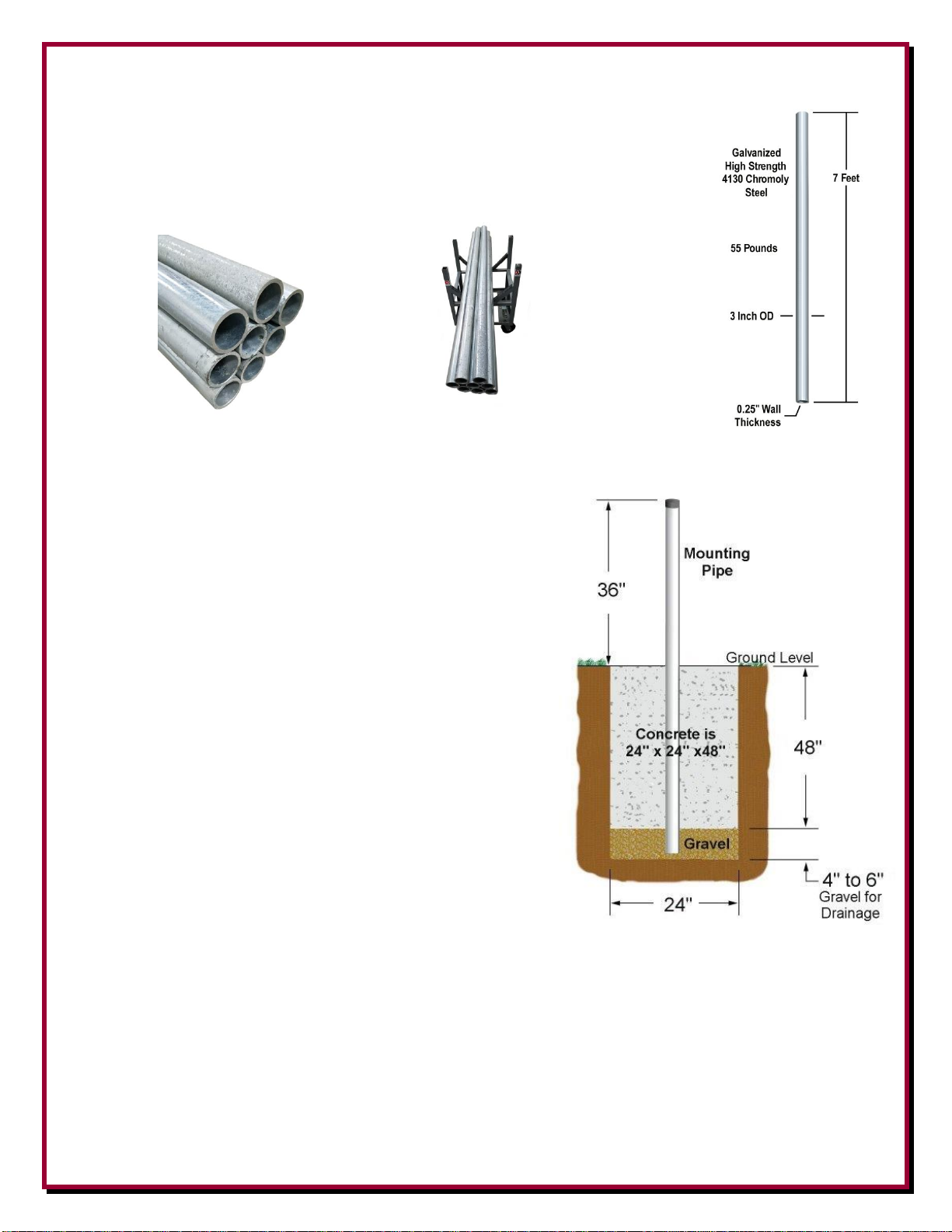

This mounting pipe must be permanently mounted in the ground, preferably in a concrete base 2
feet by 2 feet by 4 feet deep (with gravel below for drainage). The antenna system requires this type
of mounting to help withstand the lateral forces present on
the antenna during wind conditions and when operating the
pivot function. Make the hole deep enough to
accommodate at least 4 feet of pipe and 4 to 6 inches of
gravel at the bottom for drainage. Set the mounting pipe on
the gravel, use the concrete to fill around the pipe per the
concrete instructions. Fill the hole until the concrete is
level with the ground around it. Use a level on the
mounting pipe as you fill the hole to be sure the mounting
pipe is vertically straight.

Your location, landscape and ground conditions may
require different mounting solutions in order to have the
steel mounting pipe and the vertical antenna in a secure
position.

Note: Galvanized steel, rather than aluminum, is

much more suitable for mounting in concrete.
Aluminum will quickly corrode due to
incompatibility with the materials used to make
concrete.

Coaxial Cable to Mounting Pipe

The coaxial cable should be routed to the base of the antenna system and be buried below the radial
system. PVC Conduit pipe may be used to house the coaxial cable. Bury the cable 6" to 12" below
ground level.

- 4 -

Radial System Suggestions

The use of a radial system is a key requirement for a high performance quarter wave vertical
antenna systems. With a vertical antenna system, the radials are the
second half of the antenna. The radials contribute to the radiation
efficiency of the entire vertical antenna system.

At a minimum, 32 radials, each 65 feet long, should be used with
most low band vertical antennas. DXE-RADW Radial Wire, a 14
gauge stranded copper with a black relaxed PVC insulation wire is
suggested for the best results.

The wire radials should placed as symmetrically as possible straight
from the feedpoint around the vertical antenna and spaced evenly,
regardless of how many radials are used. Do not cross or bunch any
radial wires as this nullifies their effectiveness. If you have limited space, put in as many straight
radials as you can. The radials must be connected to the shield of your feedline. The DXE-RADP-3
Stainless Steel Radial Plate is an ideal optional item which provides an excellent system for
attaching radial wires to your vertical antenna system feedpoint.

Radial wires can be laid on the roots of the grass using DXE-STPL Radial Wire Anchor Pins to
hold them down. Using enough staples will ensure the wires will not be snagged by mowers,
people, or animals. Grass will quickly overgrow the radials and it will be virtually impossible to see
them. An article describing this process is available on the DX Engineering website. Radials can
also be buried just under the surface by using a power edger to make a slit in the soil.

Note: JTL-1255 Jet-Lube SS-30 Anti-Seize must be used on all stainless steel threaded

hardware to prevent galling and to ensure proper tightening.

Note: The following assembly instructions are based on using an optional DXE-

VGMT-3GC Mounting Pipe, with the optional DXE-VRW-1 Manual Winch,
optional DXE-RADP-3 Radial Plate with one optional DXE-SSVC-3P V
Clamp and the optional DXE-363-SST - Bulkhead Fitting.

- 5 -

Radial Plate to Mounting Pipe

Place the optional DXE-RADP-3 Radial Plate over the 2.895" OD mounting pipe. Connections to
the antenna will be made via the optional DXE-363-SST bulkhead fitting SO-239 socket connector.
The DXE-RADP-3 Radial Plate comes with 20 sets of stainless steel hardware for mounting the
radial wires. It is suggested that 32 radial each 65 feet long be used, therefore additional DXE-

RADP-1HWK Radial Plate Wire Attachment Hardware Kits will be required.

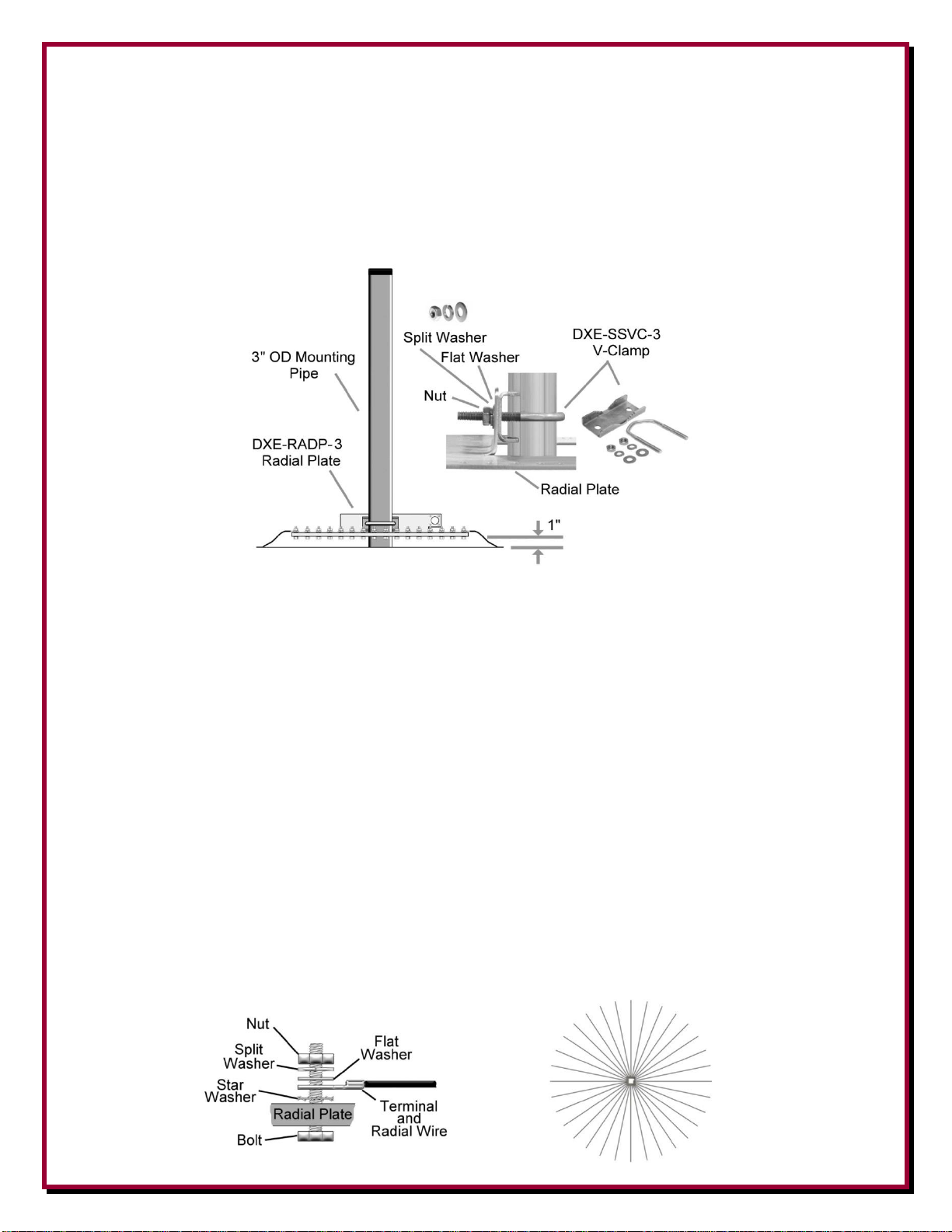

Optional DXE-RADP-3 Radial Plate Mounted to a 3" OD Mounting Pipe

Attaching Ground Radial Wires to the Optional Radial Plate

Using the 20 sets of supplied 1/4" stainless steel hardware (Bolt, Star Washer, Flat Washer, Split
Washer, Nut) connect the optional ground radial wires to the DXE-RADP-3 Radial Plate as shown
below. Additional hardware kits are available (DXE-RADP-1HWK) that contain 20 sets of Radial
Plate Hardware.

There are optional DX Engineering Radial Wire Kits available. DXE-RADW-500K/BD contains a
500 foot spool of 14 gauge copper stranded wire with black PVC insulation, 20 Terminal Lugs and
100 Steel or Biodegradable Lawn Staples. The DXE-RADW-1000K/BD Radial Wire Kit contains
a 1,000 foot spool of 14 gauge copper stranded wire with black PVC insulation, 40 Terminal Lugs
and 200 Steel or Biodegradable Lawn Staples. RADW-20RT, -32RT or -65RT contain 20 each
radial wires with 1/4" terminal attached. These kits come in 20 Ft, 32 Ft or 65 Ft lengths.

Depending on the number of radial wires used, space them out evenly around the Radial Plate. The
Radial Plate will accommodate up to 60 radial wires (60 laser drilled holes), or up to 120 radials if
doubled up.

- 6 -

Overall Pivot Base
(US Patent No. 8,130,168)
Assembly Drawing

The exploded
view drawing is for reference and shows the
overall
Pivot Base
Assembly.

The 3” Mounting Pipe
and 3” Antenna Base

Section are Customer
Supplied.

Feedpoint hardware shown
for reference

- 7 -

Pivot Base and Lower Antenna Assembly

1. Locate the heavy duty Extren® insulated channel.
There are 12 holes drilled in the insulated channel.
The top of the insulated channel is identified by two
holes located very near the top side.

2. Locate the stainless steel bottom hinge plate, backing plate, four carriage bolts, four 3/8" flat
washers, four 3/8" split lock washers and four 3/8" hex nuts. Assemble the bottom hinge to the
bottom of the heavy duty insulated channel as shown below.

3. Locate the stainless steel pivot base locking plate, backing plate, four carriage bolts, four 3/8"
flat washers, four 3/8" split lock washers and four 3/8" hex nuts. Assemble the pivot base
locking plate to the top of the heavy duty insulated channel as shown below.

- 8 -

4. Locate the stainless steel base side bottom hinge, two 1/2-13 x 1-1/4" long stainless steel hex
head bolts, two pivot bushings, four 1/2 x 1-1/4" stainless steel flat washers, two 1/2" stainless
steel split lock washers, and two 1/2-13 stainless steel hex nuts. Assemble the base side hinge
plate to the bottom hinge plate as shown below.

5. Locate two V-Saddle blocks, two stainless steel V-Bolts, four stainless steel 3/8" flat washers,
four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex head nuts. Loosely
assemble (one or two threads beyond the end of the hex nuts) the two V-Bolts to the stainless
steel base side bottom hinge as shown below. The V-Bolts will be tightened in a later assembly
step.

- 9 -

6. Locate the stainless steel Pivot Base Winch Mount, two stainless steel Pivot Base Plate
Brackets, four 3/8-16 x 1-1/4" long stainless steel hex bolts, eight stainless steel 3/8" flat
washers, four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex nuts.
Assemble the Pivot Base Plate Brackets to the Pivot Base Winch Mount as shown below.

7. Locate four 3/8-16 x 1-1/4" long stainless steel hex bolts, eight stainless steel 3/8" flat washers,
four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex nuts. Mount the
Pivot Base Winch Mount assembly to the stainless steel Pivot Base Locking Plate.

Note: These four bolts are removed when using the pivoting function as described later on in

this manual.

- 10 -

8. Locate two V-Saddle blocks, two stainless steel V-Bolts, four stainless steel 3/8" flat washers,
four stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex head nuts. Loosely
assemble (one or two threads beyond the end of the hex nuts) the two V-Bolts to the stainless
steel Pivot Base Winch Mount as shown below. The V-Bolts will be tightened in a later
assembly step.

9. Locate two thick stainless steel Backing Plates, two thin stainless steel Backing Plates, two

U-Bolt Saddle blocks, two stainless steel U-Bolts, four stainless steel 3/8" flat washers, four

stainless steel 3/8" split lock washers and four stainless steel 3/8-16 hex head nuts.

The two Thick Backing Plates (3/8”) are located next to the U-Bolt Saddles on the inside of the

insulated channel. The two Thin Backing Plates (1/4”) are used on the rear side of the insulated
channel.

Top of Insulated Channel Back and Front views showing the U-Bolt located
Showing U-Bolt installed at the Bottom of the Insulated Channel
The Thick Spacer is on the front side The Thick Spacer is on the front side, the
The Thin Spacer is on the rear side Thin Spacer is on the rear side

Loosely assemble (one or two threads beyond the end of the hex nuts) the two U-Bolts and

associated hardware to the insulated mounting channel as shown above. The U-Bolts will be
tightened in a later assembly step.

- 11 -

10. Move the four V-Bolts out as far as they will go (these were put on loosely in earlier steps).

Slide the entire assembly onto your mounting pipe. You want approximately 1 inch clearance

from the top of your mounting pipe to the bottom side of the winch mounting plate.

Position the base fixture in the position you pre-selected for the pivoting direction.

Tighten the V-Bolt clamp hardware evenly so the length of the exposed threads is

approximately equal. Any clamp should be tightened evenly from side-to-side with an equal
amount of thread above each nut.

- 12 -

11. Using your 3" OD antenna bottom element section. Loosen the previously
installed U-Bolts. Insert your 3” OD antenna bottom element section into
the antenna base section through the upper and lower U-Bolts.

The bottom of your 3" OD element tube should be even with the

bottom of the insulated channel as shown below.

Side View

Front View

Tighten the lower and upper U-Bolt clamps hardware evenly so the length

of the exposed threads is approximately equal. Any clamp should be
tightened evenly from side-to-side with an equal amount of thread above
each nut.

12. Locate the stainless steel Antenna Hook Mounting Plate, two U-Bolt Saddle blocks, two
stainless steel U-Bolts, four stainless steel 3/8" flat washers, four stainless steel 3/8" split lock
washers and four stainless steel 3/8-16 hex head nuts.

Loosely assemble (one or two threads beyond the end of the hex nuts) the two U-Bolts and

associated hardware to the antenna hook mounting plate as shown below. The U-Bolts will be
tightened in the next assembly step.

- 13 -

13. Loosen the U-Bolts enough to slide the Antenna Hook Mount assembly over your 3" OD
antenna lower element on the base assembly. Position the antenna hook mount approximately
1/2" above the insulated channel as shown below.

14. Tighten the two U-Bolt clamps hardware evenly so the length of the exposed threads is
approximately equal. Any clamp should be tightened evenly from side-to-side with an equal
amount of thread above each nut.

Mounting and using the Optional DXE-VRW-1 Manual Winch

1. Follow the instructions included with the optional DXE-VRW-1 - Manual Winch Add-On Kit
to prepare the Manual Winch for installation on the antenna base assembly.

2. Included with optional DXE-VRW-1 - Manual Winch Add-On Kit is the stainless steel
hardware for mounting the winch on the pivot base assembly. The hardware includes three 3/8­16 x 1" long stainless steel hex bolts, six stainless steel 3/8-16 flat washers and three 3/8-16
Stainless Steel Nyloc Nuts.

Loosely install the three sets of stainless steel hardware on the manual winch as shown below.

- 14 -

The hardware does not have to be removed from the manual winch to either install or remove

the manual winch from the winch mounting plate.

There are three holes with slots in the mounting bracket. The flat washers will fit through the

large holes. Once in place, push the winch inward (toward the antenna elements) allowing the
three bolts to go into the three slots. Tighten the hardware to hold the winch in place.

Connect the Hook from the manual winch strap to the Antenna Hook Mount as shown below.

To remove the winch, simply reverse this sequence.

3. To lower your antenna, ensure the winch hook is in the Antenna Hook Mount. Remove the four
bolts and hardware that hold the Pivot Lock Plate to the Pivot Base Winch Mount Plate. You
can now use the winch to pivot the antenna downward.

Four Bolts to be removed to allow for pivoting

- 15 -

4. Turn the crank on the manual winch to lower, or raise the antenna. After raising the antenna
completely, make sure you replace the four bolts that were removed in step 3. The manual
winch should be removed when not in use to protect the gears and web strap from weather and
environmental effects.

Locking the Pivot Base

To help prevent accidental pivoting, ensure the four pivot locking bolts are in place and properly
secured. Additionally, you may replace one of the bolts with a padlock to further prevent tampering
or accidental pivoting as shown below.

Ensure all four Pivot Locking Bolts are in place

Padlock used in place of one Pivot Locking Bolt

- 16 -

DXE-VA-PIVOT-3 Parts List

Pivot Base Assembly - US Patent No. 8,130,168

QTY

Description

1

Base Side Bottom Hinge

1

Antenna Side Bottom Hinge

2

Bottom Hinge Bushing

1

Heavy Duty Antenna Insulator Channel

2

Saddle Backing Plate 1/4”

1

Antenna Pivot Hook Mount

1

Pivot Base Winch Mount

2

Pivot Base Plate Bracket

1

Pivot Base Lock Plate

2

Backing Plate, Square

2

Saddle Spacer Plate 3/8”

4

3" Stainless U-Bolt

4

3" Cast Saddle Clamp

40

3/8" Flat Washer

32

3/8" Split Lock Washer

32

3/8"-16 Nut

8

3/8"-16 x 1.25" Long, Hex Head Cap Screw

4

2"-3" Cast V-Saddle

4

2"-3" 3/8"-16 V-Bolt

8

3/8"-16 x 1-1/2" Long Stainless Steel Carriage Bolt

2

1/2"-13 x 1-1/4" Long Stainless Steel Hex Head Cap Screw

4

1/2" x 1-1/4" Stainless Steel Washer

2

1/2" Stainless Steel Lock Washer

2

1/2"-13 Stainless Steel Nut

Optional DXE-VRW-1 Manual Winch Assembly

QTY

Description

1

1500 Pound Exposed Gear Hand Winch with Brake

1

Custom Polyester web strap with Hook, 2" x 15 Ft

1

3/8-16 x 3-1/2" long Grade 8 Hex Head Bolt

4

3/8-16 Stainless Steel Nyloc Nut

3

3/8-16 x 1" long Stainless Steel Hex Bolt

8

3/8"-16 Stainless Steel Flat Washer

Suggested Parts Not Included

DXE-VRW-1 - Manual Winch Add-on Raising Kit
Manual winch add-on kit for the High Performance DX Engineering vertical antennas DXE­8040VA-1 and DXE-7580VA-1. The tilt fixtures for these antennas are equipped to accept the

winch directly. Allows easy raising and lowering of tall antennas - may be easily moved from one
antenna to another in multi-antenna arrays.

- 17 -

DXE-RADP-3 - Radial Plate (patented):
Made from Laser Cut Stainless Steel with 20 Sets of Stainless Steel Radial Attachment Hardware. The
DX Engineering Radial Plate is meant for those of you having a vertical antenna and want an easy, neat
and effective way to connect those essential radial wires to your antenna system for the highest efficiency
and strongest signals.

DXE-SSVC-3P - Stainless Steel V-Clamp for 2 to 3 inch steel pipe

This V-Clamp is made in one size that fits Steel tubing or pipe from 2 to 3'' OD as used in antenna
construction. The supplied V-bolt is long enough to attach tubing to thick plates and is made with anti­corrosive properties. The special Stainless Steel saddle has serrated teeth will clamp to the pipe securely by
biting into the surface. For this reason, it is not recommended for softer aluminum tubing or pipe. U-Bolt
thread dimensions: 3/8"-16 x 1.75". V-bolt and saddle made from high-strength 18-8 stainless steel

DXE-RADP-1HWK - Radial Plate Wire Attachment Hardware Kit

Additional 20 Sets of ALL Stainless Steel Radial Hardware for use with the DX Engineering Stainless Steel
Radial Plate.

(20) 1/4'' Bolts - (20) 1/4'' Nuts - (20) 1/4'' Flat Washers
(20) 1/4'' Split Washers - (20) 1/4'' Star Washers

DXE-225RT-20 - Ring terminal 16-14 Wire Gauge, 1/4" hole/20 Pack

This is a set of 20 ring terminals for AWG #14 to #16 wire with a clearance hole for a 1/4" bolt. These are the
same crimp terminals supplied with the DXE Radial Wire Kits for #14 Radial and Antenna Wire.

JTL-12555 Jet-Lube™ SS-30 Pure Copper Anti-Seize

Jet-Lube™ SS-30 Pure Copper Anti-Seize is the top choice of engineers and technicians in government, industry and
leading Amateur Radio contest stations, for protecting mechanical assemblies of aluminum tubing, general
hardware and copper grounding systems. An environmentally preferred thread lubricant and conductive
termination compound, Jet-Lube™ SS-30 helps keep your equipment in serviceable condition. It contains a
high concentration of copper flakes, a requirement for heavy loads or compression; controlled frictional
characteristics allow the surfaces of nuts and bolts to be tightened to their design torque specifications. This
anti-seize product assures full hydraulic efficiency by allowing the metal surfaces to slide over each other
without damaging metal-to-metal contact. Jet-Lube™ SS-30 is also designed to work as a similar and
dissimilar component between two metal surfaces to prevent seizing and galvanic action.
Jet-Lube™ SS-30 Pure Copper Anti-Seize Features include:

* Meets MIL-PRF-907E spec
* K-factor: 0.13
* Service rating: -65 degrees F (-54 degrees C) to 1800 degrees F (820 degrees C)
* SS-30 Resistivity (ohm-CM x 108) 5

* This product is limited to domestic UPS Ground shipping only

DXE-RADW-20RT/-32RT/-65RT Pre-Assembled, Radial Wire, w/ 1/4" ring Terminals, 20 Pack

The DXE-RADW Radial Wire Kits include the highest quality 14 gauge stranded copper wire with a relaxed black PVC
insulation for easy installation of your radial system. They allow fast and easy installation of your radial ground system,
and permit you to mix and match different length to fit the available space. The stranded wire and relaxed insulation
mean that the wire will lay flat as you place it on the ground - easy to install! The twenty pre-cut radial wires include
1/4" ring terminals professionally crimped on one end for quick and easy attachment to the radial plate. These Radial
Wire Kits are designed for users of vertical antenna systems which have the need for a high quality radial system for
optimum antenna performance. The 1/4" ring terminals are machine crimped for maximum grip. Soldering is not
required for strength, but is recommended if installed in corrosive environments such as salt spray.

 Packed 20 Radial Wires per package
 14 gage, stranded copper wire
 Black relaxed PVC insulation
 1/4" Ring Terminal professionally crimped on each Radial Wire
 3 lengths to choose from: 20 Ft (-20RT), 32 Ft (-32RT), 65 Ft (-65RT)

DXE-RADW-65RT

Package of 20 each 65 Ft Radials with 1/4" Ring Terminals

- 18 -

DXE-STPL - Radial Wire Anchor Pins, 100/pack - No need to bury your radials!
DX Engineering Radial Wire Anchor Pins are perfect for fastening radials below the grass line to eliminate the risk of
damaging your radials during lawn maintenance.

 100 count - 6'' Pins
 11-Gauge

DXE-STPL-100P

Radial Wire Anchor Pins, 100/pack

DXE-STPL-300P

Radial Wire Anchor Pins, 300/pack

DXE-STPL-100BD - Radial Wire Staple, Biodegradable, 3", 100 pack
DX Engineering DXE-STPL-100BD is a 100-pack of 3” biodegradable anchors that are produced from
recycled PLA (Polylactide Resin). Depending on the weather conditions, they will degrade in about a year.
They are easily installed and will hold radial wires in place until lawn roots overtake them - and then
disappear. Ecologically friendly!

3M Temflex™ 2155 Rubber Splicing Tape
Conformable self-fusing rubber electrical insulating tape. It is designed for low voltage electrical insulating
and moisture sealing applications. For outdoor use, it should be protected from UV deterioration with an
overwrap of Super 33+.

Scotch® Super 33+
Highly conformable super stretchy tape for all weather applications. This tape provides flexibility and easy
handling for all around performance. It also combines PVC backing with excellent electrical insulating
properties to provide primary electrical insulation for splices up to 600V and protective jacketing.

DXE-363-SST - Bulkhead Fitting, SO-239 Socket, Silver Plating, PTFE Insulation

This hi-quality bulkhead connector uses silver plated outer and inner conductors and a PTFE insulator. The connector
has very low loss and high electrical break down. It comes with two nuts to secure the connector to our radial plate or
other flat surface. Perfect for use with the DX Engineering Radial Plate, (DXE-RADP-3) it ensures the radial ground
system, the antenna ground and the feedline shield are common. It can also be used in other coaxial
applications where the male ends (PL-259) of 2 coax cables need to be connected, such as when joining
two pieces of coax together. Don't forget to waterproof coaxial connections.

 Silver plated, PTFE insulated, Very low loss, High electrical break down
 2 in. long

- 19 -

Technical Support

If you have questions about this product, or if you experience difficulties during the installation,
contact DX Engineering at [phone]. You can also e-mail us at:

[e-mail]

For best service, please take a few minutes to review this manual before you call.

Warranty

All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a

period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue

credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be
made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such

charges are authorized in advance by DX Engineering. If DX Engineering’s products are claimed to be defective in

material or workmanship, DX Engineering shall, upon prompt notice thereof, issue shipping instructions for return to
DX Engineering (transportation-charges prepaid by Buyer). Every such claim for breach of these warranties shall be
deemed to be waived by Buyer unless made in writing. The above warranties shall not extend to any products or parts
thereof which have been subjected to any misuse or neglect, damaged by accident, rendered defective by reason of
improper installation, damaged from severe weather including floods, or abnormal environmental conditions such as
prolonged exposure to corrosives or power surges, or by the performance of repairs or alterations outside of our plant,

and shall not apply to any goods or parts thereof furnished by Buyer or acquired from others at Buyer’s specifications.

In addition, DX Engineering’s warranties do not extend to other equipment and parts manufactured by others except to
the extent of the original manufacturer’s warranty to DX Engineering. The obligations under the foregoing warranties

are limited to the precise terms thereof. These warranties provide exclusive remedies, expressly in lieu of all other
remedies including claims for special or consequential damages. SELLER NEITHER MAKES NOR ASSUMES ANY
OTHER WARRANTY WHATSOEVER, WHETHER EXPRESS, STATUTORY, OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS, AND NO PERSON IS AUTHORIZED TO ASSUME
FOR DX ENGINEERING ANY OBLIGATION OR LIABILITY NOT STRICTLY IN ACCORDANCE WITH THE
FOREGOING.

©DX Engineering 2021

DX Engineering®, DXE®, DX Engineering, Inc.®, Hot Rodz®, Maxi-Core®, DX Engineering THUNDERBOLT®,
DX Engineering Yagi Mechanical®, EZ-BUILD®, TELREX®, Gorilla Grip® Stainless Steel Boom Clamps,
Butternut®, SkyHawk™, SkyLark™, SecureMount™, OMNI-TILT™, RF-PRO-1B®, AFHD-4® are trademarks of
PDS Electronics, Inc. No license to use or reproduce any of these trademarks or other trademarks is given or implied.
All other brands and product names are the trademarks of their respective owners.

Specifications subject to change without notice.
