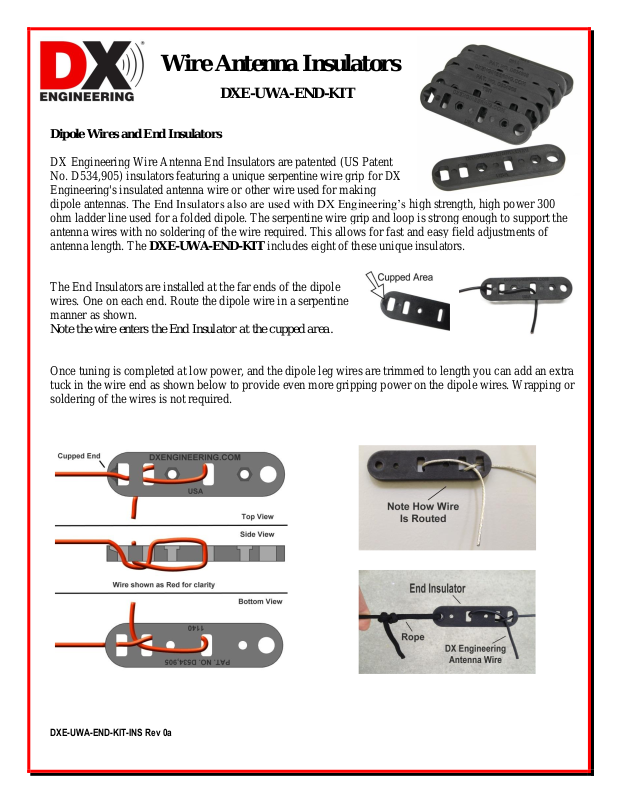

DX Engineering DXE-UWA-END-KIT Instructions manual

Wire Antenna Insulators

DXE-UWA-END-KIT

Dipole Wires and End Insulators

DX Engineering Wire Antenna End Insulators are patented (US Patent
No. D534,905) insulators featuring a unique serpentine wire grip for DX
Engineering's insulated antenna wire or other wire used for making
dipole antennas. The End Insulators also are used with DX Engineering’s high strength, high power 300
ohm ladder line used for a folded dipole. The serpentine wire grip and loop is strong enough to support the
antenna wires with no soldering of the wire required. This allows for fast and easy field adjustments of
antenna length. The DXE-UWA-END-KIT includes eight of these unique insulators.

The End Insulators are installed at the far ends of the dipole
wires. One on each end. Route the dipole wire in a serpentine
manner as shown.

Note the wire enters the End Insulator at the cupped area.

Once tuning is completed at low power, and the dipole leg wires are trimmed to length you can add an extra
tuck in the wire end as shown below to provide even more gripping power on the dipole wires. Wrapping or
soldering of the wires is not required.

DXE-UWA-END-KIT-INS Rev 0a

Attaching Rope to the End Insulators

Using DX Engineering Double-braided Polyester Rope SYN-DBR, the rope is secured to the End Insulators
using a non-slip knot. The rope hole (diameter) on the end insulators are 0.34".

One suggestion for attaching the rope to the End Insulators is shown below. The ends of the rope should be
cauterized with a small flame to prevent the rope braid from fraying.

Non-Slip Knot using SYN-DBR Double-braided Polyester Rope
