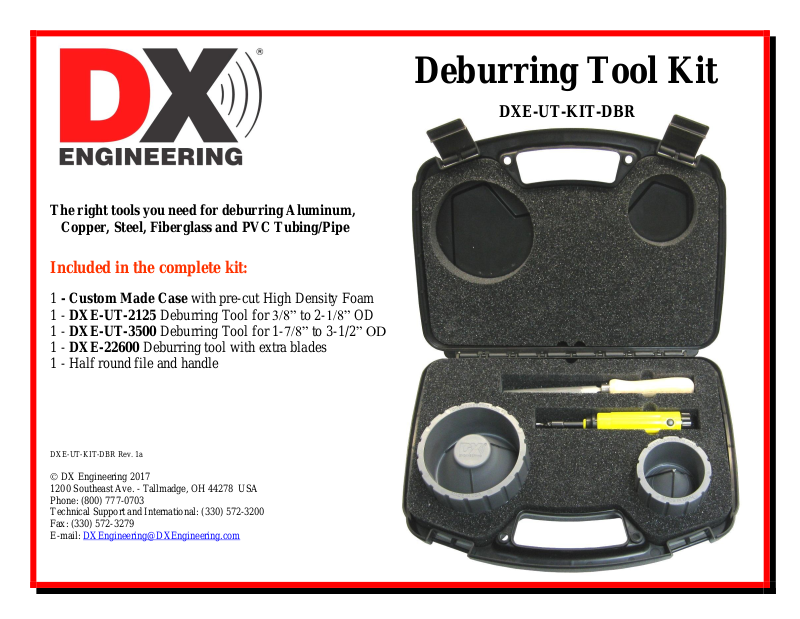

DX Engineering DXE-UT-KIT-DBR Instructions manual

Deburring Tool Kit

DXE-UT-KIT-DBR

The right tools you need for deburring Aluminum,
Copper, Steel, Fiberglass and PVC Tubing/Pipe

Included in the complete kit:

1 - Custom Made Case with pre-cut High Density Foam
1 - DXE-UT-2125 Deburring Tool for 3/8” to 2-1/8” OD
1 - DXE-UT-3500 Deburring Tool for 1-7/8” to 3-1/2” OD
1 - DXE-22600 Deburring tool with extra blades
1 - Half round file and handle

DXE-UT-KIT-DBR Rev. 1a

 DX Engineering 2017
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: [phone]
Technical Support and International: [phone]
Fax: [phone]
E-mail: [e-mail]

All the tools you need for deburring Aluminum, Copper, Steel,

Fiberglass and PVC Tubing/Pipe

These utility tools, designed and manufactured in the USA, are ideal for reaming and deburring rough-cut
tubing edges with minimum effort. The DXE-UT-2125 is usable on all tubing/pipe sizes from 3/8" to 2-1/8"
OD, while the DXE-UT-3500 is for 1-7/8" to 3-1/2" OD tubing/pipe. The complete kit DXE-UT-KIT-DBR
includes both tools, a small hand deburring tool with extra blades and a half round file with handle.

Ideal for deburring aluminum tubing prior to telescoping sections together, these tools

assure a smooth fit without galling and seizing that can occur with the slightest
roughness. Only a couple of revolutions with very light pressure is needed to produce excellent results. They can be used on aluminum, copper,
fiberglass, stainless steel, PVC plumbing pipe, etc.

Flush cut the tube straight (90 degree cut). Select the size tool for the size tube/pipe you have. Gently with a light circular motion, rotate the tool on the end of the
tube/pipe. If you press too hard, it will ‘chatter’ and not give you a smooth deburring action. Once you get the right feel for using the tools, your tubing or pipe will be
deburred perfectly smooth. The tools have cutters on both sides which allows deburring both the inside and outside of your tubing or pipe.

Take normal precautions when handling any fiberglass material. There may be fiberglass dust, slivers or particles present when the fiberglass parts were manufactured. The use of typical fiberglass handling safety gear
(gloves, dust mask, eye shield, clothing, etc.) when handling and working with fiberglass is recommended. Use a damp rag to wipe the parts. Do not use compressed air to clean fiberglass parts. Measures can be taken to
reduce exposure after a person has come in contact with fiberglass. Eyes should be flushed with water and any area of exposed skin should be washed with soap and warm water to remove fibers. Clothing worn while
working with fiberglass should be removed and washed separately from other clothing. The washing machine should be rinsed thoroughly after the exposed clothing has been washed. Check with your local or state
safety and/or environmental agencies for more detailed precautions.

Warranty

All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof
which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
If DX Engineering’s products are claimed to be defective in material or workmanship, DX Engineering shall, upon prompt notice thereof, issue shipping instructions for return to DX Engineering (transportation-charges prepaid by Buyer). Every such claim for breach of these warranties shall
be deemed to be waived by Buyer unless made in writing. The above warranties shall not extend to any products or parts thereof which have been subjected to any misuse or neglect, damaged by accident, rendered defective by reason of improper installation, damaged from severe weather
including floods, or abnormal environmental conditions such as prolonged exposure to corrosives or power surges, or by the performance of repairs or alterations outside of our plant, and shall not apply to any goods or parts thereof furnished by Buyer or acquired from others at Buyer’s
specifications. In addition, DX Engineering’s warranties do not extend to other equipment and parts manufactured by others except to the extent of the original manufacturer’s warranty to DX Engineering.
The obligations under the foregoing warranties are limited to the precise terms thereof. These warranties provide exclusive remedies, expressly in lieu of all other remedies including claims for special or consequential damages. SELLER NEITHER MAKES NOR ASSUMES ANY OTHER
WARRANTY WHATSOEVER, WHETHER EXPRESS, STATUTORY, OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS, AND NO PERSON IS AUTHORIZED TO ASSUME FOR DX ENGINEERING ANY OBLIGATION OR LIABILITY
NOT STRICTLY IN ACCORDANCE WITH THE FOREGOING.
