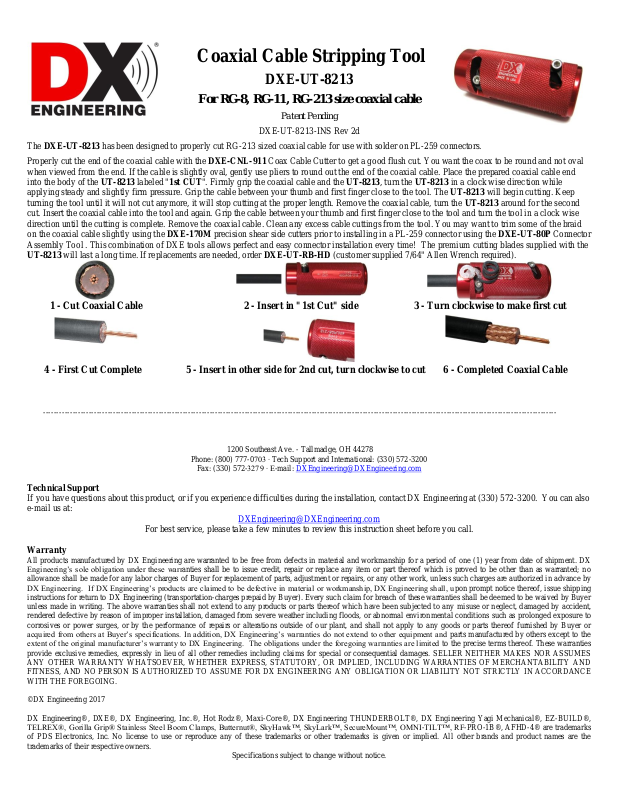

DX Engineering DXE-UT-8213 Instructions manual

Coaxial Cable Stripping Tool

DXE-UT-8213

For RG-8, RG-11, RG-213 size coaxial cable

DXE-UT-8213-INS Rev 2d

The DXE-UT-8213 has been designed to properly cut RG-213 sized coaxial cable for use with solder on PL-259 connectors.

Patent Pending

Properly cut the end of the coaxial cable with the DXE-CNL-911 Coax Cable Cutter to get a good flush cut. You want the coax to be round and not oval

when viewed from the end. If the cable is slightly oval, gently use pliers to round out the end of the coaxial cable. Place the prepared coaxial cable end
into the body of the UT-8213 labeled "1st CUT". Firmly grip the coaxial cable and the UT-8213, turn the UT-8213 in a clock wise direction while
applying steady and slightly firm pressure. Grip the cable between your thumb and first finger close to the tool. The UT-8213 will begin cutting. Keep
turning the tool until it will not cut anymore, it will stop cutting at the proper length. Remove the coaxial cable, turn the UT-8213 around for the second
cut. Insert the coaxial cable into the tool and again. Grip the cable between your thumb and first finger close to the tool and turn the tool in a clock wise
direction until the cutting is complete. Remove the coaxial cable. Clean any excess cable cuttings from the tool. You may want to trim some of the braid
on the coaxial cable slightly using the DXE-170M precision shear side cutters prior to installing in a PL-259 connector using the DXE-UT-80P Connector
Assembly Tool . This combination of DXE tools allows perfect and easy connector installation every time! The premium cutting blades supplied with the

UT-8213 will last a long time. If replacements are needed, order DXE-UT-RB-HD (customer supplied 7/64" Allen Wrench required).

1 - Cut Coaxial Cable 2 - Insert in "1st Cut" side 3 - Turn clockwise to make first cut

4 - First Cut Complete 5 - Insert in other side for 2nd cut, turn clockwise to cut 6 - Completed Coaxial Cable

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1200 Southeast Ave. - Tallmadge, OH 44278

Phone: [phone] ∙ Tech Support and International: [phone]

Fax: [phone] ∙ E-mail: [e-mail]

Technical Support

If you have questions about this product, or if you experience difficulties during the installation, contact DX Engineering at [phone]. You can also
e-mail us at:

[e-mail]

For best service, please take a few minutes to review this instruction sheet before you call.
