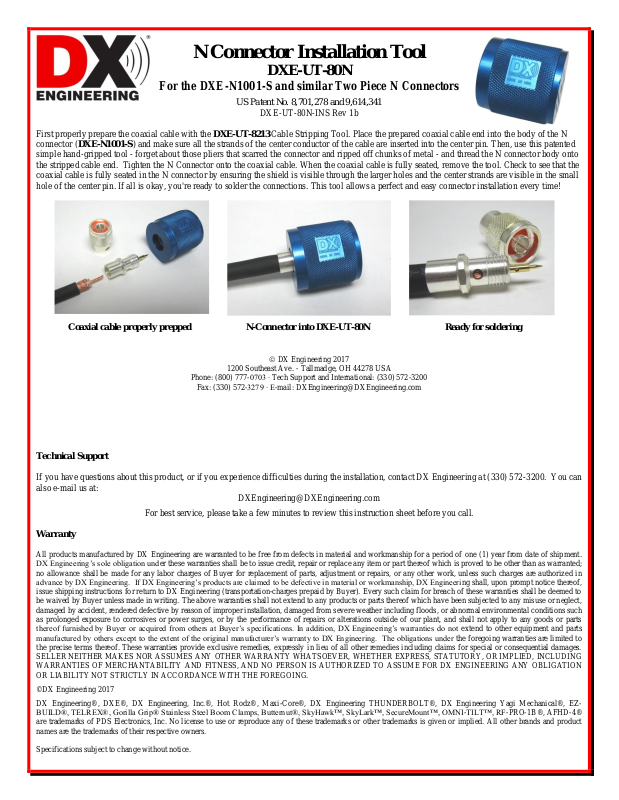

N Connector Installation Tool

DXE-UT-80N

For the DXE-N1001-S and similar Two Piece N Connectors

US Patent No. 8,701,278 and 9,614,341

DXE-UT-80N-INS Rev 1b

First properly prepare the coaxial cable with the DXE-UT-8213 Cable Stripping Tool. Place the prepared coaxial cable end into the body of the N
connector (DXE-N1001-S) and make sure all the strands of the center conductor of the cable are inserted into the center pin. Then, use this patented
simple hand-gripped tool - forget about those pliers that scarred the connector and ripped off chunks of metal - and thread the N connector body onto
the stripped cable end. Tighten the N Connector onto the coaxial cable. When the coaxial cable is fully seated, remove the tool. Check to see that the
coaxial cable is fully seated in the N connector by ensuring the shield is visible through the larger holes and the center strands are visible in the small
hole of the center pin. If all is okay, you're ready to solder the connections. This tool allows a perfect and easy connector installation every time!

Coaxial cable properly prepped N-Connector into DXE-UT-80N Ready for soldering

Phone: [phone] ∙ Tech Support and International: [phone]

1200 Southeast Ave. - Tallmadge, OH 44278 USA

Fax: [phone] ∙ E-mail: [e-mail]

Technical Support

If you have questions about this product, or if you experience difficulties during the installation, contact DX Engineering at [phone]. You can
also e-mail us at:

[e-mail]

For best service, please take a few minutes to review this instruction sheet before you call.
