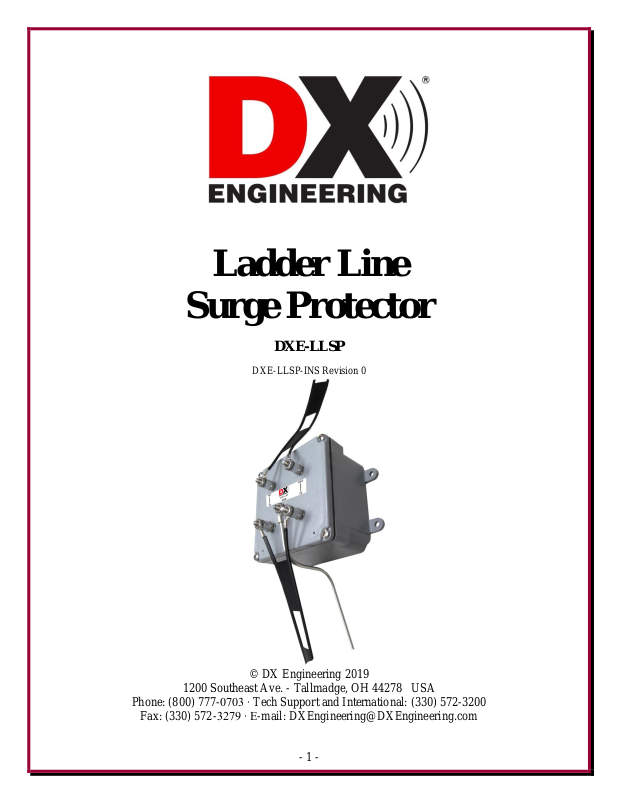

DX Engineering DXE-LLSP Instructions manual

Ladder Line

Surge Protector

DXE-LLSP

DXE-LLSP-INS Revision 0

© DX Engineering 2019

1200 Southeast Ave. - Tallmadge, OH 44278 USA

Phone: [phone] ∙ Tech Support and International: [phone]

Fax: [phone] ∙ E-mail: [e-mail]

- 1 -

Introduction

For many years, hams have asked for a surge protector for use with ladder line fed antennas.
Decades ago a spark plugs or arc gaps were used for shunting surges to ground. Now available from
DX Engineering is a modern approach to providing surge protection for ladder line fed antennas.
The DXE-LLSP uses capacitors, resistor and gas discharge tubes on each leg of the ladder line to
offer surge protection capabilities. The DXE-LLSP Ladder Line Surge Protector will sustain
multiple minor surges. As with any surge protector, there is no guarantee that a direct hit from
lightning will be stopped.

Features

 Works with 450 ohm or 300 ohm Ladder Line
 Internal Gas Discharge Tubes, Capacitors and Resistors
 Can withstand multiple minor surges and shunts them to ground
 Standard size NEMA enclosure
 Weep holes for allowing and build up of internal moisture to drain out

WARNING!

INSTALLATION OF ANY ANTENNA NEAR POWER LINES IS DANGEROUS

Warning: Do not locate near overhead power lines or other electric light or power circuits, or

where it can come into contact with such circuits. When installing take extreme care not to come
into contact with such circuits, because they may cause serious injury or death.

Manual Updates

Every effort is made to supply the latest manual revision with each product. Occasionally a manual
will be updated between the time your DX Engineering product is shipped and when you receive it.
Please check the DX Engineering web site (www.DXEngineering.com) for the latest revision
manual.

- 2 -

Installation

Using customer
supplied Ring
Terminals, connect
the user supplied
Ladder Line and
Ground Wire to the
connections on the
Ladder Line Surge
Protector. It is
suggested the Ring
Terminals are
soldered to the ladder
line and ground wire.

TX connections go to
the transmitter/ tuner
output or balun. ANT
connections go to the
antenna input. GND connection goes to ground.

When mounting the Ladder Line Surge Protector, ensure the box is straight and the weep holes, that
are drilled in the lower front edge, are downward to allow any moisture build up to properly drain.

- 3 -

NOTE: It is recommended that JTL-12502 - Jet-Lube™ SS-30 be used on all stainless steel
hardware threads to prevent galling and to ensure proper torque.

Maintenance

Periodically check the weep holes to ensure they are open. Clean out any dirt, dust, bugs as
required.

A repair parts kit is available if your Ladder Line Surge protector is damaged due to a very strong
surge. The repair parts kit is part number DXE-LLSP-RP.

Technical Support

If you have questions about this product, or if you experience difficulties during the installation,
contact DX Engineering at [phone]. You can also e-mail us at:

[e-mail]

For the best service, please take a few minutes to review this manual before you call.
