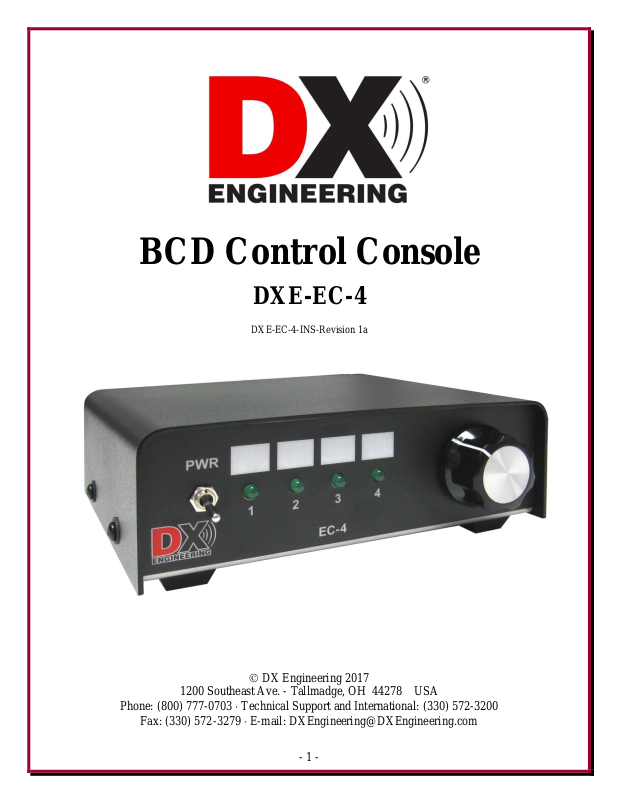

DX Engineering DXE-EC-4 Instructions manual

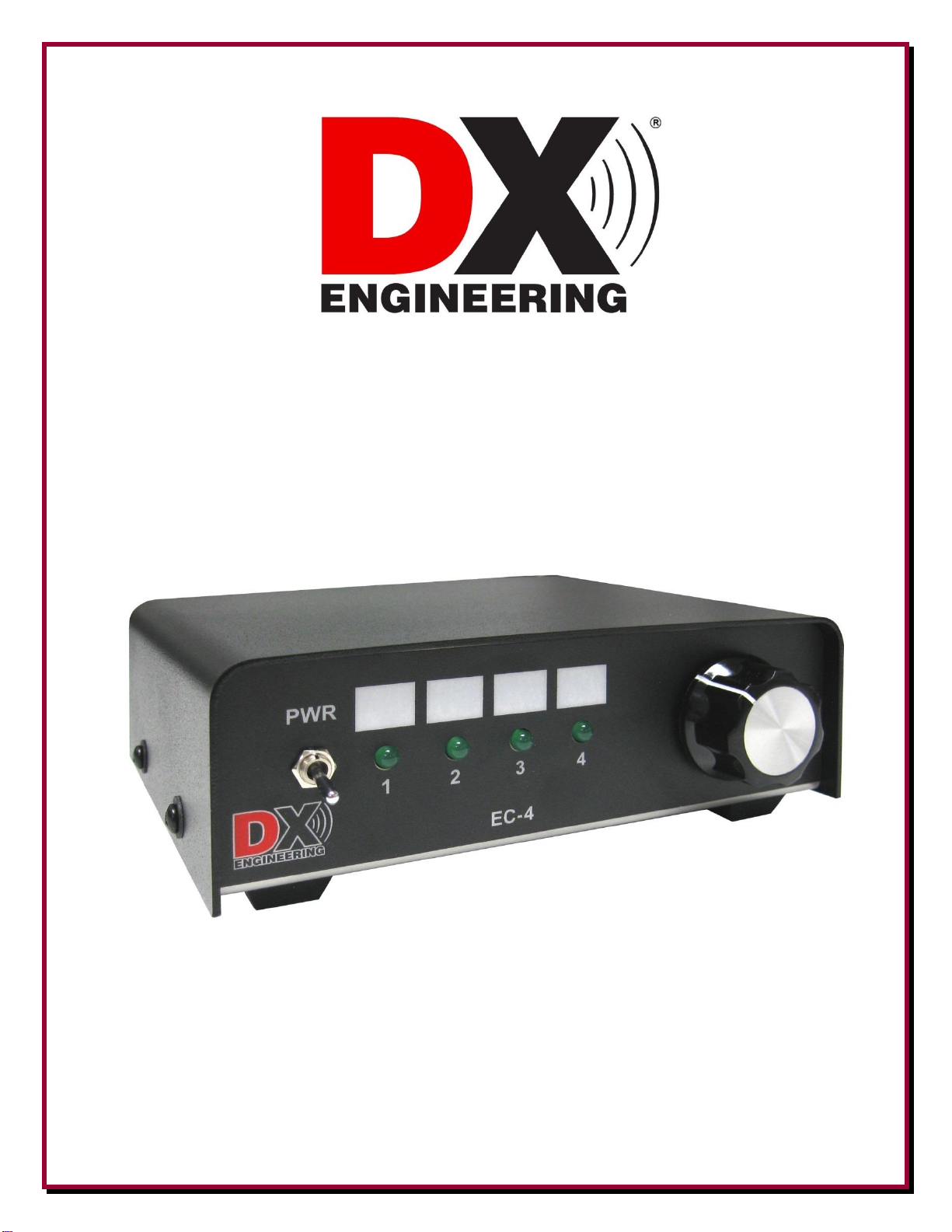

BCD Control Console

DXE-EC-4

DXE-EC-4-INS-Revision 1a

 DX Engineering 2017

1200 Southeast Ave. - Tallmadge, OH 44278 USA

Phone: [phone]  Technical Support and International: [phone]

Fax: [phone]  E-mail: [e-mail]

- 1 -

Introduction

The DXE-EC-4 is a flexible, 4 position controller used to control the DX Engineering Receive Four Square
series or any other products using a 4 position (3 wire plus ground) BCD control format.

The DXE-EC-4 offers the following features:

 Stainless Steel Housing
 Non-Skid feet
 On-Off toggle switch
 Four green LEDs indicate position chosen
 Filter capacitors on each line
 Internal automatic resettable fuse
 Includes a 2.1 mm power plug for +12 Vdc power connection

Front and Rear Panels

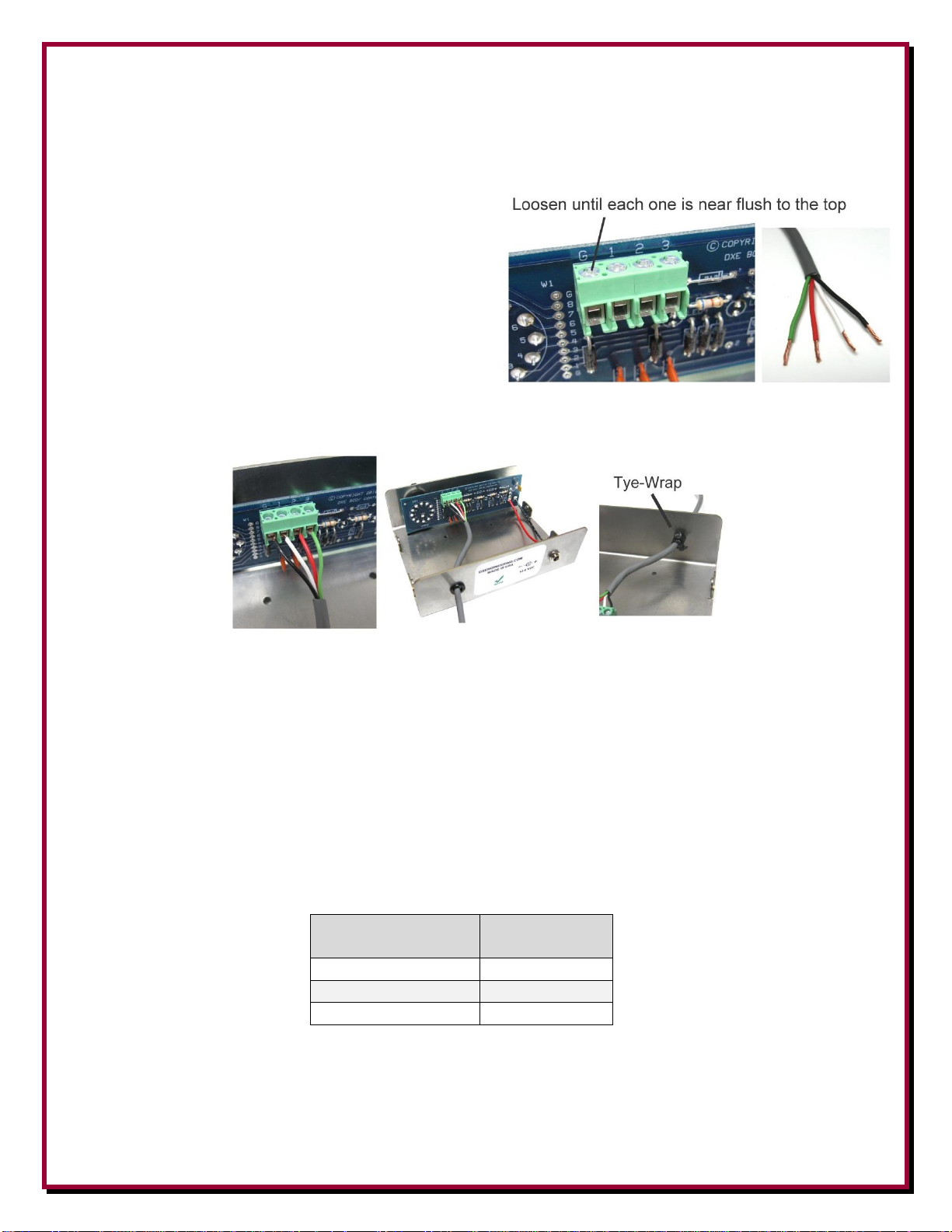

On/Off toggle switch Control Wire Feed Through
Four Green LEDs Power Connection
4 Position Rotary Switch

The DC Input used is +12 Vdc. A 2.1 mm power cord is supplied with unit. The wire with the white
stripes is the +12 Vdc.

Outer Connection is GROUND, Center Pin is +12 VDC.
If station power is used, it must be +12 Vdc at 1 amp (fused) minimum. An optional

DXE-PSW-12D1A 120 Vac 60 Hz to 12 Vdc 1 Amp, fused wall transformer supply is
available.

Tools Required

Phillips Head Screwdriver
Wire Stripper
Small Flat Blade Screwdriver

Overall Size
