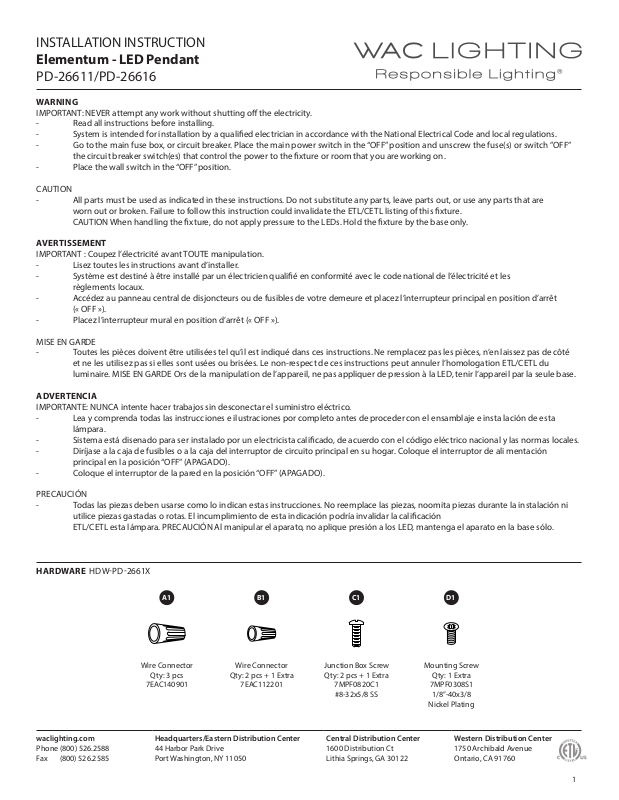

INSTALLATION INSTRUCTION
Elementum - LED Pendant
PD-26611/PD-26616
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF”
the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt
(« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté
et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du
luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni
utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.
HARDWARE HDWPD2661X
A1 B1 C1 D1
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Wire Connector
Qty: 3 pcs
7EAC140901
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Wire Connector
Qty: 2 pcs + 1 Extra
7EAC112201
Junction Box Screw
Qty: 2 pcs + 1 Extra
7MPF0820C1
#8-32x5/8 SS
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Mounting Screw
Qty: 1 Extra
7MPF0308S1
1/8”-40x3/8
Nickel Plating
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
Page 2
INSTALLATION INSTRUCTION
Elementum - LED Pendant
PD-26611/PD-26616
PREPARATION
1. Shut o the power at the circuit breaker and remove
existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the
parts on a clear area. Be careful not to lose any small
parts necessary for installation.
MOUNTING THE FIXTURE Fig. 1
3. Remove the mounting screw (D1) from the xture.
4. Choose suitable stems for desired length and connect.
5. Thread wire through stems and canopy. Tighten the canopy,
stems, and xture body.
CONNECTING THE WIRES Fig. 2
6. Cut the extra wire thread from the xture.
7. Connect the driver input wire with junction box as shown in
Fig.2, make sure that all wire connectors (A1) are secured.
If your outlet box has a green or bare copper ground wire,
connect the xture’s ground wire to it. Otherwise, connect
the xture’s ground wire directly to the mounting plate
using the green screw provided. After wires are connected,
tuck them carefully inside the junction box.
*Requires Driver to be recessed within the junction box.
COMPLETING THE INSTALLATION (Fig. 1, 2, 3)
8. Secure mounting plate to the junction box using junction
box screws (C1). The side of the mounting plate marked
“GND” must face out.
9. Connect the driver output wire with xture wire as shown in
Fig. 2 making sure that all wire connectors (B1) are secured.
10. Place the xture over the mounting plate and secure with
mounting screws (D1).
11. Rotate the glass onto the lamp housing.
12. For slope ceiling application, rotate wire at the top of the
stem to ensure luminaries is aiming down (Fig. 3).
Fig.1
Mounting Plate
Ground Wire Screw
3 x 12” rods
Driver
Ground Wire
1 x 6” rod
Junction Box
C1
Swivel
Rod
Lamp Housing
Wire Connector
A1
Wire Connector
B1
Junction Box Screw
Canopy
Mounting Screw
D1
Fig. 2 Wiring Fig. 3
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Turn to down
Back Plate Dimensions
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Glass
1 3/4”
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Ø4 3/4”
1 1/2”
2
