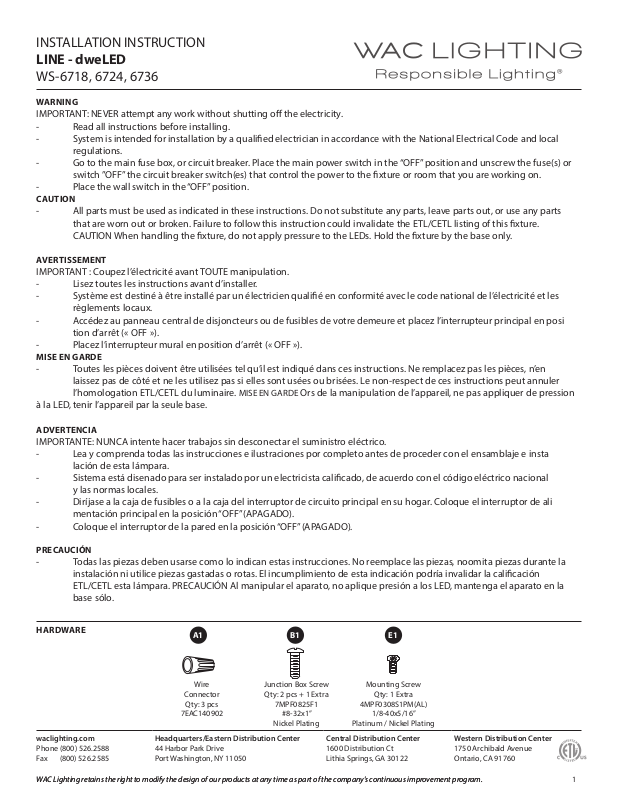

Page 1
INSTALLATION INSTRUCTION
LINE - dweLED
WS-6718, 6724, 6736
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en posi
tion d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.
HARDWARE
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
A1 B1
Wire
Connector
Qty: 3 pcs
7EAC140902
Junction Box Screw
Qty: 2 pcs + 1 Extra
7MPF0825F1
#8-32x1”
Nickel Plating
E1
Mounting Screw
Qty: 1 Extra
4MPF0308S1PM(AL)
1/8-40x5/16”
Platinum / Nickel Plating
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
Page 2
INSTALLATION INSTRUCTION
LINE - dweLED™
WS-6718, 6724, 6736
PREPARATION

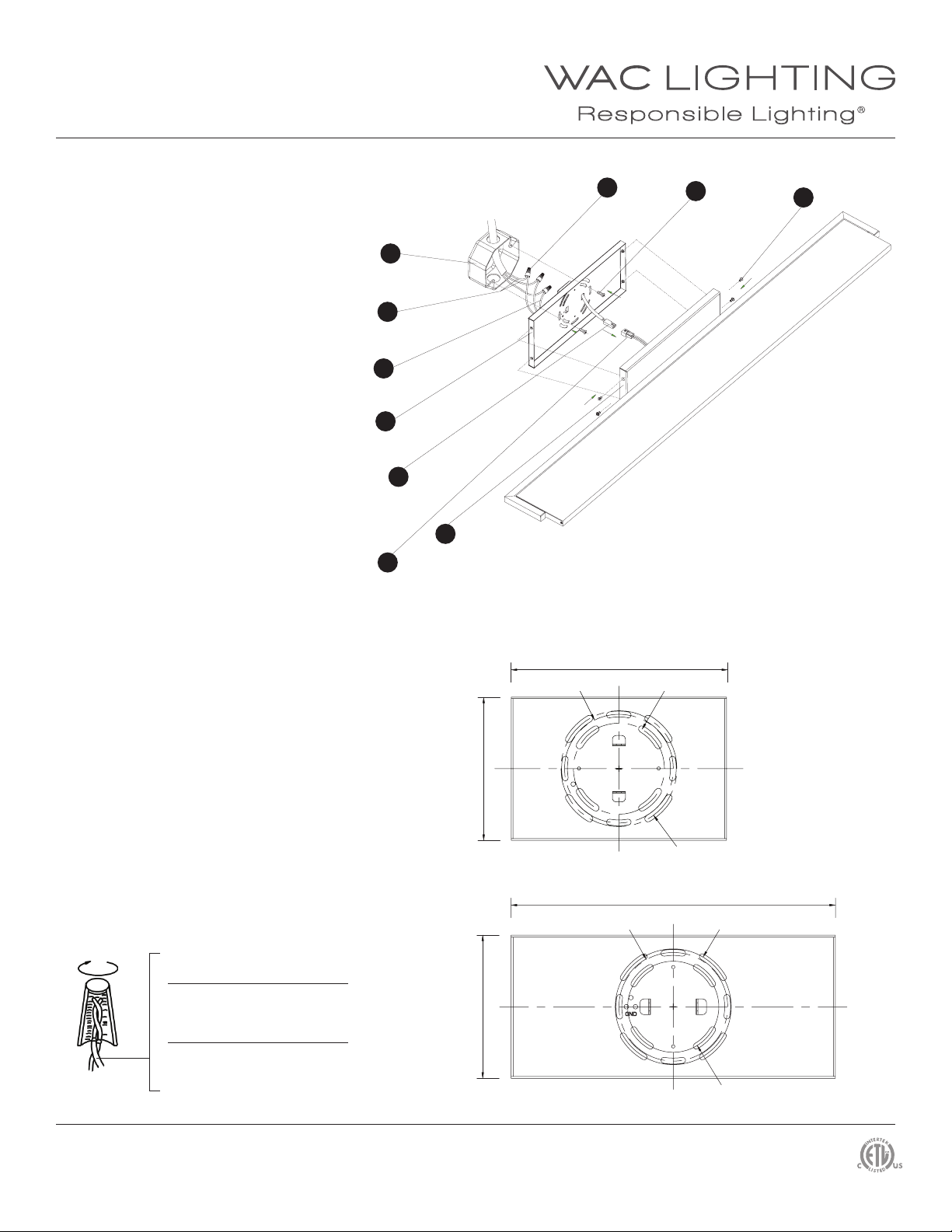

FIG.1
1. Shut o the power at the circuit breaker
and remove existing xture, including
the mounting hardware.
2. Carefully unpack your new xture and
lay out all the parts on a clear area.
Be careful not to lose any small parts
necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the assembly screws (E1)
from the xture frame (F1) and set aside
for re-assembling the xture.
4. Unplug the male end connector (C1)
J1
Junction
box
I1
Junction Box
wires
H1
End connector
G1
Fixture back
frame
from female end connector (D1).
CONNECTING THE WIRES (Fig. 2)
Male end
connector
5. Connect the junction box wires (I1) to
transformer input wires (H1) as shown in Fig. 2,
making sure that all wire connectors (A1)
D1
are secured. Fixture and junction box ground
wires should be connected to mounting plate
using green screw provided.
After wires are connected, tuck them
carefully inside the junction box.
6. Secure mounting back plate (G1) to the
junction box ( J1) using junction box screws (B1).
C1
Female end
connector
F1
Fixture
frame
Back Plate Dimensions
Wire
connectors
A1
6½”
Ø3⁄” Ø2¾”
Junction
box screws
B1
Screws
E1
*Requires Transformer to be recessed
within the junction box
7. Re-connect the xture’s female end connector (D1)
to the transformer’s male end connector (C1).
COMPLETING INSTALLATION (Fig. 1)
8. Place the xture (F1) over the mounting plate (G1)
and secure with screws (E1).
Fig.2 Wiring
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
4⁄”
WS-6718 / WS-6724
4⁄”
WS-6736
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Ø3⁄”
Ø3½”
9⁄”
Ø3½”
Ø2¾”
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
2
Page 3
INSTALLATION INSTRUCTION
LINE - dweLED
WS-6718, 6724, 6736
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en posi
tion d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.
HARDWARE
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
A1 B1
Wire
Connector
Qty: 3 pcs
7EAC140902
Junction Box Screw
Qty: 2 pcs + 1 Extra
7MPF0825F1
#8-32x1”
Nickel Plating
E1
Mounting Screw
Qty: 1 Extra
4MPF0308S1PM(AL)
1/8-40x5/16”
Platinum / Nickel Plating
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
3
Page 4
INSTALLATION INSTRUCTION
LINE - dweLED™
WS-6718, 6724, 6736

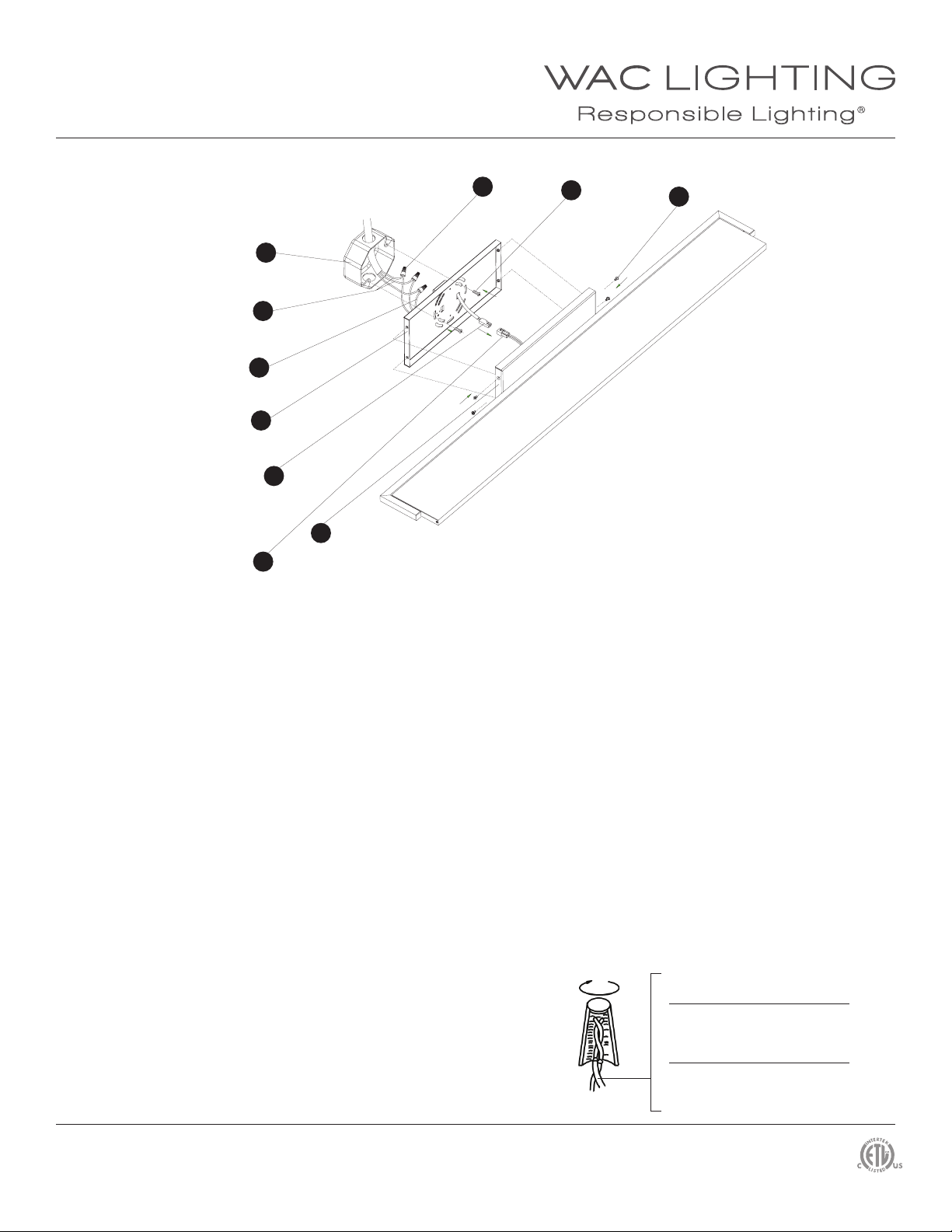

FIG.1
J1
Junction
box
I1
Junction Box
wires
H1
End connector
G1
Fixture back
frame
C1
Male end
connector
D1
Female end
connector
F1
Wire
connectors
A1
Fixture
frame
Junction
box screws
B1
Screws
E1
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the mounting hardware.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts
necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the assembly screws (E1) from the xture frame (F1) and set aside for re-assembling the xture.
4. Unplug the male end connector (C1) from female end connector (D1).
CONNECTING THE WIRES (Fig. 2)
5. Connect the junction box wires (I1) to transformer input wires (H1) as shown in Fig. 2, making sure that all wire connectors (A1)
are secured. Fixture and junction box ground wires should be connected to mounting plate using green screw provided.
After wires are connected, tuck them carefully inside the junction box.
6. Secure mounting back plate (G1) to the junction box (J1) using junction box screws (B1).
*Requires Transformer to be recessed within the junction box
7. Re-connect the xture’s female end connector (D1) to the transformer’s
male end connector (C1).
COMPLETING INSTALLATION (Fig. 1)
8. Place the xture (F1) over the mounting plate (G1) and secure
with screws (E1).
Fig.2 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
4
