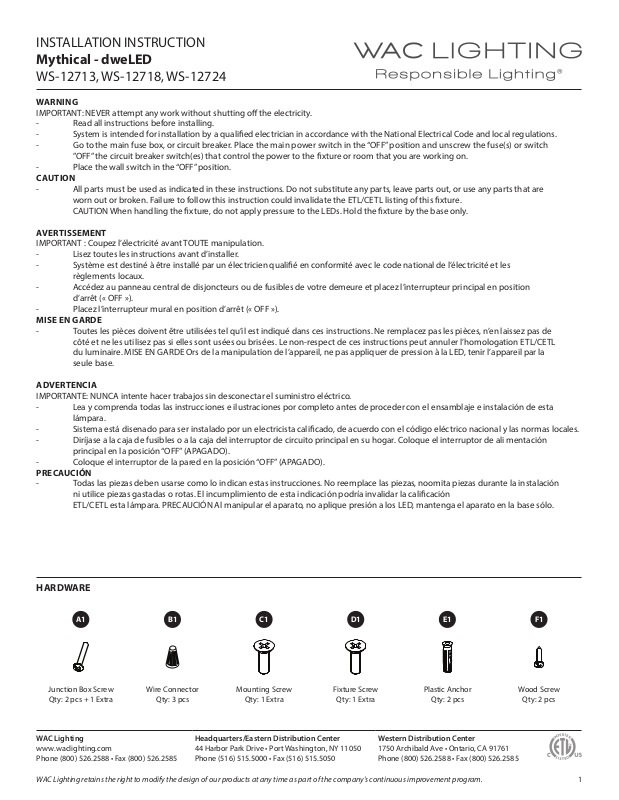

Page 1
INSTALLATION INSTRUCTION
Mythical - dweLED
WS-12713, WS-12718, WS-12724
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch
”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are
worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position
d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de
côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL
du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la
seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e instalación de esta
lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación
principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación
ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.

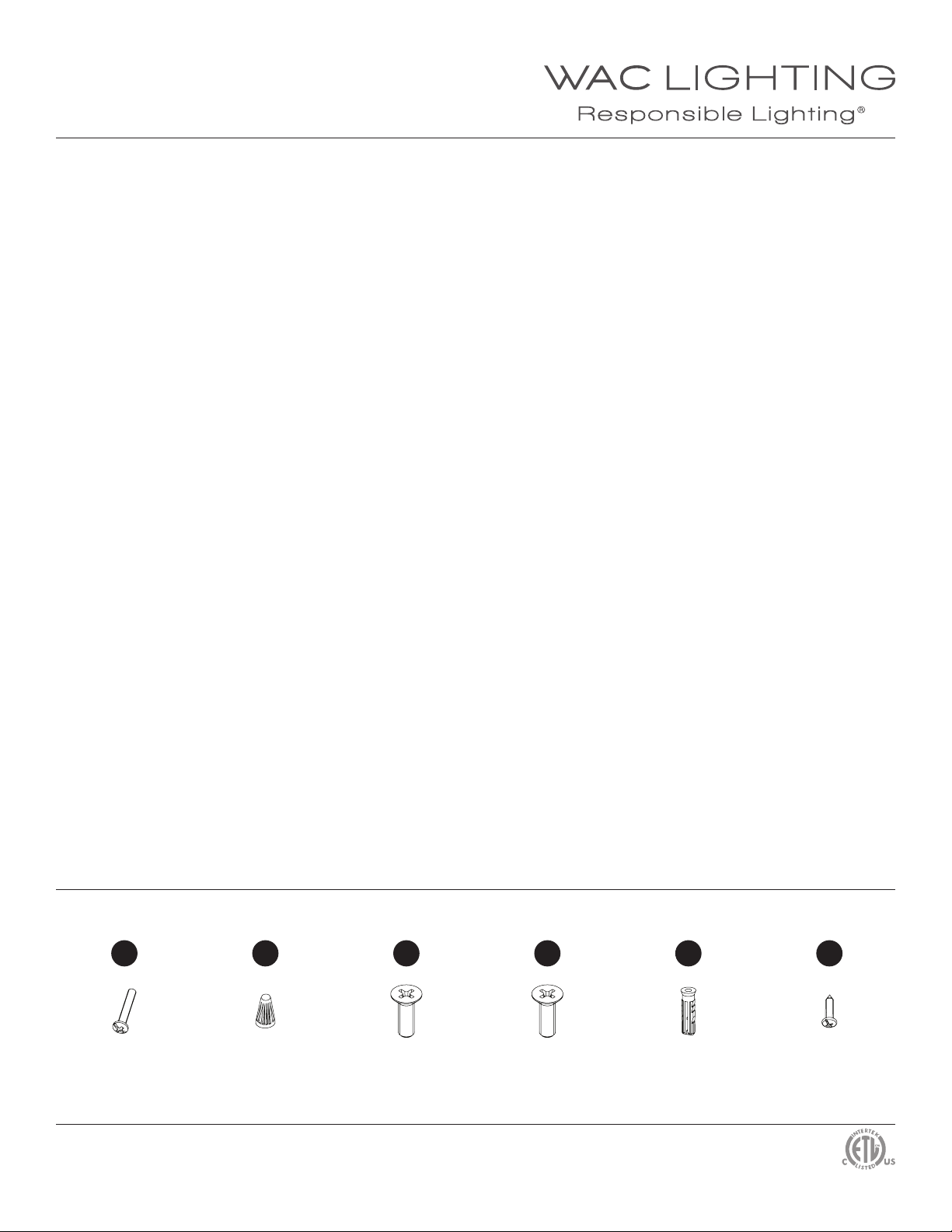

HARDWARE
A1
B1
C1
D1
E1
F1
Junction Box Screw
Qty: 2 pcs + 1 Extra
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Wire Connector
Qty: 3 pcs
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Mounting Screw
Qty: 1 Extra
Fixture Screw
Qty: 1 Extra
Plastic Anchor
Qty: 2 pcs
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Wood Screw
Qty: 2 pcs
1
Page 2
INSTALLATION INSTRUCTION
Mythical - dweLED
WS-12713, WS-12718, WS-12724
PREPARATION
1. Shut o the power at the circuit breaker and
remove existing xture, including the
mounting hardware.
2. Carefully unpack your new xture and lay out
all the parts on a clear area. Be careful not to
lose any small parts necessary for installation.

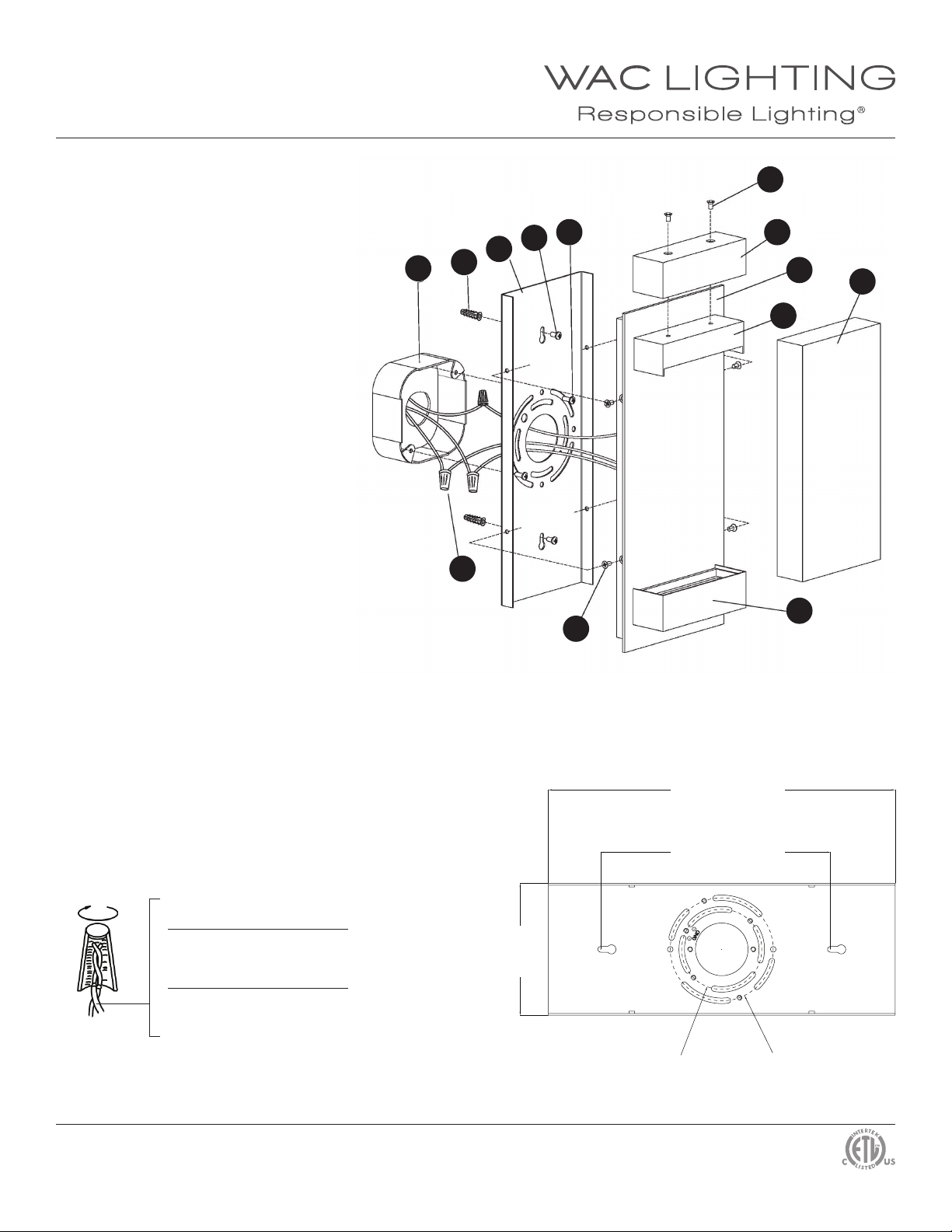

MOUNTING THE FIXTURE (Fig. 1)
3. Remove the moutning screws (C1) from the xture.
4. Carefully put the crystal (M1) into the
holder (L1) on xture (I1).
5. Place the end cover (J1) onto the holder (K1),
secure xture screws (D1).
6. Drill holes in the wall aligned with key-hole
location in the mounting plate (E1).
Insert the mounting anchors (G1).
7. Connect the xture to junction box wires as shown
in Fig. 2, making sure that all wire connectors (B1) are
secured. Fixture and junction box ground wires
should be connected to mounting plate using
green screw provided. After wires are connected,
tuck them carefully inside the junction box.
8. Secure the mounting plate (E1) to the junction
box (F1) using junction box screws (A1). The side of the
mounting plate marked “GND” must face out.
F1
Junction
box
Wire
connector
FIG.1
Mounting
plate
Mounting
anchor
G1
B1
E1
Wood
screw
H1
Mounting
screw
Junction
box screw
A1
C1
D1
J1
K1
Bottom
holder
Fixture
screw
End cover
Fixture
I1
Top
Holder
L1
Crystal
M1
9. Fasten the wood screws (H1) into the mounting anchors
(G1). Tighten the mounting plate (E1) on the wall.
MOUNTING THE FIXTURE (Fig. 1)
10. Place the xture (I1) over the mounting plate (E1)
and secure with screws (C1).
Fig.2 Wiring
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Back Plate Dimensions
WS-12713: 4 1/2"
WS-12718: 4 3/8"
WS-12724: 5 1/2"
WS-12713: 12"
WS-12718: 17"
WS-12724: 22 5/8"
WS-12713: 8"
WS-12718: 13"
WS-12724: 18 5/8"
Ø
2 3/4"
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Ø
3 1/2"
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
