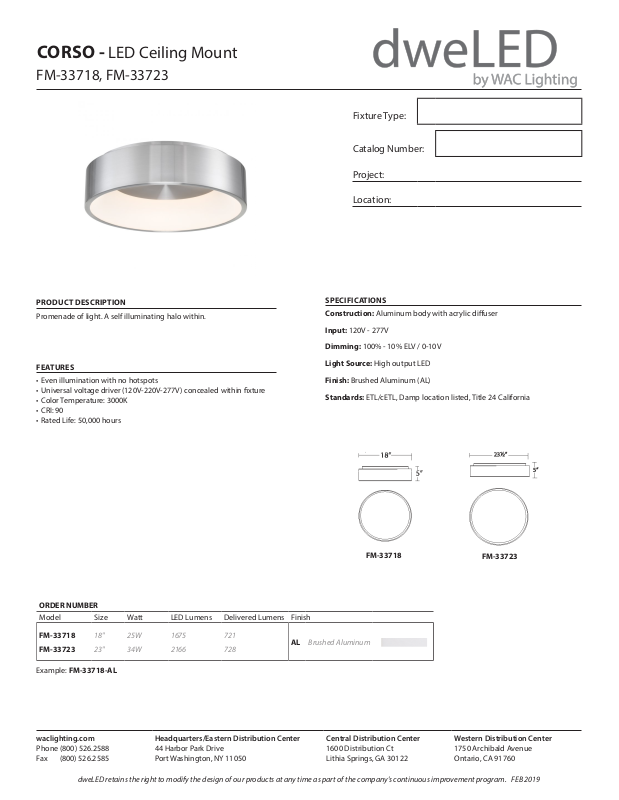

CORSO - LED Ceiling Mount
FM-33718, FM-33723
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Promenade of light. A self illuminating halo within.
FEATURES
• Even illumination with no hotspots
• Universal voltage driver (120V-220V-277V) concealed within xture
• Color Temperature: 3000K
• CRI: 90
• Rated Life: 50,000 hours
SPECIFICATIONS
Construction: Aluminum body with acrylic diuser
Input: 120V - 277V
Dimming: 100% - 10% ELV / 0-10V
Light Source: High output LED
Finish: Brushed Aluminum (AL)
Standards: ETL/cETL, Damp location listed, Title 24 California
FM-33718
FM-33723
ORDER NUMBER
Model Size Watt LED Lumens Delivered Lumens Finish
FM-33718
FM-33723
Example: FM-33718-AL
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
18"
23"
dweLED retains the right to modify the design of our products at any time as part of the company's continuous improvement program. FEb 2019
25W
34W
1675
2166
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
721
728
AL
brushed Aluminum
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
