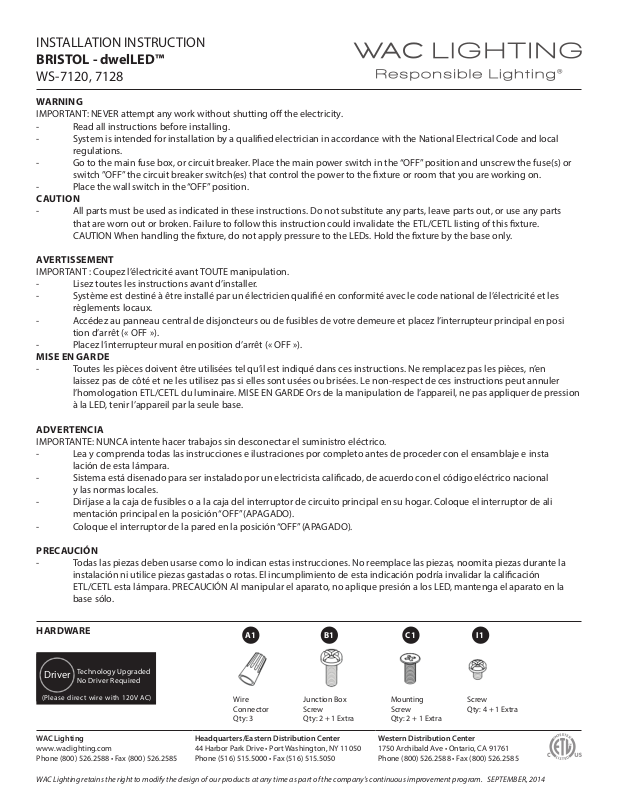

INSTALLATION INSTRUCTION
(Please direct wire with 120V AC)
BRISTOL - dwelLED™
WS-7120, 7128
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en posi
tion d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.
HARDWARE
Driver
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014
Technology Upgraded
No Driver Required
A1 B1 C1 I1
Wire
Connector
Qty: 3
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Junction Box
Screw
Qty: 2 + 1 Extra
Mounting
Screw
Qty: 2 + 1 Extra
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Screw
Qty: 4 + 1 Extra
Page 2
INSTALLATION INSTRUCTION
BRISTOL - dwelLED™
WS-7120, 7128
PREPARATION
1. Shut o the power at the circuit breaker
and remove existing xture, including
the mounting hardware.
2. Carefully unpack your new xture and lay out
all the parts on a clear area. Be careful not to lose
any small parts necessary for installation.
MOUNTING THE FIXTURE (Fig. 1)
3. Remove the mounting screws (C1)
from the xture.
4. Secure the end nial (H1) onto one of
the xture ends (G1) using screws (I1).
Slide the glass (J1) onto the xture. Secure
other end nal onto other end of the xture
5. Connect the xture wires to junction box wires as shown
in Fig. 2, making sure that all wire connectors (A1) are secured.
Fixture and junction box ground wires should be connected
to mounting plate using green screw provided.
After wires are connected, tuck them
carefully inside the junction box.
Junction box
Wire
connectos
Junction box
screws
Mounting
Plate
FIG.1
F1
A1
B1
D1
E1
Backplate
C1
Mounting
screws
6. Secure mounting plate (D1) to the junction box (F1)
using the junction box screws (B1).The side of the
mounting plate marked “GND” must face out.
COMPLETING INSTALLATION (Fig. 1)
7. Place the xture’s back plate (E1) over the mounting plate (D1)
and secure with mounting screws (C1).
100%10% DIMMING
COMPATIBLE WITH THE FOLLOWING ELECTRONIC
LOW VOLTAGE ELV DIMMERS
Brand Model
LUTRON SELV-300P
LUTRON DVELV-300P
LEVITON MLE03-1
Fig.2 Wiring
J1
Glass Fixture
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare wire
(Ground)
G1
end
H1
End nial Screws
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
I1
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
